SPECjbb2015 Report for jbb2015-20230906-01170 : 743435 max-jOPS ; 624702 critical-jOPS

SUT Description

Hardware hw_1
Name	ThinkSystem SR860 V3
Vendor	Lenovo Global Technology
Vendor URL	http://www.lenovo.com
Available	Jun-2023
Model	ThinkSystem SR860 V3
Form Factor	4U
CPU Name	Intel Xeon 8490H
CPU Characteristics	60 Core, 1.90 GHz, 112.5 MB L3 Cache (Turbo Boost Technology up to 3.50 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	4
Cores Per System	240
Cores Per Chip	60
Threads Per System	480
Threads Per Core	2
Version	RSE105E
CPU Frequency (MHz)	1900
Primary Cache	32 KB(I)+48 KB(D)on chip per core
Secondary Cache	2 MB I+D on chip per core
Tertiary Cache	112.5 MB I+D on chip per chip
Other Cache	None
Disk	1 x 800 GB NVME SSD
File System	XFS
Memory Amount (GB)	2048
# and size of DIMM(s)	32 x 64 GB
Memory Details	64 GB 2Rx4 PC5-4800B-R
# and type of Network Interface Cards (NICs)	1 x 10/25 GbE PCIE NIC
Power Supply Quantity and Rating (W)	2 x 2400W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP4
Vendor	SUSE
Vendor URL	http://suse.com/
Version	5.14.21-150400.22-default
Available	Jun-2022
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 17.0.8
Vendor	Oracle Corporation
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-Bit Server VM, version 17.0.8
Available	Jul-2023
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Driver Description

Hardware hw_2
Name	ThinkSystem SR665 V3
Vendor	None
Vendor URL	None
Available	Aug-2023
Model	ThinkSystem SR665 V3
Form Factor	2U
CPU Name	AMD EPYC 9754
CPU Characteristics	128 core, 2.25GHz, 256MB L3 Cache (Max Boost Clock up to 3.10GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	256
Cores Per Chip	128
Threads Per System	512
Threads Per Core	2
Version	KAE111I
CPU Frequency (MHz)	2250
Primary Cache	32KB(I)+32KB(D) on chip per core
Secondary Cache	1MB (I+D) on chip per core
Tertiary Cache	256MB (I+D) on chip per chip
Other Cache	None
Disk	1 x 960GB SATA SSD
File System	XFS
Memory Amount (GB)	1536
# and size of DIMM(s)	24 x 64 GB
Memory Details	64 GB 2Rx4 PC5-4800B-R
# and type of Network Interface Cards (NICs)	1 x 10/25 GbE PCIE NIC
Power Supply Quantity and Rating (W)	1 x 1800W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	None
Other Hardware network_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_2
Name	SUSE Linux Enterprise Server 15 SP4
Vendor	SUSE
Vendor URL	http://suse.com/
Version	5.14.21-150400.22-default
Available	Jun-2022
Bitness	64
Notes	None
Java Virtual Machine jvm_2
Name	Oracle Java SE 17.0.8
Vendor	Oracle Corporation
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-Bit Server VM, version 17.0.8
Available	Jul-2023
Bitness	64
Notes	None
Other Software other_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Backend_1 : Backend
Driver
- Hardware config_2
  - OS Image os_Image_2
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Configuration: Operating Mode set to Maximum Performance and then set to Custom Mode C-state set to Legacy UPI Link Disable set to Disabled 1 Link SNC set to SNC2 LLC Prefetch set to Disabled
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Backend_1(16)
OS Image Description	os_1
Tuning	cpupower frequency-set -g performance tuned-adm profile throughput-performance echo 950000 > /proc/sys/kernel/sched_rt_runtime_us echo 20000000 > /proc/sys/kernel/sched_latency_ns echo 40000 > /proc/sys/kernel/sched_migration_cost_ns echo 200000 > /proc/sys/kernel/sched_min_granularity_ns echo 40000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 128 > /proc/sys/kernel/sched_nr_migrate echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo always > /sys/kernel/mm/transparent_hugepage/defrag echo always > /sys/kernel/mm/transparent_hugepage/enabled ulimit -n 1024000 UserTasksMax=970000 DefaultTasksMax=970000
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms120g -Xmx120g -Xmn110g -server -XX:MetaspaceSize=512m -XX:AllocatePrefetchInstr=2 -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseParallelGC -XX:SurvivorRatio=100 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=30 -XX:MaxTenuringThreshold=15 -XX:InitialCodeCacheSize=25m -XX:InlineSmallCode=10k -XX:MaxGCPauseMillis=200 -XX:+UseCompressedOops -XX:ObjectAlignmentInBytes=32 -XX:+UseTransparentHugePages -XX:TLABAllocationWeight=55 -XX:ThreadStackSize=512 -XX:CompileThresholdScaling=120 -XX:UseAVX=0
Tuning	Used numactl to affinitize two Backend JVM (2 Groups) to one NUMA node Group1: numactl --cpunodebind=0 --localalloc Group2: numactl --cpunodebind=0 --localalloc Group3: numactl --cpunodebind=1 --localalloc Group4: numactl --cpunodebind=1 --localalloc Group5: numactl --cpunodebind=2 --localalloc Group6: numactl --cpunodebind=2 --localalloc Group7: numactl --cpunodebind=3 --localalloc Group8: numactl --cpunodebind=3 --localalloc Group9: numactl --cpunodebind=4 --localalloc Group10: numactl --cpunodebind=4 --localalloc Group11: numactl --cpunodebind=5 --localalloc Group12: numactl --cpunodebind=5 --localalloc Group13: numactl --cpunodebind=6 --localalloc Group14: numactl --cpunodebind=6 --localalloc Group15: numactl --cpunodebind=7 --localalloc Group16: numactl --cpunodebind=7 --localalloc
Notes	None

Driver config_2 Configuration

Hardware
OS Images	os_Image_2(1)
Hardware Description	hw_2
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Configuration: Operating Mode set to Maximum Performance and then set to Custom Mode NUMA Nodes per Socket set to NPS2 L1 Stream HW Prefetcher set to Disabled L2 Stream HW Prefetcher set to Disabled
Notes	None

OS Image os_Image_2
JVM Instances	jvm_Ctr_1(1), jvm_TxInjector_1(16)
OS Image Description	os_2
Tuning	cpupower frequency-set -g performance tuned-adm profile throughput-performance echo 950000 > /proc/sys/kernel/sched_rt_runtime_us echo 20000000 > /proc/sys/kernel/sched_latency_ns echo 40000 > /proc/sys/kernel/sched_migration_cost_ns echo 200000 > /proc/sys/kernel/sched_min_granularity_ns echo 40000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 128 > /proc/sys/kernel/sched_nr_migrate echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo always > /sys/kernel/mm/transparent_hugepage/defrag echo always > /sys/kernel/mm/transparent_hugepage/enabled ulimit -n 1024000 UserTasksMax=970000 DefaultTasksMax=970000
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_2
Command Line	-Xms3g -Xmx3g -Xmn2g -XX:+UseParallelGC -XX:ParallelGCThreads=4 -XX:CICompilerCount=2
Tuning	numactl --interleave=all
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_2
Command Line	-Xms3g -Xmx3g -Xmn2g -XX:+UseParallelGC -XX:ParallelGCThreads=4 -XX:CICompilerCount=2
Tuning	Used numactl to affinitize four TxInjector JVM (4 Groups) to one NUMA node Group1: numactl --cpunodebind=0 --localalloc Group2: numactl --cpunodebind=0 --localalloc Group3: numactl --cpunodebind=0 --localalloc Group4: numactl --cpunodebind=0 --localalloc Group5: numactl --cpunodebind=1 --localalloc Group6: numactl --cpunodebind=1 --localalloc Group7: numactl --cpunodebind=1 --localalloc Group8: numactl --cpunodebind=1 --localalloc Group9: numactl --cpunodebind=2 --localalloc Group10: numactl --cpunodebind=2 --localalloc Group11: numactl --cpunodebind=2 --localalloc Group12: numactl --cpunodebind=2 --localalloc Group13: numactl --cpunodebind=3 --localalloc Group14: numactl --cpunodebind=3 --localalloc Group15: numactl --cpunodebind=3 --localalloc Group16: numactl --cpunodebind=3 --localalloc
Notes	None

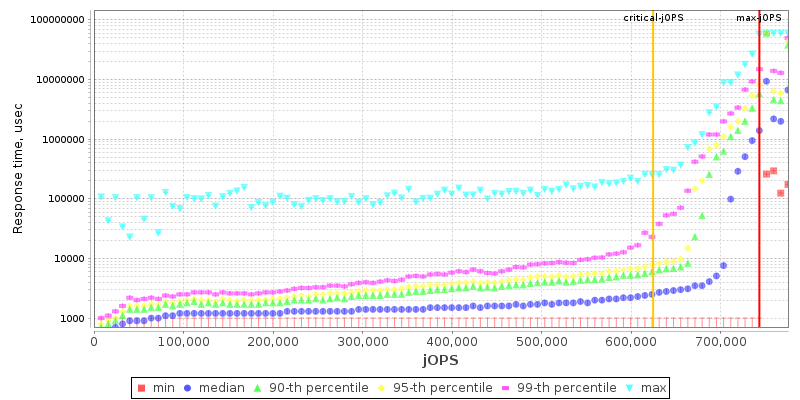

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	735442	743435	751429	759423	767417

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	555578	619530	635517	659499	659499	624702

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	23982 / 31976	7994 / 15988	- / 7994	- / 7994	- / 7994	- / 7994
1000us	615533 / 623527	71945 / 79939	23982 / 31976	23982 / 31976	7994 / 15988	- / 7994
5000us	711460 / 719454	687478 / 695472	583557 / 591551	535593 / 519605	367721 / 359727	- / 7994
10000us	719454 / 727448	703466 / 711460	663496 / 671490	655502 / 663496	551581 / 559575	- / 7994
25000us	719454 / 727448	703466 / 711460	671490 / 679484	663496 / 671490	623527 / 615533	39970 / 7994
50000us	719454 / 727448	703466 / 711460	671490 / 679484	663496 / 671490	631520 / 639514	71945 / 7994
75000us	719454 / 727448	703466 / 711460	679484 / 687478	663496 / 671490	655502 / 663496	231824 / 7994
100000us	727448 / 735442	711460 / 719454	679484 / 687478	663496 / 671490	655502 / 663496	439666 / 7994
200000us	727448 / 735442	711460 / 719454	679484 / 687478	671490 / 679484	663496 / 671490	607539 / 599545
500000us	735442 / 743435	719454 / 727448	687478 / 695472	679484 / 687478	671490 / 679484	655502 / 663496
1000000us	743435 / -	735442 / 743435	703466 / 711460	695472 / 703466	679484 / 687478	671490 / 679484

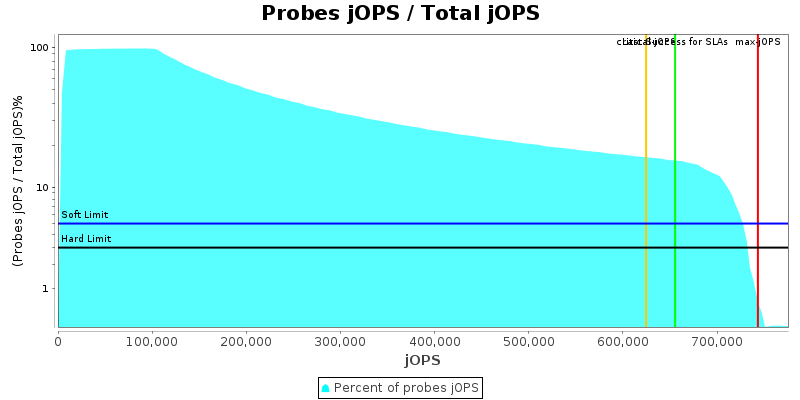

Number of probes

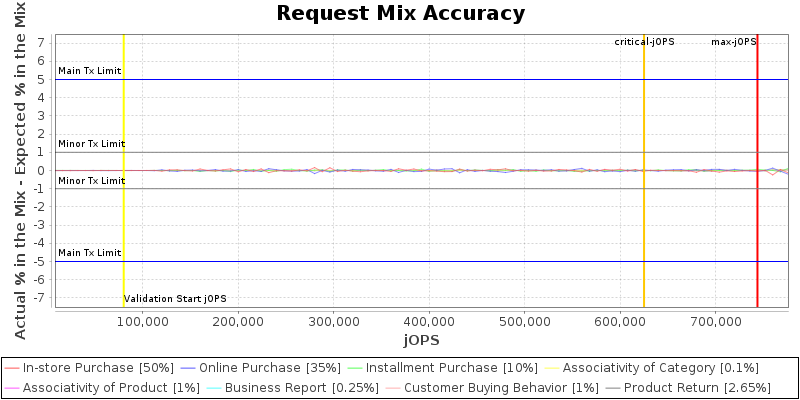

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

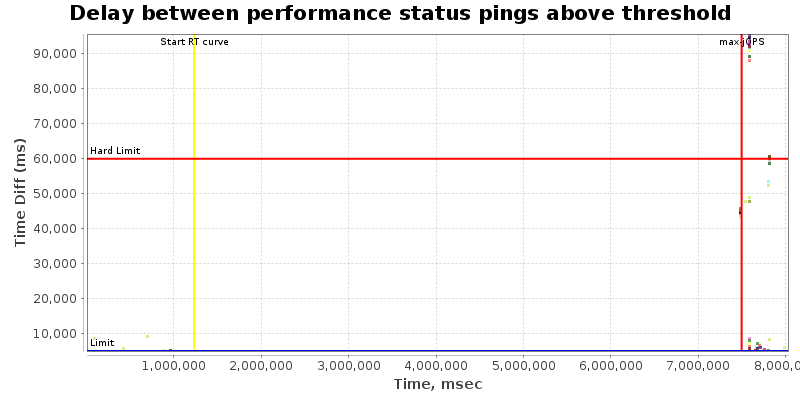

Delay between performance status pings during RT Curve (Response-Throughput Curve)

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group1.TxInjector.txiJVM1	Group10.Backend.beJVM	Group10.TxInjector.txiJVM1	Group11.Backend.beJVM	Group11.TxInjector.txiJVM1	Group12.Backend.beJVM	Group12.TxInjector.txiJVM1	Group13.Backend.beJVM	Group13.TxInjector.txiJVM1	Group14.Backend.beJVM	Group14.TxInjector.txiJVM1	Group15.Backend.beJVM	Group15.TxInjector.txiJVM1	Group16.Backend.beJVM	Group16.TxInjector.txiJVM1	Group2.Backend.beJVM	Group2.TxInjector.txiJVM1	Group3.Backend.beJVM	Group3.TxInjector.txiJVM1	Group4.Backend.beJVM	Group4.TxInjector.txiJVM1	Group5.Backend.beJVM	Group5.TxInjector.txiJVM1	Group6.Backend.beJVM	Group6.TxInjector.txiJVM1	Group7.Backend.beJVM	Group7.TxInjector.txiJVM1	Group8.Backend.beJVM	Group8.TxInjector.txiJVM1	Group9.Backend.beJVM	Group9.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size	256	256	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150
specjbb.comm.connect.selector.runner.count	0	16	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8
specjbb.comm.connect.worker.pool.max	256	256	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150
specjbb.comm.connect.worker.pool.min	1	1	24	4	24	4	24	4	24	4	24	4	24	4	24	4	24	4	24	4	24	4	24	4	24	4	24	4	24	4	24	4	24	4
specjbb.controller.handshake.period	5000	20000
specjbb.controller.handshake.timeout	600000	900000
specjbb.controller.host	localhost	192.168.10.102		localhost		localhost		localhost		localhost		localhost		localhost		localhost		localhost		localhost		localhost		localhost		localhost		localhost		localhost		localhost		localhost
specjbb.forkjoin.workers	384	{Tier1=96, Tier2=1, Tier3=15}
specjbb.group.count	1	16
specjbb.heartbeat.period	10000	2000
specjbb.heartbeat.threshold	100000	9000000
specjbb.mapreducer.pool.size	384	64
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 799393 IR

High-bound (settled) is 793477 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Lenovo Global Technology ThinkSystem SR860 V3	743435 SPECjbb2015-Distributed max-jOPS 624702 SPECjbb2015-Distributed critical-jOPS
Tested by: Lenovo Global Technology	Test Sponsor: Lenovo Global Technology	Test location: Beijing, China	Test date: Sep 6, 2023
SPEC license #: 9017	Hardware Availability: Jun-2023	Software Availability: Jul-2023	Publication: Tue Sep 26 12:30:28 EDT 2023
