Dell Inc. PowerEdge R7615 366259 SPECjbb2015-Distributed max-jOPS
344824 SPECjbb2015-Distributed critical-jOPS
Tested by: Dell Inc. Test Sponsor: Dell Inc. Test location: Round Rock, TX Test date: June 25,2023
SPEC license #: 6573 Hardware Availability: Jul-2023 Software Availability: Apr-2023 Publication: Thu Jul 13 12:58:02 EDT 2023
Benchmark Results Summary

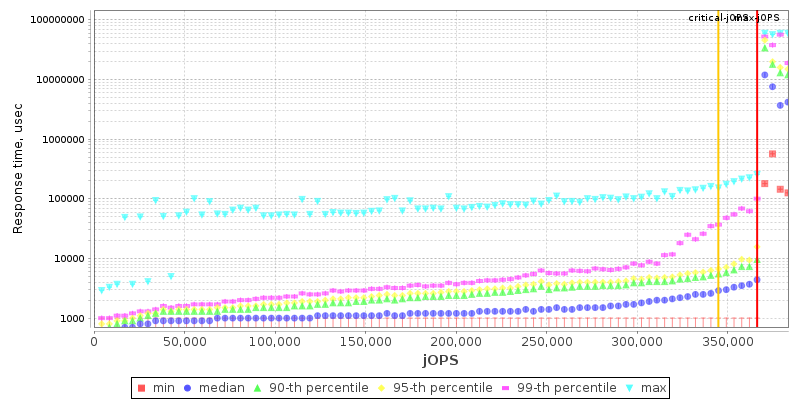

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorDell Inc.
Vendor URLhttp://www.dell.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips1
Total Cores96
Total Threads192
Total Memory Amount (GB)768
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameDell Inc. PowerEdge R7615
VendorDell Inc.
Vendor URLhttp://www.dell.com/
AvailableJul-2023
ModelPowerEdge R7615
Form Factor2U Rack
CPU NameAMD EPYC 9684X
CPU Characteristics96 core, 2.55 GHz, 1152 MB L3 Cache (Max. Boost Clock up to 3.70 GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System96
Cores Per Chip96
Threads Per System192
Threads Per Core2
Version1.4.1
CPU Frequency (MHz)2550
Primary Cache32 KB (I) + 32 KB (D) per core
Secondary Cache1 MB (I+D) per core
Tertiary Cache1152 MB (I+D) on chip per chip
Other CacheNone
Disk1 x Dell Ent NVMe U.2 6.4TB
File Systemxfs
Memory Amount (GB)768
# and size of DIMM(s)12 x 64 GB
Memory Details64 GB RDIMM 2Rx4 PC5-4800B-R (slots A1-12 populated)
# and type of Network Interface Cards (NICs)1 x Broadcom NetXtreme BCM5720 Gigabit Ethernet PCIe 1Gb/s Dual Port
Power Supply Quantity and Rating (W)1 x 1400
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP4
VendorSUSE
Vendor URLhttp://www.suse.com/
Version5.14.21-150400.22-default
AvailableJun-2022
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 17.0.7
VendorOracle
Vendor URLhttp://www.oracle.com/
VersionJava HotSpot 64-bit Server VM, version 17.0.7
AvailableApr-2023
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware hw_2
NameDell Inc. PowerEdge R7615
VendorDell Inc.
Vendor URLhttp://www.dell.com/
AvailableJul-2023
ModelPowerEdge R7615
Form Factor2U Rack
CPU NameAMD EPYC 9684X
CPU Characteristics96 core, 2.55 GHz, 1152 MB L3 Cache (Max. Boost Clock up to 3.70 GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System96
Cores Per Chip96
Threads Per System192
Threads Per Core2
Version1.4.1
CPU Frequency (MHz)2550
Primary Cache32 KB (I) + 32 KB (D) per core
Secondary Cache1 MB (I+D) per core
Tertiary Cache1152 MB (I+D) on chip per chip
Other CacheNone
Disk1 x Dell Ent NVMe U.2 6.4TB
File Systemxfs
Memory Amount (GB)768
# and size of DIMM(s)12 x 64 GB
Memory Details64 GB RDIMM 2Rx4 PC5-4800B-R (slots A1-12 populated)
# and type of Network Interface Cards (NICs)1 x Broadcom NetXtreme BCM5720 Gigabit Ethernet PCIe 1Gb/s Dual Port
Power Supply Quantity and Rating (W)1 x 1400
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_2
NameSUSE Linux Enterprise Server 15 SP4
VendorSUSE
Vendor URLhttp://www.suse.com/
Version5.14.21-150400.22-default
AvailableJun-2022
Bitness64
NotesNone
Java Virtual Machine jvm_2
NameOracle Java SE 17.0.7
VendorOracle
Vendor URLhttp://www.oracle.com/
VersionJava HotSpot 64-bit Server VM, version 17.0.7
AvailableApr-2023
Bitness64
NotesNone
Other Software other_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning
  • Logical Processor : Enabled
  • L1 Stream HW Prefetcher : Disabled
  • L2 Stream HW Prefetcher : Disabled
  • MADT Core Enumeration : Linear
  • NUMA Nodes Per Socket : 2
  • L3 cache as NUMA Domain : Disabled
  • System Profile : Custom
  • Determinism Slider : Power Determinism
  • Algorithm Performance Boost Disable (ApbDis) : Enabled
  • ApbDis Fixed Socket P-State : P0
Notes None
OS Image os_Image_1
JVM Instances jvm_Backend_1(6)
OS Image Description os_1
Tuning
  • echo 950000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 150000000 > /proc/sys/kernel/sched_latency_ns
  • echo 80000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 700000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 300000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 32 > /proc/sys/kernel/sched_nr_migrate
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo 0 > /proc/sys/vm/numa_stat
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
  • ulimit -n 1024000
  • UserTasksMax=970000
  • DefaultTasksMax=970000
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -Xms120g -Xmx120g -Xmn118g -server -XX:MetaspaceSize=256m -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:+UseParallelGC -XX:SurvivorRatio=90 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=32 -XX:MaxTenuringThreshold=15 -XX:InitialCodeCacheSize=25m -XX:InlineSmallCode=10k -XX:MaxGCPauseMillis=200 -XX:+UseCompressedOops -XX:ObjectAlignmentInBytes=32 -XX:+UseTransparentHugePages -XX:TLABAllocationWeight=55 -XX:ThreadStackSize=512 -XX:CompileThresholdScaling=120
Tuning Used numactl to affinitize three Backend JVM (3 Groups) to one NUMA node
  • Group1: numactl --cpunodebind=0 --localalloc
  • Group2: numactl --cpunodebind=0 --localalloc
  • Group3: numactl --cpunodebind=0 --localalloc
  • Group4: numactl --cpunodebind=1 --localalloc
  • Group5: numactl --cpunodebind=1 --localalloc
  • Group6: numactl --cpunodebind=1 --localalloc
Notes None
Hardware
OS Images os_Image_2(1)
Hardware Description hw_2
Number of Systems 1
SW Environment Non-virtual
Tuning
  • Logical Processor : Enabled
  • L1 Stream HW Prefetcher : Disabled
  • L2 Stream HW Prefetcher : Disabled
  • MADT Core Enumeration : Linear
  • NUMA Nodes Per Socket : 2
  • L3 cache as NUMA Domain : Disabled
  • System Profile : Custom
  • Determinism Slider : Power Determinism
  • Algorithm Performance Boost Disable (ApbDis) : Enabled
  • ApbDis Fixed Socket P-State : P0
Notes None
OS Image os_Image_2
JVM Instances jvm_Ctr_1(1), jvm_TxInjector_1(6)
OS Image Description os_2
Tuning
  • echo 950000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 150000000 > /proc/sys/kernel/sched_latency_ns
  • echo 80000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 700000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 300000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 32 > /proc/sys/kernel/sched_nr_migrate
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo 0 > /proc/sys/vm/numa_stat
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
  • ulimit -n 1024000
  • UserTasksMax=970000
  • DefaultTasksMax=970000
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_2
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4
Tuning Used numactl to interleave memory on all CPUs
  • numactl --interleave=all
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_2
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4
Tuning Used numactl to affinitize three Transaction Injector JVM (3 Groups) to one NUMA node
  • Group1: numactl --cpunodebind=0 --localalloc
  • Group2: numactl --cpunodebind=0 --localalloc
  • Group3: numactl --cpunodebind=0 --localalloc
  • Group4: numactl --cpunodebind=1 --localalloc
  • Group5: numactl --cpunodebind=1 --localalloc
  • Group6: numactl --cpunodebind=1 --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 362000 366259 370517 374776 379035
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 313023 334317 351352 364129 364129 344824
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 25553 / 29812 4259 / 8518 - / 4259 - / 4259 - / 4259 - / 4259
1000us 340706 / 344964 119247 / 123506 25553 / 29812 21294 / 25553 8518 / 12776 - / 4259
5000us 366259 / - 366259 / - 336447 / 340706 319411 / 323670 234235 / 238494 42588 / 17035
10000us 366259 / - 366259 / - 366259 / - 362000 / 366259 310894 / 315153 42588 / 17035
25000us 366259 / - 366259 / - 366259 / - 366259 / - 332188 / 336447 42588 / 17035
50000us 366259 / - 366259 / - 366259 / - 366259 / - 349223 / 353482 42588 / 34071
75000us 366259 / - 366259 / - 366259 / - 366259 / - 362000 / 366259 217200 / 34071
100000us 366259 / - 366259 / - 366259 / - 366259 / - 362000 / 366259 289600 / 55365
200000us 366259 / - 366259 / - 366259 / - 366259 / - 366259 / - 353482 / 357741
500000us 366259 / - 366259 / - 366259 / - 366259 / - 366259 / - 366259 / -
1000000us 366259 / - 366259 / - 366259 / - 366259 / - 366259 / - 366259 / -

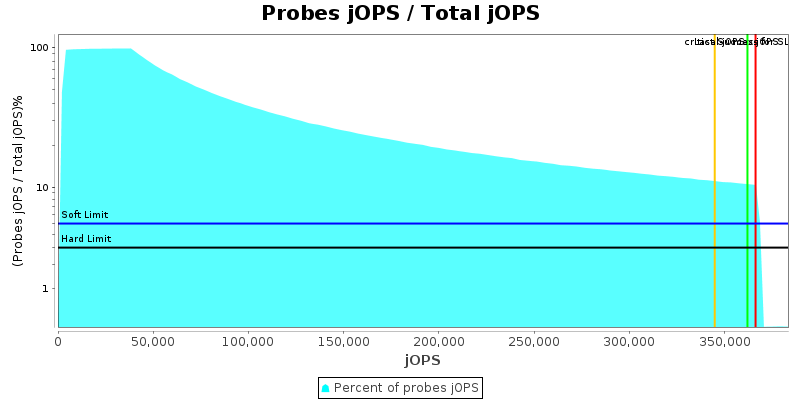

Probes jOPS / Total jOPS

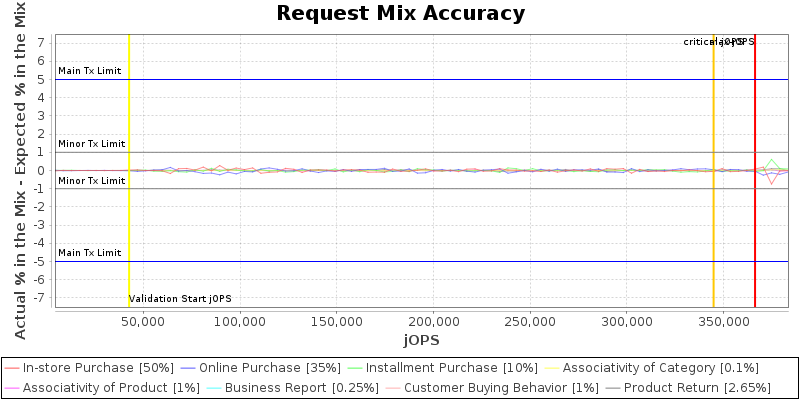

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

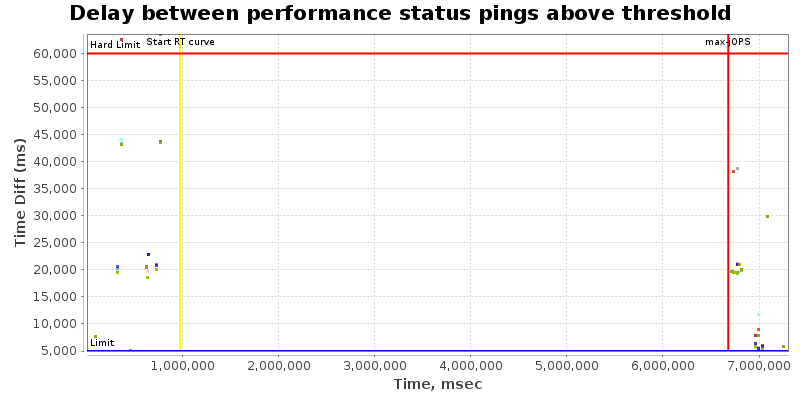

Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller Group1.Backend.beJVM Group1.TxInjector.txiJVM1 Group2.Backend.beJVM Group2.TxInjector.txiJVM1 Group3.Backend.beJVM Group3.TxInjector.txiJVM1 Group4.Backend.beJVM Group4.TxInjector.txiJVM1 Group5.Backend.beJVM Group5.TxInjector.txiJVM1 Group6.Backend.beJVM Group6.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size 256 256 150 120 150 120 150 120 150 120 150 120 150 120
specjbb.comm.connect.selector.runner.count 0 8 4 4 4 4 4 4 4 4 4 4 4 4
specjbb.comm.connect.worker.pool.max 256 256 150 120 150 120 150 120 150 120 150 120 150 120
specjbb.comm.connect.worker.pool.min 1 1 24 24 24 24 24 24 24 24 24 24 24 24
specjbb.controller.handshake.period 5000 20000
specjbb.controller.handshake.timeout 600000 900000
specjbb.controller.host localhost 127.0.0.1
specjbb.forkjoin.workers 192 {Tier1=100, Tier2=1, Tier3=10}
specjbb.group.count 1 6
specjbb.heartbeat.period 10000 2000
specjbb.heartbeat.threshold 100000 9000000
specjbb.mapreducer.pool.size 192 16
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 425882 IR
High-bound (settled) is 388125 IR
