SPECjbb2015 Report for jbb2015-20230531-01107 : 664375 max-jOPS ; 633447 critical-jOPS

SUT Description

Hardware hw_1
Name	Dell Inc. PowerEdge R7625
Vendor	Dell Inc.
Vendor URL	http://www.dell.com/
Available	Jul-2023
Model	PowerEdge R7625
Form Factor	2U Rack
CPU Name	AMD EPYC 9754
CPU Characteristics	128 core, 2.25 GHz, 256 MB L3 Cache (Max. Boost Clock up to 3.10 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	256
Cores Per Chip	128
Threads Per System	512
Threads Per Core	2
Version	1.4.0
CPU Frequency (MHz)	2250
Primary Cache	32 KB (I) + 32 KB (D) per core
Secondary Cache	1 MB (I+D) per core
Tertiary Cache	256 MB (I+D) on chip per chip
Other Cache	None
Disk	1 x Dell Ent NVMe U.2 6.4TB
File System	xfs
Memory Amount (GB)	1536
# and size of DIMM(s)	24 x 64 GB
Memory Details	64 GB RDIMM 2Rx4 PC5-4800B-R (slots A1-12, B1-12 populated)
# and type of Network Interface Cards (NICs)	1 x Broadcom NetXtreme BCM5720 Gigabit Ethernet PCIe 1Gb/s Dual Port
Power Supply Quantity and Rating (W)	1 x 2400
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP4
Vendor	SUSE
Vendor URL	http://www.suse.com/
Version	5.14.21-150400.22-default
Available	Jun-2022
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 17.0.7
Vendor	Oracle
Vendor URL	http://www.oracle.com/
Version	Java HotSpot 64-bit Server VM, version 17.0.7
Available	Apr-2023
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	Logical Processor : Enabled L1 Stream HW Prefetcher : Disabled L2 Stream HW Prefetcher : Disabled MADT Core Enumeration : Linear NUMA Nodes Per Socket : 2 L3 cache as NUMA Domain : Disabled System Profile : Custom Determinism Slider : Power Determinism Algorithm Performance Boost Disable (ApbDis) : Enabled ApbDis Fixed Socket P-State : P0
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(12), jvm_TxInjector_1(12)
OS Image Description	os_1
Tuning	echo 950000 > /proc/sys/kernel/sched_rt_runtime_us echo 100000000 > /proc/sys/kernel/sched_latency_ns echo 80000 > /proc/sys/kernel/sched_migration_cost_ns echo 300000 > /proc/sys/kernel/sched_min_granularity_ns echo 300000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 32 > /proc/sys/kernel/sched_nr_migrate echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo 0 > /proc/sys/vm/numa_stat echo always > /sys/kernel/mm/transparent_hugepage/enabled echo always > /sys/kernel/mm/transparent_hugepage/defrag
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4
Tuning	Used numactl to interleave memory on all CPUs numactl --interleave=all
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms120g -Xmx120g -Xmn118g -server -XX:MetaspaceSize=256m -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:+UseParallelGC -XX:SurvivorRatio=100 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=50 -XX:MaxTenuringThreshold=15 -XX:InitialCodeCacheSize=25m -XX:InlineSmallCode=10k -XX:MaxGCPauseMillis=200 -XX:+UseCompressedOops -XX:ObjectAlignmentInBytes=32 -XX:+UseTransparentHugePages -XX:TLABAllocationWeight=55 -XX:ThreadStackSize=512 -XX:CompileThresholdScaling=120
Tuning	Used numactl to affinitize three Backend JVM (3 Groups) to one NUMA node Group1: numactl --cpunodebind=0 --localalloc Group2: numactl --cpunodebind=0 --localalloc Group3: numactl --cpunodebind=0 --localalloc Group4: numactl --cpunodebind=1 --localalloc Group5: numactl --cpunodebind=1 --localalloc Group6: numactl --cpunodebind=1 --localalloc Group7: numactl --cpunodebind=2 --localalloc Group8: numactl --cpunodebind=2 --localalloc Group9: numactl --cpunodebind=2 --localalloc Group10: numactl --cpunodebind=3 --localalloc Group11: numactl --cpunodebind=3 --localalloc Group12: numactl --cpunodebind=3 --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4
Tuning	Used numactl to affinitize three Transaction Injector JVM (3 Groups) to one NUMA node Group1: numactl --cpunodebind=0 --localalloc Group2: numactl --cpunodebind=0 --localalloc Group3: numactl --cpunodebind=0 --localalloc Group4: numactl --cpunodebind=1 --localalloc Group5: numactl --cpunodebind=1 --localalloc Group6: numactl --cpunodebind=1 --localalloc Group7: numactl --cpunodebind=2 --localalloc Group8: numactl --cpunodebind=2 --localalloc Group9: numactl --cpunodebind=2 --localalloc Group10: numactl --cpunodebind=3 --localalloc Group11: numactl --cpunodebind=3 --localalloc Group12: numactl --cpunodebind=3 --localalloc
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	655857	664375	672893	681410	689928

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	566422	626046	651598	664375	664375	633447

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	- / 8518	- / 8518	- / 8518	- / 8518	- / 8518	- / 8518
1000us	536611 / 545128	51106 / 59623	25553 / 34071	8518 / 17035	- / 8518	- / 8518
5000us	664375 / -	664375 / -	596234 / 604752	553646 / 562164	417364 / 425881	- / 8518
10000us	664375 / -	664375 / -	664375 / -	647340 / 655857	562164 / 570681	85176 / 34071
25000us	664375 / -	664375 / -	664375 / -	664375 / -	621787 / 630305	85176 / 34071
50000us	664375 / -	664375 / -	664375 / -	664375 / -	647340 / 655857	136282 / 51106
75000us	664375 / -	664375 / -	664375 / -	664375 / -	664375 / -	374776 / 144800
100000us	664375 / -	664375 / -	664375 / -	664375 / -	664375 / -	494023 / 357740
200000us	664375 / -	664375 / -	664375 / -	664375 / -	664375 / -	647340 / 621787
500000us	664375 / -	664375 / -	664375 / -	664375 / -	664375 / -	664375 / -
1000000us	664375 / -	664375 / -	664375 / -	664375 / -	664375 / -	664375 / -

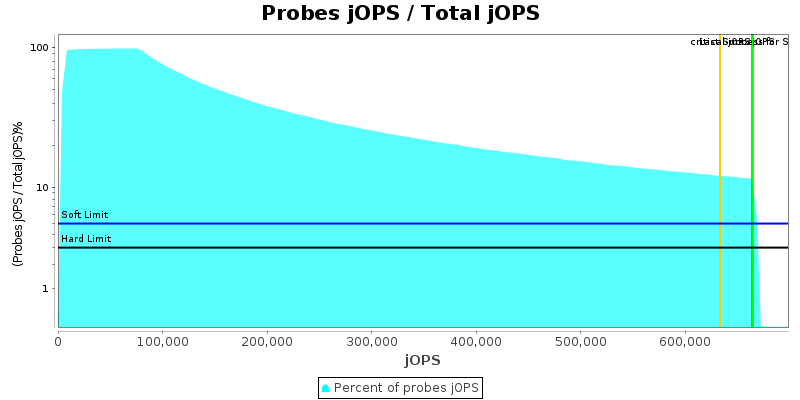

Number of probes

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

Delay between performance status pings during RT Curve (Response-Throughput Curve)

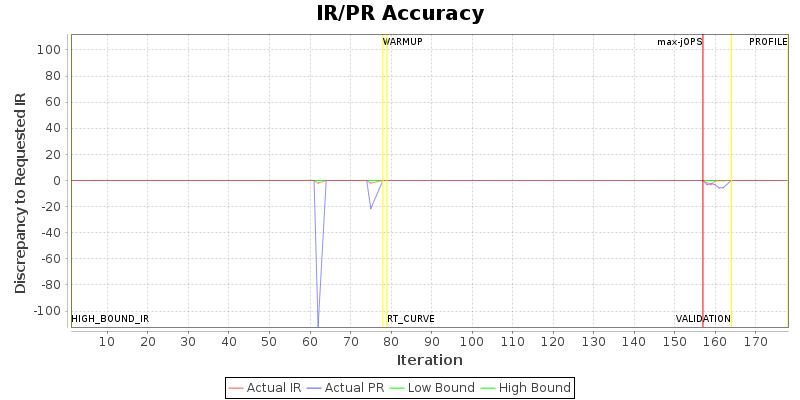

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group1.TxInjector.txiJVM1	Group10.Backend.beJVM	Group10.TxInjector.txiJVM1	Group11.Backend.beJVM	Group11.TxInjector.txiJVM1	Group12.Backend.beJVM	Group12.TxInjector.txiJVM1	Group2.Backend.beJVM	Group2.TxInjector.txiJVM1	Group3.Backend.beJVM	Group3.TxInjector.txiJVM1	Group4.Backend.beJVM	Group4.TxInjector.txiJVM1	Group5.Backend.beJVM	Group5.TxInjector.txiJVM1	Group6.Backend.beJVM	Group6.TxInjector.txiJVM1	Group7.Backend.beJVM	Group7.TxInjector.txiJVM1	Group8.Backend.beJVM	Group8.TxInjector.txiJVM1	Group9.Backend.beJVM	Group9.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size	256	256	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120
specjbb.comm.connect.selector.runner.count	0	4	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
specjbb.comm.connect.worker.pool.max	256	256	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120
specjbb.comm.connect.worker.pool.min	1	1	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24
specjbb.controller.handshake.period	5000	20000
specjbb.controller.handshake.timeout	600000	900000
specjbb.forkjoin.workers	512	{Tier1=127, Tier2=1, Tier3=8}
specjbb.group.count	1	12
specjbb.heartbeat.period	10000	2000
specjbb.heartbeat.threshold	100000	9000000
specjbb.mapreducer.pool.size	512	6
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 851763 IR

High-bound (settled) is 710003 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Dell Inc. PowerEdge R7625	664375 SPECjbb2015-MultiJVM max-jOPS 633447 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Dell Inc.	Test Sponsor: Dell Inc.	Test location: Round Rock, TX	Test date: May 28,2023
SPEC license #: 6573	Hardware Availability: Jul-2023	Software Availability: Apr-2023	Publication: Thu Jun 15 12:31:48 EDT 2023

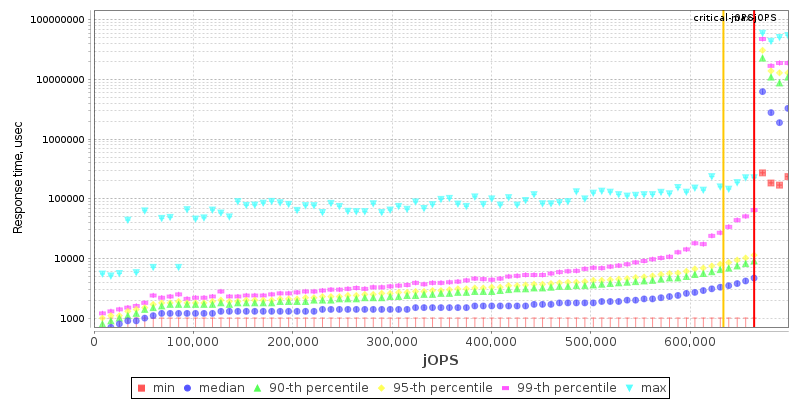

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host (# of groups: 12) Overall SUT Description SUT Description max-jOPS and critical-jOPS Details Number of probes Request Mix Accuracy Rate Of Non-Critical Failures Delay between performance status pings IR/PR Accuracy Topology SUT Configuration Properties Validation Details Link to Full Disclosure	Overall Throughput RT curve
