SPECjbb2015 Report for jbb2015-20230517-01049 : 439068 max-jOPS ; 184587 critical-jOPS

SUT Description

Hardware hw_1
Name	ProLiant DL325 Gen11
Vendor	Hewlett Packard Enterprise
Vendor URL	http://hpe.com/
Available	Jun-2023
Model	ProLiant DL325 Gen11
Form Factor	1U Rack
CPU Name	AMD EPYC 9754
CPU Characteristics	128 Core, 2.25 GHz, 256 MB L3 Cache(Max. Boost Clock Up to 3.1 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	1
Cores Per System	128
Cores Per Chip	128
Threads Per System	256
Threads Per Core	2
Version	A56 v1.30 03/06/2023
CPU Frequency (MHz)	2250
Primary Cache	32 KB I + 32 KB D on chip per core
Secondary Cache	1024 KB I+D on chip per core
Tertiary Cache	256 MB (I+D) on chip per chip
Other Cache	None
Disk	1 x 480 GB NVMe SSD
File System	btrfs
Memory Amount (GB)	768
# and size of DIMM(s)	12 x 64 GB
Memory Details	64GB 2Rx4 PC5-38400R , running at 4800 MHz
# and type of Network Interface Cards (NICs)	HPE Ethernet 1Gb 4-port
Power Supply Quantity and Rating (W)	2 x 800
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP4
Vendor	SUSE
Vendor URL	http://suse.com/
Version	5.14.21-150400.22-default
Available	Jun-2022
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 17.0.7
Vendor	Oracle
Vendor URL	http://www.oracle.com/
Version	Java HotSpot 64-bit Server VM, version 17.0.7
Available	Apr-2023
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	Non-virtual
Tuning	Workload Profile=High Performance Compute(HPC) Thermal Configuration=Maximum Cooling Determinism Control=Manual Performance Determinism=Power Deterministic Memory Patrol Scrubbing=Disabled Numa Memory Domains Per Socket(NPS)=Four Memory Domains Per Socket Last-Level Cache(LLC) As NUMA Node=Enabled L1 Stream HW Prefetcher=Disabled L2 Stream HW Prefetcher=Disabled Minimum Processor Idle Power Core C-State=No C-states Package Power Limit=400
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(16), jvm_TxInjector_1(16)
OS Image Description	os_1
Tuning	ulimit -n 1024000 UserTasksMax=970000 DefaultTasksMax=970000 tuned-adm profile throughput-performance echo 960000 > /proc/sys/kernel/sched_rt_runtime_us echo 10000000 > /proc/sys/kernel/sched_latency_ns echo 40000 > /proc/sys/kernel/sched_migration_cost_ns echo 100000000 > /proc/sys/kernel/sched_min_granularity_ns echo 100000000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 9000 > /proc/sys/kernel/sched_nr_migrate echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo 0 > /proc/sys/vm/numa_stat echo always > /sys/kernel/mm/transparent_hugepage/enabled echo always > /sys/kernel/mm/transparent_hugepage/defrag
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-Xms8g -Xmx8g -Xmn6g -XX:+UseParallelGC -XX:ParallelGCThreads=1 -XX:CICompilerCount=2
Tuning	Used numactl to interleave memory on all CPUs numactl --interleave=all
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms31g -Xmx31g -Xmn29g -XX:AllocatePrefetchInstr=2 -XX:+UseParallelGC -XX:ParallelGCThreads=16 -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:SurvivorRatio=11 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=11k -XX:MaxGCPauseMillis=100 -XX:LoopUnrollLimit=200 -XX:+UseTransparentHugePages -XX:TLABAllocationWeight=2 -XX:ThreadStackSize=140 -XX:CompileThresholdScaling=120 -XX:CICompilerCount=4 -XX:AutoBoxCacheMax=32 -XX:OnStackReplacePercentage=100 -XX:TLABSize=1m -XX:MinTLABSize=1m -XX:-ResizeTLAB -XX:TLABWasteTargetPercent=1 -XX:TLABWasteIncrement=1 -XX:YoungPLABSize=1m -XX:OldPLABSize=1m
Tuning	Used numactl to affinitize each Backend JVM to 8 Core / 16 Threads. numactl --physcpubind=0-7,128-135 --localalloc numactl --physcpubind=8-15,136-143 --localalloc numactl --physcpubind=16-23,144-151 --localalloc numactl --physcpubind=24-31,152-159 --localalloc numactl --physcpubind=32-39,160-167 --localalloc numactl --physcpubind=40-47,168-175 --localalloc numactl --physcpubind=48-55,176-183 --localalloc numactl --physcpubind=56-63,184-191 --localalloc numactl --physcpubind=64-71,192-199 --localalloc numactl --physcpubind=72-79,200-207 --localalloc numactl --physcpubind=80-87,208-215 --localalloc numactl --physcpubind=88-95,216-223 --localalloc numactl --physcpubind=96-103,224-231 --localalloc numactl --physcpubind=104-111,232-239 --localalloc numactl --physcpubind=112-119,240-247 --localalloc numactl --physcpubind=120-127,248-255 --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-Xms8g -Xmx8g -Xmn6g -XX:+UseParallelGC -XX:ParallelGCThreads=1 -XX:CICompilerCount=2
Tuning	Used numactl to affinitize each Transaction Injector JVM to 8 Core / 16 Threads numactl --physcpubind=0-7,128-135 --localalloc numactl --physcpubind=8-15,136-143 --localalloc numactl --physcpubind=16-23,144-151 --localalloc numactl --physcpubind=24-31,152-159 --localalloc numactl --physcpubind=32-39,160-167 --localalloc numactl --physcpubind=40-47,168-175 --localalloc numactl --physcpubind=48-55,176-183 --localalloc numactl --physcpubind=56-63,184-191 --localalloc numactl --physcpubind=64-71,192-199 --localalloc numactl --physcpubind=72-79,200-207 --localalloc numactl --physcpubind=80-87,208-215 --localalloc numactl --physcpubind=88-95,216-223 --localalloc numactl --physcpubind=96-103,224-231 --localalloc numactl --physcpubind=104-111,232-239 --localalloc numactl --physcpubind=112-119,240-247 --localalloc numactl --physcpubind=120-127,248-255 --localalloc
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Pass	Fail	Fail
jOPS	429921	434495	439068	443642	448216

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	120439	162364	198953	225632	244117	184587

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	4574 / 9147	4574 / 9147	- / 4574	- / 4574	- / 4574	- / 4574
1000us	13721 / 18295	9147 / 13721	4574 / 9147	4574 / 9147	4574 / 9147	- / 4574
5000us	283565 / 288139	118914 / 123488	73178 / 77752	68604 / 73178	50310 / 54884	- / 4574
10000us	297286 / 301860	246976 / 251550	164651 / 169224	155503 / 160077	123488 / 114341	22868 / 4574
25000us	306433 / 311007	288139 / 292712	246976 / 251550	228681 / 224108	164651 / 160077	22868 / 4574
50000us	311007 / 315580	297286 / 301860	269844 / 274418	256123 / 260697	201240 / 196666	22868 / 4574
75000us	311007 / 315580	301860 / 306433	283565 / 288139	269844 / 274418	233255 / 210387	22868 / 4574
100000us	315580 / 320154	306433 / 311007	292712 / 297286	278991 / 283565	256123 / 224108	22868 / 4574
200000us	329301 / 333875	320154 / 324728	301860 / 306433	301860 / 306433	292712 / 274418	150930 / 18295
500000us	434495 / 429921	361317 / 365890	343022 / 347596	333875 / 338449	320154 / 324728	246976 / 160077
1000000us	439068 / -	439068 / -	411627 / 416200	402479 / 407053	384185 / 388759	301860 / 297286

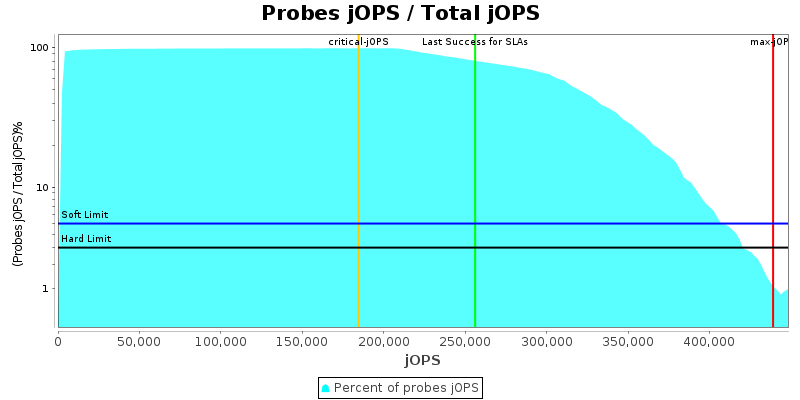

Number of probes

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

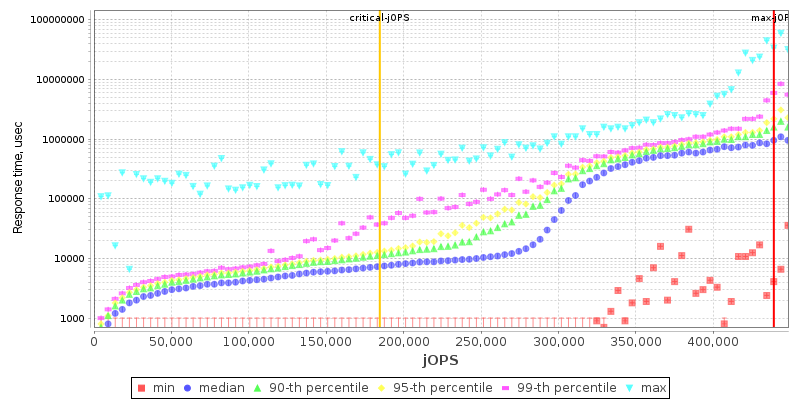

Delay between performance status pings during RT Curve (Response-Throughput Curve)

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group1.TxInjector.txiJVM1	Group10.Backend.beJVM	Group10.TxInjector.txiJVM1	Group11.Backend.beJVM	Group11.TxInjector.txiJVM1	Group12.Backend.beJVM	Group12.TxInjector.txiJVM1	Group13.Backend.beJVM	Group13.TxInjector.txiJVM1	Group14.Backend.beJVM	Group14.TxInjector.txiJVM1	Group15.Backend.beJVM	Group15.TxInjector.txiJVM1	Group16.Backend.beJVM	Group16.TxInjector.txiJVM1	Group2.Backend.beJVM	Group2.TxInjector.txiJVM1	Group3.Backend.beJVM	Group3.TxInjector.txiJVM1	Group4.Backend.beJVM	Group4.TxInjector.txiJVM1	Group5.Backend.beJVM	Group5.TxInjector.txiJVM1	Group6.Backend.beJVM	Group6.TxInjector.txiJVM1	Group7.Backend.beJVM	Group7.TxInjector.txiJVM1	Group8.Backend.beJVM	Group8.TxInjector.txiJVM1	Group9.Backend.beJVM	Group9.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size	256	256
specjbb.comm.connect.selector.runner.count	0	512	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
specjbb.comm.connect.timeouts.connect	60000	900000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.timeouts.read	60000	800000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.timeouts.write	60000	800000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.worker.pool.max	256	512	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256
specjbb.controller.maxir.maxFailedPoints	3	1
specjbb.customerDriver.threads	64	{probe=130, saturate=300, service=160}
specjbb.forkjoin.workers	256	{Tier1=880, Tier2=45, Tier3=180}
specjbb.group.count	1	16
specjbb.mapreducer.pool.size	256	512
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 457363 IR

High-bound (settled) is 442743 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Hewlett Packard Enterprise ProLiant DL325 Gen11	439068 SPECjbb2015-MultiJVM max-jOPS 184587 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Hewlett Packard Enterprise	Test Sponsor: Hewlett Packard Enterprise	Test location: Houston, TX	Test date: May 11, 2023
SPEC license #: 3	Hardware Availability: Jun-2023	Software Availability: Apr-2023	Publication: Tue Jun 13 10:03:08 EDT 2023
