SPECjbb2015 Report for jbb2015-20230208-01020 : 424600 max-jOPS ; 190451 critical-jOPS

SUT Description

Hardware hw_1
Name	RS520A-E12-RS12U
Vendor	ASUSTeK Computer Inc.
Vendor URL	https://www.asus.com/
Available	Dec-2022
Model	RS520A-E12-RS12U
Form Factor	2U
CPU Name	AMD EPYC 9654
CPU Characteristics	96 Core, 2.40 GHz, 384 MB L3 Cache (Max Boost Clock up to 3.70 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	1
Cores Per System	96
Cores Per Chip	96
Threads Per System	192
Threads Per Core	2
Version	0602
CPU Frequency (MHz)	2400
Primary Cache	32 KB(I) + 32 KB(D) per core
Secondary Cache	1 MB (I+D) per core
Tertiary Cache	384 MB (I+D) per chip
Other Cache	None
Disk	1 x 256 GB PCIE NVMe SSD
File System	xfs
Memory Amount (GB)	768
# and size of DIMM(s)	12 x 64 GB
Memory Details	64 GB 2Rx4 PC5-4800B-R
# and type of Network Interface Cards (NICs)	1 x 2 ports Intel X710 10GbE
Power Supply Quantity and Rating (W)	2 x 1600
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP4
Vendor	SUSE
Vendor URL	https://www.suse.com/
Version	5.14.21-150400.22-default
Available	Jun-2022
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 17.0.6
Vendor	Oracle
Vendor URL	https://www.oracle.com/
Version	Java HotSpot 64-bit Server VM, version 17.0.6
Available	Jan-2023
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Driver Description

Hardware hw_2
Name	RS720A-E12-RS12
Vendor	ASUSTeK Computer Inc.
Vendor URL	https://www.asus.com/
Available	Dec-2022
Model	RS720A-E12-RS12
Form Factor	2U
CPU Name	AMD EPYC 9654
CPU Characteristics	96 Core, 2.40 GHz, 384 MB L3 Cache (Max Boost Clock up to 3.70 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	192
Cores Per Chip	96
Threads Per System	384
Threads Per Core	2
Version	0602
CPU Frequency (MHz)	2400
Primary Cache	32 KB (I) + 32 KB (D) on chip per core
Secondary Cache	512 KB (I+D) on chip per core
Tertiary Cache	768 MB (I+D) on chip per chip
Other Cache	None
Disk	1 x 4 TB PCIE NVMe SSD
File System	xfs
Memory Amount (GB)	1536
# and size of DIMM(s)	24 x 64 GB
Memory Details	64 GB 2Rx4 PC5-4800B-R
# and type of Network Interface Cards (NICs)	1 x 2 ports Intel X710 10GbE
Power Supply Quantity and Rating (W)	2 x 1600
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_2
Name	SUSE Linux Enterprise Server 15 SP4
Vendor	SUSE
Vendor URL	https://www.suse.com/
Version	5.14.21-150400.22-default
Available	Jun-2022
Bitness	64
Notes	None
Java Virtual Machine jvm_2
Name	Oracle Java SE 17.0.6
Vendor	Oracle
Vendor URL	https://www.oracle.com/
Version	Java HotSpot 64-bit Server VM, version 17.0.6
Available	Jan-2023
Bitness	64
Notes	None
Other Software other_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Backend_1 : Backend
Driver
- Hardware config_2
  - OS Image os_Image_2
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Settings: SVM Mode = Disabled SR-IOV Support = Disabled Engine Boost = Aggressive NUMA nodes per socket = NPS4 L1 Stream HW Prefetcher = Disable L2 Stream HW Prefetcher = Disable TDP Control = Manual TDP = 400 PPT Control = Manual PPT = 400 Determinism Control = Manual Determinism Slider = Power ACPI SRAT L3 Cache as NUMA Domain = Enabled
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Backend_1(12)
OS Image Description	os_1
Tuning	cpupower frequency-set -g performance tuned-adm profile throughput-performance ulimit -n 1024000 echo 960000 > /proc/sys/kernel/sched_rt_runtime_us echo 40000000 > /proc/sys/kernel/sched_latency_ns echo 40000 > /proc/sys/kernel/sched_migration_cost_ns echo 800000000 > /proc/sys/kernel/sched_min_granularity_ns echo 200000000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo 0 > /proc/sys/vm/numa_stat echo always > /sys/kernel/mm/transparent_hugepage/defrag echo always > /sys/kernel/mm/transparent_hugepage/enabled
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms31g -Xmx31g -Xmn29g -XX:AllocatePrefetchInstr=2 -XX:+UseParallelGC -XX:ParallelGCThreads=16 -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:SurvivorRatio=18 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=11k -XX:MaxGCPauseMillis=100 -XX:LoopUnrollLimit=200 -XX:+UseTransparentHugePages -XX:TLABAllocationWeight=2 -XX:ThreadStackSize=140 -XX:CompileThresholdScaling=120 -XX:CICompilerCount=4 -XX:AutoBoxCacheMax=32 -XX:OnStackReplacePercentage=100 -XX:TLABSize=1m -XX:MinTLABSize=1m -XX:-ResizeTLAB -XX:TLABWasteTargetPercent=1 -XX:TLABWasteIncrement=1 -XX:YoungPLABSize=1m -XX:OldPLABSize=1m
Tuning	Used numactl to affinitize each Backend JVM to 8 Cores / 16 Threads numactl --physcpubind=0-7,96-103 --localalloc numactl --physcpubind=8-15,104-111 --localalloc numactl --physcpubind=16-23,112-119 --localalloc numactl --physcpubind=24-31,120-127 --localalloc numactl --physcpubind=32-39,128-135 --localalloc numactl --physcpubind=40-47,136-143 --localalloc numactl --physcpubind=48-55,144-151 --localalloc numactl --physcpubind=56-63,152-159 --localalloc numactl --physcpubind=64-71,160-167 --localalloc numactl --physcpubind=72-79,168-175 --localalloc numactl --physcpubind=80-87,176-183 --localalloc numactl --physcpubind=88-95,184-191 --localalloc
Notes	None

Driver config_2 Configuration

Hardware
OS Images	os_Image_2(1)
Hardware Description	hw_2
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Settings: SVM Mode = Disabled SR-IOV Support = Disabled Engine Boost = Aggressive NUMA nodes per socket = NPS4 L1 Stream HW Prefetcher = Disable L2 Stream HW Prefetcher = Disable TDP Control = Manual TDP = 400 PPT Control = Manual PPT = 400 Determinism Control = Manual Determinism Slider = Power ACPI SRAT L3 Cache as NUMA Domain = Enabled
Notes	None

OS Image os_Image_2
JVM Instances	jvm_Ctr_1(1), jvm_TxInjector_1(12)
OS Image Description	os_2
Tuning	cpupower frequency-set -g performance tuned-adm profile throughput-performance ulimit -n 1024000 echo 960000 > /proc/sys/kernel/sched_rt_runtime_us echo 40000000 > /proc/sys/kernel/sched_latency_ns echo 40000 > /proc/sys/kernel/sched_migration_cost_ns echo 800000000 > /proc/sys/kernel/sched_min_granularity_ns echo 200000000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo 0 > /proc/sys/vm/numa_stat echo always > /sys/kernel/mm/transparent_hugepage/defrag echo always > /sys/kernel/mm/transparent_hugepage/enabled
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_2
Command Line	-Xms3g -Xmx3g -Xmn2g -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=2
Tuning	Used numactl to interleave memory on all CPUs numactl --interleave=all
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_2
Command Line	-Xms3g -Xmx3g -Xmn2g -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=2
Tuning	Used numactl to affinitize each TxInjector JVM to 8 Cores / 16 Threads numactl --physcpubind=0-7,192-199 --localalloc numactl --physcpubind=8-15,200-207 --localalloc numactl --physcpubind=16-23,208-215 --localalloc numactl --physcpubind=24-31,216-223 --localalloc numactl --physcpubind=32-39,224-231 --localalloc numactl --physcpubind=40-47,232-239 --localalloc numactl --physcpubind=48-55,240-247 --localalloc numactl --physcpubind=56-63,248-255 --localalloc numactl --physcpubind=64-71,256-263 --localalloc numactl --physcpubind=72-79,264-271 --localalloc numactl --physcpubind=80-87,272-279 --localalloc numactl --physcpubind=88-95,280-287 --localalloc
Notes	None

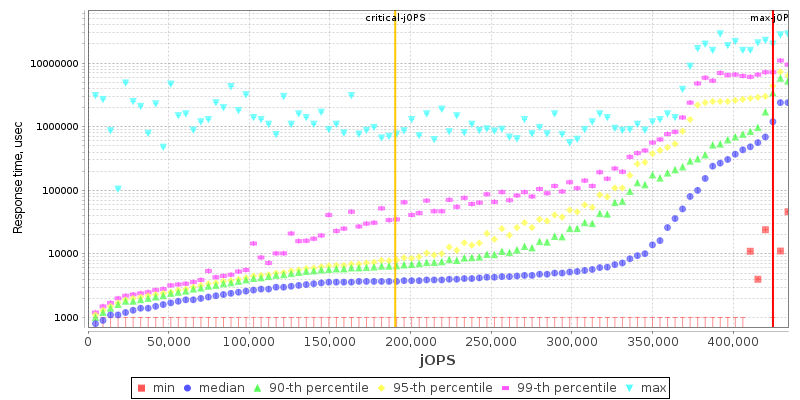

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Pass	Fail	Fail
jOPS	415268	419934	424600	429266	433931

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	108871	155531	206856	249293	286955	190451

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	4666 / 9332	- / 4666	- / 4666	- / 4666	- / 4666	- / 4666
1000us	97985 / 102650	9332 / 13998	4666 / 9332	- / 4666	- / 4666	- / 4666
5000us	363943 / 368608	293954 / 298620	125980 / 130646	116648 / 121314	88653 / 74655	- / 4666
10000us	373274 / 377940	340613 / 345279	251960 / 256626	214633 / 209967	111982 / 102650	- / 4666
25000us	377940 / 382606	354611 / 359277	303285 / 307951	261292 / 265958	158642 / 149310	- / 4666
50000us	382606 / 387272	363943 / 368608	321949 / 326615	303285 / 307951	219299 / 181971	- / 4666
75000us	382606 / 387272	368608 / 373274	331281 / 335947	312617 / 317283	261292 / 233296	- / 4666
100000us	387272 / 391938	377940 / 382606	335947 / 340613	321949 / 326615	293954 / 279956	- / 4666
200000us	401270 / 405936	382606 / 387272	359277 / 363943	335947 / 340613	331281 / 326615	18664 / 4666
500000us	424600 / -	410602 / 415268	382606 / 387272	359277 / 363943	345279 / 349945	46659 / 4666
1000000us	424600 / -	419934 / 424600	415268 / 419934	368608 / 373274	363943 / 368608	345279 / 4666

Number of probes

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

Delay between performance status pings during RT Curve (Response-Throughput Curve)

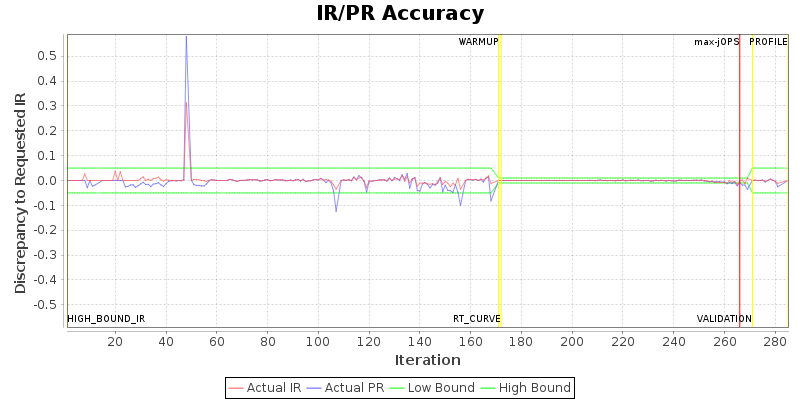

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group1.TxInjector.txiJVM1	Group10.Backend.beJVM	Group10.TxInjector.txiJVM1	Group11.Backend.beJVM	Group11.TxInjector.txiJVM1	Group12.Backend.beJVM	Group12.TxInjector.txiJVM1	Group2.Backend.beJVM	Group2.TxInjector.txiJVM1	Group3.Backend.beJVM	Group3.TxInjector.txiJVM1	Group4.Backend.beJVM	Group4.TxInjector.txiJVM1	Group5.Backend.beJVM	Group5.TxInjector.txiJVM1	Group6.Backend.beJVM	Group6.TxInjector.txiJVM1	Group7.Backend.beJVM	Group7.TxInjector.txiJVM1	Group8.Backend.beJVM	Group8.TxInjector.txiJVM1	Group9.Backend.beJVM	Group9.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size	256	256	200	150	200	150	200	150	200	150	200	150	200	150	200	150	200	150	200	150	200	150	200	150	200	150
specjbb.comm.connect.selector.runner.count	0	2	4	0	4	0	4	0	4	0	4	0	4	0	4	0	4	0	4	0	4	0	4	0	4	0
specjbb.comm.connect.timeouts.connect	60000	900000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.timeouts.read	60000	800000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.timeouts.write	60000	800000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.worker.pool.max	256	256	200	150	200	150	200	150	200	150	200	150	200	150	200	150	200	150	200	150	200	150	200	150	200	150
specjbb.comm.connect.worker.pool.min	1	1	16	16	16	16	16	16	16	16	16	16	16	16	16	16	16	16	16	16	16	16	16	16	16	16
specjbb.controller.host	localhost	192.168.0.23
specjbb.controller.maxir.maxFailedPoints	3	1
specjbb.customerDriver.threads	64	{probe=120, saturate=190, service=90}
specjbb.forkjoin.workers	384	{Tier1=170, Tier2=4, Tier3=20}
specjbb.group.count	1	12
specjbb.mapreducer.pool.size	384	6
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 466593 IR

High-bound (settled) is 453434 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

ASUSTeK Computer Inc. RS520A-E12-RS12U	424600 SPECjbb2015-Distributed max-jOPS 190451 SPECjbb2015-Distributed critical-jOPS
Tested by: ASUSTeK Computer Inc.	Test Sponsor: ASUSTeK Computer Inc.	Test location: Taipei, Taiwan	Test date: Jan 31, 2023
SPEC license #: 9016	Hardware Availability: Dec-2022	Software Availability: Jan-2023	Publication: Thu Feb 23 11:18:22 EST 2023
