SPECjbb2015 Report for jbb2015-20221214-00941 : 364206 max-jOPS ; 195919 critical-jOPS

SUT Description

Hardware hw_1
Name	R620 G50 LP
Vendor	Nettrix
Vendor URL	https://www.nettrix.com.cn
Available	Nov-2022
Model	R620 G50 LP
Form Factor	2U
CPU Name	Intel(R) Xeon(R) Platinum 8490H CPU @ 1.9GHz
CPU Characteristics	60 Core, 1.90 GHz, 112.5 MB L3 Cache (Turbo Boost Technology up to 3.5 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	120
Cores Per Chip	60
Threads Per System	240
Threads Per Core	2
Version	NNH1041018-U00-1
CPU Frequency (MHz)	1900
Primary Cache	32 KB I + 48 KB D on chip per core
Secondary Cache	2048 KB I+D on chip per core
Tertiary Cache	112.5 MB I+D on chip per chip
Other Cache	None
Disk	2 x 240GB SATA SSD
File System	btrfs
Memory Amount (GB)	1024
# and size of DIMM(s)	16 x 64GB
Memory Details	16 x 64GB-Samsung-DDR5-4800-2Rx4
# and type of Network Interface Cards (NICs)	4 x 1 Gbit NICs
Power Supply Quantity and Rating (W)	2 x 2200W
Other Hardware	1 x OCP with 4 x 1 Gbit NICs
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP4
Vendor	SUSE
Vendor URL	https://www.suse.com
Version	5.14.21-150400.22-default
Available	Jun-2022
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 17.0.5
Vendor	Oracle
Vendor URL	http://www.oracle.com
Version	Java HotSpot 64-bit Server VM, version 17.0.5
Available	Oct-2022
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Composite_1 : Composite

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	SNC = Disabled Patrol Scrub = Disabled DCU IP Prefetcher = Enabled Hardware Prefetch = Disabled L2 FRO Prefetch Disable = Disabled Adjacent Cache Prefetch = Diasbled LLC Prefetch = Enabled
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Composite_1(1)
OS Image Description	os_1
Tuning	cpupower frequency-set -g performance ulimit -n 1048576 ulimit -i unlimited ulimit -s unlimited ulimit -u unlimited ulimit -l unlimited ulimit -v unlimited ulimit -m unlimited systemctl stop systemd-update-utmp-runlevel.service echo 10000 > /proc/sys/kernel/sched_cfs_bandwidth_slice_us echo 0 > /proc/sys/kernel/sched_child_runs_first echo 16000000 > /proc/sys/kernel/sched_latency_ns echo 1000 > /proc/sys/kernel/sched_migration_cost_ns echo 28000000 > /proc/sys/kernel/sched_min_granularity_ns echo 9 > /proc/sys/kernel/sched_nr_migrate echo 100 > /proc/sys/kernel/sched_rr_timeslice_ms echo 1000000 > /proc/sys/kernel/sched_rt_period_us echo 990000 > /proc/sys/kernel/sched_rt_runtime_us echo 0 > /proc/sys/kernel/sched_schedstats echo 1 > /proc/sys/kernel/sched_tunable_scaling echo 50000000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 3000 > /proc/sys/vm/dirty_expire_centisecs echo 500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing UserTasksMax=970000 DefaultTasksMax=970000 echo 274877906944 > /proc/sys/kernel/shmmax echo 274877906944 > /proc/sys/kernel/shmall echo 3 > /proc/sys/vm/drop_caches sync
Notes	None
JVM Instance jvm_Composite_1
Parts of Benchmark	Composite
JVM Instance Description	jvm_1
Command Line	-server -Xms700g -Xmx700g -Xmn650g -XX:+UseParallelGC -XX:+UseLargePages -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:-UseAdaptiveNUMAChunkSizing -XX:SurvivorRatio=28 -XX:MaxTenuringThreshold=1 -XX:InlineSmallCode=13k -XX:UseAVX=0 -XX:-UseCountedLoopSafepoints -XX:LoopUnrollLimit=20 -XX:TargetSurvivorRatio=95 -XX:LargePageSizeInBytes=1G -XX:AllocatePrefetchLines=3 -XX:AllocateInstancePrefetchLines=2 -XX:AllocatePrefetchStepSize=128 -XX:AllocatePrefetchDistance=384 -XX:ParallelGCThreads=64 -XX:+UseNUMA -XX:-UseNUMAInterleaving -XX:+UseHugeTLBFS
Tuning	numactl used to interleave the controller amongst all available nodes, eg: numactl --cpunodebind=0-7 --interleave=0-7
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	359971	364206	368441	372676	376911

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	175044	179985	192690	213864	222334	195919

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	143988 / 148223	4235 / 8470	4235 / 8470	- / 4235	- / 4235	- / 4235
1000us	330326 / 334561	194808 / 190573	50819 / 55054	33880 / 38115	16940 / 21175	4235 / 8470
5000us	347266 / 351501	326091 / 330326	258332 / 262567	215982 / 220217	135518 / 139753	29645 / 16940
10000us	351501 / 355736	326091 / 330326	296446 / 300681	262567 / 266802	182103 / 160928	38115 / 42349
25000us	351501 / 355736	338796 / 343031	313386 / 317621	287977 / 279507	182103 / 177868	84699 / 42349
50000us	351501 / 355736	338796 / 343031	313386 / 317621	287977 / 292212	190573 / 194808	139753 / 42349
75000us	351501 / 355736	343031 / 347266	313386 / 317621	296446 / 292212	211747 / 215982	152458 / 42349
100000us	355736 / 359971	343031 / 347266	317621 / 321856	300681 / 304916	224452 / 220217	152458 / 50819
200000us	355736 / 359971	347266 / 351501	326091 / 330326	313386 / 304916	258332 / 262567	211747 / 194808
500000us	364206 / -	351501 / 355736	338796 / 334561	326091 / 330326	313386 / 304916	296446 / 292212
1000000us	364206 / -	364206 / -	355736 / 359971	355736 / 359971	351501 / 355736	338796 / 330326

Number of probes

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

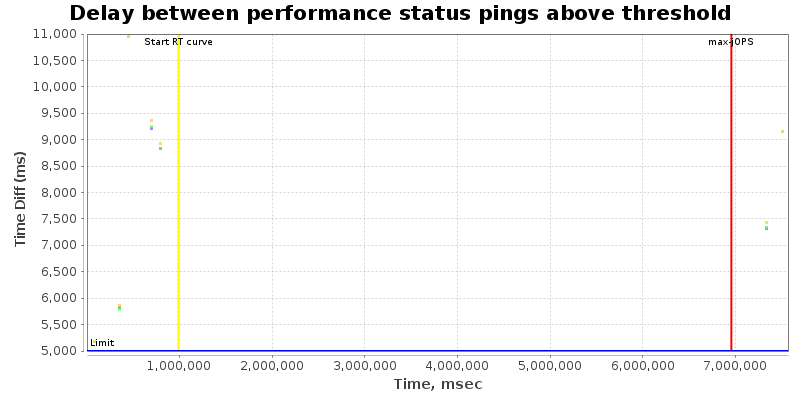

Delay between performance status pings during RT Curve (Response-Throughput Curve)

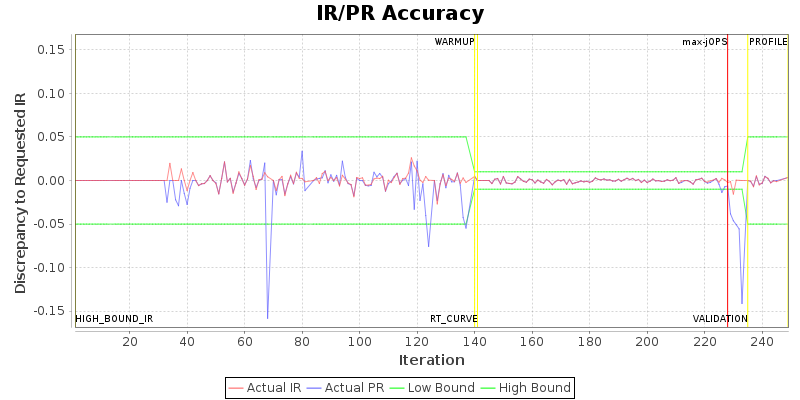

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.client.pool.size	256	8
specjbb.comm.connect.selector.runner.count	0	32
specjbb.comm.connect.timeouts.connect	60000	600000
specjbb.comm.connect.timeouts.read	60000	600000
specjbb.comm.connect.timeouts.write	60000	600000
specjbb.controller.rtcurve.start	0.0	0.0
specjbb.controller.type	HBIR_RT	HBIR_RT
specjbb.forkjoin.workers	240	{Tier1=124, Tier2=1, Tier3=20}
specjbb.group.count	1	2
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 423495 IR

High-bound (settled) is 385915 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Nettrix R620 G50 LP	364206 SPECjbb2015-Composite max-jOPS 195919 SPECjbb2015-Composite critical-jOPS
Tested by: Nettrix	Test Sponsor: Nettrix	Test location: Beijing, China	Test date: Dec 13, 2022
SPEC license #: 6138	Hardware Availability: Jan-2023	Software Availability: Oct-2022	Publication: Thu Jan 12 11:42:47 EST 2023
