Inspur Corporation NF5280M6 120667 SPECjbb2015-Composite max-jOPS
92602 SPECjbb2015-Composite critical-jOPS
Tested by: Inspur Corporation Test Sponsor: Inspur Corporation Test location: Jinan, China Test date: Nov 23, 2022
SPEC license #: 3358 Hardware Availability: Apr-2021 Software Availability: Nov-2022 Publication: Thu Dec 15 11:19:54 EST 2022
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorInspur Corporation
Vendor URLhttp://www.inspur.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores32
Total Threads64
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameInspur NF5280M6
VendorInspur Corporation
Vendor URLhttp://www.inspur.com/
AvailableApr-2021
ModelInspur NF5280M6
Form Factor2U
CPU NameIntel Xeon Gold 6326
CPU Characteristics16 Core, 2.90 GHz, 24 MB L3 Cache (Turbo Boost Technology up to 3.50 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System32
Cores Per Chip16
Threads Per System64
Threads Per Core2
Version6.01.00 released Nov-2022
CPU Frequency (MHz)2900
Primary Cache32 KB(I)+48 KB(D)on chip per core
Secondary Cache1.25MB (I+D) per core
Tertiary Cache24MB (I+D) on chip per chip
Other CacheNone
Disk1x 4TB NVMe SSD
File Systemxfs
Memory Amount (GB)1024
# and size of DIMM(s)32 x 32GB
Memory Details32 x 32GB 2Rx4 PC4-3200AA-R; each slot populated
# and type of Network Interface Cards (NICs)1 x 10 Gbit NIC
Power Supply Quantity and Rating (W)2 x 1300W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux release 8.6 (Ootpa)
VendorRed Hat
Vendor URLhttp://redhat.com/
Version4.18.0-372.9.1
AvailableMay-2022
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 17.0.5
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 17.0.5
AvailableOct-2022
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Tuning
  • Energy Performance set to Performance
  • SNC Enabled
  • Memory Patrol Scrub Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning
  • ulimit -n 655360
  • tuned-adm profile throughput-performance
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -server -Xms420g -Xmx420g -Xmn400g -server -XX:+UseParallelGC -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:MaxTenuringThreshold=1 -XX:+ScavengeBeforeFullGC -XX:-UseAdaptiveSizePolicy -XX:ParallelGCThreads=64 -XX:SurvivorRatio=200 -XX:TargetSurvivorRatio=95 -XX:+UseNUMA -XX:-UseNUMAInterleaving -XX:+UseTransparentHugePages -XX:AllocatePrefetchInstr=2 -XX:InlineSmallCode=13k -XX:UseAVX=0
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 119247 120667 122086 123506 124926
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 77369 85768 94167 101502 107358 92602
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 75239 / 76659 4259 / 5678 2839 / 4259 1420 / 2839 - / 1420 - / 1420
1000us 107890 / 109310 72400 / 73820 11357 / 12776 9937 / 11357 7098 / 8518 - / 1420
5000us 116408 / 117828 106471 / 107890 89435 / 88016 80918 / 76659 56784 / 58204 21294 / 8518
10000us 119247 / 120667 109310 / 110730 99373 / 100792 96533 / 97953 80918 / 73820 26973 / 8518
25000us 120667 / - 119247 / 120667 109310 / 110730 106471 / 103632 92275 / 76659 29812 / 8518
50000us 120667 / - 120667 / - 116408 / 117828 113569 / 110730 96533 / 89435 46847 / 8518
75000us 120667 / - 120667 / - 119247 / 117828 116408 / 117828 113569 / 89435 56784 / 8518
100000us 120667 / - 120667 / - 119247 / 120667 116408 / 117828 113569 / 103632 65302 / 8518
200000us 120667 / - 120667 / - 119247 / 120667 119247 / 120667 119247 / 120667 92275 / 68141
500000us 120667 / - 120667 / - 120667 / - 120667 / - 119247 / 120667 116408 / 110730
1000000us 120667 / - 120667 / - 120667 / - 120667 / - 120667 / - 119247 / 117828
Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

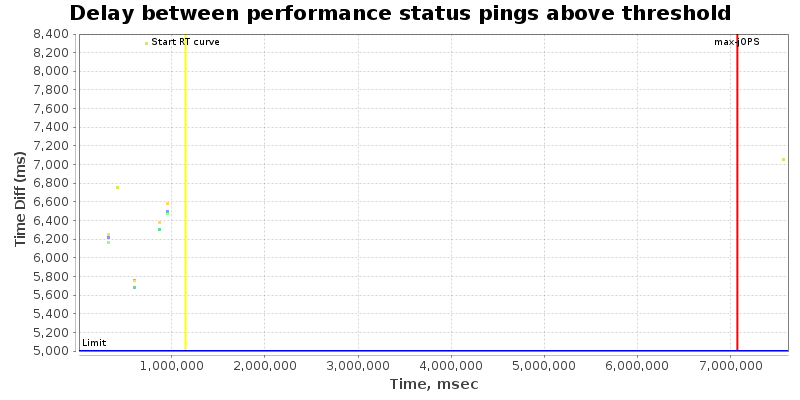

Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.forkjoin.workers 64 {Tier1=100, Tier2=1, Tier3=20}
specjbb.group.count 1 2
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 141961 IR
High-bound (settled) is 129972 IR
