Dell Inc. PowerEdge R7625 592949 SPECjbb2015-Composite max-jOPS
542719 SPECjbb2015-Composite critical-jOPS
Tested by: Dell Inc. Test Sponsor: Dell Inc. Test location: Round Rock, TX Test date: Oct 19, 2022
SPEC license #: 55 Hardware Availability: Nov-2022 Software Availability: Aug-2022 Publication: Thu Nov 10 10:32:32 EST 2022
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorDell Inc.
Vendor URLhttp://www.dell.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores192
Total Threads384
Total Memory Amount (GB)1536
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameDell Inc. PowerEdge R7625
VendorDell Inc.
Vendor URLhttp://www.dell.com
AvailableNov-2022
ModelPowerEdge R7625
Form Factor2U
CPU NameAMD EPYC 9654
CPU Characteristics96 core, 2.4GHz, 384MB L3 Cache (Max. Boost Clock up to 3.7GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System192
Cores Per Chip96
Threads Per System384
Threads Per Core2
Version1.0.0, 09/28/2022
CPU Frequency (MHz)2400
Primary Cache32 KB(I)+32 KB(D) per core
Secondary Cache1 MB (I+D) per core
Tertiary Cache384 MB (I+D) on chip per chip
Other CacheNone
Disk1 x SAS SSD 600GB
File Systembtrfs
Memory Amount (GB)1536
# and size of DIMM(s)24 x 64 GB
Memory Details64 GB 2Rx4 PC5-38400R (slots A1-12, B1-12 populated)
# and type of Network Interface Cards (NICs)2 x Broadcom Gigabit Ethernet BCM5720
Power Supply Quantity and Rating (W)2 X 2400
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented
  • The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP4
VendorSUSE
Vendor URLhttp://suse.com/
Version5.14.21-150400.22-default
AvailableJun-2022
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 18.0.2.1
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 18.0.2.1
AvailableAug-2022
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning
  • Logical Processor : Enabled
  • L1 Stream HW Prefetcher : Disabled
  • L2 Stream HW Prefetcher : Disabled
  • MADT Core Enumeration : Linear
  • NUMA Nodes Per Socket : 2
  • L3 cache as NUMA Domain : Disabled
  • System Profile : Custom
  • Determinism Slider : Power Determinism
  • Algorithm Performance Boost Disable (ApbDis) : Enabled
  • ApbDis Fixed Socket P-State : P0
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning
  • echo 950000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 20000000 > /proc/sys/kernel/sched_latency_ns
  • echo 40000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 200000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 40000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 128 > /proc/sys/kernel/sched_nr_migrate
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 1 > /proc/sys/kernel/numa_balancing
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
  • ulimit -n 1024000
  • UserTasksMax=970000
  • DefaultTasksMax=970000
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -Xms1497088M -Xmx1497088M -Xmn1486848M -server -XX:+UseParallelGC -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:MaxTenuringThreshold=5 -XX:-UseAdaptiveSizePolicy -XX:ParallelGCThreads=384 -XX:SurvivorRatio=84 -XX:TargetSurvivorRatio=95 -XX:+UseNUMA -XX:-UseAdaptiveNUMAChunkSizing -XX:+UseTransparentHugePages -XX:InlineSmallCode=11k -XX:TLABAllocationWeight=2 -XX:ThreadStackSize=140 -XX:AutoBoxCacheMax=32 -XX:OnStackReplacePercentage=100
Tuning Used numactl to run on all available nodes
  • numactl --cpunodebind=0-3 --interleave=0-3
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 578831 585890 592949 600008 607067
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 441182 547066 575302 575302 589419 542719
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 14118 / 21177 - / 7059 - / 7059 - / 7059 - / 7059 - / 7059
1000us 515301 / 522360 84707 / 28236 7059 / 14118 7059 / 14118 7059 / 14118 - / 7059
5000us 592949 / - 571773 / 578831 437653 / 444712 345887 / 352946 204709 / 211768 63530 / 35295
10000us 592949 / - 585890 / 592949 557655 / 564714 529419 / 536478 437653 / 444712 84707 / 35295
25000us 592949 / - 592949 / - 585890 / 592949 571773 / 578831 543537 / 550596 155296 / 35295
50000us 592949 / - 592949 / - 592949 / - 585890 / 592949 571773 / 578831 225885 / 35295
75000us 592949 / - 592949 / - 592949 / - 592949 / - 571773 / 578831 261180 / 35295
100000us 592949 / - 592949 / - 592949 / - 592949 / - 585890 / 592949 296475 / 91766
200000us 592949 / - 592949 / - 592949 / - 592949 / - 585890 / 592949 494124 / 388241
500000us 592949 / - 592949 / - 592949 / - 592949 / - 592949 / - 564714 / 571773
1000000us 592949 / - 592949 / - 592949 / - 592949 / - 592949 / - 585890 / 592949
Probes jOPS / Total jOPS

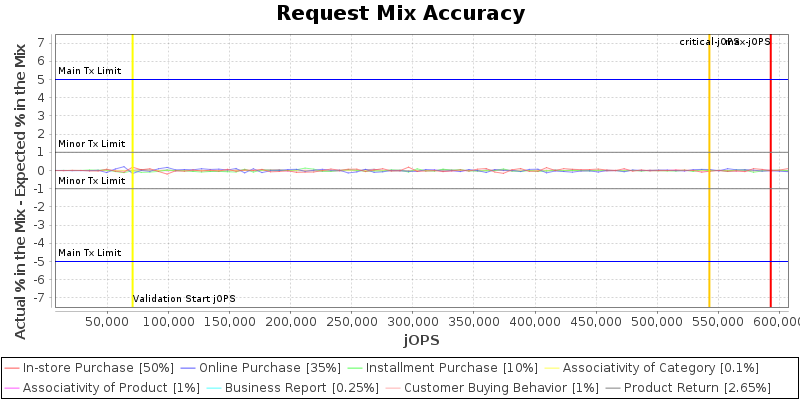

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

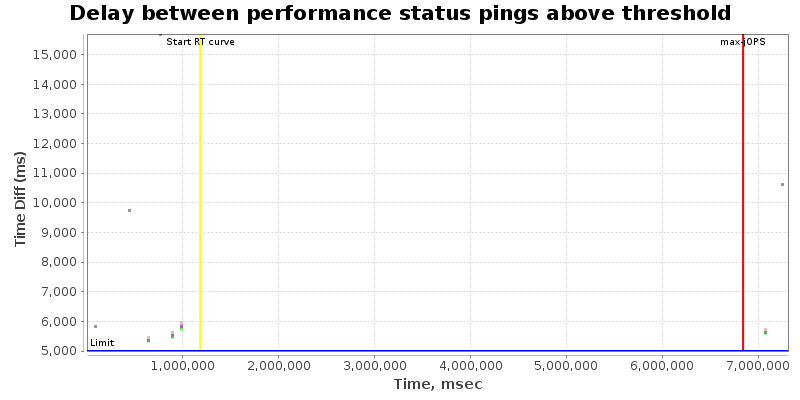

Delay between status pings

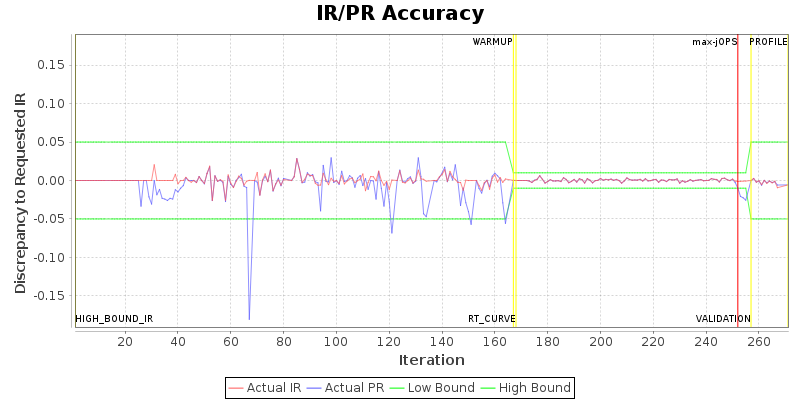

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 1
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.controller.rtcurve.warmup.step 0.1 0.2
specjbb.customerDriver.threads 64 {probe=72, saturate=128}
specjbb.forkjoin.workers 384 {Tier1=93, Tier2=1, Tier3=18}
specjbb.group.count 1 4
specjbb.heartbeat.period 10000 50000
specjbb.heartbeat.threshold 100000 500000
specjbb.mapreducer.pool.size 384 2
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 705892 IR
High-bound (settled) is 634676 IR
