SPECjbb2015 Report for jbb2015-20221019-00907 : 638822 max-jOPS ; 600228 critical-jOPS

SUT Description

Hardware hw_1
Name	ProLiant DL385 Gen11
Vendor	Hewlett Packard Enterprise
Vendor URL	http://hpe.com/
Available	Nov-2022
Model	ProLiant DL385 Gen11
Form Factor	2U Rack
CPU Name	AMD EPYC 9654
CPU Characteristics	96 Core, 2.4 GHz, 384 MB L3 Cache(Max. Boost Clock Up to 3.7 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	192
Cores Per Chip	96
Threads Per System	384
Threads Per Core	2
Version	A55 v1.10 10/06/2022
CPU Frequency (MHz)	2400
Primary Cache	32 KB I + 32 KB D on chip per core
Secondary Cache	1024 KB I+D on chip per core
Tertiary Cache	384 MB (I+D) on chip per chip
Other Cache	None
Disk	1 x 3.2 TB NVMe SSD
File System	XFS
Memory Amount (GB)	1536
# and size of DIMM(s)	24 x 64 GB
Memory Details	64GB 2Rx4 PC5-38400R , running at 4800 MHz
# and type of Network Interface Cards (NICs)	HPE Ethernet 10Gb 2-port
Power Supply Quantity and Rating (W)	2 x 1600
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented Cabled the 4th xGMI (xGMI3)
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP4
Vendor	SUSE
Vendor URL	http://suse.com/
Version	5.14.21-150400.22-default
Available	Jul-2022
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 18.0.2.1
Vendor	Oracle
Vendor URL	http://www.oracle.com/
Version	Java HotSpot 64-bit Server VM, version 18.0.2.1
Available	Aug-2022
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	Non-virtual
Tuning	Workload Profile=High Performance Compute(HPC) Thermal Configuration=Maximum Cooling Determinism Control=Manual Performance Determinism=Power Deterministic Memory Patrol Scrubbing=Disabled Numa Memory Domains Per Socket(NPS)=Two Memory Domains Per Socket Last-Level Cache(LLC) As NUMA Node=Disabled L1 Stream HW Prefetcher=Disabled L2 Stream HW Prefetcher=Disabled Minimum Processor Idle Power Core C-State=No C-states xGMI Link Bandwidth=32Gbps Package Power Limit=400
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(12), jvm_TxInjector_1(12)
OS Image Description	os_1
Tuning	tuned-adm profile throughput-performance ulimit -n 1024000 UserTasksMax=970000 DefaultTasksMax=970000 write_schedstat rt_runtime_us 950000 write_schedstat latency_ns 150000000 write_schedstat migration_cost_ns 80000 write_schedstat min_granularity_ns 300000 write_schedstat wakeup_granularity_ns 300000 write_schedstat nr_migrate 32 echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/vm/numa_stat echo 0 > /proc/sys/kernel/numa_balancing echo always > /sys/kernel/mm/transparent_hugepage/enabled echo always > /sys/kernel/mm/transparent_hugepage/defrag
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4
Tuning	Used numactl to interleave memory on all CPUs numactl --interleave=all
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms120g -Xmx120g -Xmn118g -server -XX:MetaspaceSize=256m -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:+UseParallelGC -XX:SurvivorRatio=90 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=32 -XX:MaxTenuringThreshold=15 -XX:InitialCodeCacheSize=25m -XX:InlineSmallCode=10k -XX:MaxGCPauseMillis=200 -XX:+UseCompressedOops -XX:ObjectAlignmentInBytes=32 -XX:+UseTransparentHugePages -XX:TLABAllocationWeight=55 -XX:ThreadStackSize=512 -XX:CompileThresholdScaling=120
Tuning	Used numactl to affinitize three Backend JVMs to a NUMA node numactl --cpunodebind=0 --localalloc numactl --cpunodebind=0 --localalloc numactl --cpunodebind=0 --localalloc numactl --cpunodebind=1 --localalloc numactl --cpunodebind=1 --localalloc numactl --cpunodebind=1 --localalloc numactl --cpunodebind=2 --localalloc numactl --cpunodebind=2 --localalloc numactl --cpunodebind=2 --localalloc numactl --cpunodebind=3 --localalloc numactl --cpunodebind=3 --localalloc numactl --cpunodebind=3 --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4
Tuning	Used numactl to affinitize three Transaction Injector JVMs to a NUMA node numactl --cpunodebind=0 --localalloc numactl --cpunodebind=0 --localalloc numactl --cpunodebind=0 --localalloc numactl --cpunodebind=1 --localalloc numactl --cpunodebind=1 --localalloc numactl --cpunodebind=1 --localalloc numactl --cpunodebind=2 --localalloc numactl --cpunodebind=2 --localalloc numactl --cpunodebind=2 --localalloc numactl --cpunodebind=3 --localalloc numactl --cpunodebind=3 --localalloc numactl --cpunodebind=3 --localalloc
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	630305	638822	647340	655857	664375

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	540869	583457	609010	634563	638822	600228

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	34071 / 42588	8518 / 17035	- / 8518	- / 8518	- / 8518	- / 8518
1000us	570681 / 579199	136282 / 144800	42588 / 51106	34071 / 42588	8518 / 17035	- / 8518
5000us	638822 / -	638822 / -	579199 / 587716	545128 / 553646	417364 / 408846	42588 / 34071
10000us	638822 / -	638822 / -	638822 / -	630305 / 638822	536611 / 545128	85176 / 34071
25000us	638822 / -	638822 / -	638822 / -	638822 / -	579199 / 587716	85176 / 34071
50000us	638822 / -	638822 / -	638822 / -	638822 / -	604752 / 613269	85176 / 34071
75000us	638822 / -	638822 / -	638822 / -	638822 / -	630305 / 638822	136282 / 68141
100000us	638822 / -	638822 / -	638822 / -	638822 / -	638822 / -	315152 / 68141
200000us	638822 / -	638822 / -	638822 / -	638822 / -	638822 / -	587716 / 562164
500000us	638822 / -	638822 / -	638822 / -	638822 / -	638822 / -	638822 / -
1000000us	638822 / -	638822 / -	638822 / -	638822 / -	638822 / -	638822 / -

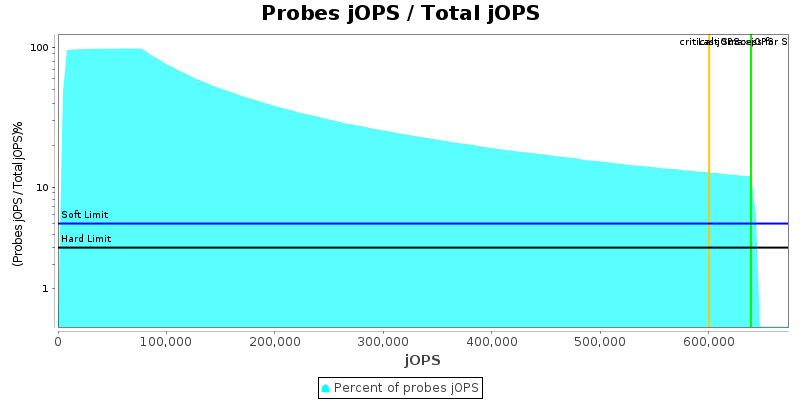

Number of probes

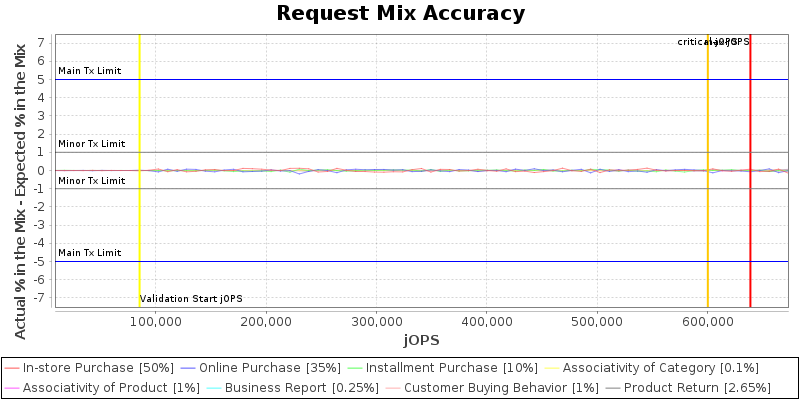

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

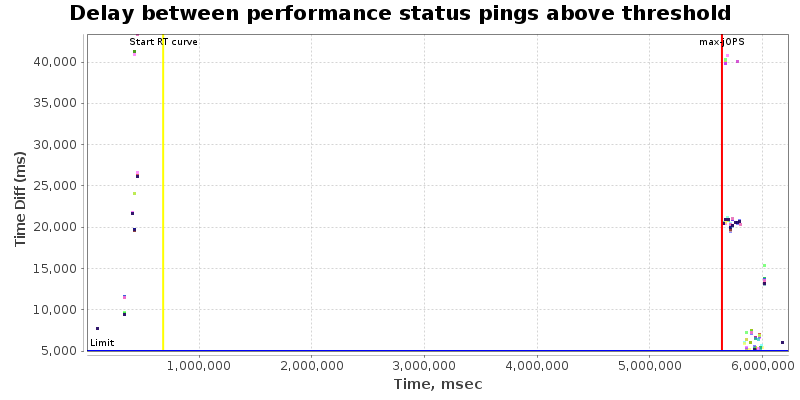

Delay between performance status pings during RT Curve (Response-Throughput Curve)

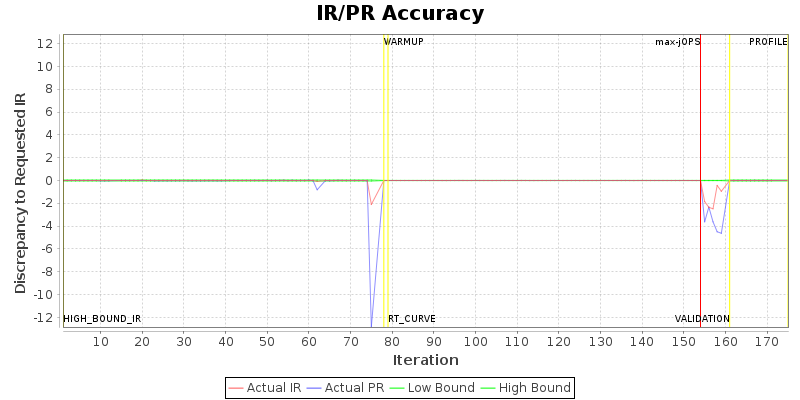

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group1.TxInjector.txiJVM1	Group10.Backend.beJVM	Group10.TxInjector.txiJVM1	Group11.Backend.beJVM	Group11.TxInjector.txiJVM1	Group12.Backend.beJVM	Group12.TxInjector.txiJVM1	Group2.Backend.beJVM	Group2.TxInjector.txiJVM1	Group3.Backend.beJVM	Group3.TxInjector.txiJVM1	Group4.Backend.beJVM	Group4.TxInjector.txiJVM1	Group5.Backend.beJVM	Group5.TxInjector.txiJVM1	Group6.Backend.beJVM	Group6.TxInjector.txiJVM1	Group7.Backend.beJVM	Group7.TxInjector.txiJVM1	Group8.Backend.beJVM	Group8.TxInjector.txiJVM1	Group9.Backend.beJVM	Group9.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size	256	256	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120
specjbb.comm.connect.selector.runner.count	0	8	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4
specjbb.comm.connect.worker.pool.max	256	256	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120
specjbb.comm.connect.worker.pool.min	1	1	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24
specjbb.controller.handshake.period	5000	20000
specjbb.controller.handshake.timeout	600000	900000
specjbb.forkjoin.workers	384	{Tier1=117, Tier2=1, Tier3=8}
specjbb.group.count	1	12
specjbb.heartbeat.period	10000	2000
specjbb.heartbeat.threshold	100000	9000000
specjbb.mapreducer.pool.size	384	16
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 851763 IR

High-bound (settled) is 710003 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Hewlett Packard Enterprise ProLiant DL385 Gen11	638822 SPECjbb2015-MultiJVM max-jOPS 600228 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Hewlett Packard Enterprise	Test Sponsor: Hewlett Packard Enterprise	Test location: Houston, TX	Test date: October 12, 2022
SPEC license #: 3	Hardware Availability: Nov-2022	Software Availability: Aug-2022	Publication: Thu Nov 10 10:29:34 EST 2022
