SPECjbb2015 Report for jbb2015-20221019-00901 : 630305 max-jOPS ; 608194 critical-jOPS

SUT Description

Hardware hw_1
Name	Supermicro A+ AS-2125HS-TNR
Vendor	Super Micro Computer, Inc
Vendor URL	https://www.supermicro.com
Available	Nov-2022
Model	H13DSH
Form Factor	1U
CPU Name	AMD EPYC 9654
CPU Characteristics	96 core, 2.4GHz, 384MB L3 Cache (Max. Boost Clock up to 3.7GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	192
Cores Per Chip	96
Threads Per System	384
Threads Per Core	2
Version	0.10 09/27/2022
CPU Frequency (MHz)	2400
Primary Cache	32KB(I)+32KB(D) per core
Secondary Cache	1MB (I+D) per core
Tertiary Cache	384MB (I+D) on chip per chip
Other Cache	None
Disk	4 x 1.92 TB NVMe PCIe Gen4.0
File System	btrfs
Memory Amount (GB)	1536
# and size of DIMM(s)	24 x 64GB
Memory Details	64GB 2Rx4 PC5-38400R
# and type of Network Interface Cards (NICs)	1 x 100GbE NIC
Power Supply Quantity and Rating (W)	2 x 1600w
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP4
Vendor	SUSE
Vendor URL	http://suse.com/
Version	5.14.21-150400.24.21-default
Available	July-2022
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 18.0.2.1
Vendor	Oracle
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-bit Server VM, version 18.0.2.1
Available	Aug-2022
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Driver Description

Hardware hw_2
Name	Supermicro A+ AS-1114S-WN10RT
Vendor	Super Micro Computer, Inc
Vendor URL	https://www.supermicro.com
Available	Mar-2021
Model	H12SSW-NTR
Form Factor	1U
CPU Name	AMD EPYC 7713
CPU Characteristics	64 core, 2.00GHz, 256MB L3 Cache (Max. Boost Clock up to 3.7GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	1
Cores Per System	64
Cores Per Chip	64
Threads Per System	128
Threads Per Core	2
Version	2.2 07/29/2021
CPU Frequency (MHz)	2000
Primary Cache	32KB(I)+32KB(D) per core
Secondary Cache	512KB (I+D) per core
Tertiary Cache	256MB (I+D) on chip per chip
Other Cache	None
Disk	1 x 1 TB NVMe PCIe Gen3
File System	xfs
Memory Amount (GB)	128
# and size of DIMM(s)	8 x 16GB
Memory Details	16GB 2Rx4 PC4-21300V
# and type of Network Interface Cards (NICs)	1 x 100GbE NIC
Power Supply Quantity and Rating (W)	2 x 700W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_2
Name	Red Hat Enterprise Linux release 8.3
Vendor	RHEL
Vendor URL	https://www.redhat.com
Version	4.18.0-240.el8.x86_64
Available	Nov-2020
Bitness	64
Notes	None
Java Virtual Machine jvm_2
Name	Oracle Java SE 18.0.2.1
Vendor	Oracle
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-bit Server VM, version 18.0.2.1
Available	Aug-2022
Bitness	64
Notes	None
Other Software other_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Backend_1 : Backend
Driver
- Hardware config_2
  - OS Image os_Image_2
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Settings: NUMA nodes per socket = NPS2 Determinism Control = Manual Determinism Slider = Power L1 Stream HW Prefetcher = Disable L2 Stream HW Prefetcher = Disable xGMI Link Configuration = 4 xGMI Links 4 Link xGMI max speed = 32Gbps TDP Control = Manual TDP = 400 PPT Control = Manual PPT = 400
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Backend_1(12)
OS Image Description	os_1
Tuning	cpupower -c all frequency-set -g performance tuned-adm profile throughput-performance echo 950000 > /proc/sys/kernel/sched_rt_runtime_us echo 150000000 > /proc/sys/kernel/sched_latency_ns echo 80000 > /proc/sys/kernel/sched_migration_cost_ns echo 300000 > /proc/sys/kernel/sched_min_granularity_ns echo 300000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 32 > /proc/sys/kernel/sched_nr_migrate echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/vm/numa_stat echo 0 > /proc/sys/kernel/numa_balancing echo always > /sys/kernel/mm/transparent_hugepage/enabled echo always > /sys/kernel/mm/transparent_hugepage/defrag ulimit -n 1024000 UserTasksMax=970000 DefaultTasksMax=970000
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms122g -Xmx122g -Xmn120g -server -XX:MetaspaceSize=256m -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:+UseParallelGC -XX:SurvivorRatio=100 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=32 -XX:MaxTenuringThreshold=15 -XX:InitialCodeCacheSize=25m -XX:InlineSmallCode=10k -XX:MaxGCPauseMillis=200 -XX:+UseCompressedOops -XX:ObjectAlignmentInBytes=32 -XX:+UseTransparentHugePages -XX:TLABAllocationWeight=55 -XX:ThreadStackSize=512 -XX:CompileThresholdScaling=120
Tuning	Used numactl to affinitize three Backend JVM (3 Groups) to one NUMA node Group1: numactl --cpunodebind=0 --localalloc Group2: numactl --cpunodebind=0 --localalloc Group3: numactl --cpunodebind=0 --localalloc Group4: numactl --cpunodebind=1 --localalloc Group5: numactl --cpunodebind=1 --localalloc Group6: numactl --cpunodebind=1 --localalloc Group7: numactl --cpunodebind=2 --localalloc Group8: numactl --cpunodebind=2 --localalloc Group9: numactl --cpunodebind=2 --localalloc Group10: numactl --cpunodebind=3 --localalloc Group11: numactl --cpunodebind=3 --localalloc Group12: numactl --cpunodebind=3 --localalloc
Notes	None

Driver config_2 Configuration

Hardware
OS Images	os_Image_2(1)
Hardware Description	hw_2
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Settings: NUMA nodes per socket = NPS1 Determinism Control = Manual Determinism Slider = Power cTDP Control = Manual cTDP = 240 Package Power Limit Control = Manual Package Power Limit = 240 L1 Stream HW Prefetcher = Disable L2 Stream HW Prefetcher = Disable
Notes	None

OS Image os_Image_2
JVM Instances	jvm_Ctr_1(1), jvm_TxInjector_1(12)
OS Image Description	os_2
Tuning	cpupower -c all frequency-set -g performance tuned-adm profile throughput-performance echo 950000 > /proc/sys/kernel/sched_rt_runtime_us echo 150000000 > /proc/sys/kernel/sched_latency_ns echo 80000 > /proc/sys/kernel/sched_migration_cost_ns echo 300000 > /proc/sys/kernel/sched_min_granularity_ns echo 300000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 32 > /proc/sys/kernel/sched_nr_migrate echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/vm/numa_stat echo 0 > /proc/sys/kernel/numa_balancing echo always > /sys/kernel/mm/transparent_hugepage/enabled echo always > /sys/kernel/mm/transparent_hugepage/defrag
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_2
Command Line	-Xms10g -Xmx10g -Xmn8g -XX:+UseParallelGC -XX:CICompilerCount=2 -XX:ParallelGCThreads=4
Tuning	Used numactl to interleave memory on all Nodes in Driver system numactl --interleave=all
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-Xms3g -Xmx3g -Xmn2g -XX:+UseParallelGC -XX:CICompilerCount=4 -XX:ParallelGCThreads=2
Tuning	Used numactl to affinitize all Transaction Injector JVM to one NUMA node in Driver system Group1:numactl --cpunodebind=0 --membind=0 Group2:numactl --cpunodebind=0 --membind=0 Group3:numactl --cpunodebind=0 --membind=0 Group4:numactl --cpunodebind=0 --membind=0 Group5:numactl --cpunodebind=0 --membind=0 Group6:numactl --cpunodebind=0 --membind=0 Group7:numactl --cpunodebind=0 --membind=0 Group8:numactl --cpunodebind=0 --membind=0 Group9:numactl --cpunodebind=0 --membind=0 Group10:numactl --cpunodebind=0 --membind=0 Group11:numactl --cpunodebind=0 --membind=0 Group12:numactl --cpunodebind=0 --membind=0
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Pass	Fail	Fail
jOPS	613269	621787	630305	638822	647340

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	549387	609010	626046	630305	630305	608194

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	- / 8518	- / 8518	- / 8518	- / 8518	- / 8518	- / 8518
1000us	596234 / 604752	59623 / 68141	25553 / 34071	- / 8518	- / 8518	- / 8518
5000us	630305 / -	630305 / -	613269 / 621787	570681 / 579199	442917 / 408846	- / 8518
10000us	630305 / -	630305 / -	630305 / -	630305 / -	545128 / 553646	- / 8518
25000us	630305 / -	630305 / -	630305 / -	630305 / -	604752 / 613269	25553 / 34071
50000us	630305 / -	630305 / -	630305 / -	630305 / -	621787 / 630305	25553 / 34071
75000us	630305 / -	630305 / -	630305 / -	630305 / -	630305 / -	59623 / 34071
100000us	630305 / -	630305 / -	630305 / -	630305 / -	630305 / -	383293 / 34071
200000us	630305 / -	630305 / -	630305 / -	630305 / -	630305 / -	587716 / 34071
500000us	630305 / -	630305 / -	630305 / -	630305 / -	630305 / -	630305 / 34071
1000000us	630305 / -	630305 / -	630305 / -	630305 / -	630305 / -	630305 / 34071

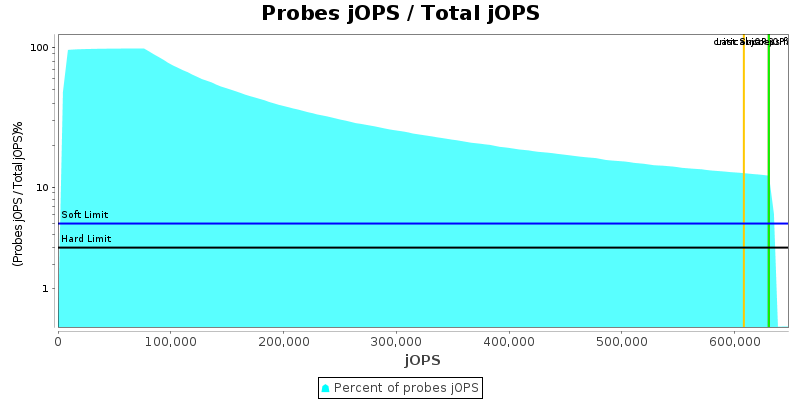

Number of probes

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

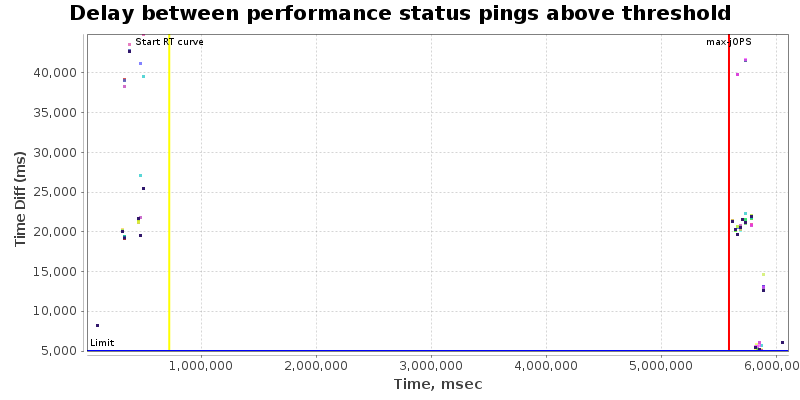

Delay between performance status pings during RT Curve (Response-Throughput Curve)

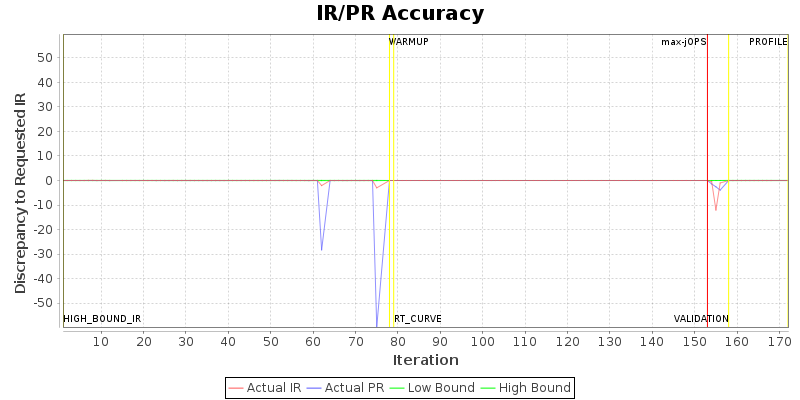

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group1.TxInjector.txiJVM1	Group10.Backend.beJVM	Group10.TxInjector.txiJVM1	Group11.Backend.beJVM	Group11.TxInjector.txiJVM1	Group12.Backend.beJVM	Group12.TxInjector.txiJVM1	Group2.Backend.beJVM	Group2.TxInjector.txiJVM1	Group3.Backend.beJVM	Group3.TxInjector.txiJVM1	Group4.Backend.beJVM	Group4.TxInjector.txiJVM1	Group5.Backend.beJVM	Group5.TxInjector.txiJVM1	Group6.Backend.beJVM	Group6.TxInjector.txiJVM1	Group7.Backend.beJVM	Group7.TxInjector.txiJVM1	Group8.Backend.beJVM	Group8.TxInjector.txiJVM1	Group9.Backend.beJVM	Group9.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size	256	256	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120
specjbb.comm.connect.selector.runner.count	0	8	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4
specjbb.comm.connect.timeouts.connect	60000	900000
specjbb.comm.connect.timeouts.read	60000	800000
specjbb.comm.connect.timeouts.write	60000	800000
specjbb.comm.connect.worker.pool.max	256	256	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120
specjbb.comm.connect.worker.pool.min	1	1	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24
specjbb.controller.host	localhost	192.168.42.21
specjbb.controller.maxir.maxFailedPoints	3	1
specjbb.forkjoin.workers	128	{Tier1=122, Tier2=1, Tier3=8}
specjbb.group.count	1	12
specjbb.heartbeat.period	10000	400000
specjbb.heartbeat.threshold	100000	4000000
specjbb.mapreducer.pool.size	128	16
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 851763 IR

High-bound (settled) is 710003 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Super Micro Computer, Inc Supermicro A+ AS-2125HS-TNR	630305 SPECjbb2015-Distributed max-jOPS 608194 SPECjbb2015-Distributed critical-jOPS
Tested by: Super Micro Computer, Inc	Test Sponsor: Super Micro Computer, Inc	Test location: San Jose, California	Test date: October 12, 2022
SPEC license #: 001176	Hardware Availability: Nov-2022	Software Availability: Aug-2022	Publication: Thu Nov 10 10:32:32 EST 2022
