SPECjbb2015 Report for jbb2015-20221019-00890 : 645699 max-jOPS ; 458365 critical-jOPS

SUT Description

Hardware hw_1
Name	ThinkSystem SR665 V3
Vendor	Lenovo Global Technology
Vendor URL	http://www.lenovo.com
Available	Dec-2022
Model	ThinkSystem SR665 V3
Form Factor	2U
CPU Name	AMD EPYC 9654
CPU Characteristics	96 core, 2.40GHz, 384 MB L3 Cache (Max Boost Clock up to 3.70GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	192
Cores Per Chip	96
Threads Per System	384
Threads Per Core	2
Version	KAE103A
CPU Frequency (MHz)	2400
Primary Cache	32KB(I)+32KB(D) on chip per core
Secondary Cache	1MB (I+D) on chip per core
Tertiary Cache	384MB (I+D) on chip per chip
Other Cache	None
Disk	1 x 480GB SATA SSD
File System	NTFS
Memory Amount (GB)	1536
# and size of DIMM(s)	24 x 64 GB
Memory Details	64 GB 2Rx4 PC5-4800B-R
# and type of Network Interface Cards (NICs)	1 x 10/25 GbE PCIE NIC
Power Supply Quantity and Rating (W)	1 x 1800W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	Windows Server 2022 Datacenter
Vendor	Microsoft
Vendor URL	https://www.microsoft.com/
Version	Version 21H2(OS Build 20348.1129)
Available	Oct-2022
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 17.0.4.1
Vendor	Oracle Corporation
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-Bit Server VM, version 17.0.4.1
Available	Aug-2022
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Driver Description

Hardware hw_2
Name	ThinkSystem SR665
Vendor	Lenovo Global Technology
Vendor URL	http://www.lenovo.com
Available	Aug-2022
Model	ThinkSystem SR665
Form Factor	2U
CPU Name	AMD EPYC 7773X
CPU Characteristics	64 core, 2.20GHz, 768 MB L3 Cache (Max Boost Clock up to 3.50GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	128
Cores Per Chip	64
Threads Per System	256
Threads Per Core	2
Version	D8E125J
CPU Frequency (MHz)	2200
Primary Cache	32KB(I)+32KB(D) on chip per core
Secondary Cache	512KB (I+D) on chip per core
Tertiary Cache	768MB (I+D) on chip per chip
Other Cache	None
Disk	1 x 960GB SATA SSD
File System	NTFS
Memory Amount (GB)	2048
# and size of DIMM(s)	32 x 64 GB
Memory Details	64GB 2Rx4 PC4-3200AA-R
# and type of Network Interface Cards (NICs)	1 x 10/25 GbE PCIE NIC
Power Supply Quantity and Rating (W)	1 x 1800W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_2
Name	Windows Server 2022 Datacenter
Vendor	Microsoft
Vendor URL	https://www.microsoft.com/
Version	Version 21H2(OS Build 20348.1129)
Available	Oct-2022
Bitness	64
Notes	None
Java Virtual Machine jvm_2
Name	Oracle Java SE 17.0.4.1
Vendor	Oracle Corporation
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-Bit Server VM, version 17.0.4.1
Available	Aug-2022
Bitness	64
Notes	None
Other Software other_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Backend_1 : Backend
Driver
- Hardware config_2
  - OS Image os_Image_2
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Configuration: Operating Mode set to Maximum Performance and then set to Custom Mode Global C-state Control set to Disabled NUMA Nodes per Socket set to NPS4 L1 Stream HW Prefetcher set to Disabled L2 Stream HW Prefetcher set to Disabled
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Backend_1(8)
OS Image Description	os_1
Tuning	Add DWORD registry HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\MaxUserPort=65534 Power Options is set to High performance Processor scheduling is set to Programs Visual Effects Adjust for best performance Lock Pages in Memory is Enabled
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms120g -Xmx120g -Xmn118g -server -XX:MetaspaceSize=256m -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:+UseParallelGC -XX:SurvivorRatio=100 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=32 -XX:MaxTenuringThreshold=15 -Xnoclassgc -XX:InitialCodeCacheSize=25m -XX:InlineSmallCode=10k -XX:MaxGCPauseMillis=200 -XX:+UseCompressedOops -XX:ObjectAlignmentInBytes=32 -XX:TLABAllocationWeight=55 -XX:ThreadStackSize=512 -XX:CompileThresholdScaling=120
Tuning	Affinitized each Backend JVM to a single memory node. start /b /NODE 0 start /b /NODE 1 start /b /NODE 2 start /b /NODE 3 start /b /NODE 4 start /b /NODE 5 start /b /NODE 6 start /b /NODE 7
Notes	None

Driver config_2 Configuration

Hardware
OS Images	os_Image_2(1)
Hardware Description	hw_2
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Configuration: Operating Mode set to Maximum Performance and then set to Custom Mode NUMA Nodes per Socket set to NPS4 L1 Stream HW Prefetcher set to Disable L2 Stream HW Prefetcher set to Disable
Notes	None

OS Image os_Image_2
JVM Instances	jvm_Ctr_1(1), jvm_TxInjector_1(8)
OS Image Description	os_2
Tuning	Add DWORD registry HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\MaxUserPort=65534 Power Options is set to High performance Processor scheduling is set to Programs Visual Effects Adjust for best performance Lock Pages in Memory is Enabled
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_2
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4
Tuning	None
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_2
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4
Tuning	None
Notes	None

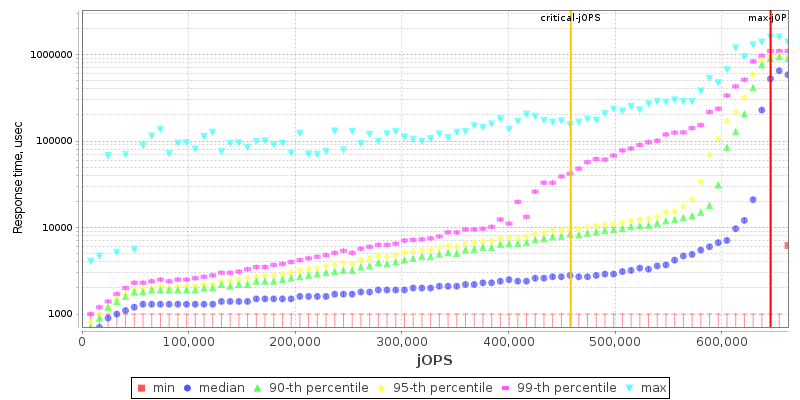

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Pass	Fail	Fail
jOPS	629353	637526	645699	653873	662046

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	380063	420930	469971	502664	535358	458365

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	16347 / 24520	- / 8173	- / 8173	- / 8173	- / 8173	- / 8173
1000us	351457 / 343283	32694 / 40867	16347 / 24520	16347 / 24520	8173 / 16347	- / 8173
5000us	629353 / 637526	572139 / 580312	351457 / 343283	294243 / 302416	228855 / 237029	16347 / 24520
10000us	637526 / 645699	613006 / 621179	506751 / 514925	465884 / 474058	375977 / 384150	49040 / 24520
25000us	637526 / 645699	629353 / 637526	588486 / 596659	572139 / 580312	416844 / 425017	49040 / 24520
50000us	645699 / -	629353 / 637526	596659 / 604832	580312 / 588486	465884 / 474058	49040 / 24520
75000us	645699 / -	629353 / 637526	596659 / 604832	588486 / 596659	498578 / 506751	220682 / 57214
100000us	645699 / -	629353 / 637526	604832 / 613006	588486 / 596659	531272 / 539445	318763 / 65387
200000us	645699 / -	629353 / 637526	613006 / 621179	604832 / 613006	580312 / 588486	482231 / 416844
500000us	645699 / -	637526 / 645699	629353 / 637526	621179 / 629353	613006 / 621179	596659 / 588486
1000000us	645699 / -	645699 / -	645699 / -	645699 / -	637526 / 645699	621179 / 613006

Number of probes

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

Delay between performance status pings during RT Curve (Response-Throughput Curve)

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group2.Backend.beJVM	Group3.Backend.beJVM	Group4.Backend.beJVM	Group5.Backend.beJVM	Group6.Backend.beJVM	Group7.Backend.beJVM	Group8.Backend.beJVM
specjbb.comm.connect.client.pool.size	256	256	160	160	160	160	160	160	160	160
specjbb.comm.connect.selector.runner.count	0	1
specjbb.comm.connect.timeouts.connect	60000	600000
specjbb.comm.connect.timeouts.read	60000	600000
specjbb.comm.connect.timeouts.write	60000	600000
specjbb.comm.connect.worker.pool.max	256	45
specjbb.comm.connect.worker.pool.min	1	30
specjbb.controller.host	localhost	192.168.5.4
specjbb.controller.maxir.maxFailedPoints	3	1
specjbb.forkjoin.workers	64	{Tier1=124, Tier2=10, Tier3=28}
specjbb.group.count	1	8
specjbb.heartbeat.threshold	100000	600000
specjbb.mapreducer.pool.size	64	12
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 817341 IR

High-bound (settled) is 684624 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Lenovo Global Technology ThinkSystem SR665 V3	645699 SPECjbb2015-Distributed max-jOPS 458365 SPECjbb2015-Distributed critical-jOPS
Tested by: Lenovo Global Technology	Test Sponsor: Lenovo Global Technology	Test location: Beijing, China	Test date: Oct 19, 2022
SPEC license #: 9017	Hardware Availability: Dec-2022	Software Availability: Oct-2022	Publication: Thu Nov 10 10:32:32 EST 2022
