SPECjbb2015 Report for jbb2015-20220714-00836 : 156006 max-jOPS ; 77341 critical-jOPS

SUT Description

Hardware hw_1
Name	TNS-2100
Vendor	TAEJIN T&S
Vendor URL	http://www.tjtns.co.kr/
Available	Jun-2022
Model	TNS-2100
Form Factor	2U
CPU Name	Intel(R) Xeon(R) Gold 6354
CPU Characteristics	18 Core, 3.0 GHz, 39 MB L3 Cache (Turbo Boost Technology up to 3.6 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	36
Cores Per Chip	18
Threads Per System	72
Threads Per Core	2
Version	Version 1.0
CPU Frequency (MHz)	3000
Primary Cache	48KB(I)+32KB(D) KB per core
Secondary Cache	1.25 MB(I+D) per core
Tertiary Cache	39 MB(I+D) per chip
Other Cache	None
Disk	1 TB HDD
File System	XFS
Memory Amount (GB)	2048
# and size of DIMM(s)	32 x 64GB
Memory Details	32 X 64GB 4Rx4 PC4-2666
# and type of Network Interface Cards (NICs)	1 x 1 Gbit NICs
Power Supply Quantity and Rating (W)	2x1600
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	Red Hat Enterprise Linux Server 7.9
Vendor	Red Hat Enterprise
Vendor URL	https://www.redhat.com/
Version	3.10.0-1160.66.1.el7.x86_64
Available	Sep-2020
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 18.0.1.1
Vendor	Oracle
Vendor URL	http://www.oracle.com
Version	Java HotSpot 64-bit Server VM, version 18.0.1.1
Available	May-2022
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Settings: SNC = Enable SNC UPI Prefetch = Disabled XPT Prefetch = Disabled LLC Prefetch = Disabled Dead Line LLC Alloc = Disabled Patrol Scrub = Disabled DCU Streamer Prefetching = Enabled Energy Efficient Policy = Performance Turbo Boost = Enabled C states = Disabled
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description	os_1
Tuning	cpupower frequency-set -g performance ulimit -n 655360 echo 15000000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 80000000 > /proc/sys/kernel/sched_min_granularity_ns echo 1000 > /proc/sys/kernel/sched_migration_cost_ns echo 16 > /proc/sys/kernel/sched_nr_migrate echo 950000 > /proc/sys/kernel/sched_rt_runtime_us echo 10000000 > /proc/sys/kernel/sched_latency_ns echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo always > /sys/kernel/mm/transparent_hugepage/dafrag echo always > /sys/kernel/mm/transparent_hugepage/enabled ulimit -v 800000000 ulimit -m 800000000 ulimit -l 800000000
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-server -Xms2g -Xmx2g -Xmn1536m
Tuning	None
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-server -Xmx30g -Xms30g -Xmn27g -XX:+UseParallelGC -XX:ParallelGCThreads=18 -XX:+UseLargePages -XX:LargePageSizeInBytes=1G -XX:+AlwaysPreTouch -XX:InlineSmallCode=10k -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=28 -XX:LoopUnrollLimit=20 -XX:MaxTenuringThreshold=15 -XX:TargetSurvivorRatio=95 -XX:AllocatePrefetchInstr=2 -XX:UseAVX=0
Tuning	Used numactl to affinitize each Backend JVM to 9 Cores / 18 Threads numactl --cpunodebind=0 --localalloc numactl --cpunodebind=1 --localalloc numactl --cpunodebind=2 --localalloc numactl --cpunodebind=3 --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-server -Xms2g -Xmx2g -Xmn1536m
Tuning	Used numactl to affinitize each Backend JVM to 9 Cores / 18 Threads numactl --cpunodebind=0 --localalloc numactl --cpunodebind=1 --localalloc numactl --cpunodebind=2 --localalloc numactl --cpunodebind=3 --localalloc
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	154253	156006	157759	159512	161265

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	51710	63980	79756	97284	107802	77341

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	3506 / 5259	1753 / 3506	- / 1753	- / 1753	- / 1753	- / 1753
1000us	50834 / 52586	7012 / 8764	3506 / 5259	3506 / 5259	1753 / 3506	- / 1753
5000us	138478 / 140230	124454 / 126207	84138 / 82385	50834 / 52586	26293 / 28046	1753 / 3506
10000us	140230 / 141983	127960 / 129713	103420 / 105173	87644 / 89397	50834 / 52586	1753 / 3506
25000us	141983 / 143736	134972 / 136725	119196 / 120949	108679 / 110431	63104 / 64857	5259 / 3506
50000us	143736 / 145489	136725 / 138478	124454 / 126207	115690 / 117443	78880 / 80632	5259 / 3506
75000us	145489 / 147242	138478 / 140230	127960 / 129713	120949 / 122702	96408 / 98161	5259 / 3506
100000us	145489 / 147242	138478 / 140230	129713 / 131466	124454 / 126207	106926 / 108679	42069 / 3506
200000us	148995 / 150748	141983 / 143736	136725 / 138478	133219 / 134972	127960 / 129713	101667 / 17529
500000us	156006 / -	148995 / 150748	143736 / 145489	141983 / 143736	140230 / 141983	133219 / 134972
1000000us	156006 / -	156006 / -	152501 / 154253	152501 / 154253	148995 / 150748	143736 / 145489

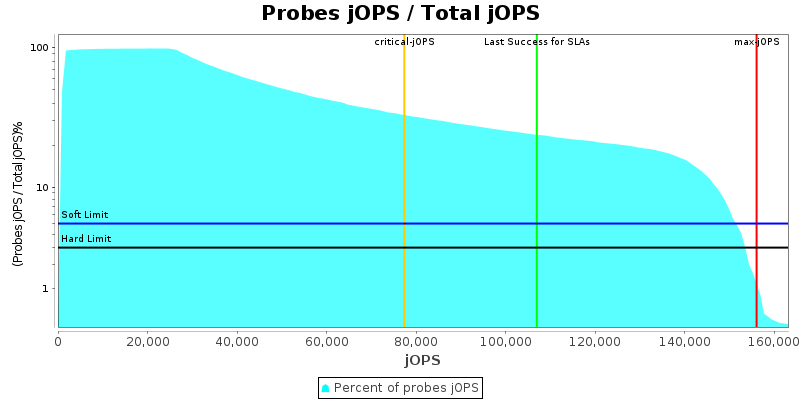

Number of probes

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

Delay between performance status pings during RT Curve (Response-Throughput Curve)

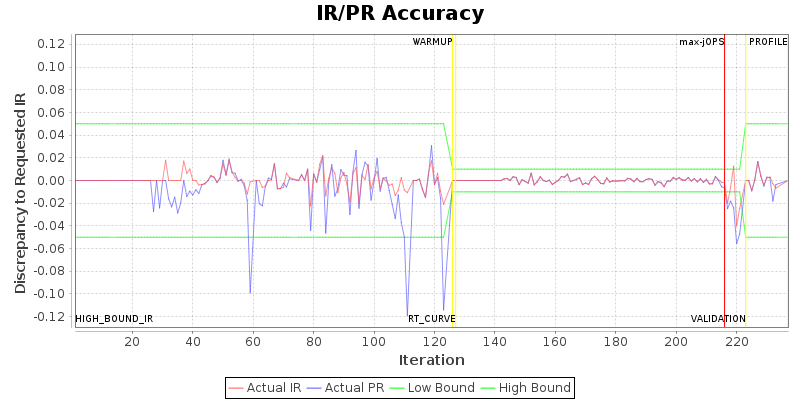

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.client.pool.size	256	224
specjbb.comm.connect.selector.runner.count	0	4
specjbb.comm.connect.timeouts.connect	60000	600000
specjbb.comm.connect.timeouts.read	60000	600000
specjbb.comm.connect.timeouts.write	60000	600000
specjbb.comm.connect.worker.pool.max	256	112
specjbb.comm.connect.worker.pool.min	1	64
specjbb.forkjoin.workers	72	{Tier1=180, Tier2=56, Tier3=28}
specjbb.group.count	1	4
specjbb.mapreducer.pool.size	72	4
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 175288 IR

High-bound (settled) is 168928 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

TAEJIN T&S TNS-2100	156006 SPECjbb2015-MultiJVM max-jOPS 77341 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Telecommunications Technology Association	Test Sponsor: Telecommunications Technology Association	Test location: TTA, Seongnam-city, Korea	Test date: Jun 15, 2022
SPEC license #: A83	Hardware Availability: Jun-2022	Software Availability: May-2022	Publication: Thu Aug 11 16:57:40 EDT 2022

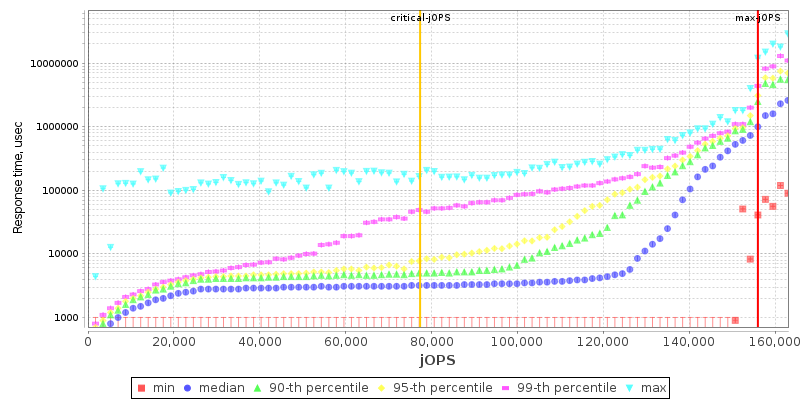

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host (# of groups: 4) Overall SUT Description SUT Description max-jOPS and critical-jOPS Details Number of probes Request Mix Accuracy Rate Of Non-Critical Failures Delay between performance status pings IR/PR Accuracy Topology SUT Configuration Properties Validation Details Link to Full Disclosure	Overall Throughput RT curve
