Inspur Corporation NF5180M6 106955 SPECjbb2015-Composite max-jOPS
85400 SPECjbb2015-Composite critical-jOPS
Tested by: Inspur Corporation Test Sponsor: Inspur Corporation Test location: Jinan, China Test date: Apr 19, 2022
SPEC license #: 3358 Hardware Availability: Apr-2022 Software Availability: Mar-2022 Publication: Thu Jun 2 14:25:26 EDT 2022
Benchmark Results Summary

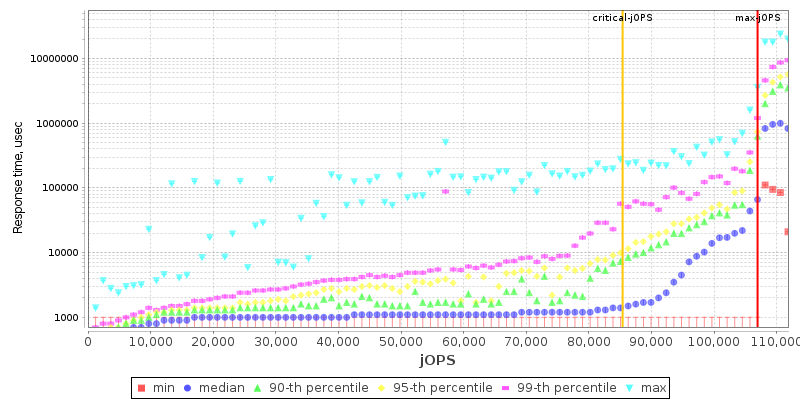

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorInspur Corporation
Vendor URLhttp://www.inspur.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores32
Total Threads64
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameInspur NF5180M6
VendorInspur Corporation
Vendor URLhttp://www.inspur.com/
AvailableApr-2022
ModelInspur NF5180M6
Form Factor1U
CPU NameIntel Xeon Silver 4314
CPU Characteristics16 Core, 2.40 GHz, 24 MB L3 Cache (Turbo Boost Technology up to 3.40 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System32
Cores Per Chip16
Threads Per System64
Threads Per Core2
Version6.00.03 released Apr-2022
CPU Frequency (MHz)2400
Primary Cache32 KB(I)+48 KB(D)on chip per core
Secondary Cache1.25MB (I+D) per core
Tertiary Cache24MB (I+D) on chip per chip
Other CacheNone
Disk1x 4TB NVMe SSD
File Systemxfs
Memory Amount (GB)1024
# and size of DIMM(s)32 x 32GB
Memory Details32 x 32GB 2Rx4 PC4-3200AA-R; each slot populated; running at 2666MHz
# and type of Network Interface Cards (NICs)1 x 10 Gbit NIC
Power Supply Quantity and Rating (W)2 x 800W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux release 8.5 (Ootpa)
VendorRed Hat
Vendor URLhttp://redhat.com/
Version4.18.0-348
AvailableNov-2021
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 18
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 18
AvailableMar-2022
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Tuning
  • Energy Performance set to Performance
  • SNC Enabled
  • Memory Patrol Scrub Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning
  • ulimit -n 655360
  • tuned-adm profile throughput-performance
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -server -Xms650g -Xmx650g -Xmn600g -XX:+UseLargePages -XX:+UseParallelGC -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=28 -XX:+UseTransparentHugePages -XX:ParallelGCThreads=64 -XX:+UseHugeTLBFS -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=1 -XX:+UseNUMA -XX:+AlwaysPreTouch -XX:InlineSmallCode=13k -XX:UseAVX=0
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 105740 106955 108171 109386 110601
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 75426 80375 84114 92481 96320 85400
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 43754 / 44970 3646 / 4862 1215 / 2431 1215 / 2431 - / 1215 - / 1215
1000us 94801 / 96017 41324 / 42539 9723 / 10939 8508 / 9723 6077 / 7292 - / 1215
5000us 102094 / 103309 94801 / 96017 80216 / 81432 75355 / 69278 53478 / 54693 15800 / 9723
10000us 104524 / 105740 97232 / 98447 88724 / 89940 85078 / 86293 76570 / 57124 35247 / 9723
25000us 106955 / - 104524 / 105740 96017 / 97232 92370 / 93586 83863 / 57124 35247 / 13369
50000us 106955 / - 105740 / 106955 102094 / 103309 102094 / 100878 91155 / 57124 37677 / 13369
75000us 106955 / - 106955 / - 104524 / 105740 102094 / 103309 96017 / 57124 52262 / 13369
100000us 106955 / - 106955 / - 104524 / 105740 104524 / 105740 97232 / 93586 71709 / 13369
200000us 106955 / - 106955 / - 105740 / 106955 104524 / 105740 104524 / 105740 88724 / 57124
500000us 106955 / - 106955 / - 105740 / 106955 105740 / 106955 105740 / 106955 102094 / 57124
1000000us 106955 / - 106955 / - 106955 / - 106955 / - 105740 / 106955 104524 / 105740
Probes jOPS / Total jOPS

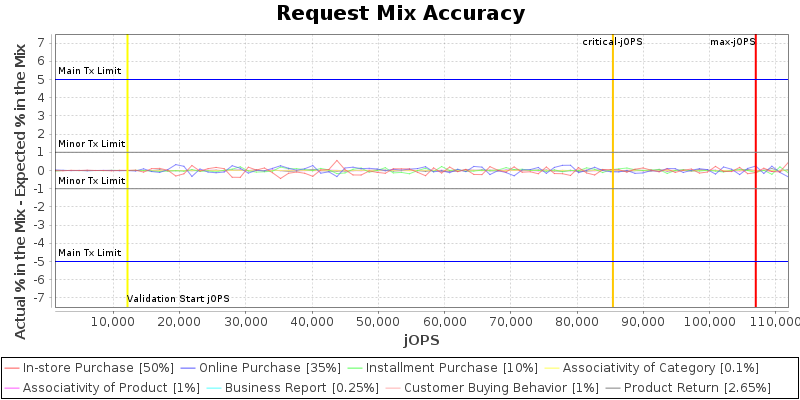

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.forkjoin.workers 64 {Tier1=100, Tier2=1, Tier3=16}
specjbb.group.count 1 2
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 121540 IR
High-bound (settled) is 117724 IR
