SPECjbb2015 Report for jbb2015-20220518-00817 : 181507 max-jOPS ; 83372 critical-jOPS

SUT Description

Hardware hw_1
Name	Inspur NF5180M6
Vendor	Inspur Corporation
Vendor URL	http://www.inspur.com/
Available	Apr-2022
Model	Inspur NF5180M6
Form Factor	1U
CPU Name	Intel Xeon Gold 5320
CPU Characteristics	26 Core, 2.20 GHz, 39 MB L3 Cache (Turbo Boost Technology up to 3.40 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	52
Cores Per Chip	26
Threads Per System	104
Threads Per Core	2
Version	6.00.03 released Apr-2022
CPU Frequency (MHz)	2200
Primary Cache	32 KB(I)+48 KB(D)on chip per core
Secondary Cache	1.25MB (I+D) per core
Tertiary Cache	39MB (I+D) on chip per chip
Other Cache	None
Disk	1x 4TB NVMe SSD
File System	xfs
Memory Amount (GB)	1024
# and size of DIMM(s)	32 x 32GB
Memory Details	32 x 32GB 2Rx4 PC4-3200AA-R; each slot populated; running at 2933MHz
# and type of Network Interface Cards (NICs)	1 x 10 Gbit NIC
Power Supply Quantity and Rating (W)	2 x 800W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	Red Hat Enterprise Linux release 8.5 (Ootpa)
Vendor	Red Hat
Vendor URL	http://redhat.com/
Version	4.18.0-348
Available	Nov-2021
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 18
Vendor	Oracle
Vendor URL	http://www.oracle.com
Version	Java HotSpot 64-bit Server VM, version 18
Available	Mar-2022
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Tuning Energy Performance set to Performance SNC Enabled Memory Patrol Scrub Disabled
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description	os_1
Tuning	ulimit -n 655360 echo 15000000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 80000000 > /proc/sys/kernel/sched_min_granularity_ns echo 1000 > /proc/sys/kernel/sched_migration_cost_ns echo 16 > /proc/sys/kernel/sched_nr_migrate echo 950000 > /proc/sys/kernel/sched_rt_runtime_us echo 10000000 > /proc/sys/kernel/sched_latency_ns echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo always > /sys/kernel/mm/transparent_hugepage/defrag echo always > /sys/kernel/mm/transparent_hugepage/enabled
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-Xmn1536m -Xms2g -Xmx2g
Tuning	None
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-server -Xmx30g -Xms30g -Xmn27g -XX:+UseParallelGC -XX:ParallelGCThreads=26 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+AlwaysPreTouch -XX:InlineSmallCode=10k -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=28 -XX:LoopUnrollLimit=20 -XX:MaxTenuringThreshold=15 -XX:TargetSurvivorRatio=95 -XX:AllocatePrefetchInstr=2 -XX:UseAVX=0
Tuning	numactl used to affinitize each Backend JVM to a single memory node, eg: numactl --cpunodebind=0 --localalloc numactl --cpunodebind=1 --localalloc numactl --cpunodebind=2 --localalloc numactl --cpunodebind=3 --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-Xmn1536m -Xms2g -Xmx2g
Tuning	numactl used to affinitize each TxInjector JVM to a single memory node, eg: numactl --cpunodebind=0 --localalloc numactl --cpunodebind=1 --localalloc numactl --cpunodebind=2 --localalloc numactl --cpunodebind=3 --localalloc
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	179534	181507	183480	185453	187425

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	58200	68065	83848	101604	119360	83372

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	1973 / 3946	1973 / 3946	- / 1973	- / 1973	- / 1973	- / 1973
1000us	49322 / 29593	7892 / 9864	3946 / 5919	3946 / 5919	1973 / 3946	- / 1973
5000us	165724 / 167696	151913 / 153886	104564 / 102591	67079 / 69051	33539 / 35512	3946 / 5919
10000us	165724 / 167696	153886 / 155859	124293 / 126266	100618 / 102591	57214 / 59187	3946 / 5919
25000us	169669 / 171642	159805 / 161778	144022 / 145995	128238 / 130211	67079 / 69051	3946 / 5919
50000us	169669 / 171642	163751 / 165724	147967 / 149940	134157 / 136130	82862 / 84835	3946 / 5919
75000us	169669 / 171642	163751 / 165724	149940 / 151913	140076 / 142049	100618 / 102591	3946 / 5919
100000us	171642 / 173615	163751 / 165724	151913 / 153886	145995 / 147967	118374 / 120347	57214 / 5919
200000us	173615 / 175588	169669 / 171642	159805 / 161778	157832 / 159805	147967 / 149940	120347 / 11837
500000us	179534 / 181507	173615 / 175588	169669 / 171642	167696 / 169669	163751 / 165724	159805 / 161778
1000000us	181507 / -	177561 / 179534	175588 / 177561	173615 / 175588	173615 / 175588	167696 / 169669

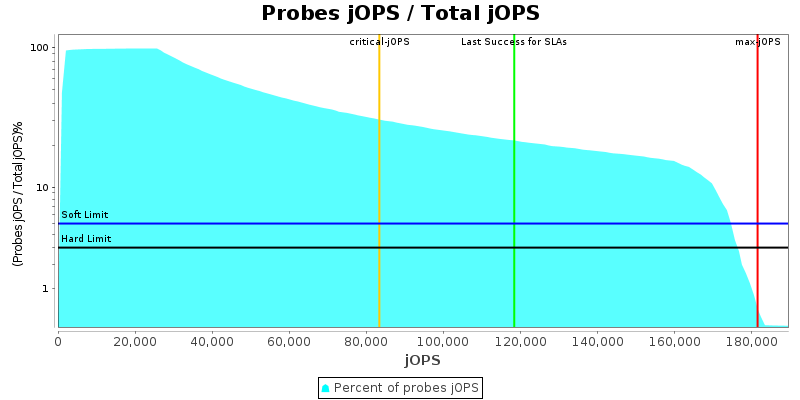

Number of probes

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

Delay between performance status pings during RT Curve (Response-Throughput Curve)

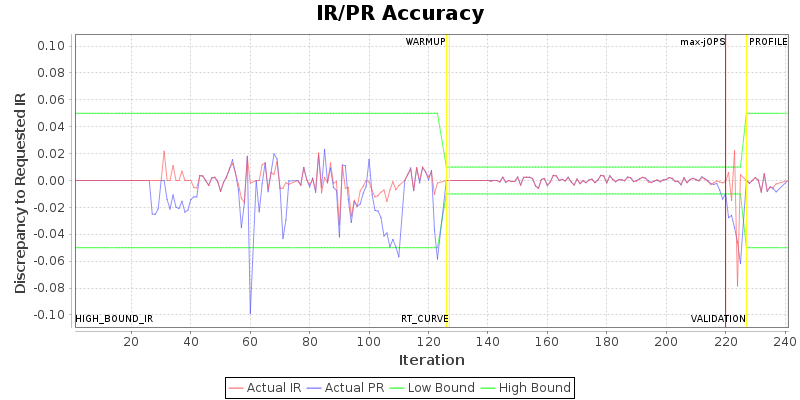

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.client.pool.size	256	224
specjbb.comm.connect.selector.runner.count	0	4
specjbb.comm.connect.worker.pool.max	256	112
specjbb.comm.connect.worker.pool.min	1	64
specjbb.forkjoin.workers	104	{Tier1=100, Tier2=1, Tier3=16}
specjbb.group.count	1	4
specjbb.mapreducer.pool.size	104	4
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 197290 IR

High-bound (settled) is 186557 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Inspur Corporation NF5180M6	181507 SPECjbb2015-MultiJVM max-jOPS 83372 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Inspur Corporation	Test Sponsor: Inspur Corporation	Test location: Jinan, China	Test date: May 05, 2022
SPEC license #: 3358	Hardware Availability: Apr-2022	Software Availability: Mar-2022	Publication: Thu Jun 2 14:25:26 EDT 2022
