SPECjbb2015
Copyright © 2015-2022 Standard Performance Evaluation Corporation
GIGA-BYTE TECHNOLOGY CO., LTD. R282-Z90 368441 SPECjbb2015-Composite max-jOPS
321955 SPECjbb2015-Composite critical-jOPS
Tested by: GIGA-BYTE TECHNOLOGY CO., LTD. Test Sponsor: GIGA-BYTE TECHNOLOGY CO., LTD. Test location: New Taipei City 231, Taiwan Test date: May 14, 2022
SPEC license #: 9082 Hardware Availability: Mar-2022 Software Availability: Jan-2022 Publication: Fri Jun 10 14:07:37 EDT 2022
Benchmark Results Summary

SPECjbb2015-Composite: Single JVM/Single Host
(# of groups: 2)
Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorGIGA-BYTE TECHNOLOGY CO., LTD.
Vendor URLhttps://www.gigabyte.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores128
Total Threads256
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameR282-Z90
VendorGIGA-BYTE TECHNOLOGY CO., LTD.
Vendor URLhttps://www.gigabyte.com
AvailableMar-2022
ModelR282-Z90
Form Factor2U
CPU NameAMD EPYC 7773X
CPU Characteristics64 core, 2.2GHz, 768MB L3 Cache (Turbo Boost Technology up to 3.5 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System128
Cores Per Chip64
Threads Per System256
Threads Per Core2
VersionM07 09/30/2021
CPU Frequency (MHz)2200
Primary Cache32KB(I)+32KB(D) per core
Secondary Cache512KB (I+D) per core
Tertiary Cache768MB (I+D) on chip per chip
Other CacheNone
Disk1 x nvme 1.92TB
File Systemext4
Memory Amount (GB)1024
# and size of DIMM(s)16 x 64GB
Memory Details64 GB 4Rx4 PC4-3200AA-L
# and type of Network Interface Cards (NICs)2 x 1 Gbit LOMs
Power Supply Quantity and Rating (W)2 x DELTA DPS-1200AB-4 1200w
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP2
VendorSUSE
Vendor URLhttp://suse.com
Version5.3.18-22-default
AvailableJun-2020
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 17.0.2
VendorOracle
Vendor URLhttp://oracle.com
VersionJava HotSpot 64-bit Server VM, version 17.0.2
AvailableJan-2022
Bitness64
Notesnote
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning

BIOS Settings:

  • SMT Control set to Enable
  • IOMMU set to Enabled
  • NUMA nodes per socket set to NPS2
  • Determinism Control set to Manual
  • Determinism Slider set to Power
  • cTDP Control set to Manual
  • cTDP set to 280
  • Package Power Limit Control set to Manual
  • Package Power Limit set to 280
  • L1 Stream HW Prefetcher set to Disable
  • L2 Stream HW Prefetcher set to Disable
Notes notes
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning
  • cpupower -c all frequency-set -g performance
  • tuned-adm profile throughput-performance

  • echo 400000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 40000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 40000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 128 > /proc/sys/kernel/sched_nr_migrate
  • echo 950000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 400000 > /proc/sys/kernel/sched_latency_ns

  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness

  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled

  • Add cgroup_disable=memory,cpu,cpuacct,blkio,hugetlb,pids,cpuset,perf_event,freezer,devices,net_cls,net_prio to GRUB_CMDLINE_LINUX_DEFAULT
  • ulimit -n 1024000
  • UserTasksMax=970000
  • DefaultTasksMax=970000
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line

-Xms975g -Xmx975g -Xmn965g -server -XX:+UseParallelGC -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:MaxTenuringThreshold=5 -XX:-UseAdaptiveSizePolicy -XX:ParallelGCThreads=192 -XX:SurvivorRatio=180 -XX:TargetSurvivorRatio=95 -XX:+UseNUMA -XX:+UseTransparentHugePages -XX:-UseFastStosb -XX:+UseUnalignedLoadStores -XX:+UseXMMForArrayCopy -XX:+UseXMMForObjInit -XX:+UseFPUForSpilling
Tuning None
Notes

Used numactl to run on all available nodes

  • numactl --cpunodebind=0-3 --interleave=0-3
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 364206 368441 372676 376911 381145
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 231510 318562 353618 362088 366323 321955
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 8470 / 12705 - / 4235 - / 4235 - / 4235 - / 4235 - / 4235
1000us 224452 / 228687 12705 / 16940 4235 / 8470 4235 / 8470 4235 / 8470 - / 4235
5000us 364206 / 368441 355736 / 359971 220217 / 224452 160928 / 165163 101639 / 105874 12705 / 16940
10000us 368441 / - 364206 / 368441 351501 / 355736 321856 / 326091 245627 / 224452 67759 / 16940
25000us 368441 / - 368441 / - 364206 / 368441 359971 / 364206 326091 / 292212 76229 / 16940
50000us 368441 / - 368441 / - 368441 / - 364206 / 368441 351501 / 355736 135518 / 16940
75000us 368441 / - 368441 / - 368441 / - 368441 / - 359971 / 364206 135518 / 16940
100000us 368441 / - 368441 / - 368441 / - 368441 / - 364206 / 368441 135518 / 84699
200000us 368441 / - 368441 / - 368441 / - 368441 / - 364206 / 368441 262567 / 152458
500000us 368441 / - 368441 / - 368441 / - 368441 / - 368441 / - 338796 / 334561
1000000us 368441 / - 368441 / - 368441 / - 368441 / - 368441 / - 364206 / 368441

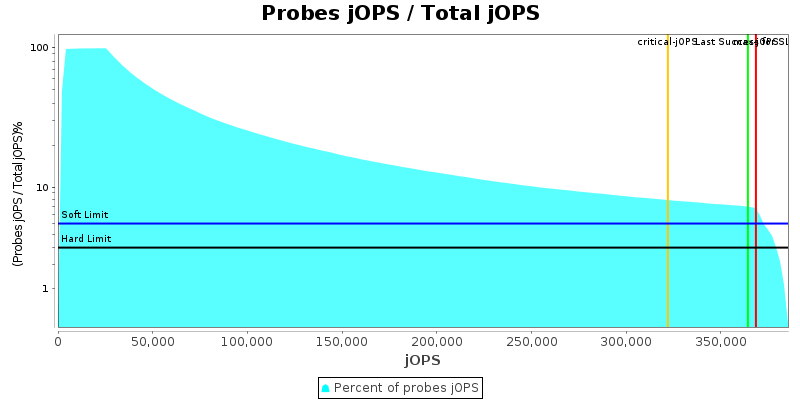

Number of probes
Probes jOPS / Total jOPS

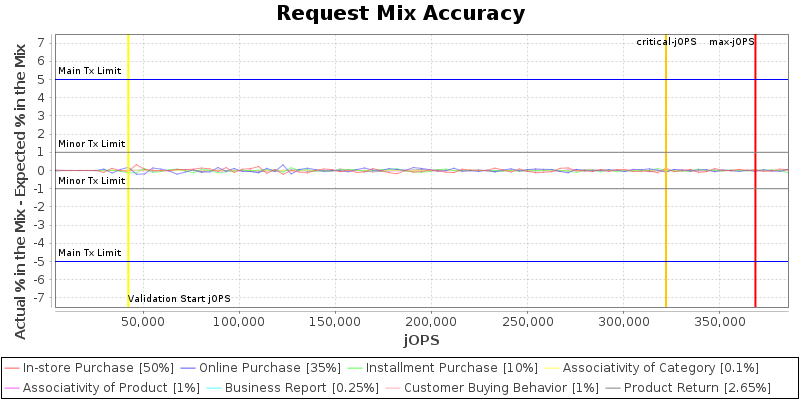

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

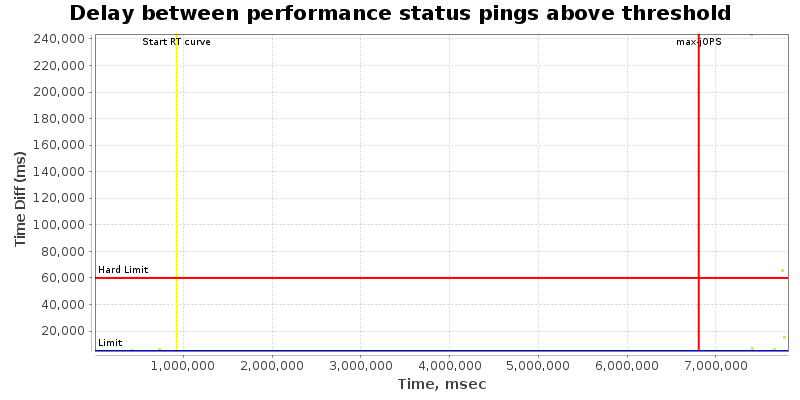

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings
IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 300
specjbb.comm.connect.selector.runner.count 0 32
specjbb.comm.connect.worker.pool.max 256 300
specjbb.customerDriver.threads 64 {probe=128, saturate=128}
specjbb.forkjoin.workers 256 {Tier1=124, Tier2=1, Tier3=20}
specjbb.group.count 1 2
specjbb.mapreducer.pool.size 256 8
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 423495 IR
High-bound (settled) is 400421 IR
Copyright © 2015-2022 Standard Performance Evaluation Corporation
http://www.spec.org - info@spec.org
SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]
