SPECjbb2015
Copyright © 2015-2022 Standard Performance Evaluation Corporation
Lenovo Global Technology ThinkSystem SR645 430735 SPECjbb2015-MultiJVM max-jOPS
176846 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Lenovo Global Technology Test Sponsor: Lenovo Global Technology Test location: Beijing, China Test date: Feb 22, 2022
SPEC license #: 9017 Hardware Availability: May-2022 Software Availability: Feb-2022 Publication: Mon Mar 21 09:38:43 EDT 2022
Benchmark Results Summary

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host
(# of groups: 8)

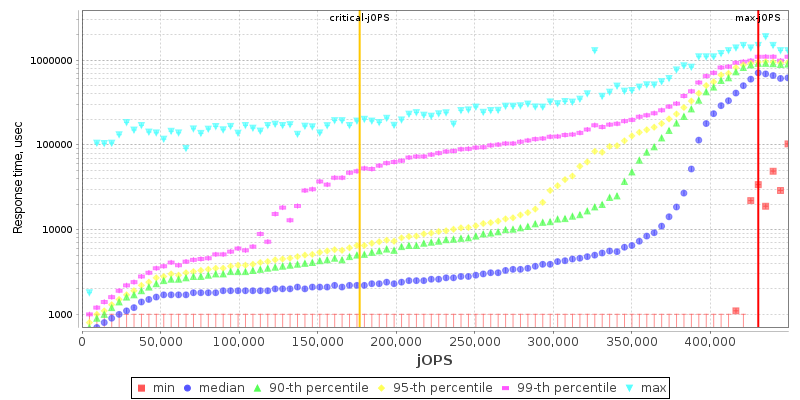

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores128
Total Threads256
Total Memory Amount (GB)2048
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameThinkSystem SR645
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
AvailableMay-2022
ModelThinkSystem SR645
Form Factor1U
CPU NameAMD EPYC 7773X
CPU Characteristics64 core, 2.20GHz, 768 MB L3 Cache (Max Boost Clock up to 3.50 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System128
Cores Per Chip64
Threads Per System256
Threads Per Core2
VersionD8E125A
CPU Frequency (MHz)2200
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache512 KB I+D on chip per core
Tertiary Cache768 MB (I+D) on chip per chip
Other CacheNone
Disk1 x 960GB SATA SSD
File SystemNTFS
Memory Amount (GB)2048
# and size of DIMM(s)32 x 64 GB
Memory Details64 GB 2Rx4 PC4-3200AA-R
# and type of Network Interface Cards (NICs)1 x 10/25 GbE PCIE NIC
Power Supply Quantity and Rating (W)1 x 1800W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameWindows Server 2019 Datacenter
VendorMicrosoft
Vendor URLhttps://www.microsoft.com/
VersionVersion 1809(OS Build 17763.2628)
AvailableFeb-2022
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 17.0.2
VendorOracle Corporation
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-Bit Server VM, version 17.0.2
AvailableJan-2022
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Configuration:
  • Operating Mode set to Maximum Performance and then set to Custom Mode
  • SOC P-states set to P0
  • NUMA Nodes per Sockert = NPS4
  • L1 Stream HW Prefetcher set to Disable
  • L2 Stream HW Prefetcher set to Disable
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(8), jvm_TxInjector_1(8)
OS Image Description os_1
Tuning
  • Add DWORD registry HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\MaxUserPort=65534
  • Power Options is set to High performance
  • Visual Effects Adjust for best performance
  • Lock Pages in Memory is Enabled
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -server -Xms29g -Xmx29g -Xmn27g -XX:SurvivorRatio=28 -XX:+UseParallelGC -XX:ParallelGCThreads=32 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -Xnoclassgc -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15
Tuning Affinitized each Backend JVM to a single memory node.
  • start /b /NODE 0
  • start /b /NODE 1
  • start /b /NODE 2
  • start /b /NODE 3
  • start /b /NODE 4
  • start /b /NODE 5
  • start /b /NODE 6
  • start /b /NODE 7
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m
Tuning Affinitize each TxInjector JVM to a single memory node.
  • start /b /NODE 0
  • start /b /NODE 1
  • start /b /NODE 2
  • start /b /NODE 3
  • start /b /NODE 4
  • start /b /NODE 5
  • start /b /NODE 6
  • start /b /NODE 7
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 426001 430735 435468 440202 444935
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 120700 139633 177500 220100 262701 176846
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 4733 / 9467 4733 / 9467 - / 4733 - / 4733 - / 4733 - / 4733
1000us 175134 / 179867 23667 / 28400 14200 / 18933 9467 / 14200 4733 / 9467 - / 4733
5000us 388135 / 392868 326601 / 331334 175134 / 179867 142000 / 146734 80467 / 85200 4733 / 9467
10000us 392868 / 397601 364468 / 369201 269801 / 274534 231934 / 236667 118334 / 123067 4733 / 9467
25000us 397601 / 402335 378668 / 383401 340801 / 345535 293468 / 298201 137267 / 142000 4733 / 9467
50000us 397601 / 402335 383401 / 388135 350268 / 355001 312401 / 317134 175134 / 179867 4733 / 9467
75000us 402335 / 407068 388135 / 392868 355001 / 359735 321868 / 326601 217734 / 222467 4733 / 9467
100000us 407068 / 411801 388135 / 392868 364468 / 369201 340801 / 345535 260334 / 265068 66267 / 9467
200000us 416535 / 421268 397601 / 402335 378668 / 383401 369201 / 373935 350268 / 355001 236667 / 179867
500000us 430735 / - 416535 / 421268 402335 / 407068 392868 / 397601 388135 / 392868 355001 / 326601
1000000us 430735 / - 430735 / - 430735 / - 430735 / - 426001 / 430735 388135 / 326601

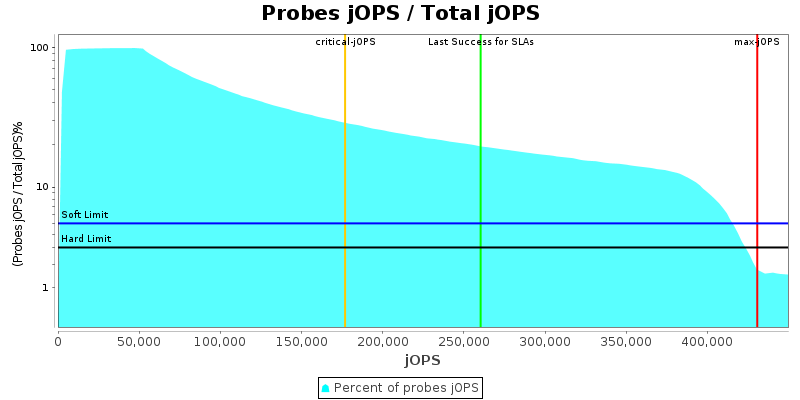

Number of probes
Probes jOPS / Total jOPS
Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building
Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings

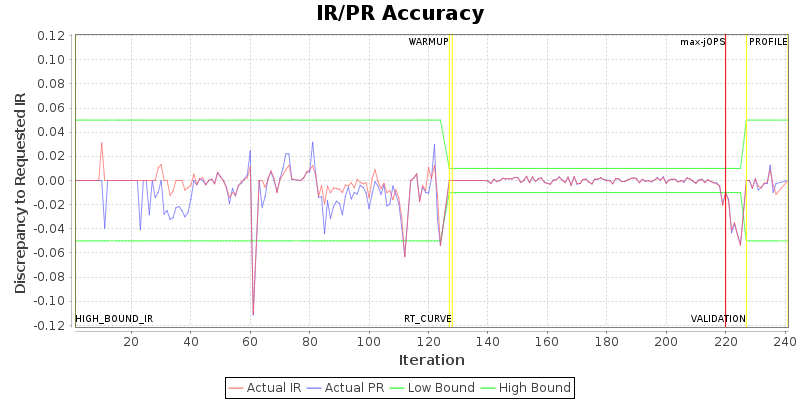

IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 192
specjbb.comm.connect.selector.runner.count 0 8
specjbb.comm.connect.worker.pool.max 256 45
specjbb.comm.connect.worker.pool.min 1 40
specjbb.forkjoin.workers 64 {Tier1=210, Tier2=56, Tier3=32}
specjbb.group.count 1 8
specjbb.mapreducer.pool.size 64 12
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 473335 IR
High-bound (settled) is 447577 IR
Copyright © 2015-2022 Standard Performance Evaluation Corporation
http://www.spec.org - info@spec.org
SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]
