Hewlett Packard Enterprise ProLiant DL325 Gen10 Plus v2 249575 SPECjbb2015-MultiJVM max-jOPS
91089 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Hewlett Packard Enterprise Test Sponsor: Hewlett Packard Enterprise Test location: Houston, TX Test date: Feb 16, 2022
SPEC license #: 3 Hardware Availability: Mar-2022 Software Availability: Jan-2022 Publication: Mon Mar 21 09:14:17 EDT 2022
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett Packard Enterprise
Vendor URLhttp://www.hpe.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips1
Total Cores64
Total Threads128
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameProLiant DL325 Gen10 Plus v2
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
AvailableMar-2022
ModelProLiant DL325 Gen10 Plus v2
Form Factor1U Rack
CPU NameAMD EPYC 7773X
CPU Characteristics64 Core, 2.2 GHz, 768 MB L3 Cache(Max. Boost Clock Up to 3.5 GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System64
Cores Per Chip64
Threads Per System128
Threads Per Core2
VersionA43 v2.56 02/10/2022
CPU Frequency (MHz)2200
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache512 KB I+D on chip per core
Tertiary Cache768 MB (I+D) on chip per chip
Other CacheNone
Disk2 x 480 GB SSD SATA
File SystemXFS
Memory Amount (GB)1024
# and size of DIMM(s)8 x 128 GB
Memory Details128 GB 4Rx4 PC4-3200AA-L
# and type of Network Interface Cards (NICs)HPE Ethernet 10Gb 2-port
Power Supply Quantity and Rating (W)2 x 800
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP2
VendorSUSE
Vendor URLhttp://suse.com/
Version5.3.18.22-default
AvailableJul-2020
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 17.0.2
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 17.0.2
AvailableJan-2022
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning
  • Workload Profile=High Performance Compute(HPC)
  • Thermal Configuration=Maximum Cooling
  • Determinism Control=Manual
  • Performance Determinism=Power Deterministic
  • Memory Patrol Scrubbing=Disabled
  • Numa Memory Domains Per Socket(NPS)=Four Memory Domains Per Socket
  • Memory Interleaving Mode=Disabled
  • Last-Level Cache(LLC) As NUMA Node=Enabled
  • L1 Stream HW Prefetcher=Disabled
  • L2 Stream HW Prefetcher=Disabled
  • Minimum Processor Idle Power Core C-State=No C-states
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(8), jvm_TxInjector_1(8)
OS Image Description os_1
Tuning
  • ulimit -n 1024000
  • tuned-adm profile throughput-performance
  • echo 960000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 40000000 > /proc/sys/kernel/sched_latency_ns
  • echo 40000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 800000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 200000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 9000 > /proc/sys/kernel/sched_nr_migrate
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo 0 > /proc/sys/vm/numa_stat
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line

-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2

Tuning

Used numactl to interleave memory on all CPUs

  • numactl --interleave=all
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line

-Xms30g -Xmx30g -Xmn27g -XX:AllocatePrefetchInstr=2 -XX:+UseParallelGC -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:SurvivorRatio=30 -XX:TargetSurvivorRatio=99 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=32 -XX:+UseTransparentHugePages -XX:MaxInlineSize=900 -XX:FreqInlineSize=900 -XX:LoopUnrollLimit=30 -XX:InlineSmallCode=3k -XX:AutoBoxCacheMax=5000

Tuning

Used numactl to affinitize each Backend JVM to physcical cores in a NUMA node.

  • numactl --physcpubind=0-7,64-71 --localalloc
  • numactl --physcpubind=8-15,72-79 --localalloc
  • numactl --physcpubind=16-23,80-87 --localalloc
  • numactl --physcpubind=24-31,88-95 --localalloc
  • numactl --physcpubind=32-39,96-103 --localalloc
  • numactl --physcpubind=40-47,104-111 --localalloc
  • numactl --physcpubind=48-55,112-119 --localalloc
  • numactl --physcpubind=56-63,120-127 --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line

-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2

Tuning

Used numactl to affinitize each Transaction Injector JVM to physical cores in a NUMA node.

  • numactl --physcpubind=0-7,64-71 --localalloc
  • numactl --physcpubind=8-15,72-79 --localalloc
  • numactl --physcpubind=16-23,80-87 --localalloc
  • numactl --physcpubind=24-31,88-95 --localalloc
  • numactl --physcpubind=32-39,96-103 --localalloc
  • numactl --physcpubind=40-47,104-111 --localalloc
  • numactl --physcpubind=48-55,112-119 --localalloc
  • numactl --physcpubind=56-63,120-127 --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 246832 249575 252317 255060 257803
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 64450 66735 91876 119302 133015 91089
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 2743 / 5485 - / 2743 - / 2743 - / 2743 - / 2743 - / 2743
1000us 13713 / 16455 5485 / 8228 2743 / 5485 - / 2743 - / 2743 - / 2743
5000us 216664 / 219406 183753 / 186495 46624 / 49366 43881 / 46624 35654 / 32911 5485 / 8228
10000us 219406 / 222149 200208 / 202951 148099 / 150842 117931 / 120674 65822 / 63079 10970 / 8228
25000us 224892 / 227634 211179 / 213921 181010 / 183753 156327 / 159070 68564 / 63079 10970 / 8228
50000us 227634 / 230377 216664 / 219406 189238 / 191981 164555 / 167297 93248 / 90505 10970 / 8228
75000us 230377 / 233119 219406 / 222149 191981 / 194723 172783 / 175525 117931 / 120674 10970 / 8228
100000us 230377 / 233119 222149 / 224892 197466 / 200208 178268 / 181010 131644 / 134386 10970 / 8228
200000us 233119 / 235862 227634 / 230377 211179 / 213921 202951 / 205693 181010 / 183753 10970 / 8228
500000us 246832 / 249575 241347 / 244090 230377 / 233119 227634 / 230377 222149 / 224892 181010 / 183753
1000000us 249575 / - 246832 / 249575 244090 / 246832 241347 / 244090 241347 / 244090 224892 / 227634
Probes jOPS / Total jOPS

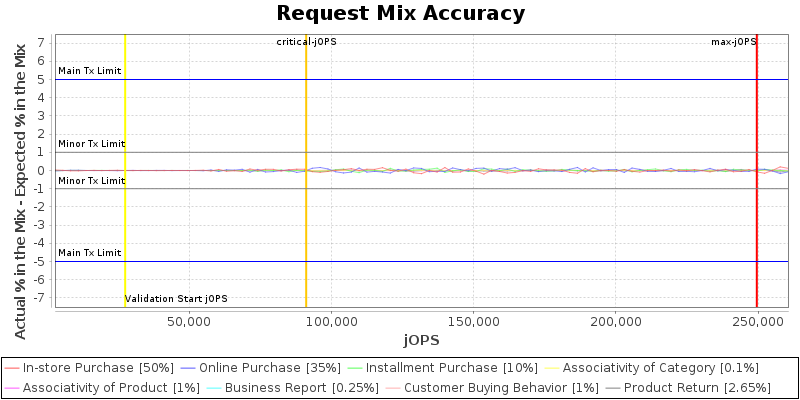

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings

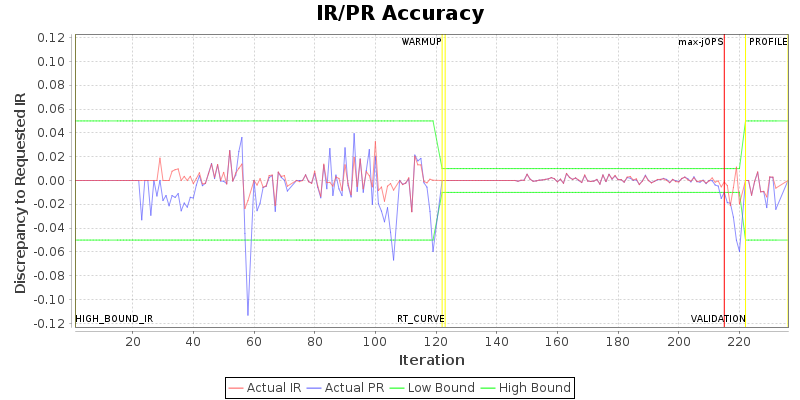

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller Group1.Backend.beJVM Group1.TxInjector.txiJVM1 Group2.Backend.beJVM Group2.TxInjector.txiJVM1 Group3.Backend.beJVM Group3.TxInjector.txiJVM1 Group4.Backend.beJVM Group4.TxInjector.txiJVM1 Group5.Backend.beJVM Group5.TxInjector.txiJVM1 Group6.Backend.beJVM Group6.TxInjector.txiJVM1 Group7.Backend.beJVM Group7.TxInjector.txiJVM1 Group8.Backend.beJVM Group8.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size 256 128 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256
specjbb.comm.connect.selector.runner.count 0 4 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
specjbb.comm.connect.timeouts.connect 60000 900000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.timeouts.read 60000 800000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.timeouts.write 60000 800000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.worker.pool.max 256 128 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111
specjbb.comm.connect.worker.pool.min 1 32 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64
specjbb.forkjoin.workers 128 {Tier1=232, Tier2=72, Tier3=32}
specjbb.group.count 1 8
specjbb.mapreducer.pool.size 128 32
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 274258 IR
High-bound (settled) is 259352 IR
