SPECjbb2015 Report for jbb2015-20220222-00735 : 488179 max-jOPS ; 174786 critical-jOPS

SUT Description

Hardware hw_1
Name	A+ Server 2124US-TNRP
Vendor	Super Micro Computer, Inc
Vendor URL	https://www.supermicro.com
Available	Mar-2022
Model	H12DSU-iN
Form Factor	2U
CPU Name	AMD EPYC 7773X
CPU Characteristics	64 core, 2.2GHz, 768MB L3 Cache (Max. Boost Clock up to 3.5GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	128
Cores Per Chip	64
Threads Per System	256
Threads Per Core	2
Version	2.3a 01/27/2022
CPU Frequency (MHz)	2200
Primary Cache	32 KB I + 32 KB D per core
Secondary Cache	512 KB I+D per core
Tertiary Cache	768 MB (I+D) on chip per chip
Other Cache	None
Disk	1 x 3.8 TB NVMe PCIe Gen4.0
File System	btrfs
Memory Amount (GB)	2048
# and size of DIMM(s)	16 x 128GB
Memory Details	128GB 4Rx4 LRDIMM PC4-25600L
# and type of Network Interface Cards (NICs)	1 x 100 GbE NIC
Power Supply Quantity and Rating (W)	2 x 1600w
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP3
Vendor	SUSE
Vendor URL	http://suse.com/
Version	5.3.18-150300.59.43-default
Available	June-2021
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 17.0.2
Vendor	Oracle
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-bit Server VM, version 17.0.2
Available	Jan-2022
Bitness	64
Notes	note
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Settings: NUMA nodes per socket = NPS4 L3 Cache as NUMA Domain = Enabled Determinism Control = Manual Determinism Slider = Power L1 Stream HW Prefetcher = Disable L2 Stream HW Prefetcher = Disable EDC Control = Manual EDC = 300 EDC Platform Limit = 300 xGMI Link Max Speed = 18Gbps
Notes	notes

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(16), jvm_TxInjector_1(16)
OS Image Description	os_1
Tuning	cpupower -c all frequency-set -g performance tuned-adm profile throughput-performance echo 960000 > /proc/sys/kernel/sched_rt_runtime_us echo 40000000 > /proc/sys/kernel/sched_latency_ns echo 40000 > /proc/sys/kernel/sched_migration_cost_ns echo 800000000 > /proc/sys/kernel/sched_min_granularity_ns echo 200000000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 9000 > /proc/sys/kernel/sched_nr_migrate echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo 0 > /proc/sys/vm/numa_stat echo always > /sys/kernel/mm/transparent_hugepage/enabled echo always > /sys/kernel/mm/transparent_hugepage/defrag ulimit -n 1024000 UserTasksMax=970000 DefaultTasksMax=970000
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	None
Notes	Used numactl to interleave memory on all CPUs numactl --interleave=all
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms30g -Xmx30g -Xmn28g -XX:AllocatePrefetchInstr=2 -XX:+UseParallelGC -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:SurvivorRatio=30 -XX:TargetSurvivorRatio=99 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=16 -XX:MaxInlineSize=900 -XX:FreqInlineSize=900 -XX:LoopUnrollLimit=30 -XX:InlineSmallCode=3k -XX:AdaptiveSizeDecrementScaleFactor=2 -XX:+UseTransparentHugePages -XX:TLABAllocationWeight=15 -XX:ThreadStackSize=512 -XX:TLABSize=4m -XX:CompileThresholdScaling=50 -XX:AutoBoxCacheMax=5000
Tuning	None
Notes	Used numactl to affinitize each Backend JVM to 8 Core / 16 Threads Group1: --physcpubind=0-7,128-135 --localalloc Group2: --physcpubind=8-15,136-143 --localalloc Group3: --physcpubind=16-23,144-151 --localalloc Group4: --physcpubind=24-31,152-159 --localalloc Group5: --physcpubind=32-39,160-167 --localalloc Group6: --physcpubind=40-47,168-175 --localalloc Group7: --physcpubind=48-55,176-183 --localalloc Group8: --physcpubind=56-63,184-191 --localalloc Group9: --physcpubind=64-71,192-199 --localalloc Group10: --physcpubind=72-79,200-207 --localalloc Group11: --physcpubind=80-87,208-215 --localalloc Group12: --physcpubind=88-95,216-223 --localalloc Group13: --physcpubind=96-103,224-231 --localalloc Group14: --physcpubind=104-111,232-239 --localalloc Group15: --physcpubind=112-119,240-247 --localalloc Group16: --physcpubind=120-127,248-255 --localalloc
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	None
Notes	Used numactl to affinitize each Transaction Injector JVM to 8 Core / 16 Threads Group1: --physcpubind=0-7,128-135 --localalloc Group2: --physcpubind=8-15,136-143 --localalloc Group3: --physcpubind=16-23,144-151 --localalloc Group4: --physcpubind=24-31,152-159 --localalloc Group5: --physcpubind=32-39,160-167 --localalloc Group6: --physcpubind=40-47,168-175 --localalloc Group7: --physcpubind=48-55,176-183 --localalloc Group8: --physcpubind=56-63,184-191 --localalloc Group9: --physcpubind=64-71,192-199 --localalloc Group10: --physcpubind=72-79,200-207 --localalloc Group11: --physcpubind=80-87,208-215 --localalloc Group12: --physcpubind=88-95,216-223 --localalloc Group13: --physcpubind=96-103,224-231 --localalloc Group14: --physcpubind=104-111,232-239 --localalloc Group15: --physcpubind=112-119,240-247 --localalloc Group16: --physcpubind=120-127,248-255 --localalloc

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	482694	488179	493664	499150	504635

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	112445	134386	178267	227634	266030	174786

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	5485 / 10970	- / 5485	- / 5485	- / 5485	- / 5485	- / 5485
1000us	32911 / 38396	16455 / 21941	5485 / 10970	- / 5485	- / 5485	- / 5485
5000us	389446 / 394932	137129 / 142614	87763 / 93248	82277 / 87763	65822 / 60337	- / 5485
10000us	400417 / 405902	356535 / 362021	246832 / 252317	191981 / 197466	109703 / 115188	21941 / 16455
25000us	411387 / 416872	389446 / 394932	329110 / 334595	285228 / 290713	137129 / 131644	21941 / 16455
50000us	416872 / 422357	400417 / 405902	345565 / 351050	301684 / 307169	175525 / 181010	21941 / 16455
75000us	422357 / 427842	400417 / 405902	356535 / 362021	318139 / 323624	224892 / 230377	21941 / 16455
100000us	422357 / 427842	405902 / 411387	372991 / 378476	334595 / 340080	263288 / 268773	21941 / 16455
200000us	460753 / 449783	422357 / 427842	394932 / 400417	383961 / 389446	351050 / 356535	21941 / 16455
500000us	482694 / 488179	460753 / 466239	433328 / 438813	427842 / 433328	416872 / 422357	318139 / 312654
1000000us	488179 / -	482694 / 488179	471724 / 477209	471724 / 477209	466239 / 471724	411387 / 416872

Number of probes

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

Delay between performance status pings during RT Curve (Response-Throughput Curve)

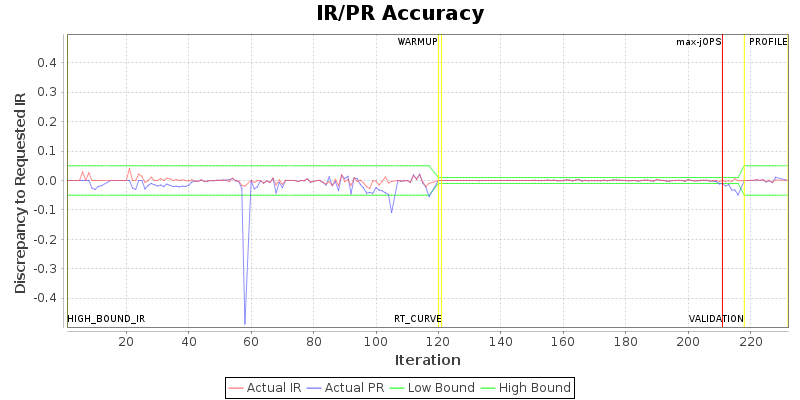

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group1.TxInjector.txiJVM1	Group10.Backend.beJVM	Group10.TxInjector.txiJVM1	Group11.Backend.beJVM	Group11.TxInjector.txiJVM1	Group12.Backend.beJVM	Group12.TxInjector.txiJVM1	Group13.Backend.beJVM	Group13.TxInjector.txiJVM1	Group14.Backend.beJVM	Group14.TxInjector.txiJVM1	Group15.Backend.beJVM	Group15.TxInjector.txiJVM1	Group16.Backend.beJVM	Group16.TxInjector.txiJVM1	Group2.Backend.beJVM	Group2.TxInjector.txiJVM1	Group3.Backend.beJVM	Group3.TxInjector.txiJVM1	Group4.Backend.beJVM	Group4.TxInjector.txiJVM1	Group5.Backend.beJVM	Group5.TxInjector.txiJVM1	Group6.Backend.beJVM	Group6.TxInjector.txiJVM1	Group7.Backend.beJVM	Group7.TxInjector.txiJVM1	Group8.Backend.beJVM	Group8.TxInjector.txiJVM1	Group9.Backend.beJVM	Group9.TxInjector.txiJVM1
specjbb.comm.connect.selector.runner.count	0	4	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
specjbb.comm.connect.timeouts.connect	60000	900000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.timeouts.read	60000	800000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.timeouts.write	60000	800000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.customerDriver.threads	64	{probe=96, saturate=96}
specjbb.forkjoin.workers	256	{Tier1=265, Tier2=12, Tier3=32}
specjbb.group.count	1	16
specjbb.mapreducer.pool.size	256	32
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 548516 IR

High-bound (settled) is 508480 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Super Micro Computer, Inc A+ Server 2124US-TNRP	488179 SPECjbb2015-MultiJVM max-jOPS 174786 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Super Micro Computer, Inc	Test Sponsor: Super Micro Computer, Inc	Test location: San Jose, California	Test date: February 08, 2022
SPEC license #: 001176	Hardware Availability: Mar-2022	Software Availability: Jan-2022	Publication: Mon Mar 21 09:10:57 EDT 2022

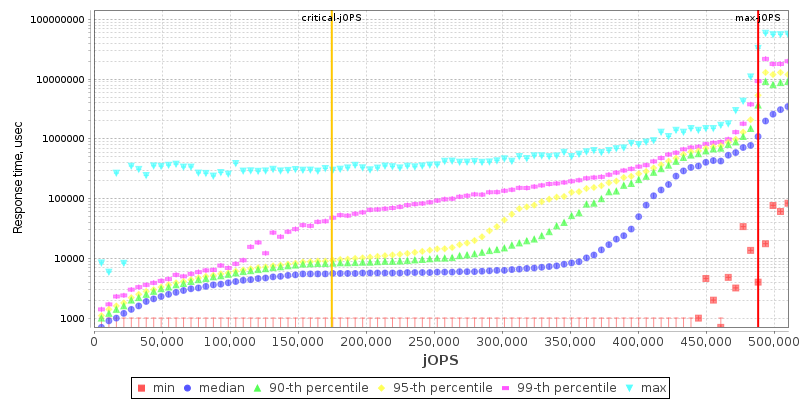

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host (# of groups: 16) Overall SUT Description SUT Description max-jOPS and critical-jOPS Details Number of probes Request Mix Accuracy Rate Of Non-Critical Failures Delay between performance status pings IR/PR Accuracy Topology SUT Configuration Properties Validation Details Link to Full Disclosure	Overall Throughput RT curve
