Inspur Corporation NF5280M6 109097 SPECjbb2015-Composite max-jOPS
83626 SPECjbb2015-Composite critical-jOPS
Tested by: Inspur Corporation Test Sponsor: Inspur Corporation Test location: Jinan, China Test date: Dec 29, 2021
SPEC license #: 3358 Hardware Availability: Nov-2021 Software Availability: Nov-2021 Publication: Thu Mar 3 12:03:48 EST 2022
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorInspur Corporation
Vendor URLhttp://www.inspur.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores32
Total Threads64
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameInspur NF5280M6
VendorInspur Corporation
Vendor URLhttp://www.inspur.com/
AvailableNov-2021
ModelInspur NF5280M6
Form Factor2U
CPU NameIntel Xeon Silver 4314
CPU Characteristics16 Core, 2.40 GHz, 24 MB L3 Cache (Turbo Boost Technology up to 3.40 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System32
Cores Per Chip16
Threads Per System64
Threads Per Core2
Version6.00.01 released Nov-2021
CPU Frequency (MHz)2400
Primary Cache32 KB(I)+48 KB(D)on chip per core
Secondary Cache1.25MB (I+D) per core
Tertiary Cache24MB (I+D) on chip per chip
Other CacheNone
Disk1x 4TB NVMe SSD
File Systemxfs
Memory Amount (GB)1024
# and size of DIMM(s)32 x 32GB
Memory Details32 x 32GB 2Rx4 PC4-3200AA-R; each slot populated; running at 2666MHz
# and type of Network Interface Cards (NICs)1 x 10 Gbit NIC
Power Supply Quantity and Rating (W)2 x 800W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux release 8.5 (Ootpa)
VendorRed Hat
Vendor URLhttp://redhat.com/
Version4.18.0-348
AvailableNov-2021
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 17.0.1
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 17.0.1
AvailableOct-2021
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Tuning
  • Energy Performance set to Performance
  • SNC Enabled
  • Memory Patrol Scrub Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning
  • ulimit -n 655360
  • tuned-adm profile throughput-performance
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -server -Xms480g -Xmx480g -Xmn450g -XX:+UseLargePages -XX:+UseParallelGC -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=28 -XX:+UseTransparentHugePages -XX:ParallelGCThreads=64 -XX:+UseHugeTLBFS -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=1 -XX:+UseNUMA -XX:+AlwaysPreTouch -XX:InlineSmallCode=13k -XX:UseAVX=0
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 107871 109097 110323 111549 112775
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 58226 81312 88871 96313 100925 83626
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 39226 / 40452 2452 / 3677 1226 / 2452 - / 1226 - / 1226 - / 1226
1000us 99291 / 100516 38000 / 39226 4903 / 6129 4903 / 6129 3677 / 4903 - / 1226
5000us 104194 / 105420 96839 / 98065 44129 / 42903 35548 / 36774 30645 / 31871 14710 / 2452
10000us 104194 / 105420 98065 / 99291 77226 / 78452 67420 / 68645 57613 / 58839 25742 / 2452
25000us 106645 / 107871 102968 / 104194 94387 / 95613 89484 / 90710 82129 / 79678 38000 / 2452
50000us 107871 / 109097 104194 / 105420 101742 / 102968 100516 / 101742 89484 / 88258 53936 / 2452
75000us 107871 / 109097 106645 / 107871 104194 / 105420 101742 / 102968 100516 / 93162 60065 / 2452
100000us 107871 / 109097 106645 / 107871 104194 / 105420 104194 / 105420 101742 / 99291 62516 / 29419
200000us 107871 / 109097 106645 / 107871 104194 / 105420 104194 / 105420 104194 / 105420 100516 / 91936
500000us 107871 / 109097 107871 / 109097 106645 / 107871 106645 / 107871 106645 / 107871 101742 / 102968
1000000us 109097 / - 109097 / - 107871 / 109097 107871 / 109097 107871 / 109097 104194 / 105420

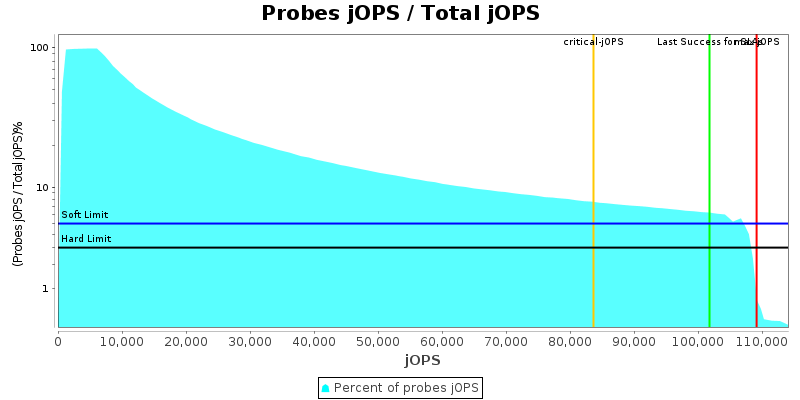

Probes jOPS / Total jOPS

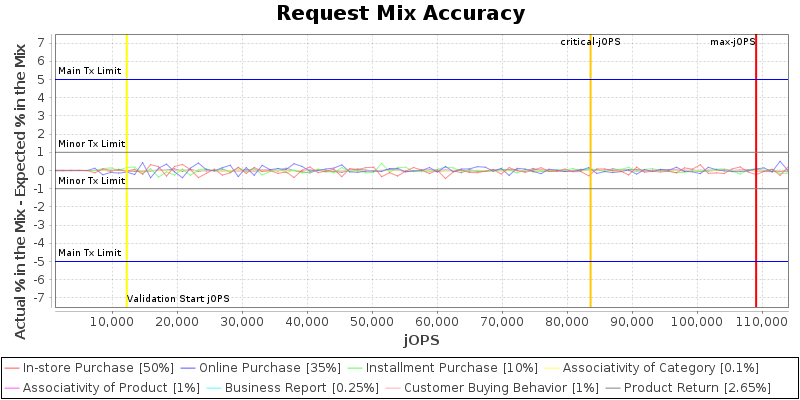

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

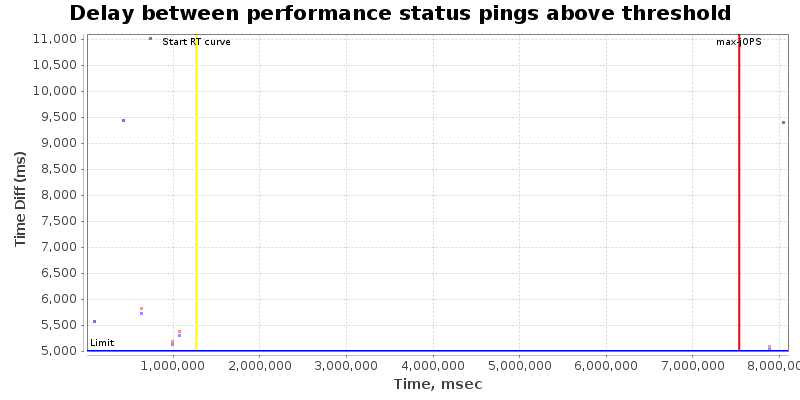

Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.forkjoin.workers 64 {Tier1=120, Tier2=1, Tier3=20}
specjbb.group.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 122581 IR
High-bound (settled) is 115835 IR
