SPECjbb2015 Report for jbb2015-20220209-00721 : 117931 max-jOPS ; 56272 critical-jOPS

SUT Description

Hardware hw_1
Name	Inspur NF5280M6
Vendor	Inspur Corporation
Vendor URL	http://www.inspur.com/
Available	Nov-2021
Model	Inspur NF5280M6
Form Factor	2U
CPU Name	Intel Xeon Silver 4314
CPU Characteristics	16 Core, 2.40 GHz, 24 MB L3 Cache (Turbo Boost Technology up to 3.40 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	32
Cores Per Chip	16
Threads Per System	64
Threads Per Core	2
Version	6.00.01 released Nov-2021
CPU Frequency (MHz)	2400
Primary Cache	32 KB(I)+48 KB(D)on chip per core
Secondary Cache	1.25MB (I+D) per core
Tertiary Cache	24MB (I+D) on chip per chip
Other Cache	None
Disk	1x 4TB NVMe SSD
File System	xfs
Memory Amount (GB)	1024
# and size of DIMM(s)	32 x 32GB
Memory Details	32 x 32GB 2Rx4 PC4-3200AA-R; each slot populated; running at 2666MHz
# and type of Network Interface Cards (NICs)	1 x 10 Gbit NIC
Power Supply Quantity and Rating (W)	2 x 800W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	Red Hat Enterprise Linux release 8.5 (Ootpa)
Vendor	Red Hat
Vendor URL	http://redhat.com/
Version	4.18.0-348
Available	Nov-2021
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 17.0.1
Vendor	Oracle
Vendor URL	http://www.oracle.com
Version	Java HotSpot 64-bit Server VM, version 17.0.1
Available	Oct-2021
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Tuning Energy Performance set to Performance SNC Enabled Memory Patrol Scrub Disabled
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description	os_1
Tuning	ulimit -n 655360 echo 15000000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 80000000 > /proc/sys/kernel/sched_min_granularity_ns echo 1000 > /proc/sys/kernel/sched_migration_cost_ns echo 16 > /proc/sys/kernel/sched_nr_migrate echo 950000 > /proc/sys/kernel/sched_rt_runtime_us echo 10000000 > /proc/sys/kernel/sched_latency_ns echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo always > /sys/kernel/mm/transparent_hugepage/defrag echo always > /sys/kernel/mm/transparent_hugepage/enabled
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-Xmn1536m -Xms2g -Xmx2g
Tuning	None
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-server -Xmx30g -Xms30g -Xmn27g -XX:+UseParallelGC -XX:ParallelGCThreads=16 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+AlwaysPreTouch -XX:InlineSmallCode=10k -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=28 -XX:LoopUnrollLimit=20 -XX:MaxTenuringThreshold=15 -XX:TargetSurvivorRatio=95 -XX:AllocatePrefetchInstr=2 -XX:UseAVX=0
Tuning	numactl used to affinitize each Backend JVM to a single memory node, eg: numactl --cpunodebind=0 --localalloc numactl --cpunodebind=1 --localalloc numactl --cpunodebind=2 --localalloc numactl --cpunodebind=3 --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-Xmn1536m -Xms2g -Xmx2g
Tuning	numactl used to affinitize each TxInjector JVM to a single memory node, eg: numactl --cpunodebind=0 --localalloc numactl --cpunodebind=1 --localalloc numactl --cpunodebind=2 --localalloc numactl --cpunodebind=3 --localalloc
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	116560	117931	119302	120674	122045

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	37710	48680	59651	66507	77478	56272

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	1371 / 2743	1371 / 2743	- / 1371	- / 1371	- / 1371	- / 1371
1000us	12342 / 13713	4114 / 5485	2743 / 4114	2743 / 4114	1371 / 2743	- / 1371
5000us	101475 / 102847	83649 / 85020	23312 / 24683	21941 / 23312	19198 / 20569	5485 / 4114
10000us	104218 / 105589	95990 / 97362	79535 / 80906	64451 / 65822	37025 / 38396	5485 / 4114
25000us	105589 / 106961	100104 / 101475	89134 / 90505	80906 / 82277	47995 / 49366	5485 / 4114
50000us	105589 / 106961	101475 / 102847	93248 / 94619	87763 / 89134	58965 / 60337	5485 / 4114
75000us	106961 / 108332	102847 / 104218	95990 / 97362	91876 / 93248	67193 / 65822	5485 / 4114
100000us	106961 / 108332	104218 / 105589	97362 / 98733	93248 / 94619	76792 / 78164	26055 / 4114
200000us	111074 / 112446	105589 / 106961	101475 / 102847	100104 / 101475	95990 / 97362	76792 / 8228
500000us	116560 / 117931	112446 / 113817	108332 / 109703	106961 / 108332	104218 / 105589	100104 / 101475
1000000us	117931 / -	116560 / 117931	115188 / 116560	115188 / 116560	113817 / 115188	106961 / 108332

Number of probes

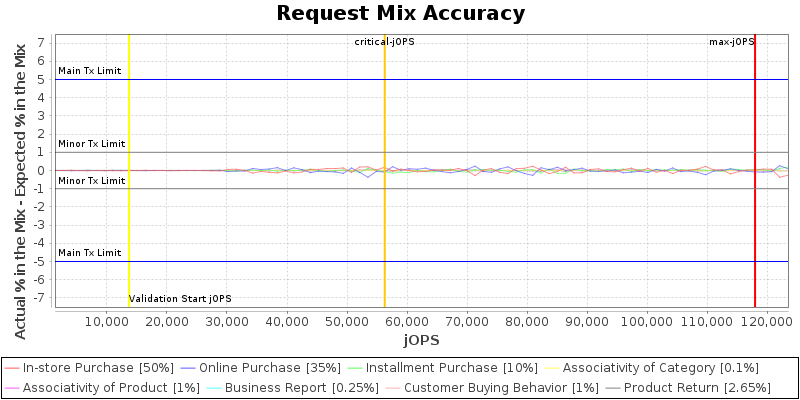

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

Delay between performance status pings during RT Curve (Response-Throughput Curve)

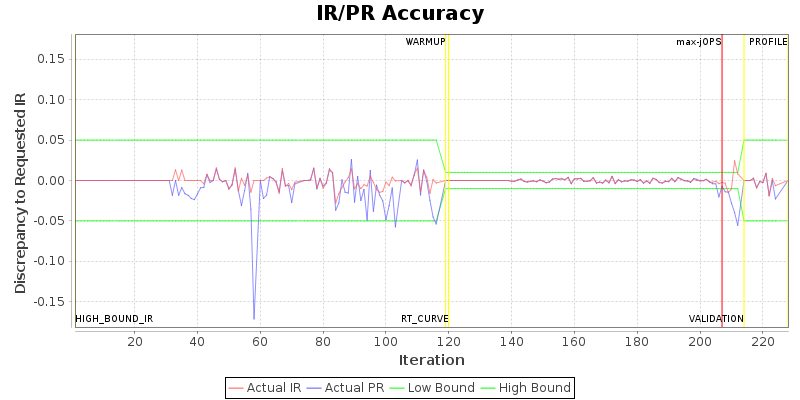

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.client.pool.size	256	224
specjbb.comm.connect.selector.runner.count	0	4
specjbb.comm.connect.worker.pool.max	256	112
specjbb.comm.connect.worker.pool.min	1	64
specjbb.forkjoin.workers	64	{Tier1=100, Tier2=1, Tier3=16}
specjbb.group.count	1	4
specjbb.mapreducer.pool.size	64	4
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 137129 IR

High-bound (settled) is 123215 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Inspur Corporation NF5280M6	117931 SPECjbb2015-MultiJVM max-jOPS 56272 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Inspur Corporation	Test Sponsor: Inspur Corporation	Test location: Jinan, China	Test date: Jan 04, 2022
SPEC license #: 3358	Hardware Availability: Nov-2021	Software Availability: Nov-2021	Publication: Thu Mar 3 12:03:48 EST 2022
