SPECjbb2015
Copyright © 2015-2022 Standard Performance Evaluation Corporation
Inspur Corporation NF5280M6 167555 SPECjbb2015-Composite max-jOPS
127189 SPECjbb2015-Composite critical-jOPS
Tested by: Inspur Corporation Test Sponsor: Inspur Corporation Test location: Jinan, China Test date: Feb 07, 2022
SPEC license #: 3358 Hardware Availability: Nov-2021 Software Availability: Nov-2021 Publication: Thu Mar 3 12:03:48 EST 2022
Benchmark Results Summary

SPECjbb2015-Composite: Single JVM/Single Host
(# of groups: 2)

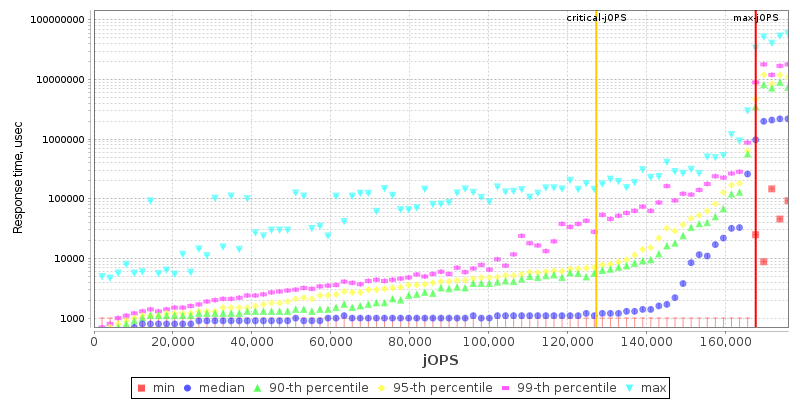

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorInspur Corporation
Vendor URLhttp://www.inspur.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores52
Total Threads104
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameInspur NF5280M6
VendorInspur Corporation
Vendor URLhttp://www.inspur.com/
AvailableNov-2021
ModelInspur NF5280M6
Form Factor2U
CPU NameIntel Xeon Gold 5320
CPU Characteristics26 Core, 2.20 GHz, 39 MB L3 Cache (Turbo Boost Technology up to 3.40 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System52
Cores Per Chip26
Threads Per System104
Threads Per Core2
Version6.00.01 released Nov-2021
CPU Frequency (MHz)2200
Primary Cache32 KB(I)+48 KB(D)on chip per core
Secondary Cache1.25MB (I+D) per core
Tertiary Cache39MB (I+D) on chip per chip
Other CacheNone
Disk1x 4TB NVMe SSD
File Systemxfs
Memory Amount (GB)1024
# and size of DIMM(s)32 x 32GB
Memory Details32 x 32GB 2Rx4 PC4-3200AA-R; each slot populated; running at 2933MHz
# and type of Network Interface Cards (NICs)1 x 10 Gbit NIC
Power Supply Quantity and Rating (W)2 x 800W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux release 8.5 (Ootpa)
VendorRed Hat
Vendor URLhttp://redhat.com/
Version4.18.0-348
AvailableNov-2021
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 17.0.1
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 17.0.1
AvailableOct-2021
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Tuning
  • Energy Performance set to Performance
  • SNC Enabled
  • Memory Patrol Scrub Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(2)
OS Image Description os_1
Tuning
  • ulimit -n 655360
  • tuned-adm profile throughput-performance
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -server -Xms480g -Xmx480g -Xmn450g -XX:+UseLargePages -XX:+UseParallelGC -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=28 -XX:+UseTransparentHugePages -XX:ParallelGCThreads=104 -XX:+UseHugeTLBFS -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=1 -XX:+UseNUMA -XX:+AlwaysPreTouch -XX:InlineSmallCode=13k -XX:UseAVX=0
Tuning None
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 165511 167555 169598 171641 173685
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 105232 117492 129752 142012 146099 127189
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 83777 / 63344 4087 / 6130 2043 / 4087 2043 / 4087 - / 2043 - / 2043
1000us 151208 / 153251 100124 / 63344 12260 / 14303 10217 / 12260 6130 / 8173 - / 2043
5000us 159381 / 161425 149165 / 151208 124644 / 114428 102167 / 104211 83777 / 81734 4087 / 6130
10000us 161425 / 163468 151208 / 153251 140991 / 143034 134861 / 136904 104211 / 106254 24520 / 14303
25000us 163468 / 165511 159381 / 161425 149165 / 151208 143034 / 145078 116471 / 118514 59257 / 14303
50000us 165511 / 167555 163468 / 165511 157338 / 159381 151208 / 153251 130774 / 128731 63344 / 14303
75000us 165511 / 167555 163468 / 165511 159381 / 161425 155295 / 157338 140991 / 143034 81734 / 14303
100000us 165511 / 167555 163468 / 165511 159381 / 161425 157338 / 159381 147121 / 145078 100124 / 30650
200000us 165511 / 167555 163468 / 165511 163468 / 165511 163468 / 165511 155295 / 157338 136904 / 120558
500000us 165511 / 167555 165511 / 167555 163468 / 165511 163468 / 165511 163468 / 165511 157338 / 155295
1000000us 167555 / - 167555 / - 165511 / 167555 165511 / 167555 165511 / 167555 163468 / 161425

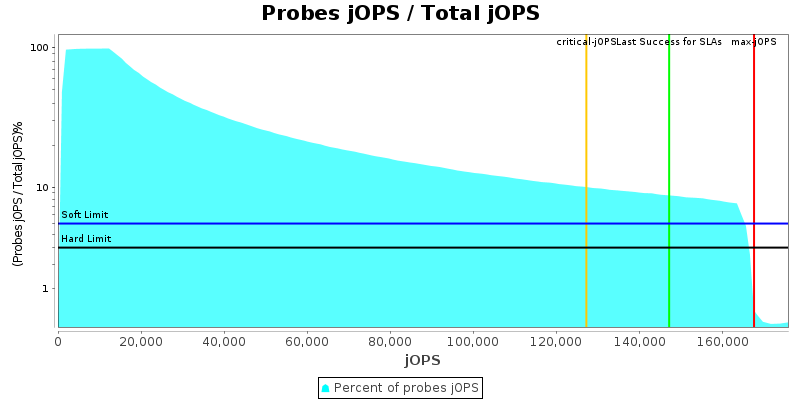

Number of probes
Probes jOPS / Total jOPS
Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building
Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings

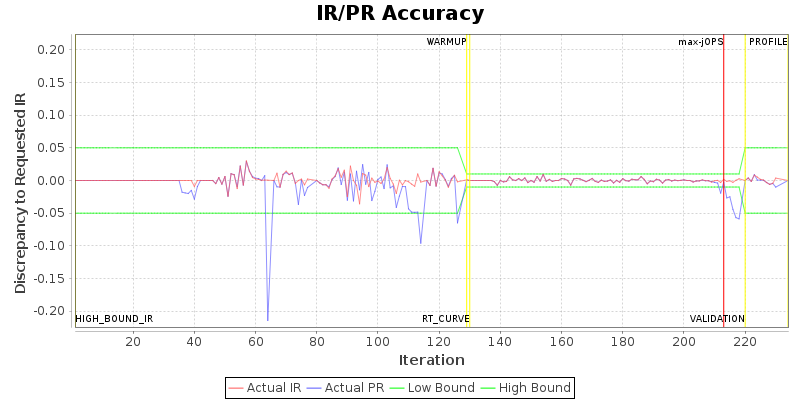

IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.forkjoin.workers 104 {Tier1=120, Tier2=1, Tier3=20}
specjbb.group.count 1 2
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 204335 IR
High-bound (settled) is 181354 IR
Copyright © 2015-2022 Standard Performance Evaluation Corporation
http://www.spec.org - info@spec.org
SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]
