ASUSTeK Computer Inc. RS700A-E11-RS12U 338796 SPECjbb2015-Composite max-jOPS
298117 SPECjbb2015-Composite critical-jOPS
Tested by: ASUSTeK Computer Inc. Test Sponsor: ASUSTeK Computer Inc. Test location: Taipei, Taiwan Test date: June 26, 2021
SPEC license #: 9016 Hardware Availability: Jul-2021 Software Availability: Apr-2021 Publication: Thu Jul 29 14:19:44 EDT 2021
Benchmark Results Summary

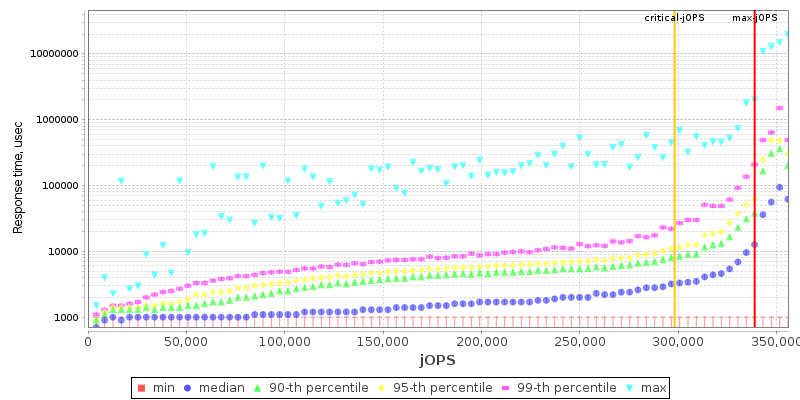

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorASUSTeK Computer Inc.
Vendor URLhttps://www.asus.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores128
Total Threads256
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameRS700A-E11-RS12U
VendorASUSTeK Computer Inc.
Vendor URLhttps://www.asus.com/
AvailableMar-2021
ModelRS700A-E11-RS12U
Form Factor1U
CPU NameAMD EPYC 7763
CPU Characteristics64 Core, 2.45 GHz, 256 MB L3 Cache (Max Boost Clock up to 3.5 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System128
Cores Per Chip64
Threads Per System256
Threads Per Core2
VersionVersion 0404
CPU Frequency (MHz)2450
Primary Cache32 KB(I) + 32 KB(D) per core
Secondary Cache512 KB (I+D) per core
Tertiary Cache256 MB (I+D) per chip
Other CacheNone
Disk1 x 1 TB SATA SSD
File Systemxfs
Memory Amount (GB)1024
# and size of DIMM(s)16 x 64 GB
Memory Details64 GB 4Rx4 PC4-3200AA-L
# and type of Network Interface Cards (NICs)1 x 4 ports Intel I350 GbE
Power Supply Quantity and Rating (W)2 x 1600
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP2
VendorSUSE
Vendor URLhttps://www.suse.com/
Version5.3.18-22-default
AvailableJul-2020
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 16.0.1
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 16.0.1
AvailableApr-2021
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Settings:
  • Engine Boost = Enabled
  • L1 Stream HW Prefetcher = Disable
  • L2 Stream HW Prefetcher = Disable
  • Enhanced REP MOVSB/STOSB = Disabled
  • Fast Short REP MOVSB = Disabled
  • DLWM Support = Disabled
  • NUMA nodes per socket = NPS2
  • APBDIS = 1
  • Fix SOC P-state = P0
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(2)
OS Image Description os_1
Tuning
  • cpupower frequency-set -g performance
  • tuned-adm profile throughput-performance
  • echo 400000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 40000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 40000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 128 > /proc/sys/kernel/sched_nr_migrate
  • echo 950000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 400000 > /proc/sys/kernel/sched_latency_ns
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -Xms975g -Xmx975g -Xmn965g -server -XX:+UseParallelGC -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:MaxTenuringThreshold=5 -XX:-UseAdaptiveSizePolicy -XX:ParallelGCThreads=192 -XX:SurvivorRatio=180 -XX:TargetSurvivorRatio=95 -XX:+UseNUMA -XX:+UseTransparentHugePages -XX:-UseFastStosb -XX:+UseUnalignedLoadStores -XX:+UseXMMForArrayCopy -XX:+UseXMMForObjInit -XX:+UseFPUForSpilling
Tuning Used numactl to run on all available nodes
  • numactl --cpunodebind=0-3 --interleave=0-3
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 334561 338796 343031 347266 351501
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 226569 298563 319032 328208 332443 298117
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 4235 / 8470 - / 4235 - / 4235 - / 4235 - / 4235 - / 4235
1000us 266802 / 258332 80464 / 84699 4235 / 8470 4235 / 8470 - / 4235 - / 4235
5000us 338796 / - 321856 / 326091 224452 / 228687 160928 / 165163 101639 / 105874 42349 / 16940
10000us 338796 / - 334561 / 338796 309151 / 313386 287977 / 292212 224452 / 228687 50819 / 16940
25000us 338796 / - 338796 / - 330326 / 334561 321856 / 326091 296446 / 300681 59289 / 16940
50000us 338796 / - 338796 / - 338796 / - 330326 / 334561 321856 / 313386 118579 / 16940
75000us 338796 / - 338796 / - 338796 / - 338796 / - 326091 / 330326 139753 / 16940
100000us 338796 / - 338796 / - 338796 / - 338796 / - 330326 / 334561 160928 / 16940
200000us 338796 / - 338796 / - 338796 / - 338796 / - 334561 / 338796 275272 / 165163
500000us 338796 / - 338796 / - 338796 / - 338796 / - 338796 / - 321856 / 249862
1000000us 338796 / - 338796 / - 338796 / - 338796 / - 338796 / - 330326 / 334561

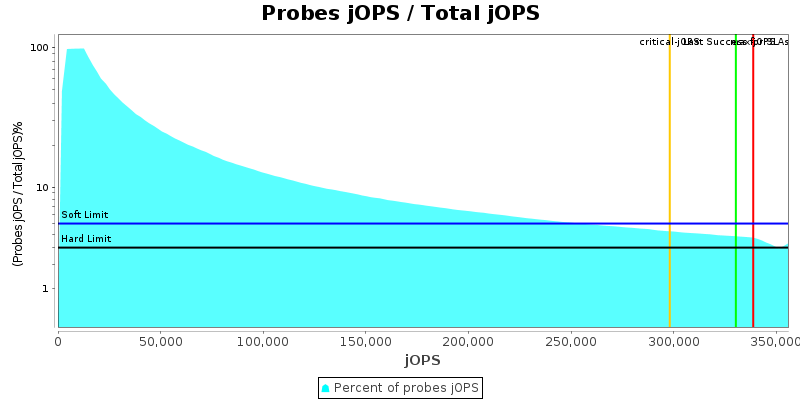

Probes jOPS / Total jOPS

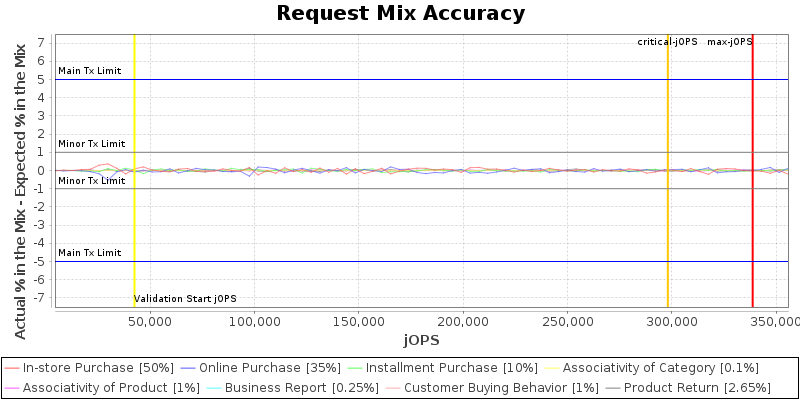

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings

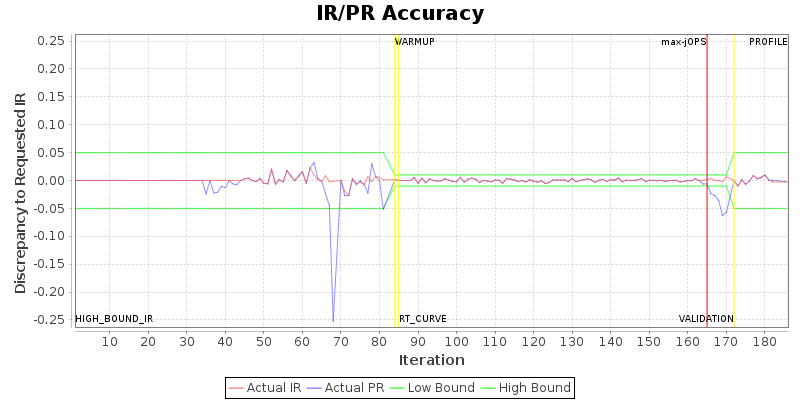

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 32
specjbb.forkjoin.workers 256 {Tier1=124, Tier2=1, Tier3=20}
specjbb.group.count 1 2
specjbb.mapreducer.pool.size 256 8
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 423495 IR
High-bound (settled) is 352946 IR
