SPECjbb2015
Copyright © 2015-2021 Standard Performance Evaluation Corporation
WIZBRAIN MFCS 14760 SPECjbb2015-Composite max-jOPS
6914 SPECjbb2015-Composite critical-jOPS
Tested by: Telecommunications Technology Association Test Sponsor: Telecommunications Technology Association Test location: TTA, Seongnam-city, Korea Test date: Jun 16, 2021
SPEC license #: A83 Hardware Availability: Apr-2021 Software Availability: Apr-2021 Publication: Thu Jul 15 13:09:44 EDT 2021
Benchmark Results Summary

SPECjbb2015-Composite: Single JVM/Single Host
(# of groups: 1)

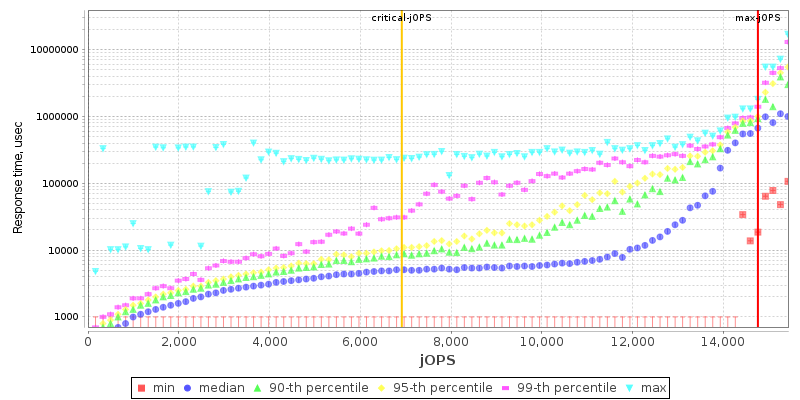

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorWIZBRAIN
Vendor URLhttp://www.wizbrain.co.kr/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips1
Total Cores4
Total Threads4
Total Memory Amount (GB)62
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameMFCS
VendorWIZBRAIN
Vendor URLhttp://www.wizbrain.co.kr/
AvailableApr-2021
ModelMFCS
Form Factor4U
CPU NameIntel Xeon E-2224G
CPU Characteristics4 Core, 3.50 GHz, 8 MB L3 Cache (Turbo Boost Technology up to 4.70 GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System4
Cores Per Chip4
Threads Per System4
Threads Per Core1
Version5.13 09/01/2020
CPU Frequency (MHz)3500
Primary Cache32 KB(I)+32 KB(D) per core
Secondary Cache256 KB (I+D) per core
Tertiary Cache8 MB (I+D) on chip per chip
Other CacheNone
Disk1 TB SATA SSD
File SystemXFS
Memory Amount (GB)64
# and size of DIMM(s)4 x 16 GB
Memory Details4 x 16GB 2Rx8 PC4-2400U-R
# and type of Network Interface Cards (NICs)1 x 1 Gbit NICs
Power Supply Quantity and Rating (W)1 X 2300 W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameCentOS Linux
VendorCentOS
Vendor URLhttps://www.centos.org/
Version7
AvailableApr-2021
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 16.0.1
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 16.0.1
AvailableApr-2021
Bitness64
Notesnote
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning None
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning
  • cpupower --cpu all frequency-set -g performance
  • tuned-adm prrofile throughput-perormance
  • echo 6000000 > /proc/sys/kernel/sched_latency_ns
  • echo 750000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 1000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 500000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 950000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 3000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
  • UserTasksMax=970000
  • DefaultTasksMax=970000
  • ulimit -n 655360
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -server -Xms58g -Xmx58g -Xmn55g -XX:+UseParallelGC -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:MaxTenuringThreshold=15 -XX:+ScavengeBeforeFullGC -XX:-UseAdaptiveSizePolicy -XX:ParallelGCThreads=4 -XX:-UseBiasedLocking -XX:NewSize=55G -XX:SurvivorRatio=20 -XX:TargetSurvivorRatio=95 -XX:+UseNUMA -XX:-UseNUMAInterleaving -XX:+UseTransparentHugePages -XX:+UseHugeTLBFS -Xnoclassgc
Tuning
  • numactl --cpunodebind=0 --localalloc
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 14594 14760 14926 15091 15257
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 4543 6219 7380 8375 9050 6914
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 995 / 1161 332 / 498 166 / 332 - / 166 - / 166 - / 166
1000us 3151 / 3317 995 / 1161 663 / 829 498 / 663 166 / 332 - / 166
5000us 13101 / 13267 7297 / 6799 4478 / 4644 3814 / 3980 2488 / 2653 166 / 332
10000us 13433 / 13599 11775 / 11940 8126 / 7794 6634 / 6799 4809 / 4146 166 / 332
25000us 13765 / 13931 12936 / 13101 10614 / 10448 9785 / 9950 6136 / 6302 2488 / 332
50000us 13765 / 13931 13433 / 13599 12106 / 11609 10780 / 10945 7297 / 7463 2488 / 332
75000us 13931 / 14096 13599 / 13765 12604 / 12438 11775 / 11609 9121 / 7629 3151 / 332
100000us 13931 / 14096 13765 / 13931 12604 / 12770 11940 / 11609 9619 / 8624 3317 / 332
200000us 14096 / 14262 13931 / 14096 13433 / 13267 13101 / 13267 11940 / 11277 7960 / 332
500000us 14760 / - 14262 / 14428 13931 / 14096 13931 / 14096 13931 / 14096 13433 / 13599
1000000us 14760 / - 14760 / - 14760 / - 14760 / - 14594 / 14760 14262 / 14428

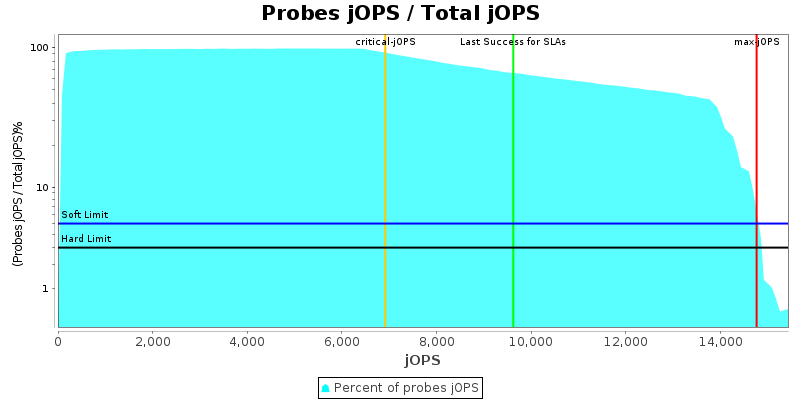

Number of probes
Probes jOPS / Total jOPS

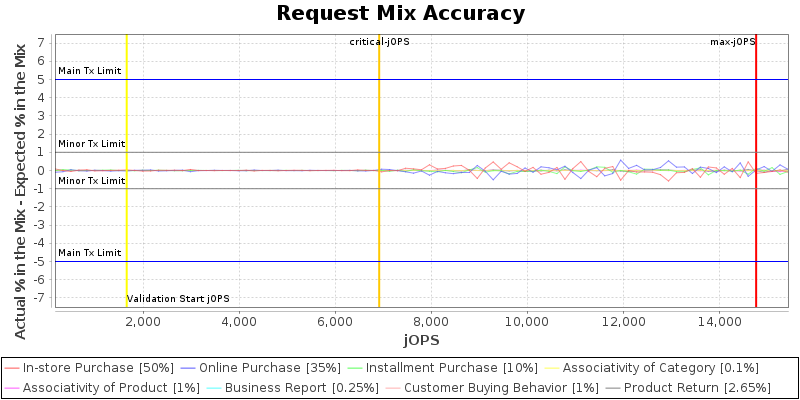

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

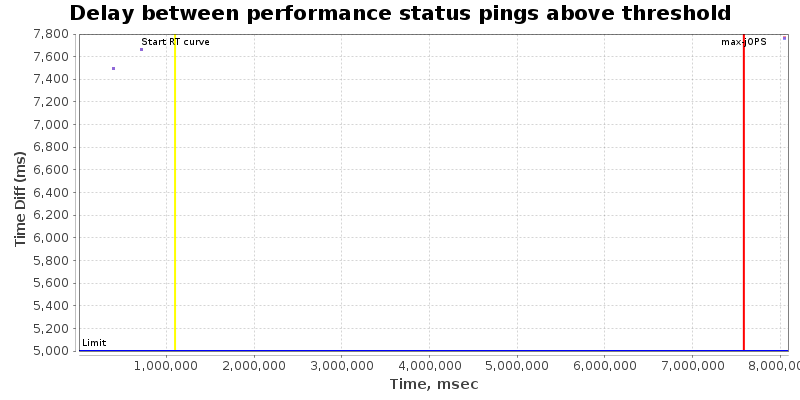

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings
IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 4
specjbb.comm.connect.timeouts.connect 60000 800000
specjbb.comm.connect.timeouts.read 60000 800000
specjbb.comm.connect.timeouts.write 60000 800000
specjbb.controller.handshake.period 5000 50000
specjbb.controller.handshake.timeout 600000 600000
specjbb.forkjoin.workers 4 {Tier1=4, Tier2=1, Tier3=2}
specjbb.mapreducer.pool.size 4 4
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 16584 IR
High-bound (settled) is 15786 IR
