Hewlett Packard Enterprise Superdome Flex 280 662046 SPECjbb2015-MultiJVM max-jOPS
549657 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Hewlett Packard Enterprise Test Sponsor: Hewlett Packard Enterprise Test location: Fort Collins, Colorado Test date: January 25, 2021
SPEC license #: 3 Hardware Availability: Dec-2020 Software Availability: Jan-2021 Publication: Thu Feb 25 14:36:03 EST 2021
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
System SourceSingle Supplier
System DesignationRack Mount Chassis
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips8
Total Cores224
Total Threads448
Total Memory Amount (GB)6144
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameSuperdome Flex 280
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
AvailableDec-2020
ModelSuperdome Flex 280
Form Factor2 x 5U Rack
CPU NameIntel Xeon Platinum 8380H CPU
CPU Characteristics28 Core, 2.9 GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 4.3 GHz)
Number of Systems1
Nodes Per System1
Chips Per System8
Cores Per System224
Cores Per Chip28
Threads Per System448
Threads Per Core2
Version1.0.176
CPU Frequency (MHz)2900
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache1024 KB I+D on chip per core
Tertiary Cache38.5 MB I+D on chip per chip
Other CacheNone
Disk2 x 480 GB SSD SATA
File SystemXFS
Memory Amount (GB)6144
# and size of DIMM(s)48 x 128 GB
Memory Details128 GB 4DRx4 PC4-3200AA-L
# and type of Network Interface Cards (NICs)HPE Ethernet 1Gb 4-port
Power Supply Quantity and Rating (W)8 x 1600
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux release 8.2 (Ootpa)
VendorRedHat
Vendor URLhttp://redhat.com/
Version4.18.0-193.el8.x86_64
AvailableApril-2020
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOpenJDK 15.0.2
VendorOpenJDK (openjdk.java.net)
Vendor URLhttp://openjdk.java.net/
VersionOpenJDK 64-bit Server VM, version 15.0.2
AvailableJan-2021
Bitness64
Notes

Community Support:

Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning
  • Workload Profile=High Performance Compute(HPC)
  • Memory Patrol Scrubbing=Disabled
  • Enhanced Processor Performance=Enabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(8), jvm_TxInjector_1(8)
OS Image Description os_1
Tuning
  • SELinux=disabled
  • tuned-adm profile=accelerator-performance
  • echo 16000000 > /proc/sys/kernel/sched_latency_ns
  • echo 155000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 3000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 16 >/proc/sys/kernel/sched_nr_migrate
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line

-server -Xms2g -Xmx2g -Xmn1536m

Tuning

Used numactl to interleave memory on all CPUs

  • numactl --interleave=all
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line

-server -Xms350g -Xmx350g -Xmn340g -XX:SurvivorRatio=34 -XX:MaxTenuringThreshold=15 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -Xnoclassgc -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:-UsePerfData -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=56 -XX:UseAVX=0

Tuning

Used numactl to affinitize each Backend JVM to each NUMA node

  • numactl --cpunodebind=0 --localalloc
  • numactl --cpunodebind=1 --localalloc
  • numactl --cpunodebind=2 --localalloc
  • numactl --cpunodebind=3 --localalloc
  • numactl --cpunodebind=4 --localalloc
  • numactl --cpunodebind=5 --localalloc
  • numactl --cpunodebind=6 --localalloc
  • numactl --cpunodebind=7 --localalloc

Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line

-Xms2g -Xmx2g -Xmn1536m

Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 645699 653873 662046 670220 678393
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 412757 576225 592572 592572 600745 549657
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 8173 - / 8173 - / 8173 - / 8173 - / 8173 - / 8173
1000us 384150 / 392324 8173 / 16347 - / 8173 - / 8173 - / 8173 - / 8173
5000us 637526 / 645699 604832 / 613006 359630 / 367803 286069 / 294243 196162 / 204335 - / 8173
10000us 637526 / 645699 621179 / 629353 547618 / 555792 506751 / 514925 408670 / 416844 24520 / 32694
25000us 645699 / 653873 629353 / 637526 613006 / 621179 604832 / 613006 572139 / 580312 106254 / 49040
50000us 645699 / 653873 629353 / 637526 613006 / 621179 613006 / 621179 588486 / 596659 155295 / 49040
75000us 645699 / 653873 629353 / 637526 613006 / 621179 613006 / 621179 588486 / 596659 155295 / 49040
100000us 645699 / 653873 629353 / 637526 613006 / 621179 613006 / 621179 596659 / 604832 335110 / 49040
200000us 645699 / 653873 637526 / 645699 621179 / 629353 613006 / 621179 604832 / 613006 563965 / 138948
500000us 662046 / - 645699 / 653873 637526 / 645699 629353 / 637526 621179 / 629353 588486 / 596659
1000000us 662046 / - 662046 / - 645699 / 653873 645699 / 653873 637526 / 645699 613006 / 621179

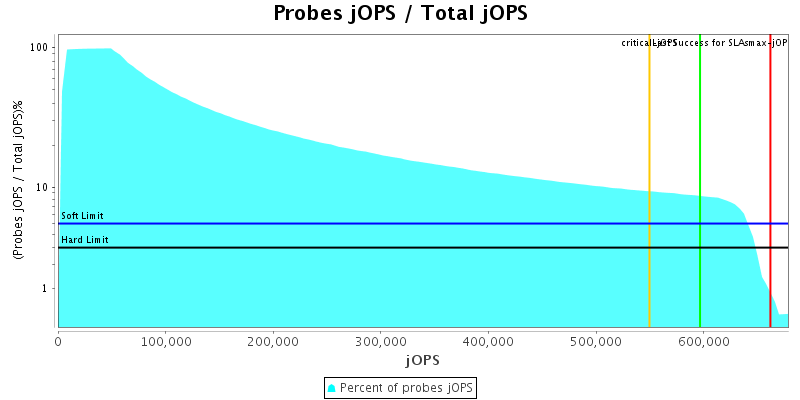

Probes jOPS / Total jOPS

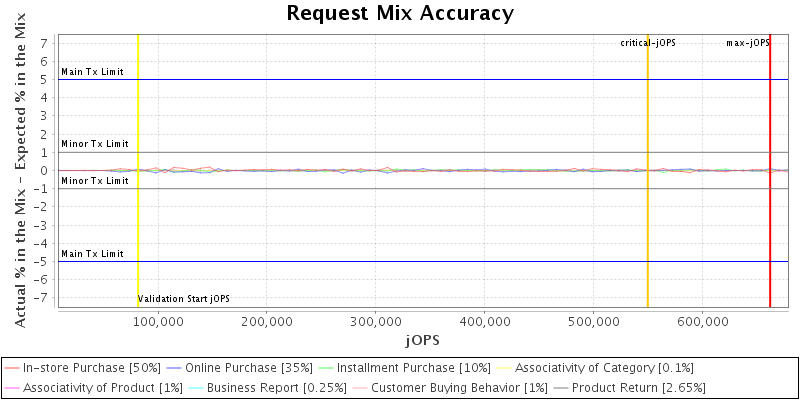

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

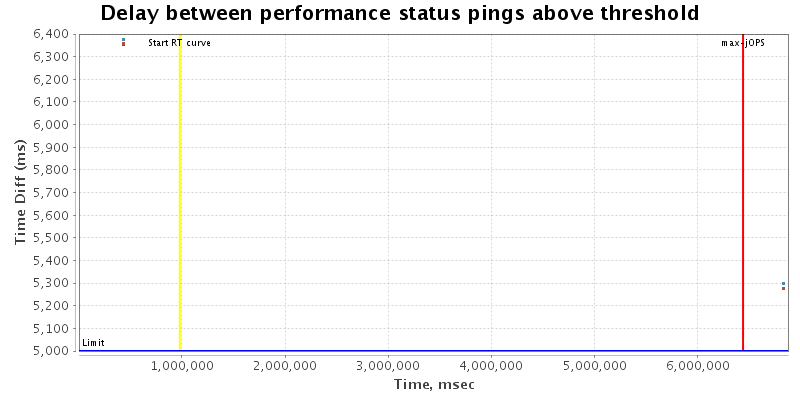

Delay between status pings

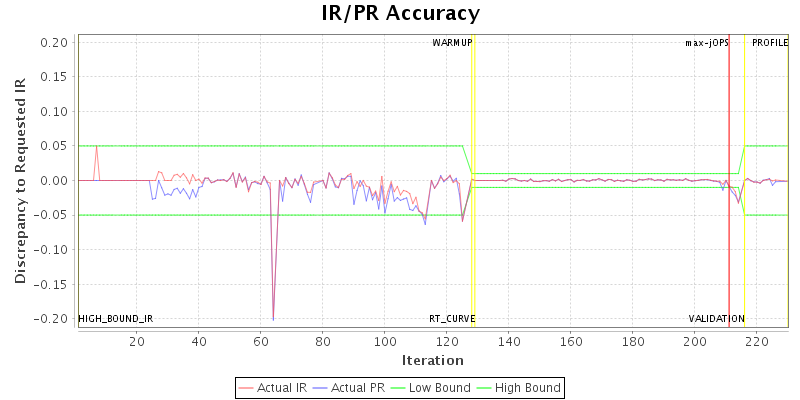

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 12
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 64
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.forkjoin.workers 448 {Tier1=198, Tier2=53, Tier3=23}
specjbb.group.count 1 8
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 817341 IR
High-bound (settled) is 718055 IR
