Inspur Corporation Inspur NE5260M5 108270 SPECjbb2015-MultiJVM max-jOPS
47991 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Inspur Corporation Test Sponsor: Inspur Corporation Test location: Jinan, China Test date: Nov 18, 2020
SPEC license #: 3358 Hardware Availability: Feb-2020 Software Availability: Oct-2020 Publication: Fri Dec 4 10:54:33 EST 2020
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorInspur Corporation
Vendor URLhttp://www.inspur.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores36
Total Threads72
Total Memory Amount (GB)192
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameInspur NE5260M5
VendorInspur Corporation
Vendor URLhttp://www.inspur.com/
AvailableFeb-2020
ModelInspur NE5260M5
Form Factor2U
CPU NameIntel Xeon Gold 5220
CPU Characteristics18 Core, 2.2 GHz, 24.75 MB L3 Cache (Turbo Boost Technology up to 3.9 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System36
Cores Per Chip18
Threads Per System72
Threads Per Core2
Version2.12.0 released Feb-2020
CPU Frequency (MHz)2200
Primary Cache32 KB(I)+32 KB(D)on chip per core
Secondary Cache1MB (I+D) per core
Tertiary Cache24.75MB (I+D) on chip per chip
Other CacheNone
Disk1 x 960 GB SATA SSD
File Systemxfs
Memory Amount (GB)192
# and size of DIMM(s)12 x 16GB
Memory Details12 x 16 GB 2Rx4 PC4-2933Y-R, running at 2666
# and type of Network Interface Cards (NICs)2 x 10 Gbit NIC
Power Supply Quantity and Rating (W)2 x 1300W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux release 8.2 (Ootpa)
VendorRed Hat
Vendor URLhttp://redhat.com/
Version4.18.0-193
AvailableApr-2020
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 15.0.1
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 15.0.1
AvailableOct-2020
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning None
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning
  • ulimit -n 655350
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -server -Xmx29g -Xms29g -Xmn27g -XX:+UseParallelGC -XX:ParallelGCThreads=18 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=28 -XX:MaxTenuringThreshold=15 -XX:TargetSurvivorRatio=95
Tuning numactl used to affinitize each Backend JVM to a single memory node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning numactl used to affinitize each TxInjector JVM to a single memory node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 107093 108270 109447 110624 111801
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 32363 40601 50016 58254 66492 47991
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1177 - / 1177 - / 1177 - / 1177 - / 1177 - / 1177
1000us 4707 / 5884 2354 / 3531 1177 / 2354 1177 / 2354 - / 1177 - / 1177
5000us 88264 / 89441 41190 / 42367 18830 / 20006 17653 / 18830 14122 / 15299 3531 / 2354
10000us 90617 / 91794 81203 / 82379 60019 / 61196 48251 / 49428 31775 / 32952 3531 / 2354
25000us 92971 / 94148 88264 / 89441 77672 / 78849 70611 / 71788 40013 / 41190 5884 / 2354
50000us 94148 / 95325 90617 / 91794 83556 / 84733 77672 / 78849 49428 / 50605 5884 / 2354
75000us 95325 / 96502 91794 / 92971 85910 / 87087 81203 / 80026 58842 / 57666 5884 / 2354
100000us 97679 / 98855 92971 / 94148 88264 / 89441 83556 / 84733 65904 / 67080 5884 / 2354
200000us 102386 / 103563 95325 / 96502 91794 / 92971 90617 / 91794 87087 / 88264 65904 / 10592
500000us 108270 / - 102386 / 103563 97679 / 98855 96502 / 97679 94148 / 95325 91794 / 88264
1000000us 108270 / - 108270 / - 105916 / 107093 104740 / 105916 103563 / 104740 96502 / 94148

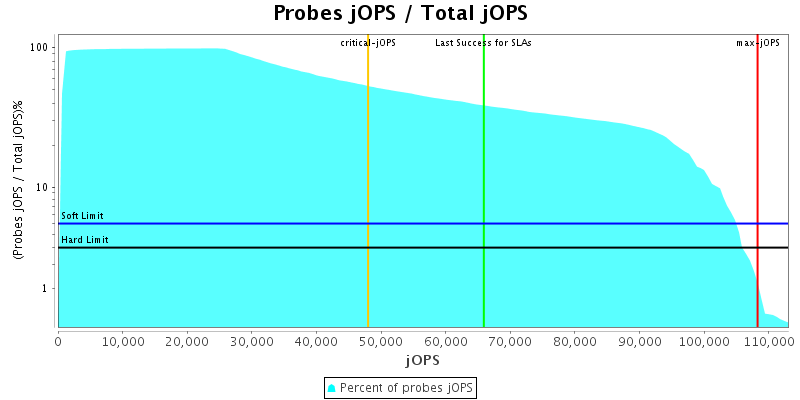

Probes jOPS / Total jOPS

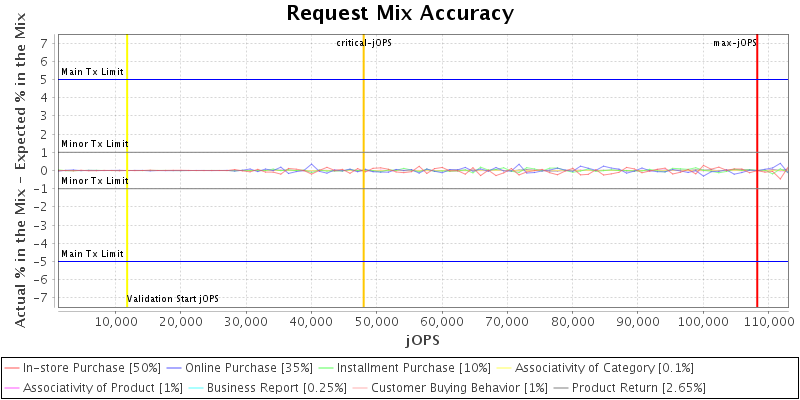

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings

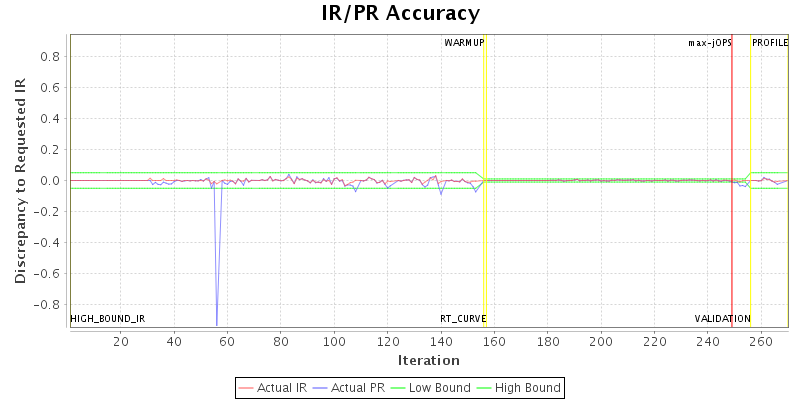

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.forkjoin.workers 72 {Tier1=180, Tier2=56, Tier3=28}
specjbb.group.count 1 4
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 117685 IR
High-bound (settled) is 112154 IR
