Inspur Corporation Inspur NF5288M5 94495 SPECjbb2015-MultiJVM max-jOPS
33264 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Inspur Corporation Test Sponsor: Inspur Corporation Test location: Jinan, China Test date: Nov 18, 2020
SPEC license #: 3358 Hardware Availability: Jul-2019 Software Availability: Oct-2020 Publication: Fri Dec 4 10:54:33 EST 2020
Benchmark Results Summary

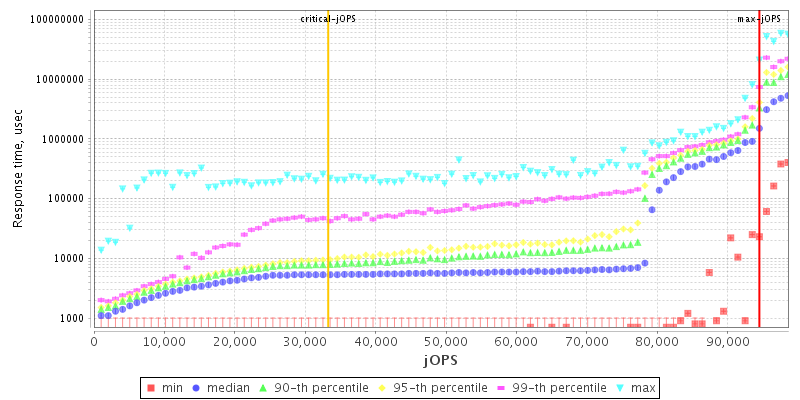

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorInspur Corporation
Vendor URLhttp://www.inspur.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores32
Total Threads64
Total Memory Amount (GB)384
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameInspur NF5288M5
VendorInspur Corporation
Vendor URLhttp://www.inspur.com/
AvailableApr-2019
ModelInspur NF5288M5
Form Factor2U
CPU NameIntel Xeon Gold 5218
CPU Characteristics16 Core, 2.3 GHz, 22 MB L3 Cache (Turbo Boost Technology up to 3.9 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System32
Cores Per Chip16
Threads Per System64
Threads Per Core2
Version4.1.05 released Jul-2019
CPU Frequency (MHz)2300
Primary Cache32 KB(I)+32 KB(D)on chip per core
Secondary Cache1MB (I+D) per core
Tertiary Cache22MB (I+D) on chip per chip
Other CacheNone
Disk1 x 480 GB SATA SSD
File Systemxfs
Memory Amount (GB)384
# and size of DIMM(s)12 x 32GB
Memory Details12 x 32 GB 2Rx4 PC4-2933Y-R, running at 2666
# and type of Network Interface Cards (NICs)4 x 10 Gbit NIC
Power Supply Quantity and Rating (W)2 x 3000W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux release 8.2 (Ootpa)
VendorRed Hat
Vendor URLhttp://redhat.com/
Version4.18.0-193
AvailableApr-2020
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 15.0.1
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 15.0.1
AvailableOct-2020
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning None
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning
  • ulimit -n 655350
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -server -Xmx29g -Xms29g -Xmn27g -XX:+UseParallelGC -XX:ParallelGCThreads=16 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=28 -XX:MaxTenuringThreshold=15 -XX:TargetSurvivorRatio=95
Tuning numactl used to affinitize each Backend JVM to a single memory node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning numactl used to affinitize each TxInjector JVM to a single memory node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 93479 94495 95512 96528 97544
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 12701 21846 40008 55122 66553 33264
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1016 - / 1016 - / 1016 - / 1016 - / 1016 - / 1016
1000us 4064 / 5080 - / 1016 - / 1016 - / 1016 - / 1016 - / 1016
5000us 78238 / 79254 24386 / 25402 16257 / 17273 15241 / 16257 11177 / 12193 - / 1016
10000us 79254 / 80270 78238 / 79254 49788 / 47756 34547 / 35563 13209 / 12193 - / 1016
25000us 80270 / 81286 78238 / 79254 77222 / 78238 73158 / 74174 21338 / 22354 3048 / 4064
50000us 80270 / 81286 78238 / 79254 77222 / 78238 77222 / 78238 42675 / 35563 5080 / 4064
75000us 81286 / 82302 79254 / 80270 77222 / 78238 77222 / 78238 55884 / 52836 5080 / 4064
100000us 82302 / 83319 79254 / 80270 77222 / 78238 77222 / 78238 67061 / 66045 5080 / 4064
200000us 88399 / 89415 81286 / 82302 78238 / 79254 78238 / 79254 77222 / 78238 54868 / 7113
500000us 93479 / 94495 88399 / 89415 83319 / 84335 82302 / 83319 79254 / 80270 77222 / 75190
1000000us 94495 / - 93479 / 94495 91447 / 92463 91447 / 92463 89415 / 90431 82302 / 83319

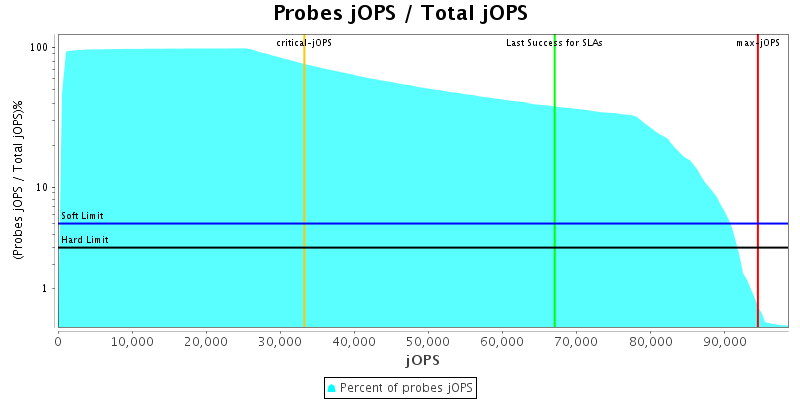

Probes jOPS / Total jOPS

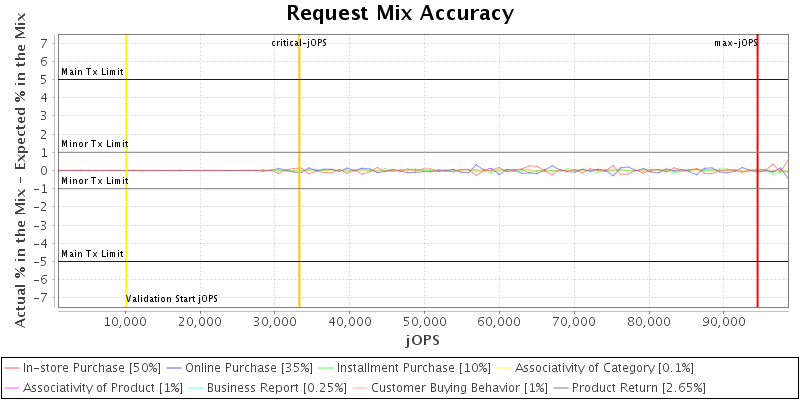

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings

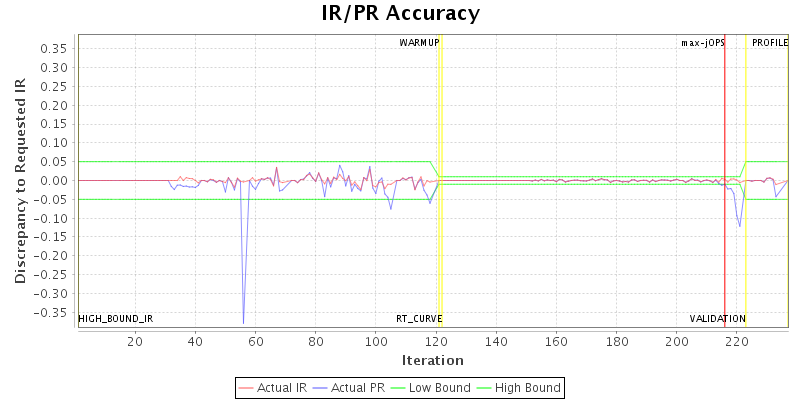

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 4
specjbb.forkjoin.workers 64 {Tier1=180, Tier2=56, Tier3=28}
specjbb.group.count 1 4
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 101608 IR
High-bound (settled) is 97928 IR
