SPECjbb2015
Copyright © 2015-2020 Standard Performance Evaluation Corporation
Super Micro Computer, Inc Supermicro A+ AS-1124US-TNRP Server 154985 SPECjbb2015-Composite max-jOPS
137084 SPECjbb2015-Composite critical-jOPS
Tested by: Super Micro Computer, Inc Test Sponsor: Super Micro Computer, Inc Test location: San Jose, California Test date: March 02, 2020
SPEC license #: 001176 Hardware Availability: Apr-2020 Software Availability: Jan-2020 Publication: Wed Apr 15 14:02:19 EDT 2020
Benchmark Results Summary

SPECjbb2015-Composite: Single JVM/Single Host
(# of groups: 2)

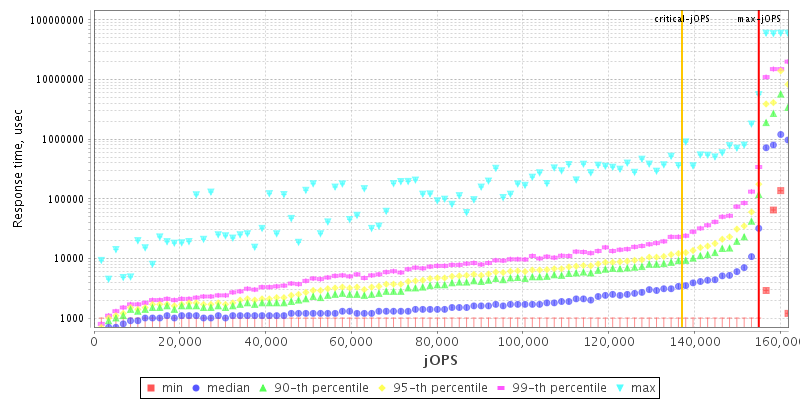

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorSuper Micro Computer, Inc
Vendor URLhttps://www.supermicro.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores48
Total Threads96
Total Memory Amount (GB)4096
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameSupermicro A+ AS-1124US-TNRP Server
VendorSuper Micro Computer, Inc
Vendor URLhttps://www.supermicro.com
AvailableApr-2020
ModelH12DSU-iN
Form Factor1U
CPU NameAMD EPYC 7F72
CPU Characteristics24 core, 3.2GHz, 192MB L3 Cache (Turbo Boost Technology up to 3.7GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System48
Cores Per Chip24
Threads Per System96
Threads Per Core2
VersionT20200130193235 01/30/2020
CPU Frequency (MHz)3200
Primary Cache32KB(I)+32KB(D) per core
Secondary Cache512KB (I+D) per core
Tertiary Cache192MB (I+D) on chip per chip
Other CacheNone
Disk6 x Micron 9300 Pro 7.6TB
File Systembtrfs
Memory Amount (GB)4096
# and size of DIMM(s)16 x 256GB
Memory Details256GB 2S4Rx4 PC4-2933-Y-LA0-12-MH1
# and type of Network Interface Cards (NICs)1 x 1 GbE NIC
Power Supply Quantity and Rating (W)2 x 1000w
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP1
VendorSUSE
Vendor URLhttp://suse.com/
Version4.12.14-197.29-default
AvailableMay-2019
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 13.0.2
VendorOracle
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-bit Server VM, version 13.0.2
AvailableJan-2020
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning

BIOS Settings:

  • NUMA nodes per socket = NPS2
  • Determinism Control = Manual
  • Determinism Slider = Power
  • cTDP Control = Manual
  • cTDP = 240
  • Package Power Limit Control = Manual
  • Package Power Limit = 240
  • Memory Clock Speed = 1467MHz
  • L1 Stream HW Prefetcher = Disable
  • L2 Stream HW Prefetcher = Disable
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning

  • cpupower -c all frequency-set -g performance
  • tuned-adm profile throughput-performance

  • echo 400000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 50000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 50000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 128 > /proc/sys/kernel/sched_nr_migrate
  • echo 950000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 400000 > /proc/sys/kernel/sched_latency_ns
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
    • echo 0 > /proc/sys/kernel/numa_balancing
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled

  • Add cgroup_disable=memory,cpu,cpuacct,blkio,hugetlb,pids,cpuset,perf_event,freezer,devices,net_cls,net_prio to GRUB_CMDLINE_LINUX_DEFAULT
  • ulimit -n 1024000
  • UserTasksMax=970000
  • DefaultTasksMax=970000
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line

-Xms960g -Xmx960g -Xmn956g -server -XX:+UseParallelOldGC -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:MaxTenuringThreshold=1 -XX:+ScavengeBeforeFullGC -XX:-UseAdaptiveSizePolicy -XX:ParallelGCThreads=96 -XX:-UseBiasedLocking -XX:SurvivorRatio=370 -XX:TargetSurvivorRatio=98 -XX:+UseTransparentHugePages -XX:InlineSmallCode=10k -XX:LoopUnrollLimit=1000 -XX:+UseNUMA -XX:-UseNUMAInterleaving -XX:-UseAdaptiveNUMAChunkSizing
Tuning None
Notes

Used numactl to run on all available nodes

  • numactl --cpunodebind=0-3 --interleave=0-3
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 153282 154985 156688 158391 160094
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 103039 138805 147320 150727 152430 137084
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 6813 / 8516 1703 / 3406 - / 1703 - / 1703 - / 1703 - / 1703
1000us 117516 / 119219 30656 / 17031 5109 / 6813 3406 / 5109 1703 / 3406 - / 1703
5000us 153282 / 154985 144766 / 146469 105594 / 107297 83453 / 85156 63016 / 56203 8516 / 1703
10000us 154985 / - 151579 / 153282 137954 / 139657 127735 / 129438 103891 / 102188 13625 / 5109
25000us 154985 / - 153282 / 154985 151579 / 153282 148172 / 149875 137954 / 139657 47688 / 23844
50000us 154985 / - 154985 / - 153282 / 154985 151579 / 153282 146469 / 148172 66422 / 23844
75000us 154985 / - 154985 / - 153282 / 154985 153282 / 154985 149875 / 151579 86860 / 23844
100000us 154985 / - 154985 / - 153282 / 154985 153282 / 154985 151579 / 153282 88563 / 23844
200000us 154985 / - 154985 / - 154985 / - 154985 / - 153282 / 154985 105594 / 74938
500000us 154985 / - 154985 / - 154985 / - 154985 / - 154985 / - 139657 / 134547
1000000us 154985 / - 154985 / - 154985 / - 154985 / - 154985 / - 151579 / 153282
Number of probes
Probes jOPS / Total jOPS
Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building
Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings
IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.timeouts.connect 60000 800000
specjbb.comm.connect.timeouts.read 60000 800000
specjbb.comm.connect.timeouts.write 60000 800000
specjbb.customerDriver.threads 64 {saturate=95}
specjbb.forkjoin.workers 96 {Tier1=60, Tier2=4, Tier3=12}
specjbb.group.count 1 2
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 170313 IR
High-bound (settled) is 164856 IR
