Hewlett Packard Enterprise ProLiant DL385 Gen10 Plus 319609 SPECjbb2015-Distributed max-jOPS
83535 SPECjbb2015-Distributed critical-jOPS
Tested by: Hewlett Packard Enterprise Test Sponsor: Hewlett Packard Enterprise Test location: Houston, TX Test date: October 16, 2019
SPEC license #: 3 Hardware Availability: Nov-2019 Software Availability: Sep-2019 Publication: Mon Nov 18 12:31:05 EST 2019
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips2
Total Cores128
Total Threads256
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameProLiant DL385 Gen10 Plus
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
AvailableNov-2019
ModelProLiant DL385 Gen10 Plus
Form Factor2U Rack
CPU NameAMD EPYC 7742
CPU Characteristics64 Core, 2.25 GHz, 256 MB L3 Cache(Turbo Boost Technology up to 3.4 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System128
Cores Per Chip64
Threads Per System256
Threads Per Core2
VersionA42 10/07/2019
CPU Frequency (MHz)2250
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache512 KB I+D on chip per core
Tertiary Cache256 MB (I+D) on chip per chip
Other CacheNone
Disk2 x 800 GB SSD SAS
File SystemNTFS
Memory Amount (GB)1024
# and size of DIMM(s)32 x 32 GB
Memory Details32 GB 2Rx4 PC4-3200AA-R
# and type of Network Interface Cards (NICs)HPE Ethernet 10Gb 2-port
Power Supply Quantity and Rating (W)2 x 800
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameWindows Server 2019 Standard
VendorMicrosoft
Vendor URLhttps://www.microsoft.com/
VersionVersion 1809(OS Build 17763.615)
AvailableJul-2019
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 13
VendorOracle
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-bit Server VM, version 13
AvailableSep-2019
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware hw_2
NameProLiant DL325 Gen10 Plus
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
AvailableAug-2019
ModelProLiant DL325 Gen10 Plus
Form Factor1U Rack
CPU NameAMD EPYC 7702P
CPU Characteristics64 Core, 2.0 GHz, 256 MB L3 Cache(Turbo Boost Technology up to 3.35 GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System64
Cores Per Chip64
Threads Per System128
Threads Per Core2
VersionA41 07/15/2019
CPU Frequency (MHz)2000
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache512 KB I+D on chip per core
Tertiary Cache256 MB (I+D) on chip per chip
Other CacheNone
Disk1 x 480 GB SSD SATA
File SystemNTFS
Memory Amount (GB)512
# and size of DIMM(s)16 x 32 GB
Memory Details32 GB 2Rx4 PC4-2933Y-R
# and type of Network Interface Cards (NICs)HPE Ethernet 10Gb 2-port
Power Supply Quantity and Rating (W)2 x 800
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_2
NameWindows Server 2019 Standard
VendorMicrosoft
Vendor URLhttps://www.microsoft.com/
VersionVersion 1809(OS Build 17763.615)
AvailableJul-2019
Bitness64
NotesNone
Java Virtual Machine jvm_2
NameOracle Java SE 13
VendorOracle
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-bit Server VM, version 13
AvailableSep-2019
Bitness64
NotesNone
Other Software other_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning
  • Workload Profile=High Performance Compute(HPC)
  • Thermal Configuration=Maximum Cooling
  • Determinism Control=Manual
  • Performance Determinism=Power Deterministic
  • Package Power Limit Control Mode = Manual. Value = 240
  • Memory Patrol Scrubbing=Disabled
  • Numa Memory Domains Per Socket(NPS)=Four Memory Domains Per Socket
Notes None
OS Image os_Image_1
JVM Instances jvm_Backend_1(8)
OS Image Description os_1
Tuning
  • Lock Pages in Memory is Enabled
  • Power Options is set to Ultimate Performance
  • Processor Performance Boost Mode is Enabled
  • Processor Scheduling is set to Programs
  • Visual Effects is set to Best Performance
  • HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters and added two new entries:
    1. MaxUserPort:- Value Type: DWORD Value data: 65534
    2. TcpNumConnections:- Value Type: DWORD Value data: 65534
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line

-showversion -server -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -Xms29g -Xmx29g -Xmn27g -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=98 -XX:ParallelGCThreads=32 -XX:MaxTenuringThreshold=15 -Xnoclassgc -XX:+PrintGCDetails -XX:InlineSmallCode=10k -XX:MaxGCPauseMillis=300 -XX:ThreadStackSize=1m

Tuning None
Notes

Affinitized each Backend JVM to a NUMA node.

  • start /b /NODE 0
  • start /b /NODE 1
  • start /b /NODE 2
  • start /b /NODE 3
  • start /b /NODE 4
  • start /b /NODE 5
  • start /b /NODE 6
  • start /b /NODE 7
Hardware
OS Images os_Image_2(1)
Hardware Description hw_2
Number of Systems 1
SW Environment non-virtual
Tuning
  • Workload Profile=High Performance Compute(HPC)
  • Thermal Configuration=Maximum Cooling
  • Determinism Control=Manual
  • Performance Determinism=Power Deterministic
  • Memory Patrol Scrubbing=Disabled
  • Numa Memory Domains Per Socket(NPS)=Four Memory Domains Per Socket
Notes None
OS Image os_Image_2
JVM Instances jvm_Ctr_1(1), jvm_TxInjector_1(8)
OS Image Description os_2
Tuning
  • Lock Pages in Memory is Enabled
  • Power Options is set to High Performance
  • Processor Scheduling is set to Programs
  • Visual Effects is set to Best Performance
  • HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters and added two new entries:
    1. MaxUserPort:- Value Type: DWORD Value data: 65534
    2. TcpNumConnections:- Value Type: DWORD Value data: 65534
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_2
Command Line

-Xms3g -Xmx3g -Xmn2g -XX:+UseParallelOldGC -XX:ParallelGCThreads=1 -XX:CICompilerCount=2

Tuning None
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_2
Command Line

-Xms4g -Xmx4g -Xmn3g -XX:+UseParallelOldGC -XX:ParallelGCThreads=3 -XX:CICompilerCount=2

Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 315663 319609 323555 327501 331446
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 33539 76943 96672 116401 140075 83535
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 3946 - / 3946 - / 3946 - / 3946 - / 3946 - / 3946
1000us 3946 / 7892 - / 3946 - / 3946 - / 3946 - / 3946 - / 3946
5000us 280151 / 157832 35512 / 39458 19729 / 23675 15783 / 19729 11837 / 15783 - / 3946
10000us 299880 / 303826 142048 / 145994 43404 / 47349 35512 / 39458 31566 / 35512 3946 / 7892
25000us 303826 / 307772 295934 / 299880 260422 / 205181 197289 / 201235 74970 / 78916 3946 / 7892
50000us 307772 / 311717 299880 / 303826 280151 / 205181 248585 / 205181 94699 / 98645 3946 / 7892
75000us 307772 / 311717 299880 / 303826 284097 / 205181 260422 / 205181 114428 / 118374 3946 / 7892
100000us 307772 / 311717 299880 / 303826 284097 / 205181 264368 / 205181 138103 / 142048 3946 / 7892
200000us 311717 / 315663 303826 / 307772 291988 / 205181 288043 / 205181 276205 / 205181 86807 / 19729
500000us 311717 / 315663 311717 / 315663 303826 / 205181 299880 / 205181 288043 / 205181 264368 / 205181
1000000us 319609 / - 319609 / - 311717 / 315663 307772 / 205181 303826 / 205181 288043 / 205181
Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings

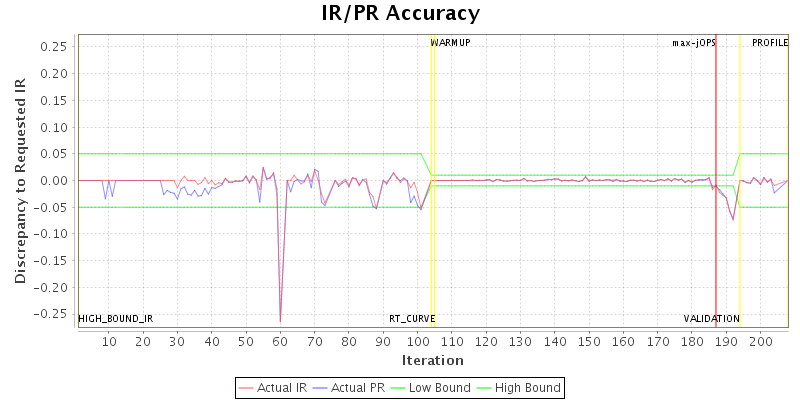

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller Group1.Backend.beJVM Group2.Backend.beJVM Group3.Backend.beJVM Group4.Backend.beJVM Group5.Backend.beJVM Group6.Backend.beJVM Group7.Backend.beJVM Group8.Backend.beJVM
specjbb.comm.connect.client.pool.size 256 256 192 192 192 192 192 192 192 192
specjbb.comm.connect.selector.runner.count 0 8
specjbb.comm.connect.timeouts.connect 60000 800000
specjbb.comm.connect.timeouts.read 60000 800000
specjbb.comm.connect.timeouts.write 60000 800000
specjbb.comm.connect.worker.pool.max 256 60
specjbb.comm.connect.worker.pool.min 1 60
specjbb.controller.host localhost 10.115.52.135
specjbb.customerDriver.threads 64 {probe=64, saturate=64, service=64}
specjbb.forkjoin.workers 32 {Tier1=170, Tier2=1, Tier3=26}
specjbb.group.count 1 8
specjbb.heartbeat.threshold 100000 600000
specjbb.mapreducer.pool.size 32 4
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 394579 IR
High-bound (settled) is 329749 IR
