SPECjbb2015 Report for jbb2015-20190717-00470 : 307449 max-jOPS ; 239476 critical-jOPS

SUT Description

Hardware hw_1
Name	ProLiant DL385 Gen10
Vendor	Hewlett Packard Enterprise
Vendor URL	http://hpe.com/
Available	Aug-2019
Model	ProLiant DL385 Gen10
Form Factor	2U Rack
CPU Name	AMD EPYC 7702
CPU Characteristics	64 Core, 2.0 GHz, 256 MB L3 cache (Turbo Boost Technology up to 3.35 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	128
Cores Per Chip	64
Threads Per System	256
Threads Per Core	2
Version	A40 07/04/2019
CPU Frequency (MHz)	2000
Primary Cache	32 KB I + 32 KB D on chip per core
Secondary Cache	512 KB I+D on chip per core
Tertiary Cache	256 MB L3 cache per chip
Other Cache	None
Disk	1 x 400 GB SSD SAS
File System	XFS
Memory Amount (GB)	1024
# and size of DIMM(s)	16 x 64 GB
Memory Details	64 GB 4Rx4 PC4-2933Y-L
# and type of Network Interface Cards (NICs)	HPE Ethernet 10Gb 2-port
Power Supply Quantity and Rating (W)	2 x 800
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP1
Vendor	SUSE
Vendor URL	https://www.suse.com/
Version	4.12.14-195-default
Available	Jun-2019
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	OpenJDK 12.0.1
Vendor	OpenJDK (openjdk.java.net)
Vendor URL	http://openjdk.java.net/
Version	OpenJDK 64-Bit Server VM version 12.0.1
Available	Apr-2019
Bitness	64
Notes	Community Support: Community URL: http://openjdk.java.net/projects/jdk/ Support URL: http://bugs.openjdk.java.net/secure/Dashboard.jspa
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Driver Description

Hardware hw_2
Name	ProLiant DL325 Gen10
Vendor	Hewlett Packard Enterprise
Vendor URL	http://hpe.com/
Available	Aug-2019
Model	ProLiant DL325 Gen10
Form Factor	1U Rack
CPU Name	AMD EPYC 7702P
CPU Characteristics	64 Core, 2.0 GHz, 16 MB L3 cache per 4 core (Turbo Boost Technology up to 3.35 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	1
Cores Per System	64
Cores Per Chip	64
Threads Per System	128
Threads Per Core	2
Version	A41 07/04/2019
CPU Frequency (MHz)	2000
Primary Cache	32 KB I + 32 KB D on chip per core
Secondary Cache	512 KB I+D on chip per core
Tertiary Cache	256 MB L3 cache per chip
Other Cache	None
Disk	1 x 480 GB SSD SATA
File System	XFS
Memory Amount (GB)	512
# and size of DIMM(s)	8 x 64 GB
Memory Details	64 GB 4Rx4 PC4-2933Y-L
# and type of Network Interface Cards (NICs)	HPE Ethernet 1Gb 4-port
Power Supply Quantity and Rating (W)	2 x 800
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_2
Name	SUSE Linux Enterprise Server 15 SP1
Vendor	SUSE
Vendor URL	https://www.suse.com/
Version	4.12.14-195-default
Available	Jun-2019
Bitness	64
Notes	None
Java Virtual Machine jvm_2
Name	OpenJDK 12.0.1
Vendor	OpenJDK (openjdk.java.net)
Vendor URL	http://openjdk.java.net/
Version	OpenJDK 64-Bit Server VM version 12.0.1
Available	Apr-2019
Bitness	64
Notes	Community Support: Community URL: http://openjdk.java.net/projects/jdk/ Support URL: http://bugs.openjdk.java.net/secure/Dashboard.jspa
Other Software other_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Backend_1 : Backend
Driver
- Hardware config_2
  - OS Image os_Image_2
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	Non-virtual
Tuning	Workload Profile=High Performance Compute(HPC) Thermal Configuration=Maximum Cooling Performance Determinism=Power Deterministic Memory Patrol Scrubbing=Disabled NUMA memory domains per socket=Two memory domains per socket Processor Power and Utilization Monitoring = Disabled Memory Pre-Failure Notification = Disabled
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Backend_1(8)
OS Image Description	os_1
Tuning	ulimit -n 655350 tuned-adm profile=throughput-performance echo 950000 > /proc/sys/kernel/sched_rt_runtime_us echo 100000000 > /proc/sys/kernel/sched_latency_ns echo 80000 > /proc/sys/kernel/sched_migration_cost_ns echo 600000 > /proc/sys/kernel/sched_min_granularity_ns echo 100000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo always > /sys/kernel/mm/transparent_hugepage/enabled echo always > /sys/kernel/mm/transparent_hugepage/defrag
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms118g -Xmx118g -Xmn116g -server -XX:MetaspaceSize=256m -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -XX:SurvivorRatio=50 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=32 -XX:MaxTenuringThreshold=15 -XX:InitialCodeCacheSize=25m -XX:InlineSmallCode=10k -XX:MaxGCPauseMillis=200 -XX:ThreadStackSize=1m -XX:+UseCompressedOops -XX:ObjectAlignmentInBytes=32 -XX:+BindGCTaskThreadsToCPUs -XX:+UseTransparentHugePages
Tuning	None
Notes	Used numactl to affinitize two Backend JVMs to a NUMA node numactl --cpunodebind=0 --localalloc numactl --cpunodebind=0 --localalloc numactl --cpunodebind=1 --localalloc numactl --cpunodebind=1 --localalloc numactl --cpunodebind=2 --localalloc numactl --cpunodebind=2 --localalloc numactl --cpunodebind=3 --localalloc numactl --cpunodebind=3 --localalloc

Driver config_2 Configuration

Hardware
OS Images	os_Image_2(1)
Hardware Description	hw_2
Number of Systems	1
SW Environment	Non-virtual
Tuning	Workload Profile=High Performance Compute(HPC) Thermal Configuration=Maximum Cooling Performance Determinism=Power Deterministic Memory Patrol Scrubbing=Disabled NUMA memory domains per socket=Four memory domains per socket Maximum memory Bus Frequency=2933
Notes	None

OS Image os_Image_2
JVM Instances	jvm_Ctr_1(1), jvm_TxInjector_1(8)
OS Image Description	os_1
Tuning	ulimit -n 655350 tuned-adm profile=throughput-performance echo 950000 > /proc/sys/kernel/sched_rt_runtime_us echo 100000000 > /proc/sys/kernel/sched_latency_ns echo 80000 > /proc/sys/kernel/sched_migration_cost_ns echo 600000 > /proc/sys/kernel/sched_min_granularity_ns echo 100000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo always > /sys/kernel/mm/transparent_hugepage/enabled echo always > /sys/kernel/mm/transparent_hugepage/defrag
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_2
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4
Tuning	None
Notes	numactl --interleave=all
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_2
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4
Tuning	None
Notes	Used numactl to affinitize two Transaction Injector JVMs to a NUMA node numactl --cpunodebind=0 --localalloc numactl --cpunodebind=0 --localalloc numactl --cpunodebind=1 --localalloc numactl --cpunodebind=1 --localalloc numactl --cpunodebind=2 --localalloc numactl --cpunodebind=2 --localalloc numactl --cpunodebind=3 --localalloc numactl --cpunodebind=3 --localalloc

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	304070	307449	310828	314206	317585

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	207781	234810	244945	251702	261838	239476

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	3379 / 6757	- / 3379	- / 3379	- / 3379	- / 3379	- / 3379
1000us	70950 / 60814	13514 / 16893	6757 / 10136	3379 / 6757	- / 3379	- / 3379
5000us	290556 / 293935	270285 / 273663	212849 / 216228	189199 / 185821	108114 / 111492	- / 3379
10000us	293935 / 297313	283799 / 287178	263528 / 266906	250013 / 253392	209471 / 206092	- / 3379
25000us	293935 / 297313	287178 / 290556	270285 / 273663	266906 / 270285	236499 / 233121	37164 / 3379
50000us	297313 / 300692	287178 / 290556	277042 / 280420	270285 / 273663	243256 / 246635	37164 / 3379
75000us	297313 / 300692	290556 / 293935	280420 / 283799	270285 / 273663	250013 / 253392	37164 / 3379
100000us	297313 / 300692	290556 / 293935	280420 / 283799	277042 / 280420	263528 / 260149	125007 / 3379
200000us	300692 / 304070	293935 / 297313	283799 / 287178	280420 / 283799	273663 / 277042	229742 / 233121
500000us	307449 / -	300692 / 304070	290556 / 293935	287178 / 290556	283799 / 287178	277042 / 273663
1000000us	307449 / -	304070 / 307449	297313 / 300692	297313 / 300692	293935 / 297313	287178 / 290556

Number of probes

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

Delay between performance status pings during RT Curve (Response-Throughput Curve)

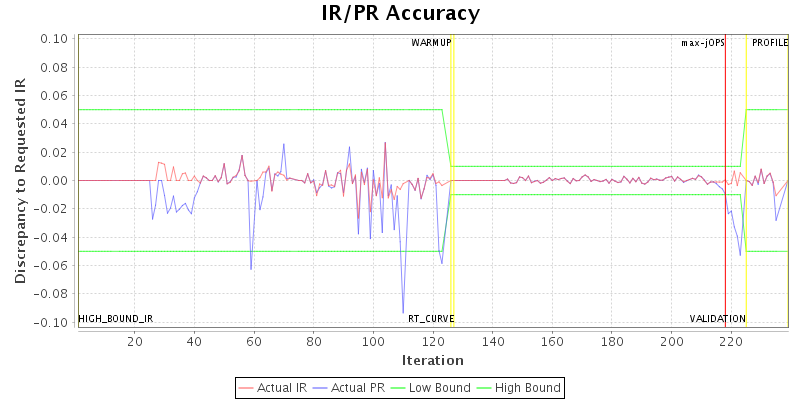

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group2.Backend.beJVM	Group3.Backend.beJVM	Group4.Backend.beJVM	Group5.Backend.beJVM	Group6.Backend.beJVM	Group7.Backend.beJVM	Group8.Backend.beJVM
specjbb.comm.connect.selector.runner.count	0	0	1	1	1	1	1	1	1	1
specjbb.comm.connect.timeouts.connect	60000	60000	700000	700000	700000	700000	700000	700000	700000	700000
specjbb.comm.connect.timeouts.read	60000	60000	700000	700000	700000	700000	700000	700000	700000	700000
specjbb.comm.connect.timeouts.write	60000	60000	700000	700000	700000	700000	700000	700000	700000	700000
specjbb.comm.connect.worker.pool.max	256	256	111	111	111	111	111	111	111	111
specjbb.comm.connect.worker.pool.min	1	1	64	64	64	64	64	64	64	64
specjbb.controller.handshake.period	5000	20000
specjbb.controller.handshake.timeout	600000	800000
specjbb.controller.host	localhost	10.10.0.153
specjbb.customerDriver.threads	64	64	{}	{}	{}	{}	{}	{}	{}	{}
specjbb.forkjoin.workers	128	{Tier1=64, Tier2=1, Tier3=12}
specjbb.group.count	1	8
specjbb.heartbeat.period	10000	2000
specjbb.heartbeat.threshold	100000	900000
specjbb.mapreducer.pool.size	128	128	64	64	64	64	64	64	63	63
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 337856 IR

High-bound (settled) is 327256 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.02, Jan 10, 2019]

Hewlett Packard Enterprise ProLiant DL385 Gen10	307449 SPECjbb2015-Distributed max-jOPS 239476 SPECjbb2015-Distributed critical-jOPS
Tested by: Hewlett Packard Enterprise	Test Sponsor: Hewlett Packard Enterprise	Test location: Hewlett Packard Enterprise	Test date: Jul 11, 2019
SPEC license #: 3	Hardware Availability: Aug-2019	Software Availability: Jun-2019	Publication: Wed Aug 7 19:56:20 EDT 2019
