SPECjbb2015 Report for jbb2015-20190314-00435 : 259141 max-jOPS ; 207097 critical-jOPS

SUT Description

Hardware hw_1
Name	Fujitsu Server PRIMERGY RX4770 M5
Vendor	Fujitsu
Vendor URL	http://www.fujitsu.com/
Available	Apr-2019
Model	Fujitsu Server PRIMERGY RX4770 M5
Form Factor	2U
CPU Name	Intel Xeon Platinum 8280L
CPU Characteristics	28 core, 2.70GHz, 38.5MB L3 Cache (Turbo Boost Technology up to 4.00 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	4
Cores Per System	112
Cores Per Chip	28
Threads Per System	224
Threads Per Core	2
Version	R1.2.0 06.03.2019
CPU Frequency (MHz)	2700
Primary Cache	32 KB I + 32 KB D on chip per core
Secondary Cache	1 MB I+D on chip per core
Tertiary Cache	38.5MB I+D on chip per chip
Other Cache	None
Disk	1x 240GB M2 SSD
File System	xfs
Memory Amount (GB)	1536
# and size of DIMM(s)	48 x 32GB
Memory Details	32GB 2Rx4 PC4-2933Y-R
# and type of Network Interface Cards (NICs)	1x 1 Gbit NIC
Power Supply Quantity and Rating (W)	2 x 1600W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented. Supported by Fujitsu
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	Red Hat Enterprise Linux Server 7.6 (Maipo)
Vendor	Red Hat
Vendor URL	http://www.redhat.com/
Version	3.10.0-957.el7.x86_64-default
Available	Oct-2018
Bitness	64
Notes	Supported by Red Hat
Java Virtual Machine jvm_1
Name	Oracle Java SE 11.0.2
Vendor	Oracle Corporation
Vendor URL	http://www.oracle.com
Version	Java HotSpot 64-bit Server VM, version 11.0.2
Available	Jan-2019
Bitness	64
Notes	Supported by Oracle
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Composite_1 : Composite

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Configuration: Hardware Prefetcher set to Disabled Adjacent Cache Line Prefetch set to Disabled DCU Streamer Prefetcher set to Disabled Intel Virtualization Technology set to Disabled VT-d set to Disabled Override OS Energy Performance set to Enabled Energy Performance set to Performance Link Frequency Select set to 10.4GT/s Patrol Scrub set to Disable SNC set to Disabled Write CRC set to Disabled
Notes	notes

OS Image os_Image_1
JVM Instances	jvm_Composite_1(1)
OS Image Description	os_1
Tuning	ulimit -n 1048576 ulimit -i unlimited ulimit -s unlimited ulimit -u unlimited ulimit -l unlimited ulimit -v unlimited ulimit -m unlimited cpupower -c all frequency-set -g performance echo 6000000 > /proc/sys/kernel/sched_min_granularity_ns echo 1000 > /proc/sys/kernel/sched_migration_cost_ns echo 990000 > /proc/sys/kernel/sched_rt_runtime_us echo 0 > /proc/sys/kernel/numa_balancing tuned-adm profile latency-performance Disable SELinux
Notes	None
JVM Instance jvm_Composite_1
Parts of Benchmark	Composite
JVM Instance Description	jvm_1
Command Line	-server -Xms1380g -Xmx1380g -Xmn1350g -XX:SurvivorRatio=69 -XX:MaxTenuringThreshold=15 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelOldGC -Xnoclassgc -XX:+AggressiveOpts -XX:+UseNUMA -XX:-UseBiasedLocking -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:-UsePerfData -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=224 -verbose:gc -XX:+PrintGCDetails -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages -XX:+AggressiveHeap
Tuning	None
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	256092	259141	262190	265239	268287

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	129570	217330	233227	239324	242373	207097

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	6097 / 9146	- / 3049	- / 3049	- / 3049	- / 3049	- / 3049
1000us	173777 / 176826	9146 / 12195	3049 / 6097	3049 / 6097	3049 / 6097	- / 3049
5000us	246946 / 249995	231703 / 234751	109754 / 112803	85364 / 88413	51828 / 54877	18292 / 3049
10000us	249995 / 253044	243898 / 246946	222557 / 225605	195118 / 198167	131095 / 128046	33536 / 3049
25000us	253044 / 256092	246946 / 249995	243898 / 246946	237800 / 240849	222557 / 204264	76218 / 51828
50000us	256092 / 259141	249995 / 253044	246946 / 249995	243898 / 246946	231703 / 234751	76218 / 67072
75000us	256092 / 259141	253044 / 256092	246946 / 249995	246946 / 249995	237800 / 240849	121949 / 67072
100000us	256092 / 259141	253044 / 256092	249995 / 253044	246946 / 249995	240849 / 243898	121949 / 85364
200000us	256092 / 259141	256092 / 259141	249995 / 253044	249995 / 253044	246946 / 249995	182923 / 115851
500000us	259141 / -	259141 / -	256092 / 259141	256092 / 259141	253044 / 256092	237800 / 234751
1000000us	259141 / -	259141 / -	259141 / -	256092 / 259141	256092 / 259141	240849 / 243898

Number of probes

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

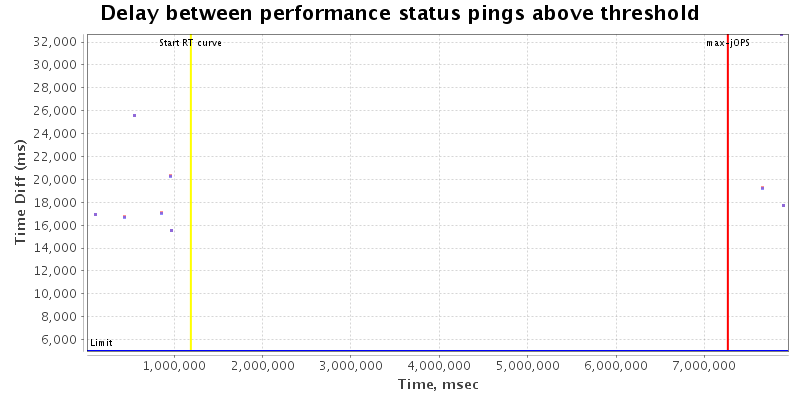

Delay between performance status pings during RT Curve (Response-Throughput Curve)

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.client.pool.size	256	64
specjbb.comm.connect.timeouts.connect	60000	700000
specjbb.comm.connect.timeouts.read	60000	700000
specjbb.comm.connect.timeouts.write	60000	700000
specjbb.controller.rtcurve.warmup.step	0.1	0.9
specjbb.customerDriver.threads	64	{probe=96, saturare=96}
specjbb.forkjoin.workers	224	{Tier1=222, Tier2=1, Tier3=50}
specjbb.mapreducer.pool.size	224	256

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 304872 IR

High-bound (settled) is 273858 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.02, Jan 10, 2019]

Fujitsu PRIMERGY RX4770 M5	259141 SPECjbb2015-Composite max-jOPS 207097 SPECjbb2015-Composite critical-jOPS
Tested by: Fujitsu	Test Sponsor: Fujitsu	Test location: Kawasaki, Japan	Test date: Mar 9, 2019
SPEC license #: 19	Hardware Availability: Apr-2019	Software Availability: Jan-2019	Publication: Tue Apr 2 15:05:14 EDT 2019
