Huawei Technologies Co., Ltd FusionServer 2288H V5 89908 SPECjbb2015-Composite max-jOPS
80126 SPECjbb2015-Composite critical-jOPS
Tested by: Huawei Technologies Co., Ltd Test Sponsor: Huawei Technologies Co., Ltd Test location: Shen Zhen, China Test date: Mar 11, 2019
SPEC license #: 3175 Hardware Availability: Apr-2019 Software Availability: Feb-2019 Publication: Tue Apr 2 15:05:14 EDT 2019
Benchmark Results Summary

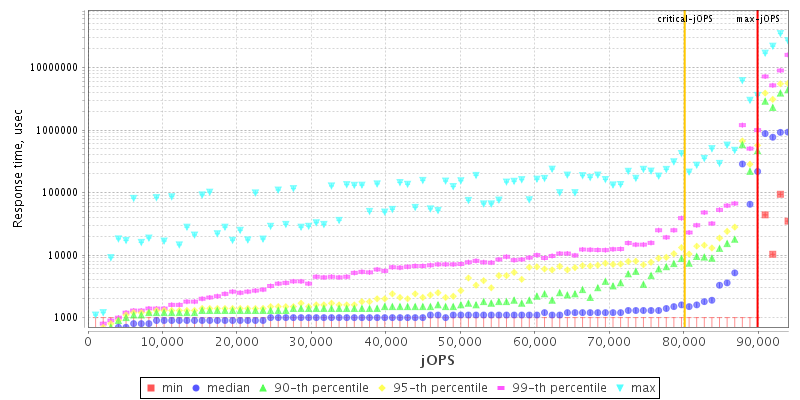

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHuawei Technologies Co., Ltd
Vendor URLhttp://www.huawei.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips1
Total Cores28
Total Threads56
Total Memory Amount (GB)384
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameFusionServer 2288H V5
VendorHuawei Technologies Co., Ltd
Vendor URLhttp://www.huawei.com/
AvailableApr-2019
ModelFusionServer 2288H V5
Form Factor2U
CPU NameIntel Xeon Platinum 8280
CPU Characteristics28 Core, 2.70GHz, 39424KB L3 Cache (Turbo Boost Technology up to 4.0 GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System28
Cores Per Chip28
Threads Per System56
Threads Per Core2
Version636 02/15/2019
CPU Frequency (MHz)2700
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache1024 KB I+D on chip per core
Tertiary Cache38.5M I+D on chip per chip
Other CacheNone
Disk1x 960GB SATA SSD
File Systemxfs
Memory Amount (GB)384
# and size of DIMM(s)12 x 32GB
Memory Details384 GB (12 x 32 GB 2Rx4 PC4-2933Y-R)
# and type of Network Interface Cards (NICs)LOM with 2 x 10GbE + 2 x GbE Intel X722 Ethernet controller
Power Supply Quantity and Rating (W)1 x 1500W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux 7.6
VendorRed Hat
Vendor URLhttp://www.redhat.com/
Version3.10.0-957
AvailableOct-2018
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 11.0.2
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.2+9-LTS, mixed mode)
AvailableJan-2019
Bitness64
Notesnote
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Tuning
  • Power policy set to Performance
  • IMC level interleave set to 2-Ways
  • Sub-NUMA Clustering disabled
  • Memory Patrol Scrub disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning
  • SELinux=disabled
  • tuned-adm profile throughput-performance
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -server -Xms350g -Xmx350g -Xmn335g -XX:+AggressiveOpts -XX:+UseLargePages -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=48 -XX:AllocatePrefetchInstr=2 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -XX:LargePageSizeInBytes=2m -XX:+UseParallelGC -XX:+UseNUMA -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:InlineSmallCode=10k -Xnoclassgc
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 88886 89908 90930 91951 92973
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 64025 80202 84288 87353 87353 80126
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 36780 / 33715 2043 / 3065 1022 / 2043 1022 / 2043 - / 1022 - / 1022
1000us 85821 / 86843 48019 / 45976 5108 / 6130 4087 / 5108 4087 / 5108 - / 1022
5000us 86843 / 87864 85821 / 86843 75604 / 73561 58236 / 57214 34737 / 35759 2043 / 3065
10000us 86843 / 87864 86843 / 87864 83778 / 84799 77648 / 78669 65388 / 63344 3065 / 4087
25000us 88886 / 87864 86843 / 87864 86843 / 87864 85821 / 86843 80713 / 79691 23499 / 6130
50000us 88886 / 87864 86843 / 87864 86843 / 87864 86843 / 87864 83778 / 84799 39846 / 6130
75000us 89908 / 87864 88886 / 87864 86843 / 87864 86843 / 87864 86843 / 87864 54149 / 6130
100000us 89908 / - 88886 / 87864 86843 / 87864 86843 / 87864 86843 / 87864 65388 / 16347
200000us 89908 / - 88886 / 87864 86843 / 87864 86843 / 87864 86843 / 87864 76626 / 62322
500000us 89908 / - 89908 / - 89908 / 87864 88886 / 87864 86843 / 87864 86843 / 83778
1000000us 89908 / - 89908 / - 89908 / - 89908 / - 89908 / 87864 86843 / 87864
Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

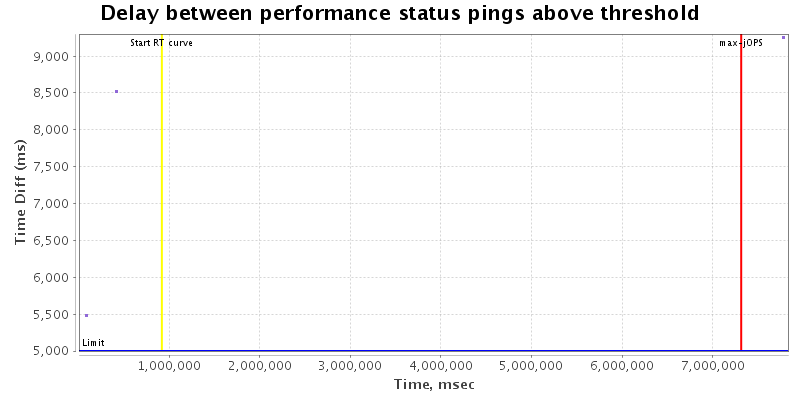

Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 300
specjbb.comm.connect.worker.pool.max 256 300
specjbb.comm.connect.worker.pool.min 1 64
specjbb.forkjoin.workers 56 {Tier1=110, Tier2=1, Tier3=25}
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 102168 IR
High-bound (settled) is 94696 IR
