Cisco Systems Cisco UCS C240 M5 155296 SPECjbb2015-Composite max-jOPS
75071 SPECjbb2015-Composite critical-jOPS
Tested by: Cisco Systems Test Sponsor: Cisco Systems Test location: San Jose, CA Test date: June 19, 2017
SPEC license #: 9019 Hardware Availability: August-2017 Software Availability: April-2017 Publication: Tue Jul 11 13:21:27 EDT 2017
Benchmark Results Summary

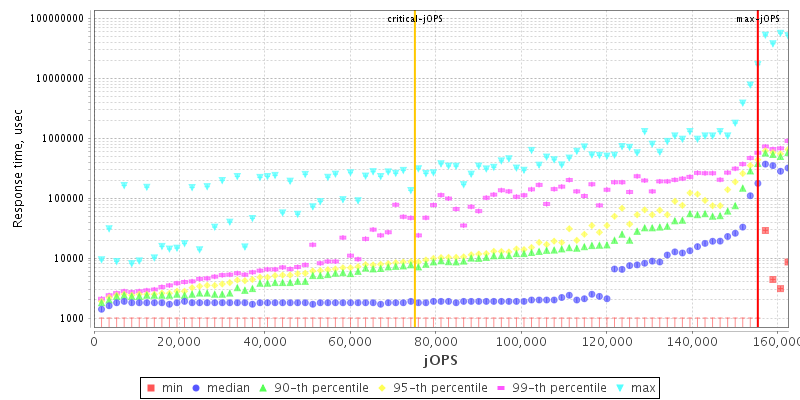

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorCisco Systems
Vendor URLhttp://www.cisco.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores56
Total Threads112
Total Memory Amount (GB)384
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameCisco UCS C240 M5
VendorNone
Vendor URLNone
AvailableJuly-2017
ModelCisco UCS C240 M5
Form Factor2U Rack
CPU NameIntel Xeon Platinum 8180
CPU Characteristics28 Core, 2.50 GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 3.80 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System56
Cores Per Chip28
Threads Per System112
Threads Per Core2
VersionNone
CPU Frequency (MHz)2500
Primary Cache32 KB I + 32 KB D per core
Secondary Cache1024 KB I+D per core
Tertiary Cache38.5 MB I+D per chip
Other CacheNone
Disk1x 400GB SSD SAS
File Systemext4
Memory Amount (GB)384
# and size of DIMM(s)24 X 16GB
Memory Details384 GB(24 X 16GB 2Rx4 PC4-2666V)
# and type of Network Interface Cards (NICs)1x 1 Gbit NIC
Power Supply Quantity and Rating (W)2 x 1600W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux Server 7.3
VendorRedHat
Vendor URLhttp://redhat.com/
VersionRed Hat Enterprise Linux Server 7.3 (Maipo)
AvailableNovember-2016
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u131
VendorOracle corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 1.8.0_131
AvailableApril-2017
Bitness64
Notesnone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS tuning
  • Memory Patrol Scrub disabled
  • CPU Performance set to Enterprise
  • Hyperthreading Enabled
  • IMC Interleave to auto
  • SNC Disabled
  • Memory RAS configuration set to Maximum performance
  • Power Technology set to performance
Notes notes
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning
  • tuned-adm profile set to throughput Performance
  • echo 990000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 16000000 > /proc/sys/kernel/sched_latency_ns
  • echo 6000000 > /proc/sys/kernel/sched_min_granularity_ns
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -server -Xms330g -Xmx330g -Xmn310g -XX:+AggressiveOpts -XX:+UseLargePages -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=48 -XX:AllocatePrefetchInstr=2 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -XX:LargePageSizeInBytes=2m -XX:+UseParallelGC -XX:+UseNUMA -XX:+AlwaysPreTouch
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 153532 155296 157061 158826 160590
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 57227 68320 78530 83530 92969 75071
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1765 - / 1765 - / 1765 - / 1765 - / 1765 - / 1765
1000us 120002 / 3529 - / 1765 - / 1765 - / 1765 - / 1765 - / 1765
5000us 148237 / 150002 120002 / 121766 49412 / 51177 40589 / 42354 28236 / 30000 - / 1765
10000us 150002 / 151767 132355 / 134119 90001 / 91766 79413 / 81178 61766 / 51177 10588 / 3529
25000us 151767 / 153532 148237 / 150002 125296 / 127061 114707 / 111178 75883 / 65295 35295 / 3529
50000us 155296 / - 151767 / 153532 144708 / 139414 125296 / 123531 86472 / 70589 37059 / 7059
75000us 155296 / - 151767 / 153532 150002 / 151767 146473 / 135884 90001 / 70589 51177 / 7059
100000us 155296 / - 151767 / 153532 150002 / 151767 146473 / 139414 118237 / 81178 61766 / 7059
200000us 155296 / - 155296 / - 151767 / 153532 150002 / 151767 134119 / 111178 86472 / 33530
500000us 155296 / - 155296 / - 155296 / - 155296 / - 153532 / 155296 111178 / 102354
1000000us 155296 / - 155296 / - 155296 / - 155296 / - 155296 / - 141178 / 128825

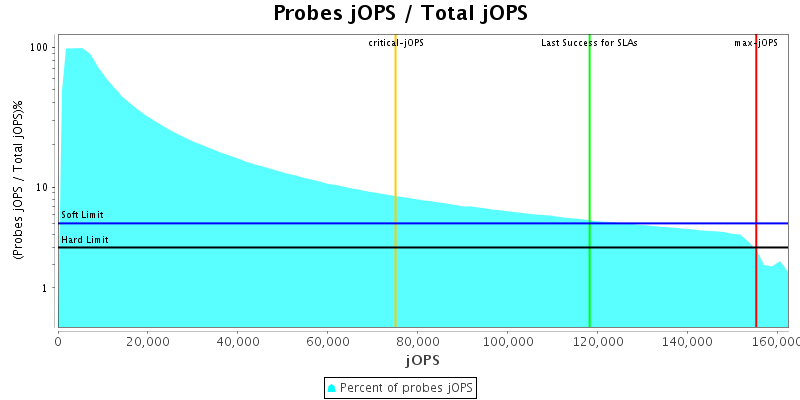

Probes jOPS / Total jOPS

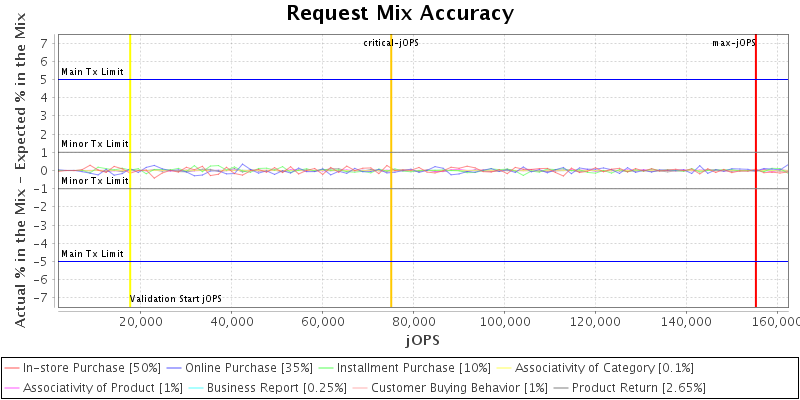

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

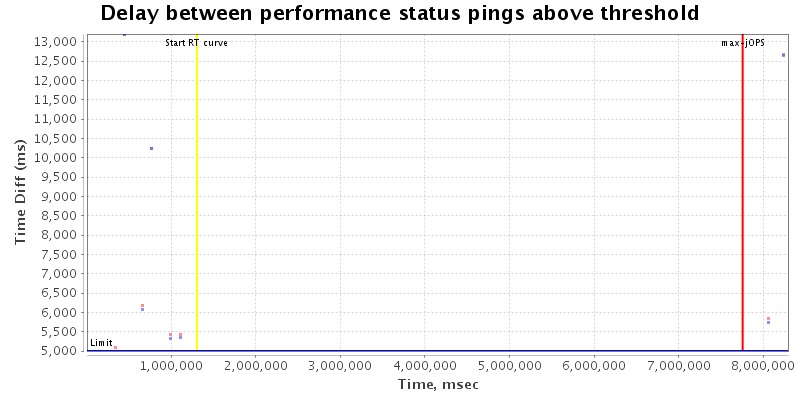

Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
User did not set any property for this run

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 176473 IR
High-bound (settled) is 163242 IR
