Huawei Technologies Co., Ltd Huawei 8100 V5 639219 SPECjbb2015-MultiJVM max-jOPS
171911 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Huawei Technologies Co., Ltd Test Sponsor: Huawei Technologies Co., Ltd Test location: Hang Zhou,China Test date: May 16, 2017
SPEC license #: 3175 Hardware Availability: Jul-2017 Software Availability: Dec-2016 Publication: Tue Jul 11 13:21:27 EDT 2017
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHuawei Technologies Co., Ltd
Vendor URLhttp://www.huawei.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips8
Total Cores224
Total Threads448
Total Memory Amount (GB)1536
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameHuawei 8100 V5
VendorHuawei Technologies Co., Ltd
Vendor URLhttp://www.huawei.com
AvailableJul-2017
ModelHuawei 8100 V5
Form Factor8U
CPU NameIntel(R) Xeon(R) Platinum 8180
CPU Characteristics28 Core, 2.50 GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 3.80 GHz)
Number of Systems1
Nodes Per System1
Chips Per System8
Cores Per System224
Cores Per Chip28
Threads Per System448
Threads Per Core2
VersionNone
CPU Frequency (MHz)2500
Primary Cache32 KB I + 32 KB D per core
Secondary Cache1024 KB I+D per core
Tertiary Cache38.5 MB I+D per chip
Other CacheNone
Disk2x 600GB 10K RPM
File Systemxfs
Memory Amount (GB)1536
# and size of DIMM(s)48 x 32GB
Memory Details2RX4 PC4-2666V
# and type of Network Interface Cards (NICs)None
Power Supply Quantity and Rating (W)4 x 2000W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux 7.3
VendorRed Hat
Vendor URLhttp://www.redhat.com/
VersionRed Hat Enterprise Linux Server release 7.3 (Maipo)
AvailableDec-2016
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u131
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot(TM) 64-Bit Server VM,version 1.8.0_131
AvailableApr-2017
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning None
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(16), jvm_TxInjector_1(16)
OS Image Description os_1
Tuning SE Linux = Disabled
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmx30g -Xms25g -Xmn25g -XX:+UseParallelOldGC
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -Xmx29g -Xms29g -Xmn27g -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=28 -XX:+AlwaysPreTouch -XX:+UseParallelOldGC -XX:-UseAdaptiveSizePolicy -XX:-UseBiasedLocking -XX:+AggressiveOpts -XX:+PrintGCDetails -XX:LargePageSizeInBytes=2m -XX:+UseLargePages -XX:MaxTenuringThreshold=15 -XX:+PrintTenuringDistribution
Tuning numactl used to affinitize each Backend JVM to a single NUMA node
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmx3g -Xms2g -Xmn2g -XX:+UseParallelOldGC -XX:ParallelGCThreads=8
Tuning numactl used to affinitize each Backend JVM to a single NUMA node
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 631327 639219 647110 655002 662894
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 130211 138103 161777 201235 256476 171911
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 7892 / 15783 - / 7892 - / 7892 - / 7892 - / 7892 - / 7892
1000us 378796 / 386688 23675 / 31566 7892 / 15783 7892 / 15783 - / 7892 - / 7892
5000us 583978 / 591869 528737 / 536628 331447 / 339338 197290 / 205181 94699 / 102591 - / 7892
10000us 583978 / 591869 544520 / 552411 418254 / 426146 339338 / 347230 126265 / 134157 - / 7892
25000us 591869 / 599761 568194 / 576086 473495 / 481387 386688 / 394579 134157 / 142049 15783 / 7892
50000us 599761 / 607652 576086 / 583978 481387 / 489279 410363 / 418254 157832 / 165723 15783 / 7892
75000us 599761 / 607652 576086 / 583978 497170 / 505062 426146 / 434037 197290 / 205181 15783 / 7892
100000us 607652 / 615544 583978 / 591869 512953 / 520845 449821 / 457712 252531 / 260422 15783 / 7892
200000us 615544 / 623436 591869 / 599761 552411 / 560303 528737 / 536628 457712 / 465604 15783 / 23675
500000us 639219 / - 615544 / 623436 591869 / 599761 591869 / 599761 583978 / 591869 426146 / 418254
1000000us 639219 / - 639219 / - 623436 / 631327 623436 / 631327 615544 / 623436 576086 / 583978
Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings

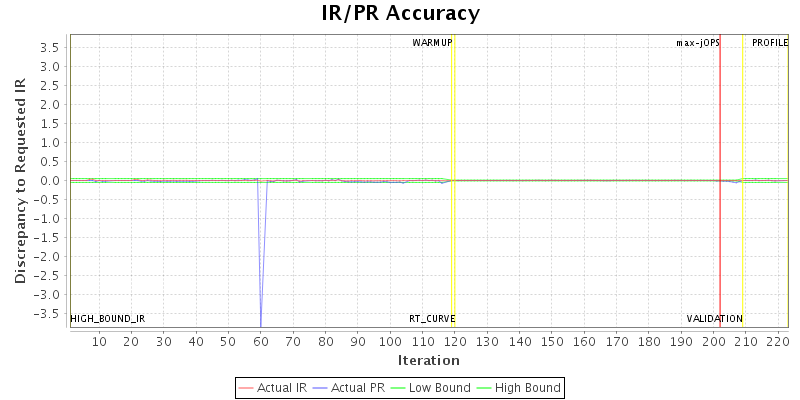

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 16
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.controller.handshake.timeout 600000 800000
specjbb.controller.maxir.maxFailedPoints 3 3
specjbb.forkjoin.workers 448 {Tier1=192, Tier2=64, Tier3=32}
specjbb.group.count 1 16
specjbb.heartbeat.threshold 100000 600000
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 789159 IR
High-bound (settled) is 687481 IR
