SPECjbb2015
Copyright © 2015-2017 Standard Performance Evaluation Corporation
Huawei FusionServer 2288H V5 142943 SPECjbb2015-Composite max-jOPS
93655 SPECjbb2015-Composite critical-jOPS
Tested by: Huawei Test Sponsor: Huawei Test location: Shenzhen Test date: Jun 10, 2017
SPEC license #: 3175 Hardware Availability: Jul-2017 Software Availability: Oct-2016 Publication: Tue Jul 11 13:21:27 EDT 2017
Benchmark Results Summary

SPECjbb2015-Composite: Single JVM/Single Host
(# of groups: 1)

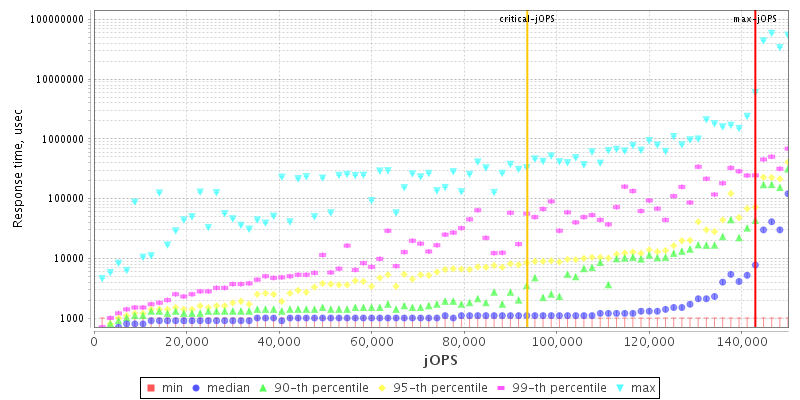

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHuawei Technologies Co., Ltd
Vendor URLhttp://www.huawei.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores56
Total Threads112
Total Memory Amount (GB)192
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameFusionServer 2288H V5
VendorHuawei Technologies Co., Ltd
Vendor URLhttp://www.huawei.com/
AvailableJuly-2017
ModelFusionServer 2288H V5
Form Factor2U
CPU NameIntel Xeon Platinum 8180
CPU Characteristics28 Core, 2.50 GHz, 37.8 MB L3 Cache (Turbo Boost Technology up to 3.80 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System56
Cores Per Chip28
Threads Per System2
Threads Per Core2
VersionNone
CPU Frequency (MHz)2500
Primary Cache16 KB I + 16 KB D per core
Secondary Cache1024 KB I+D per core
Tertiary Cache37.8 MB I+D per chip
Other CacheNone
Disk1 x 1000GB 7200RPM SATA
File SystemBTRFS
Memory Amount (GB)192
# and size of DIMM(s)12 x 16GB
Memory Details192 GB (12 x 16 GB 2Rx8 PC4-2666V-R)
# and type of Network Interface Cards (NICs)4 x 1 Gbit NICs
Power Supply Quantity and Rating (W)1 x 1500W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise 12 SP2
VendorSUSE
Vendor URLhttp://www.suse.com
Version4.4.21-69-default
AvailableOct-2016
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-Bit Server VM, version 1.8.0_131
AvailableApr-2017
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS tuning
  • Power Policy was set to Performance
  • SNC disabled
  • IMC 2-way interleave
  • Memory Patrol Scrub was set to Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning
  • tuned-adm acive profile was throughput-performance
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -server -Xms470g -Xmx470g -Xmn450g -XX:+AggressiveOpts -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelGC -XX:+UseNUMA -XX:+AlwaysPreTouch
Tuning None
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 141178 142943 144708 146473 148237
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 60530 81800 101545 116942 122550 93655
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 65295 / 58236 1765 / 3529 1765 / 3529 - / 1765 - / 1765 - / 1765
1000us 135884 / 137649 77648 / 75883 7059 / 8824 5294 / 7059 3529 / 5294 - / 1765
5000us 142943 / - 139414 / 137649 111178 / 102354 68824 / 63530 42354 / 44118 1765 / 3529
10000us 142943 / - 142943 / - 118237 / 114707 105884 / 107649 65295 / 49412 7059 / 8824
25000us 142943 / - 142943 / - 139414 / 137649 128825 / 130590 91766 / 63530 15883 / 8824
50000us 142943 / - 142943 / - 142943 / - 139414 / 137649 123531 / 82942 47648 / 8824
75000us 142943 / - 142943 / - 142943 / - 142943 / 137649 123531 / 98825 65295 / 8824
100000us 142943 / - 142943 / - 142943 / - 142943 / 137649 128825 / 114707 65295 / 14118
200000us 142943 / - 142943 / - 142943 / - 142943 / - 135884 / 130590 86472 / 40589
500000us 142943 / - 142943 / - 142943 / - 142943 / - 142943 / - 109413 / 98825
1000000us 142943 / - 142943 / - 142943 / - 142943 / - 142943 / - 130590 / 125296

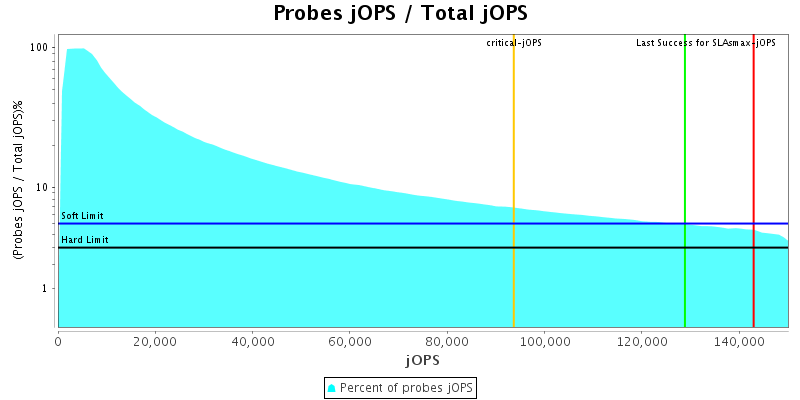

Number of probes
Probes jOPS / Total jOPS

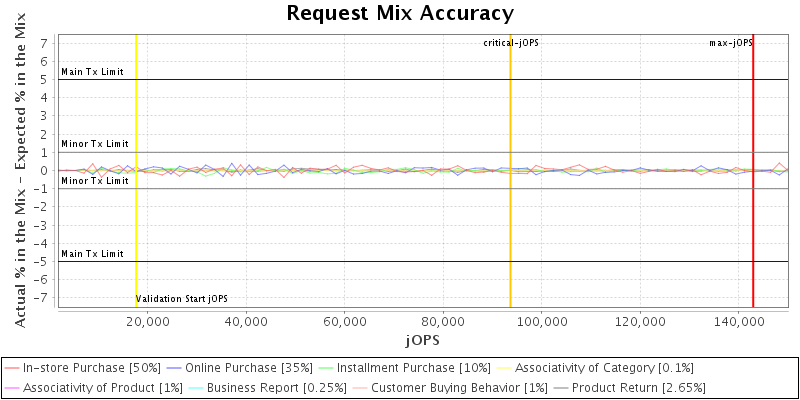

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building
Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings

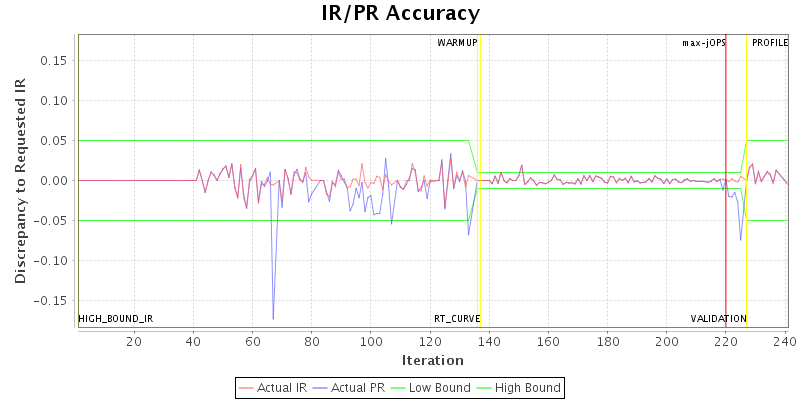

IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.timeouts.connect 60000 650000
specjbb.comm.connect.timeouts.read 60000 650000
specjbb.comm.connect.timeouts.write 60000 650000
specjbb.comm.connect.worker.pool.max 256 320
specjbb.forkjoin.workers 112 {Tier1=330, Tier2=70, Tier3=28}
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 176473 IR
High-bound (settled) is 147969 IR
Copyright © 2015-2017 Standard Performance Evaluation Corporation
http://www.spec.org - info@spec.org
SPECjbb2015 Version: [SPECjbb2015 1.00, June 24, 2015]
