Inspur Corporation Inspur NF5280M4 119521 SPECjbb2015-MultiJVM max-jOPS
34317 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Inspur Corporation Test Sponsor: Inspur Corporation Test location: Jinan, PRC Test date: Dec 16, 2016
SPEC license #: 3358 Hardware Availability: Mar-2016 Software Availability: Nov-2016 Publication: Jan 19, 2017
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorInspur Corporation
Vendor URLhttp://www.inspur.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores44
Total Threads88
Total Memory Amount (GB)256
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameInspur NF5280M4
VendorInspur Corporation
Vendor URLhttp://www.inspur.com/
AvailableMar-2016
ModelInspur NF5280M4
Form Factor2U
CPU NameIntel Xeon E5-2699 v4
CPU Characteristics22 Core, 2.20GHz, 55MB L3 Cache(Turbo Boost Technology up to 3.60 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System44
Cores Per Chip22
Threads Per System88
Threads Per Core2
VersionNone
CPU Frequency (MHz)2200
Primary Cache32 KB(I)+32 KB(D)on chip per core
Secondary Cache256 KB (I+D) per core
Tertiary Cache55MB (I+D) on chip per chip
Other CacheNone
Disk1x 80GB SSD
File Systemxfs
Memory Amount (GB)256
# and size of DIMM(s)16 x 16GB
Memory Details16 GB 2Rx4 PC4-2400T-R
# and type of Network Interface Cards (NICs)Intel I350 OnBoard LAN
Power Supply Quantity and Rating (W)1 x 550W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 12 SP1
VendorSUSE
Vendor URLhttps://www.suse.com/
Version3.12.49-11-default
AvailableDec-2015
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u112
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 1.8.0_112
AvailableNov-2016
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Tuning
  • Energy Performance was set to Performance Mode
  • COD enabled
  • Early Snoop disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning
  • tuned-adm profile throughput-performance
  • SE Linux = Disabled
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -XX:LargePageSizeInBytes=2m -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -Xms29g -Xmx29g -Xmn27g -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=22 -XX:MaxTenuringThreshold=15 -XX:+PrintTenuringDistribution -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning numactl used to affinitize each Backend JVM to a single memory node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -showversion -Xmn1536m -Xms2g -Xmx2g
Tuning numactl used to affinitize each TxInjector JVM to a single memory node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 118249 119521 120792 122064 123335
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 23522 28608 34966 41323 48952 34317
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1271 - / 1271 - / 1271 - / 1271 - / 1271 - / 1271
1000us 7629 / 8900 2543 / 3814 1271 / 2543 - / 1271 - / 1271 - / 1271
5000us 99177 / 100448 67389 / 68661 21615 / 22887 19072 / 20344 12715 / 13986 - / 1271
10000us 104263 / 105534 86462 / 87733 54674 / 55946 45774 / 43231 22887 / 24158 - / 1271
25000us 106806 / 108077 99177 / 100448 81376 / 82647 68661 / 69932 29244 / 27973 5086 / 3814
50000us 108077 / 109349 101720 / 102991 87733 / 89005 75018 / 76290 35602 / 34330 5086 / 3814
75000us 109349 / 110620 104263 / 105534 89005 / 90276 77561 / 78833 40688 / 41959 5086 / 3814
100000us 109349 / 110620 104263 / 105534 94091 / 92819 81376 / 82647 48317 / 49588 5086 / 3814
200000us 113163 / 114435 108077 / 109349 101720 / 102991 94091 / 95362 81376 / 82647 50860 / 7629
500000us 118249 / 119521 114435 / 115706 110620 / 111892 109349 / 110620 105534 / 106806 94091 / 83919
1000000us 119521 / - 118249 / 119521 115706 / 116978 114435 / 115706 113163 / 114435 108077 / 102991

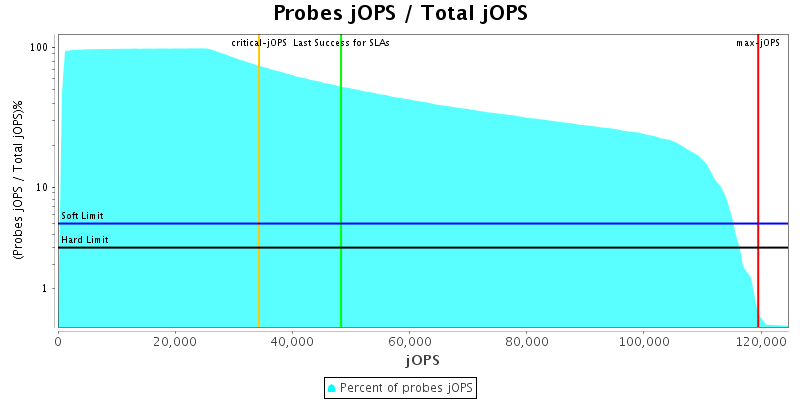

Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings

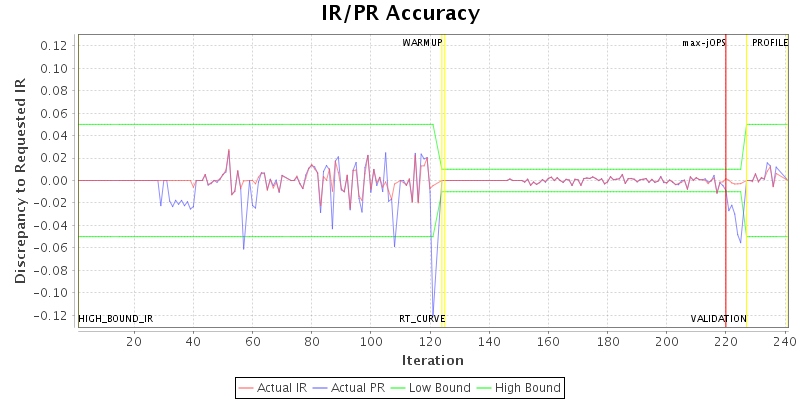

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 192
specjbb.comm.connect.selector.runner.count 0 4
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.customerDriver.threads 64 64
specjbb.forkjoin.workers 88 {Tier1=140, Tier2=40, Tier3=20}
specjbb.group.count 1 4
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 127150 IR
High-bound (settled) is 121850 IR
