Sugon TC6600/CB50-G20 77234 SPECjbb2015-MultiJVM max-jOPS
26235 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Sugon Test Sponsor: Sugon Test location: Beijing, CN Test date: Dec 2, 2016
SPEC license #: 9046 Hardware Availability: Apr-2015 Software Availability: Oct-2016 Publication: Dec 21, 2016
Benchmark Results Summary

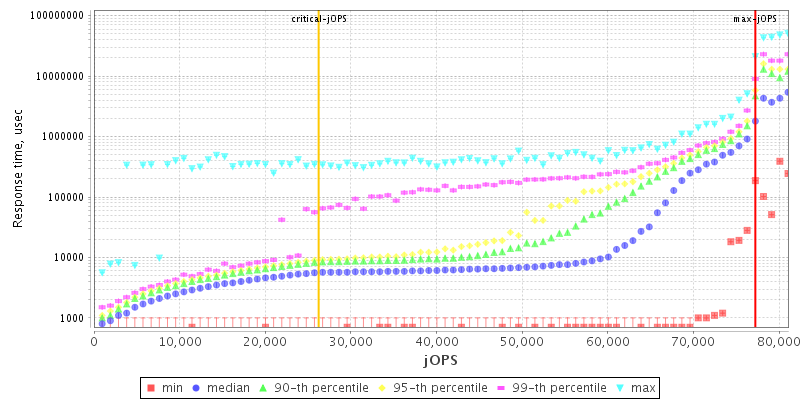

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorSugon
Vendor URLhttp://www.sugon.com/
System SourceSingle Supplier
System DesignationServer Blade
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores28
Total Threads56
Total Memory Amount (GB)512
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameSugon TC6600
VendorSugon
Vendor URLhttp://www.sugon.com
AvailableApr-2015
ModelSugon TC6600/CB50-G20
Form Factor10U Blade
CPU NameIntel Xeon E5-2680 v4
CPU Characteristics14-Core, 2.40GHz, 35MB L3 Cache (Turbo Boost Technology up to 3.30 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System28
Cores Per Chip14
Threads Per System56
Threads Per Core2
VersionV2.04
CPU Frequency (MHz)2400
Primary Cache32KB(I)+32KB(D) per core
Secondary Cache256 KB (I+D) per core
Tertiary Cache35MB (I+D) on chip per chip
Other CacheNone
Disk2x 300GB SAS RAID0
File Systemext4
Memory Amount (GB)512
# and size of DIMM(s)16 x 32768MB
Memory Details2Rx8 PC4-2400T;All DIMMs populated
# and type of Network Interface Cards (NICs)2 x 10 Gbit NICs with 8 ports;2 x 1 Gbit NICs with 6 ports
Power Supply Quantity and Rating (W)6 x 550W
Other Hardware4x 8Gb/16Gb FC ports
Cabinet/Housing/EnclosureTC6600
Shared DescriptionShared with the other 13 blades in one TC6600 Chasis
Shared CommentThis blade is electrically equal to TC4600E/CX50-G20
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLN/A
VersionN/A
AvailableN/A
BitnessN/A
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux Server 7.2 (Maipo)
VendorRedhat
Vendor URLhttp://www.redhat.com/
Version7.2 (Maipo)
AvailableOct-2015
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u112
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 1.8.0_112
AvailableOct-2016
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLN/A
VersionN/A
AvailableN/A
BitnessN/A
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning
  • Set BIOS options as Default Settings.
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning
  • echo '16000000' > /proc/sys/kernel/sched_latency_ns
  • echo '6000000' >/proc/sys/kernel/sched_min_granularity_ns
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC -XX:ParallelGCThreads=1
Tuning numactl --cpunodebind=1 --membind=1
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -Xms31g -Xmx31g -Xmn29g -server -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseTransparentHugePages -XX:+UseParallelOldGC -XX:SurvivorRatio=31 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=14 -XX:MaxTenuringThreshold=15 -XX:+PrintTenuringDistribution -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning numactl --cpunodebind=$(($gnum-1)) --membind=$(($gnum-1))
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC -XX:ParallelGCThreads=2
Tuning numactl --cpunodebind=$(($gnum-1)) --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 76281 77234 78188 79141 80095
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 21454 23202 24314 30989 33134 26235
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 954 - / 954 - / 954 - / 954 - / 954 - / 954
1000us 3814 / 4768 1907 / 2861 954 / 1907 - / 954 - / 954 - / 954
5000us 62932 / 63885 21931 / 22884 14303 / 15256 13349 / 14303 11442 / 10489 - / 954
10000us 65792 / 66746 59118 / 60071 41954 / 42908 31466 / 32419 20977 / 21931 7628 / 3814
25000us 67699 / 68653 62932 / 63885 54350 / 55304 49583 / 48629 23838 / 21931 7628 / 3814
50000us 67699 / 68653 64839 / 65792 57211 / 58164 52443 / 50536 23838 / 24791 7628 / 3814
75000us 68653 / 69606 65792 / 66746 60071 / 61025 54350 / 55304 31466 / 30512 7628 / 3814
100000us 68653 / 69606 66746 / 67699 61978 / 62932 56257 / 57211 35280 / 32419 7628 / 3814
200000us 72467 / 73420 68653 / 69606 64839 / 65792 62932 / 63885 52443 / 53397 7628 / 3814
500000us 76281 / 77234 73420 / 74374 69606 / 70560 69606 / 70560 67699 / 68653 61025 / 49583
1000000us 77234 / - 76281 / 77234 74374 / 75327 74374 / 75327 73420 / 74374 67699 / 68653
Probes jOPS / Total jOPS

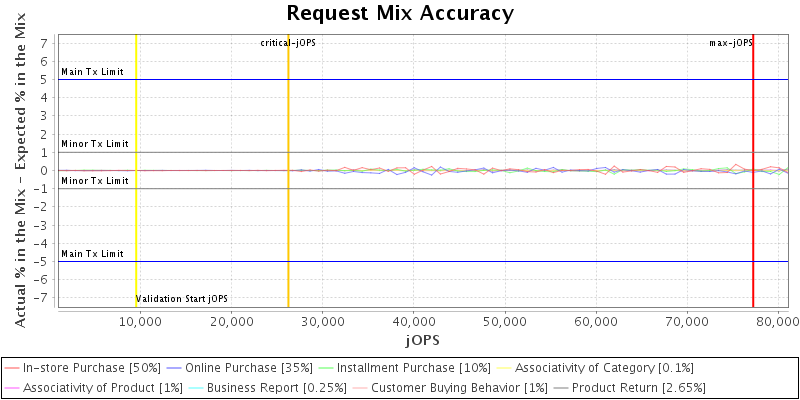

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

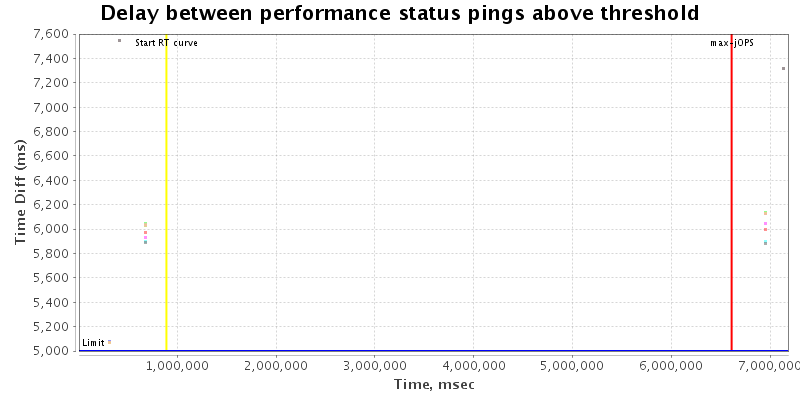

Delay between status pings

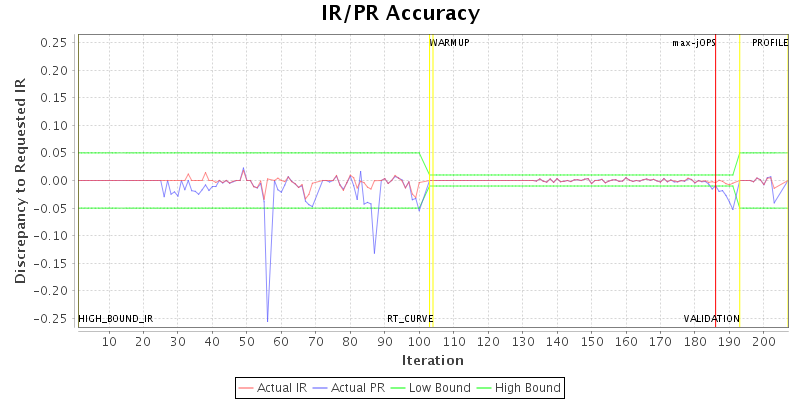

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 192
specjbb.comm.connect.selector.runner.count 0 4
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 192
specjbb.comm.connect.worker.pool.min 1 32
specjbb.forkjoin.workers 56 {=56, Tier1=112, Tier2=86, Tier3=58}
specjbb.group.count 1 4
specjbb.mapreducer.pool.size 56 185
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 95351 IR
High-bound (settled) is 80217 IR
