Hewlett Packard Enterprise Synergy 480 Gen9 104194 SPECjbb2015-Composite max-jOPS
64452 SPECjbb2015-Composite critical-jOPS
Tested by: Hewlett Packard Enterprise Test Sponsor: Hewlett Packard Enterprise Test location: Houston, TX Test date: August 5, 2016
SPEC license #: 3 Hardware Availability: Jan-2017 Software Availability: Jul-2016 Publication: Nov 09, 2016
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
System SourceSingle Supplier
System DesignationCompute Module
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips2
Total Cores44
Total Threads88
Total Memory Amount (GB)512
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameSynergy 480 Gen9
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
AvailableJan-2017
ModelSynergy 480 Gen9
Form FactorHalf-height Compute Module
CPU NameIntel Xeon E5-2699 v4
CPU Characteristics22 Core, 2.2 GHz, 55 MB L3 Cache (Turbo Boost Technology up to 3.6 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System44
Cores Per Chip22
Threads Per System88
Threads Per Core2
VersionI37 07/06/2016
CPU Frequency (MHz)2200
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache256 KB I+D on chip per core
Tertiary Cache55 MB I+D on chip per chip
Other CacheNone
Disk1 x 300 GB SAS 15000 RPM
File SystemXFS
Memory Amount (GB)512
# and size of DIMM(s)16 x 32 GB
Memory Details32 GB 2Rx4 PC4-2400T-R
# and type of Network Interface Cards (NICs)Synergy 3820C 10/20Gb CNA
Power Supply Quantity and Rating (W)6 x 2650
Other HardwareNone
Cabinet/Housing/EnclosureSynergy 12000 Frame
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 12 SP1
VendorSUSE
Vendor URLhttps://www.suse.com/
Version3.12.49-11-default
AvailableDec-2015
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u102
VendorOracle
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-bit Server VM, version 1.8.0_102
AvailableJul-2016
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning
  • Hyper Threading=Enabled
  • QPI Snoop Configuration=Early Snoop
  • Power Profile=Maximum Performance
  • Thermal Configuration=Maximum Cooling
  • Collaborative Power Control=Disabled
  • Processor Power and Utilization Monitoring=Disabled
  • Memory Patrol Scrub=Disabled
  • Memory Refresh Rate=1x Refresh
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning
  • tuned-adm profile=throughput-performance
  • ulimit -l 800000000
  • ulimit -m 800000000
  • ulimit -v 800000000
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -server -Xms470g -Xmx470g -Xmn430g -XX:+AggressiveOpts -XX:+UseLargePages -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=48 -XX:AllocatePrefetchInstr=2 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -XX:LargePageSizeInBytes=2m -XX:+UseParallelGC -XX:+UseNUMA -XX:+AlwaysPreTouch
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 102968 104194 105420 106645 107871
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 49645 59396 66806 71615 78839 64452
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1226 - / 1226 - / 1226 - / 1226 - / 1226 - / 1226
1000us 96839 / 98065 2452 / 3677 1226 / 2452 1226 / 2452 - / 1226 - / 1226
5000us 101742 / 102968 93162 / 94387 50258 / 51484 36774 / 35548 24516 / 25742 - / 1226
10000us 101742 / 102968 96839 / 98065 68645 / 69871 61290 / 62516 50258 / 49032 20839 / 6129
25000us 101742 / 102968 100516 / 101742 90710 / 91936 83355 / 84581 64968 / 52710 20839 / 6129
50000us 102968 / 104194 101742 / 102968 98065 / 94387 90710 / 88258 80903 / 52710 46581 / 6129
75000us 102968 / 104194 101742 / 102968 98065 / 99291 98065 / 91936 84581 / 53936 46581 / 6129
100000us 102968 / 104194 101742 / 102968 99291 / 100516 98065 / 94387 85807 / 63742 46581 / 6129
200000us 104194 / - 101742 / 102968 100516 / 101742 99291 / 100516 98065 / 79678 50258 / 18387
500000us 104194 / - 104194 / - 104194 / - 101742 / 102968 101742 / 102968 85807 / 69871
1000000us 104194 / - 104194 / - 104194 / - 104194 / - 104194 / - 96839 / 79678
Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

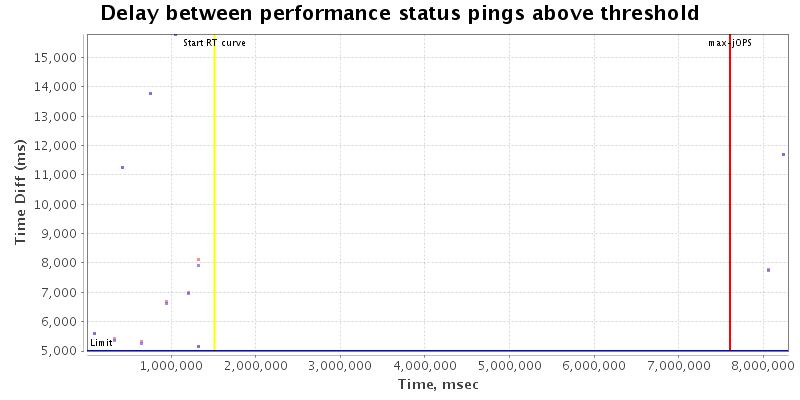

Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
User did not set any property for this run

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 122581 IR
High-bound (settled) is 111259 IR
