Hewlett Packard Enterprise Integrity Superdome X 776269 SPECjbb2015-MultiJVM max-jOPS
84557 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Hewlett Packard Enterprise Test Sponsor: Hewlett Packard Enterprise Test location: Fort Collins, CO Test date: August 24, 2016
SPEC license #: 3 Hardware Availability: Jun-2016 Software Availability: Jul-2016 Publication: Sep 14, 2016
Benchmark Results Summary

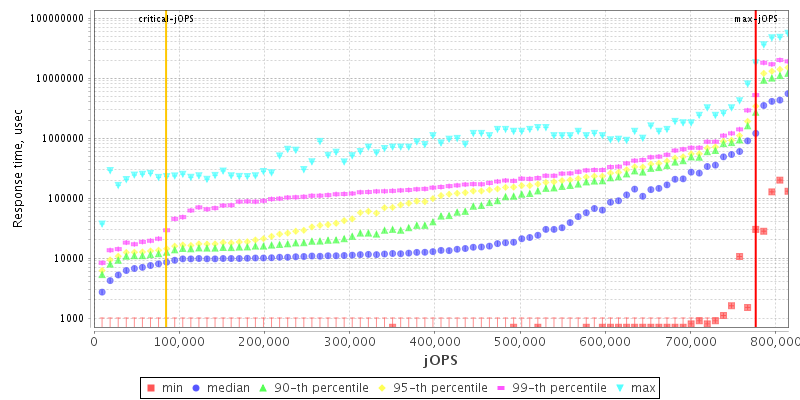

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
System SourceSingle Supplier
System DesignationBlade Server
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips16
Total Cores384
Total Threads768
Total Memory Amount (GB)8192
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameIntegrity Superdome X
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
AvailableJun-2016
ModelIntegrity Superdome X
Form Factor42U
CPU NameIntel Xeon E7-8890 v4
CPU Characteristics24 Core, 2.20 GHz, 60 MB L3 Cache (Turbo Boost Technology up to 3.4 GHz)
Number of Systems1
Nodes Per System1
Chips Per System16
Cores Per System384
Cores Per Chip24
Threads Per System768
Threads Per Core2
Version06/10/2016
CPU Frequency (MHz)2200
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache256 KB I+D on chip per core
Tertiary Cache60 MB I+D on chip per chip
Other CacheNone
Disk8 x C8S59A, 900 GB 10 K RPM SAS
File SystemXFS
Memory Amount (GB)8192
# and size of DIMM(s)256 x 32 GB
Memory Details32 GB 2Rx4 PC4-2400T-LD1, running at 1600MHz
# and type of Network Interface Cards (NICs)8 x HPE FlexFabric 20Gb 2-port 650FLB Adapter
Power Supply Quantity and Rating (W)12 x 2400
Other Hardware4 x HPE QMH2672 16Gb FC HBA for BladeSystem c-Class
Cabinet/Housing/EnclosureHPE BladeSystem Superdome Enclosure
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_2
NameBrocade 16Gb/16c SAN Switch
VendorBrocade
Vendor URLhttp://www.brocade.com/
VersionNone
AvailableNone
BitnessNone
NotesNone
Other Hardware network_1
NameHPE 6125XLG Blade Switch
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
VersionNone
AvailableDec-2015
BitnessNone
NotesNone
Other Hardware storage_1
NameHPE MSA 2040 SAN
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 12 SP1
VendorSUSE
Vendor URLhttps://www.suse.com/
Version3.12.53-60.30-default
AvailableDec-2015
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u102
VendorOracle
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-bit Server VM, version 1.8.0_102
AvailableJul-2016
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning Memory RAS Configuration set to Maximum Performance
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(16), jvm_TxInjector_1(16)
OS Image Description os_1
Tuning
  • tuned-adm profile=throughput-performance
  • pmqos-static.py cpu_dma_latency=133
  • ulimit -n 65536
  • echo 990000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 16000000 > /proc/sys/kernel/sched_latency_ns
  • echo 6000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 15000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC -XX:ParallelGCThreads=1
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line

-showversion -server -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -Xms29g -Xmx29g -Xmn27g -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=48 -XX:MaxTenuringThreshold=15 -Xnoclassgc -XX:+PrintGCDetails -XX:+PrintGCTimeStamps

Tuning None
Notes

Used numactl to affinitize each Backend JVM to a NUMA node.

  • numactl --physcpubind=0-23,384-407 --membind=0
  • numactl --physcpubind=24-47,408-431 --membind=1
  • numactl --physcpubind=48-71,432-455 --membind=2
  • numactl --physcpubind=72-95,456-479 --membind=3
  • numactl --physcpubind=96-119,480-503 --membind=4
  • numactl --physcpubind=120-143,504-527 --membind=5
  • numactl --physcpubind=144-167,528-551 --membind=6
  • numactl --physcpubind=168-191,552-575 --membind=7
  • numactl --physcpubind=192-215,576-599 --membind=8
  • numactl --physcpubind=216-239,600-623 --membind=9
  • numactl --physcpubind=240-263,624-647 --membind=10
  • numactl --physcpubind=264-287,648-671 --membind=11
  • numactl --physcpubind=288-311,672-695 --membind=12
  • numactl --physcpubind=312-335,696-719 --membind=13
  • numactl --physcpubind=336-359,720-743 --membind=14
  • numactl --physcpubind=360-383,744-767 --membind=15
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC -XX:ParallelGCThreads=2
Tuning None
Notes

Used numactl to affinitize each Transaction Injector JVM to a physical core in a NUMA node.

  • numactl --physcpubind=0 --membind=0
  • numactl --physcpubind=24 --membind=1
  • numactl --physcpubind=48 --membind=2
  • numactl --physcpubind=72 --membind=3
  • numactl --physcpubind=96 --membind=4
  • numactl --physcpubind=120 --membind=5
  • numactl --physcpubind=144 --membind=6
  • numactl --physcpubind=168 --membind=7
  • numactl --physcpubind=192 --membind=8
  • numactl --physcpubind=216 --membind=9
  • numactl --physcpubind=240 --membind=10
  • numactl --physcpubind=264 --membind=11
  • numactl --physcpubind=288 --membind=12
  • numactl --physcpubind=312 --membind=13
  • numactl --physcpubind=336 --membind=14
  • numactl --physcpubind=360 --membind=15
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 766803 776269 785736 795203 804669
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 14200 80467 108867 156200 222467 84557
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 9467 - / 9467 - / 9467 - / 9467 - / 9467 - / 9467
1000us - / 9467 - / 9467 - / 9467 - / 9467 - / 9467 - / 9467
5000us 416535 / 426001 18933 / 28400 - / 9467 - / 9467 - / 9467 - / 9467
10000us 549069 / 558535 198801 / 208267 28400 / 37867 18933 / 28400 9467 / 18933 - / 9467
25000us 615335 / 624802 520668 / 530135 331334 / 312401 217734 / 227201 75734 / 85200 - / 9467
50000us 653202 / 634269 568002 / 577469 407068 / 416535 302934 / 312401 104134 / 113600 9467 / 18933
75000us 672136 / 681602 596402 / 605869 454402 / 463868 350268 / 359735 151467 / 160934 9467 / 18933
100000us 691069 / 700536 615335 / 624802 473335 / 482802 397601 / 407068 217734 / 227201 9467 / 18933
200000us 728936 / 738403 672136 / 681602 596402 / 605869 549069 / 558535 492268 / 501735 28400 / 18933
500000us 766803 / 776269 738403 / 747869 710002 / 719469 691069 / 700536 662669 / 672136 293468 / 217734
1000000us 776269 / - 766803 / 776269 757336 / 766803 747869 / 757336 728936 / 738403 643736 / 397601
Probes jOPS / Total jOPS

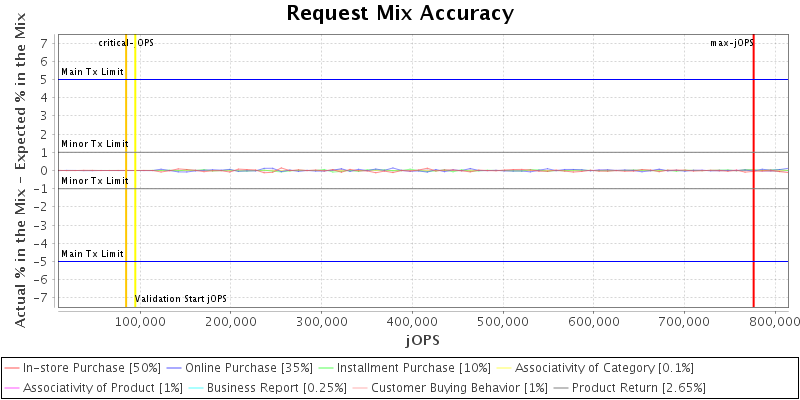

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

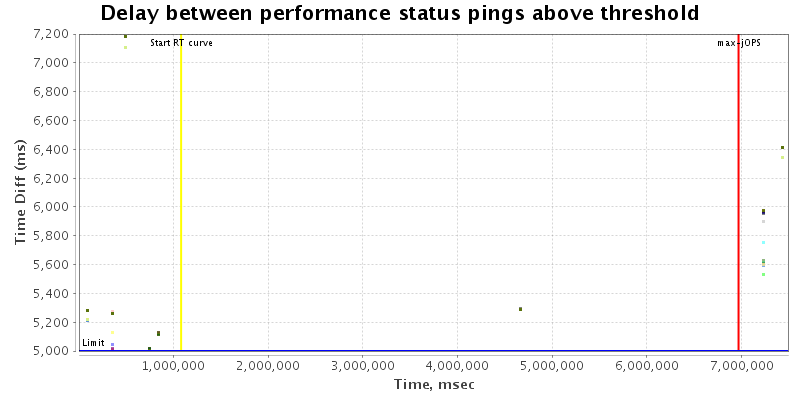

Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 16
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 320
specjbb.controller.handshake.timeout 600000 900000
specjbb.controller.maxir.maxFailedPoints 3 3
specjbb.forkjoin.workers 768 {Tier1=240, Tier2=65, Tier3=33}
specjbb.group.count 1 16
specjbb.heartbeat.threshold 100000 600000
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 946670 IR
High-bound (settled) is 818741 IR
