SPECjbb2015 Report for jbb2015-20160524-00106 : 177561 max-jOPS ; 135406 critical-jOPS

Hardware hw_1
Name	ProLiant BL660c Gen9
Vendor	Hewlett Packard Enterprise
Vendor URL	http://hpe.com/
Available	May-2016
Model	ProLiant BL660c Gen9
Form Factor	Full-height server blade
CPU Name	Intel Xeon E5-4669 v4
CPU Characteristics	22 Core, 2.20 GHz, 55 MB L3 Cache (Turbo Boost Technology up to 3.0 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	4
Cores Per System	88
Cores Per Chip	22
Threads Per System	176
Threads Per Core	2
Version	I38 04/25/2016
CPU Frequency (MHz)	2200
Primary Cache	32 KB I + 32 KB D on chip per core
Secondary Cache	256 KB I+D on chip per core
Tertiary Cache	55 MB I+D on chip per chip
Other Cache	None
Disk	2 x 400 GB SSD SAS
File System	XFS
Memory Amount (GB)	2048
# and size of DIMM(s)	32 x 64 GB
Memory Details	64 GB 4Rx4 PC4-2400T-LD1
# and type of Network Interface Cards (NICs)	HP FlexFabric 10Gb 2-port
Power Supply Quantity and Rating (W)	6 x 2250
Other Hardware	None
Cabinet/Housing/Enclosure	BladeSystem c7000 Enclosure
Shared Description	None
Shared Comment	None
Notes	None
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	Red Hat Enterprise Linux Server 7.2
Vendor	RedHat
Vendor URL	http://redhat.com/
Version	3.10.0-327
Available	Nov-2015
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 8u92
Vendor	Oracle
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-bit Server VM, version 1.8.0_92
Available	Apr-2016
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	Non-virtual
Tuning	Hyper Threading=Enabled QPI Snoop Configuration=Home Snoop Thermal Configuration=Maximum Cooling Power Profile=Maximum Performance Collaborative Power Control=Disabled Processor Power and Utilization Monitoring=Disabled Memory Refresh Rate=1x Refresh Memory Patrol Scrub=Disabled
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description	os_1
Tuning	tuned-adm profile=throughput-performance SE Linux=Disabled echo 16000000 > /proc/sys/kernel/sched_latency_ns echo 175000 > /proc/sys/kernel/sched_min_granularity_ns echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m
Tuning	None
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-XX:-UsePerfData -server -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:MaxMetaspaceSize=256m -XX:MetaspaceSize=256m -XX:+UseLargePages -XX:+UseParallelOldGC -Xms492g -Xmx492g -Xmn470g -XX:SurvivorRatio=48 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=44 -XX:MaxTenuringThreshold=15 -XX:+PrintTenuringDistribution -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning	Used numactl to affinitize each Backend JVM to NUMA node numactl --cpunodebind=0 --localalloc numactl --cpunodebind=1 --localalloc numactl --cpunodebind=2 --localalloc numactl --cpunodebind=3 --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m
Tuning	None
Notes	None

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Pass	Fail	Fail
jOPS	173615	175588	177561	179534	181507

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	90095	141062	150926	153228	154872	135406

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

There were no non-critical failures in Response Time curve building

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.selector.runner.count	0	4
specjbb.comm.connect.timeouts.connect	60000	600000
specjbb.comm.connect.timeouts.read	60000	600000
specjbb.comm.connect.timeouts.write	60000	600000
specjbb.comm.connect.worker.pool.max	256	64
specjbb.controller.maxir.maxFailedPoints	3	1
specjbb.forkjoin.workers	176	{Tier1=252, Tier2=68, Tier3=29}
specjbb.group.count	1	4
specjbb.txi.pergroup.count	1	1


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED

High-bound (max attempted) is 197290 IR

High-bound (settled) is 190974 IR

SPECjbb2015 Version: [SPECjbb2015 1.00, June 24, 2015]

Hewlett Packard Enterprise ProLiant BL660c Gen9	177561 SPECjbb2015-MultiJVM max-jOPS 135406 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Hewlett Packard Enterprise	Test Sponsor: Hewlett Packard Enterprise	Test location: Houston, TX	Test date: May 23, 2016
SPEC license #: 3	Hardware Availability: May-2016	Software Availability: Apr-2016	Publication: Jun 20, 2016

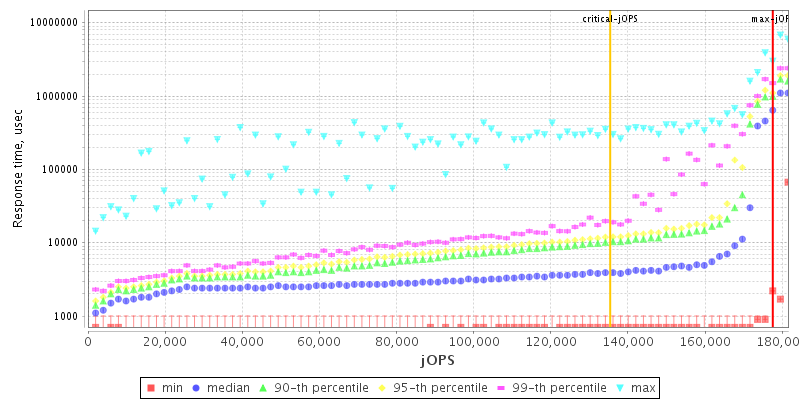

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host (# of groups: 4) Overall SUT Description SUT Description max-jOPS and critical-jOPS Details Number of probes Request Mix Accuracy Rate Of Non-Critical Failures Delay between performance status pings IR/PR Accuracy Topology SUT Configuration Properties Validation Details Link to Full Disclosure	Overall Throughput RT curve
