Huawei Technologies Co., Ltd Huawei RH8100 V3 368353 SPECjbb2015-MultiJVM max-jOPS
213248 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Huawei Technologies Co., Ltd Test Sponsor: Huawei Technologies Co., Ltd Test location: Hang Zhou,China Test date: May 9, 2016
SPEC license #: 3175 Hardware Availability: Jun-2016 Software Availability: Apr-2016 Publication: Jun 06, 2016
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHuawei Technologies Co., Ltd
Vendor URLhttp://www.huawei.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips8
Total Cores192
Total Threads384
Total Memory Amount (GB)4096
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameHuawei RH8100 V3
VendorHuawei Technologies Co., Ltd
Vendor URLhttp://www.huawei.com
AvailableJun-2016
ModelHuawei RH8100 V3
Form Factor8U
CPU NameIntel Xeon E7-8890 v4
CPU Characteristics24Core, 2.20GHz, 60MB L3 Cache (Turbo Boost Technology up to 3.40 GHz)
Number of Systems1
Nodes Per System1
Chips Per System8
Cores Per System192
Cores Per Chip24
Threads Per System384
Threads Per Core2
VersionNone
CPU Frequency (MHz)2200
Primary Cache32KB(I)+32KB(D) per core
Secondary Cache256 KB (I+D) per core
Tertiary Cache60MB (I+D) on chip per chip
Other CacheNone
Disk2x 600GB 10K RPM
File Systemext4
Memory Amount (GB)4096
# and size of DIMM(s)128 x 32GB
Memory Details2Rx4 PC4-2133P-R
# and type of Network Interface Cards (NICs)None
Power Supply Quantity and Rating (W)4 x 2000W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 12
VendorSUSE
Vendor URLhttp://www.suse.com/
Version3.12.28-4
AvailableOct-2014
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u92
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-Bit Server VM,version 1.8.0_92
AvailableApr-2016
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning None
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(8), jvm_TxInjector_1(8)
OS Image Description os_1
Tuning SE Linux = Disabled
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmx3g -Xms2g -Xmn2g -XX:+UseParallelOldGC
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -Xmx475g -Xms475g -Xmn440g -XX:SurvivorRatio=48 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=48 -XX:+AlwaysPreTouch -XX:+UseParallelOldGC -XX:-UseAdaptiveSizePolicy -XX:-UseBiasedLocking -XX:+AggressiveOpts -XX:+PrintGCDetails -XX:LargePageSizeInBytes=2m -XX:+UseLargePages -XX:MaxTenuringThreshold=15 -XX:+PrintTenuringDistribution
Tuning numactl used to affinitize each Backend JVM to a single NUMA node
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmx3g -Xms2g -Xmn2g -XX:+UseParallelOldGC -XX:ParallelGCThreads=48
Tuning numactl used to affinitize each Backend JVM to a single NUMA node
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 364167 368353 372539 376725 380911
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 93483 223942 261614 281846 285683 213248
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 4186 - / 4186 - / 4186 - / 4186 - / 4186 - / 4186
1000us 12557 / 16743 4186 / 8372 - / 4186 - / 4186 - / 4186 - / 4186
5000us 330681 / 334866 133947 / 138132 37672 / 41858 29301 / 33487 20929 / 25115 - / 4186
10000us 343238 / 347424 267893 / 272079 142318 / 146504 125575 / 129761 96274 / 87902 - / 4186
25000us 347424 / 351610 339052 / 343238 309751 / 313937 297194 / 293008 230221 / 217663 - / 4186
50000us 351610 / 355796 343238 / 347424 326495 / 330681 313937 / 318123 272079 / 251150 20929 / 12557
75000us 351610 / 355796 343238 / 347424 330681 / 334866 322309 / 326495 297194 / 251150 37672 / 29301
100000us 355796 / 359981 343238 / 347424 334866 / 339052 322309 / 326495 297194 / 251150 133947 / 29301
200000us 359981 / 364167 347424 / 351610 339052 / 343238 334866 / 339052 309751 / 293008 175805 / 50230
500000us 364167 / 368353 359981 / 364167 347424 / 351610 343238 / 347424 339052 / 334866 284636 / 184177
1000000us 368353 / - 364167 / 368353 359981 / 364167 355796 / 359981 351610 / 355796 326495 / 330681

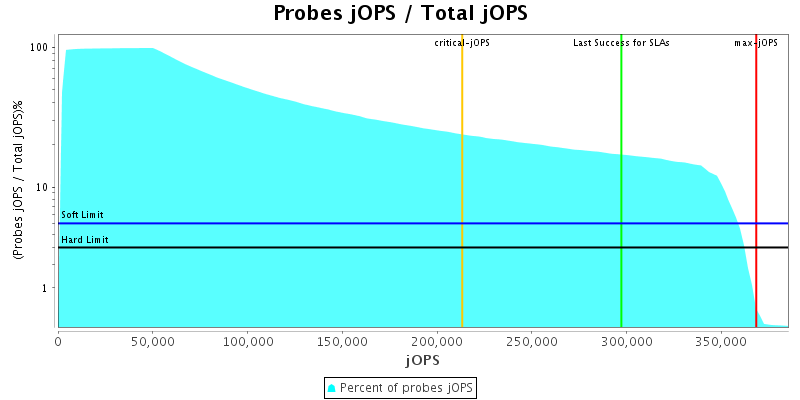

Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

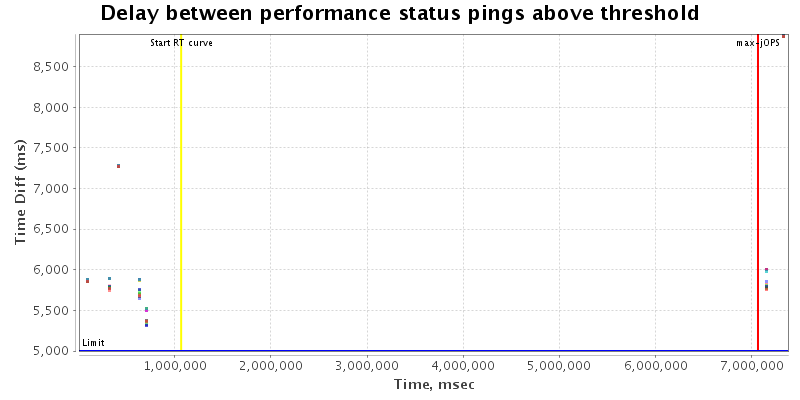

Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 8
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.controller.handshake.timeout 600000 800000
specjbb.forkjoin.workers 384 {Tier1=180, Tier2=65, Tier3=23}
specjbb.group.count 1 8
specjbb.heartbeat.threshold 100000 600000
specjbb.mapreducer.pool.size 384 72
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 418583 IR
High-bound (settled) is 386933 IR
