SPECjbb2015
Copyright © 2015-2016 Standard Performance Evaluation Corporation
Dell Inc. PowerEdge R930 205901 SPECjbb2015-MultiJVM max-jOPS
55050 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Dell Inc. Test Sponsor: Dell Inc. Test location: Round Rock, TX Test date: May 5, 2016
SPEC license #: 55 Hardware Availability: Jun-2016 Software Availability: Feb-2016 Publication: Jun 06, 2016
Benchmark Results Summary

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host
(# of groups: 4)
Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorDell Inc.
Vendor URLhttp://dell.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips4
Total Cores96
Total Threads192
Total Memory Amount (GB)512
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameDell Inc. PowerEdge
VendorDell Inc.
Vendor URLhttp://dell.com/
AvailableApr-2016
ModelR930
Form Factor4U Rack.
CPU NameIntel Xeon E7-8890 v4
CPU Characteristics24 core, 2.20GHz, 60MB L3 Cache (Turbo Boost Technology up to 3.40 GHz)
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System96
Cores Per Chip24
Threads Per System192
Threads Per Core2
Version2.0.1
CPU Frequency (MHz)2200
Primary Cache32KB(I)+32KB(D) per core
Secondary Cache256 KB (I+D) per core
Tertiary Cache60 MB (I+D) on chip per chip
Other CacheNone
Disk1 x 480 GB SATA SSD
File Systemxfs
Memory Amount (GB)512
# and size of DIMM(s)32 x 16GB
Memory Details2Rx4 PC4-2133P-R; slots 1-4 of risers A-H populated
# and type of Network Interface Cards (NICs)4 x 1 Gbit NICs
Power Supply Quantity and Rating (W)2 x 1100W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server
VendorSUSE
Vendor URLhttp://suse.com/
Version12 SP1
AvailableNov-2015
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Jave SE 8u74
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 1.8.0_74
AvailableFeb-2016
Bitness64
Notesnote
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning
  • CPU Power Management set to Maximum Performance
  • Memory Patrol Scrub Disabled
  • Virtualization Technology Disabled
  • Cstates set to Autonomous
  • Home Snoop mode
  • Uncore Frequency set to Dynamic
  • Energy Efficiency Policy set to Performance
Notes notes
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning None
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -XX:+AggressiveOpts -XX:LargePageSizeInBytes=2m -XX:+AlwaysPreTouch -XX:+UseParallelOldGC -XX:-UseAdaptiveSizePolicy -XX:-UseBiasedLocking -XX:+UseLargePages -Xms29g -Xmx29g -Xmn27g -XX:ParallelGCThreads=48 -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=95 -XX:+PrintTenuringDistribution -XX:MaxTenuringThreshold=15 -XX:+PrintGCDetails -XX:AllocatePrefetchInstr=2 -XX:-UsePerfData
Tuning numactl used to affinitize each Backend JVM to a single memory node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -showversion -Xmn1536m -Xms2g -Xmx2g
Tuning numactl used to affinitize each TxInjector JVM to a single memory node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 203534 205901 208268 210635 213001
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 29583 43389 57983 74550 91117 55050
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 2367 - / 2367 - / 2367 - / 2367 - / 2367 - / 2367
1000us - / 2367 - / 2367 - / 2367 - / 2367 - / 2367 - / 2367
5000us 191701 / 194068 165668 / 168034 52067 / 54434 40234 / 42600 23667 / 26033 - / 2367
10000us 194068 / 196434 177501 / 179868 113601 / 115967 94667 / 97034 28400 / 30767 - / 2367
25000us 194068 / 196434 186968 / 189334 156201 / 158568 123067 / 125434 44967 / 40234 2367 / 4733
50000us 198801 / 201168 186968 / 189334 158568 / 160934 137267 / 139634 59167 / 56800 4733 / 7100
75000us 198801 / 201168 191701 / 189334 163301 / 165668 142001 / 144367 73367 / 75734 4733 / 7100
100000us 198801 / 201168 191701 / 194068 168034 / 170401 156201 / 153834 89934 / 92301 4733 / 7100
200000us 198801 / 201168 194068 / 196434 182234 / 184601 177501 / 179868 158568 / 160934 71000 / 11833
500000us 203534 / 205901 198801 / 201168 194068 / 196434 194068 / 196434 191701 / 194068 172768 / 165668
1000000us 205901 / - 203534 / 205901 201168 / 203534 198801 / 201168 198801 / 201168 191701 / 179868
Number of probes
Probes jOPS / Total jOPS
Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building
Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings

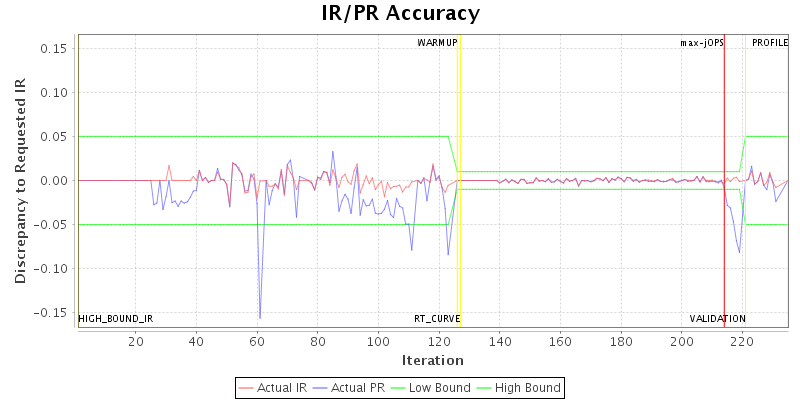

IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller Group1.Backend.beJVM Group1.TxInjector.txiJVM1 Group2.Backend.beJVM Group2.TxInjector.txiJVM1 Group3.Backend.beJVM Group3.TxInjector.txiJVM1 Group4.Backend.beJVM Group4.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size 256 192 256 256 256 256 256 256 256 256
specjbb.comm.connect.selector.runner.count 0 4 0 0 0 0 0 0 0 0
specjbb.comm.connect.timeouts.connect 60000 600000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.timeouts.read 60000 600000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.timeouts.write 60000 600000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.worker.pool.max 256 192 256 256 256 256 256 256 256 256
specjbb.controller.maxir.maxFailedPoints 3 3
specjbb.forkjoin.workers 192 {Tier1=135, Tier2=67, Tier3=25}
specjbb.group.count 1 4
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 236668 IR
High-bound (settled) is 219372 IR
