Huawei Company Huawei KunLun9016 532898 SPECjbb2015-MultiJVM max-jOPS
91260 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Huawei Company Test Sponsor: Huawei Company Test location: Hang Zhou,China Test date: May 8, 2016
SPEC license #: 3175 Hardware Availability: May-2015 Software Availability: Apr-2016 Publication: Jun 01, 2016
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHuawei Company
Vendor URLhttp://www.huawei.com/cn/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips16
Total Cores288
Total Threads576
Total Memory Amount (GB)2048
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameHuawei KunLun9016
VendorHuawei Company
Vendor URLhttp://www.huawei.com/cn/
AvailableMay-2015
ModelHuawei KunLun9016
Form Factor32U
CPU NameIntel Xeon E7-8890 v3
CPU Characteristics18Core,2.50GHz,45MB L3 Cache (Turbo Boost Technology up to 3.30 GHz)
Number of Systems1
Nodes Per System1
Chips Per System16
Cores Per System288
Cores Per Chip18
Threads Per System576
Threads Per Core2
Version(U54)3.21
CPU Frequency (MHz)2500
Primary Cache32KB(I)+32KB(D) per core
Secondary Cache256 KB (I+D) per core
Tertiary Cache45 MB (I+D) on chip per chip
Other CacheNone
Disk2x 600GB 10K RPM
File Systemext4
Memory Amount (GB)2048
# and size of DIMM(s)128 x 16GB
Memory Details2Rx4 PC4-2133P-R
# and type of Network Interface Cards (NICs)None
Power Supply Quantity and Rating (W)4 x 2000W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 12
VendorSUSE
Vendor URLhttp://www.suse.com/
Version3.12.28-4
AvailableOct-2014
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u92
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-Bit Server VM,version 1.8.0_92
AvailableApr-2016
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning None
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(16), jvm_TxInjector_1(16)
OS Image Description os_1
Tuning
  • /proc/sys/kernel/sched_latency_ns=8000000
  • /proc/sys/kernel/sched_min_granularity_ns=6000000
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmx30g -Xms25g -Xmn25g -XX:+UseParallelOldGC
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -Xmx29g -Xms29g -Xmn27g -XX:SurvivorRatio=31 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=36 -XX:+AlwaysPreTouch -XX:+UseParallelOldGC -XX:-UseAdaptiveSizePolicy -XX:-UseBiasedLocking -XX:+AggressiveOpts -XX:+PrintGCDetails -XX:LargePageSizeInBytes=2m -XX:+UseLargePages -XX:MaxTenuringThreshold=15 -XX:+PrintTenuringDistribution
Tuning numactl used to affinitize each Backend JVM to a single memory node
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmx3g -Xms2g -Xmn2g -XX:+UseParallelOldGC -XX:ParallelGCThreads=9
Tuning numactl used to affinitize each Backend JVM to a single memory node
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 519740 526319 532898 539477 546056
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 55921 88816 101974 108553 115132 91260
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 6579 - / 6579 - / 6579 - / 6579 - / 6579 - / 6579
1000us 6579 / 13158 - / 6579 - / 6579 - / 6579 - / 6579 - / 6579
5000us 388160 / 381581 85527 / 92106 52632 / 59211 39474 / 46053 6579 / 13158 - / 6579
10000us 453950 / 460529 125001 / 131580 78948 / 85527 65790 / 72369 52632 / 59211 - / 6579
25000us 493424 / 500003 164475 / 171054 105264 / 111843 98685 / 105264 85527 / 92106 - / 6579
50000us 526319 / 532898 210528 / 190791 131580 / 138159 125001 / 131580 98685 / 105264 - / 6579
75000us 532898 / - 256581 / 223686 138159 / 144738 131580 / 138159 105264 / 111843 19737 / 13158
100000us 532898 / - 289476 / 250002 144738 / 151317 138159 / 144738 111843 / 118422 19737 / 13158
200000us 532898 / - 453950 / 440792 171054 / 177633 164475 / 171054 144738 / 151317 72369 / 26316
500000us 532898 / - 526319 / 532898 289476 / 282897 263160 / 269739 217107 / 223686 125001 / 131580
1000000us 532898 / - 532898 / - 480266 / 486845 473687 / 480266 453950 / 460529 171054 / 177633

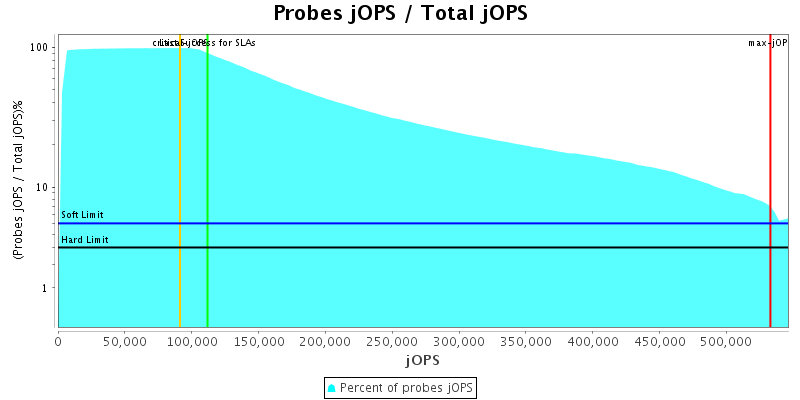

Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

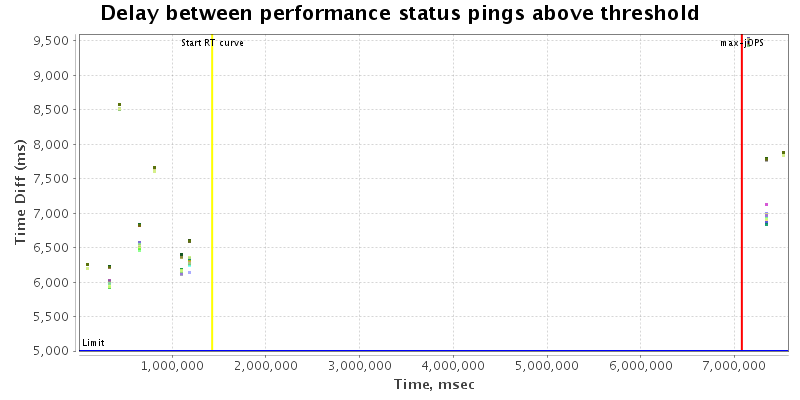

Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 16
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.controller.handshake.timeout 600000 800000
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.forkjoin.workers 576 {Tier1=240, Tier2=65, Tier3=33}
specjbb.group.count 1 16
specjbb.heartbeat.threshold 100000 600000
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 657899 IR
High-bound (settled) is 597993 IR
