Huawei Company Huawei KunLun9008 299880 SPECjbb2015-MultiJVM max-jOPS
80094 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Huawei Company Test Sponsor: Huawei Company Test location: Hang Zhou,China Test date: May 5, 2016
SPEC license #: 3175 Hardware Availability: May-2015 Software Availability: Apr-2016 Publication: Jun 01, 2016
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHuawei Company
Vendor URLhttp://www.huawei.com/cn/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips8
Total Cores144
Total Threads288
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameHuawei KunLun9008
VendorHuawei Company
Vendor URLhttp://www.huawei.com/cn/
AvailableMay-2015
ModelHuawei KunLun9008
Form Factor32U
CPU NameIntel Xeon E7-8890 v3
CPU Characteristics18Core,2.50GHz,45MB L3 Cache (Turbo Boost Technology up to 3.30 GHz)
Number of Systems1
Nodes Per System1
Chips Per System8
Cores Per System144
Cores Per Chip18
Threads Per System288
Threads Per Core2
Version(U54)3.21
CPU Frequency (MHz)2500
Primary Cache32KB(I)+32KB(D) per core
Secondary Cache256 KB (I+D) per core
Tertiary Cache45 MB (I+D) on chip per chip
Other CacheNone
Disk2x 600GB 10K RPM
File Systemext4
Memory Amount (GB)1024
# and size of DIMM(s)64 x 16GB
Memory Details2Rx4 PC4-2133P-R
# and type of Network Interface Cards (NICs)None
Power Supply Quantity and Rating (W)4 x 2000W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 12
VendorSUSE
Vendor URLhttp://www.suse.com/
Version3.12.28-4
AvailableOct-2014
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u92
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-Bit Server VM,version 1.8.0_92
AvailableApr-2016
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning None
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(16), jvm_TxInjector_1(16)
OS Image Description os_1
Tuning
  • /proc/sys/kernel/sched_latency_ns=8000000
  • /proc/sys/kernel/sched_min_granularity_ns=6000000
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmx30g -Xms25g -Xmn25g -XX:+UseParallelOldGC
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -Xmx29g -Xms29g -Xmn27g -XX:SurvivorRatio=31 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=36 -XX:+AlwaysPreTouch -XX:+UseParallelOldGC -XX:-UseAdaptiveSizePolicy -XX:-UseBiasedLocking -XX:+AggressiveOpts -XX:+PrintGCDetails -XX:LargePageSizeInBytes=2m -XX:+UseLargePages -XX:MaxTenuringThreshold=15 -XX:+PrintTenuringDistribution
Tuning numactl used to affinitize each Backend JVM to a single memory node
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmx3g -Xms2g -Xmn2g -XX:+UseParallelOldGC -XX:ParallelGCThreads=9
Tuning numactl used to affinitize each Backend JVM to a single memory node
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 291988 295934 299880 303826 307772
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 29593 76943 88780 116401 140075 80094
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 3946 - / 3946 - / 3946 - / 3946 - / 3946 - / 3946
1000us - / 3946 - / 3946 - / 3946 - / 3946 - / 3946 - / 3946
5000us 256476 / 260422 35512 / 39458 11837 / 15783 7892 / 11837 7892 / 11837 - / 3946
10000us 272260 / 276205 213073 / 217018 86807 / 90753 67078 / 71024 27621 / 31566 - / 3946
25000us 284097 / 288043 264368 / 268314 213073 / 217018 177561 / 181506 78916 / 74970 - / 3946
50000us 288043 / 291988 272260 / 276205 228856 / 232802 197289 / 201235 86807 / 90753 3946 / 7892
75000us 291988 / 295934 276205 / 280151 236747 / 240693 209127 / 213073 114428 / 118374 3946 / 7892
100000us 295934 / 299880 280151 / 284097 244639 / 248585 217018 / 220964 138103 / 142048 3946 / 7892
200000us 299880 / - 288043 / 291988 268314 / 272260 252531 / 256476 228856 / 232802 23675 / 11837
500000us 299880 / - 299880 / - 291988 / 295934 288043 / 291988 280151 / 284097 248585 / 220964
1000000us 299880 / - 299880 / - 299880 / - 299880 / - 299880 / - 280151 / 284097

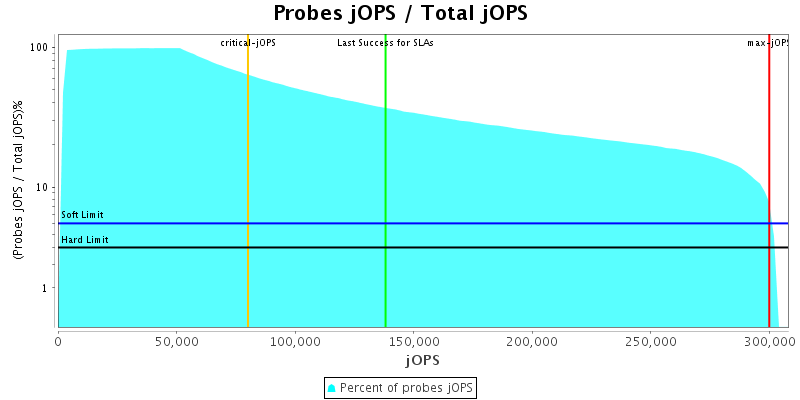

Probes jOPS / Total jOPS

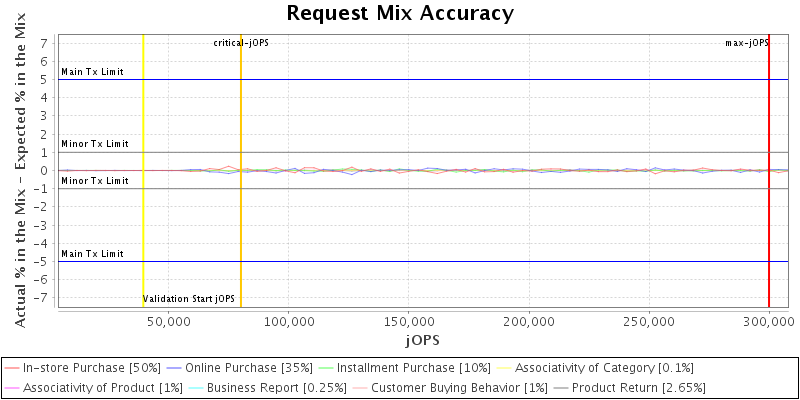

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

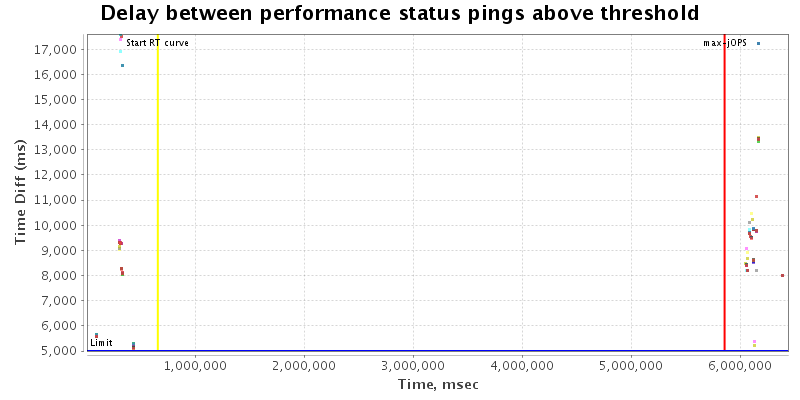

Delay between status pings

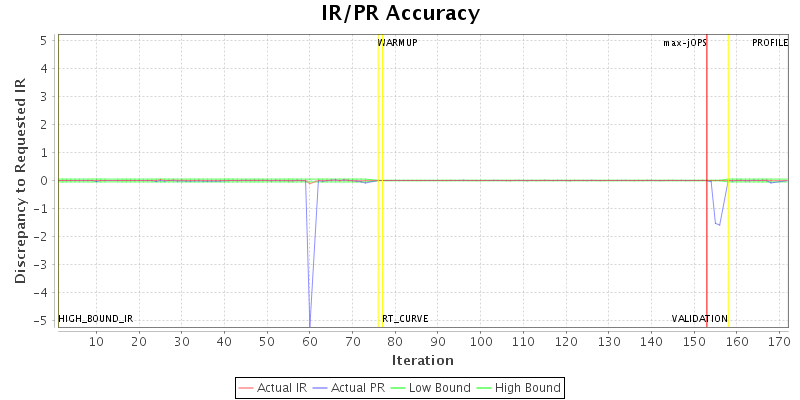

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 8
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.controller.handshake.timeout 600000 800000
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.forkjoin.workers 288 {Tier1=240, Tier2=65, Tier3=33}
specjbb.group.count 1 8
specjbb.heartbeat.threshold 100000 600000
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 394579 IR
High-bound (settled) is 328949 IR
