Huawei Technologies Co., Ltd FusionServer RH2288H V3 92616 SPECjbb2015-MultiJVM max-jOPS
31946 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Huawei Technologies Co., Ltd Test Sponsor: Huawei Technologies Co., Ltd Test location: Shenzhen, China Test date: Dec 20, 2015
SPEC license #: 3175 Hardware Availability: Sep-2014 Software Availability: Oct-2015 Publication: Jan 21, 2016
Benchmark Results Summary

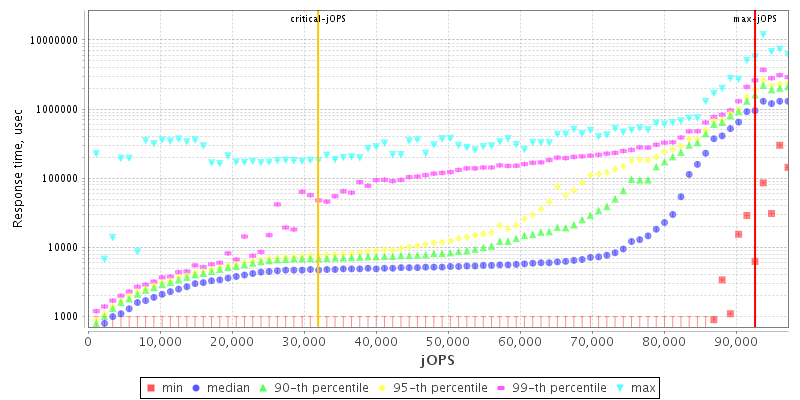

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHuawei Technologies Co., Ltd
Vendor URLhttp://www.huawei.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores36
Total Threads72
Total Memory Amount (GB)256
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameFusionServer RH2288H V3
VendorHuawei Technologies Co., Ltd
Vendor URLhttp://www.huawei.com/
AvailableSep-2014
ModelFusionServer RH2288H V3
Form Factor2U
CPU NameIntel Xeon E5-2699 v3
CPU Characteristics18-Core, 2.30GHz (Turbo Boost Technology up to 3.60 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System36
Cores Per Chip18
Threads Per System72
Threads Per Core2
VersionNone
CPU Frequency (MHz)2300
Primary Cache32KB(I)+32KB(D) per core
Secondary Cache256 KB (I+D) per core
Tertiary Cache45MB (I+D) on chip per chip
Other CacheNone
Disk1x 480GB SSD
File SystemEXT4
Memory Amount (GB)256
# and size of DIMM(s)16 x 16GB
Memory Details256 GB (16 x 16 GB 2Rx4 PC4-2133P-R)
# and type of Network Interface Cards (NICs)2 x 1 Gbit NICs
Power Supply Quantity and Rating (W)1 x 750W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux
VendorRed Hat
Vendor URLhttp://www.redhat.com/
VersionRed Hat Enterprise Linux Server release 7.0 (Maipo)
AvailableMay-2014
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u66
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-Bit Server VM, version 1.8.0_66
AvailableOct-2015
Bitness64
Notesnote
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS tuning
  • Power Policy was set to Performance
  • COD mode was configured
  • Memory Patrol Scrub was set to Disabled
Notes notes
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning
  • SE Linux = Disabled
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -XX:LargePageSizeInBytes=2m -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -Xms29g -Xmx29g -Xmn27g -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=18 -XX:MaxTenuringThreshold=15 -XX:+PrintTenuringDistribution -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning numactl was used to affinitize each Backend JVM to a single numa node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -showversion -Xmn1536m -Xms2g -Xmx2g
Tuning numactl was used to affinitize each TxInjector JVM to a single numa node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 91473 92616 93760 94903 96046
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 23249 27822 31444 37161 44021 31946
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1143 - / 1143 - / 1143 - / 1143 - / 1143 - / 1143
1000us 8004 / 9147 3430 / 4574 2287 / 3430 1143 / 2287 - / 1143 - / 1143
5000us 80039 / 81182 42306 / 43450 18295 / 19438 17151 / 18295 13721 / 14864 - / 1143
10000us 82326 / 83469 74322 / 75465 54884 / 56027 43450 / 44593 24012 / 21725 6860 / 1143
25000us 83469 / 84612 80039 / 81182 68605 / 69748 59457 / 60601 28585 / 26298 6860 / 1143
50000us 84612 / 85756 81182 / 82326 73178 / 74322 64031 / 65174 33159 / 29729 6860 / 1143
75000us 85756 / 86899 82326 / 83469 74322 / 75465 67461 / 65174 36589 / 37733 6860 / 1143
100000us 85756 / 86899 82326 / 83469 77752 / 78895 68605 / 69748 43450 / 44593 6860 / 1143
200000us 88043 / 89186 84612 / 85756 80039 / 81182 77752 / 78895 66318 / 67461 37733 / 1143
500000us 90329 / 91473 88043 / 89186 85756 / 86899 85756 / 86899 84612 / 85756 75465 / 67461
1000000us 92616 / - 92616 / - 90329 / 91473 90329 / 91473 89186 / 90329 84612 / 85756
Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

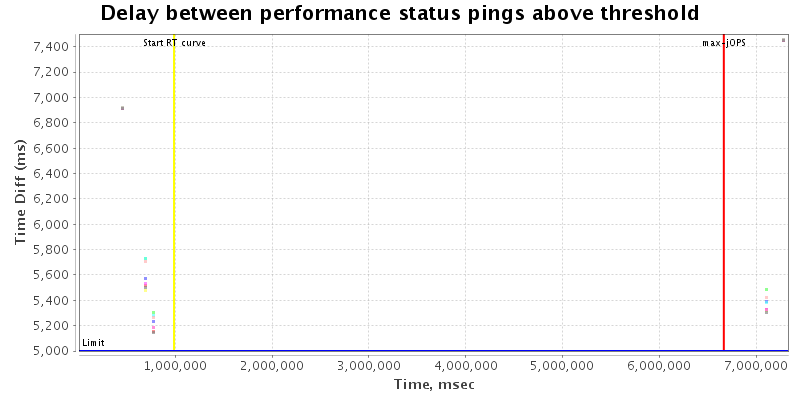

Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 4
specjbb.comm.connect.timeouts.connect 60000 650000
specjbb.comm.connect.timeouts.read 60000 650000
specjbb.comm.connect.timeouts.write 60000 650000
specjbb.comm.connect.worker.pool.max 256 64
specjbb.comm.connect.worker.pool.min 1 32
specjbb.forkjoin.workers 72 90
specjbb.group.count 1 4
specjbb.mapreducer.pool.size 72 18
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 114341 IR
High-bound (settled) is 98323 IR
