Cisco Systems Cisco UCS C460 M4 171642 SPECjbb2015-MultiJVM max-jOPS
53348 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Cisco Systems Test Sponsor: Cisco Systems Test location: San Jose, CA Test date: October 22, 2015
SPEC license #: 9019 Hardware Availability: May-2015 Software Availability: Sep-2015 Publication: Nov 12, 2015
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorCisco Systems
Vendor URLhttp://www.cisco.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips4
Total Cores72
Total Threads144
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameCisco UCS C460 M4
VendorCisco Systems
Vendor URLhttp://www.cisco.com
AvailableMay-2015
ModelCisco UCS C460 M4
Form Factor4RU
CPU NameIntel Xeon E7-8890 v3
CPU Characteristics18Core, 2.50GHz, 45MB L3 Cache (Turbo Boost Technology up to 3.30 GHz)
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System72
Cores Per Chip18
Threads Per System144
Threads Per Core2
VersionNone
CPU Frequency (MHz)2500
Primary Cache32KB(I)+32KB(D) per core
Secondary Cache256 KB (I+D) per core
Tertiary Cache45MB (I+D) on chip per chip
Other CacheNone
Disk1x 300GB 10K RPM SAS
File Systemext4
Memory Amount (GB)1024
# and size of DIMM(s)64 x 16GB
Memory Details1024 GB(64 X 16GB 2Rx4 PC4-2133P)
# and type of Network Interface Cards (NICs)1x 1 Gbps NIC, 1x10 Gbps NIC
Power Supply Quantity and Rating (W)4 x 1400W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 12
VendorSUSE
Vendor URLhttp://www.suse.com/
VersionSLES 12
AvailableOct-2014
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u60
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 1.8.0_60
AvailableAug-2015
Bitness64
Notesnote
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS tuning
  • Energy Performance set to Performance Mode
  • CPU Performance set to Enterprise
  • Memory Low Voltage DDR Mode set to Performance Mode
  • Processor C6 Report set to disabled
  • Processor C1E set to disabled
Notes none
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning None
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelOldGC -Xms29g -Xmx29g -Xmn27g -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=36 -XX:MaxTenuringThreshold=15 -XX:+PrintGCDetails
Tuning numactl used to affinitize each Backend JVM to a single memory node
  • numactl --cpunodebind=0 --localalloc
  • numactl --cpunodebind=1 --localalloc
  • numactl --cpunodebind=2 --localalloc
  • numactl --cpunodebind=3 --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -showversion -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 167696 169669 171642 173615 175588
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 28804 44390 56227 70037 85821 53348
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1973 - / 1973 - / 1973 - / 1973 - / 1973 - / 1973
1000us 9864 / 11837 1973 / 3946 - / 1973 - / 1973 - / 1973 - / 1973
5000us 153886 / 155859 116401 / 118374 55241 / 53268 41431 / 43404 19729 / 21702 - / 1973
10000us 157832 / 159805 142049 / 144022 94699 / 96672 78916 / 80889 33539 / 25648 1973 / 3946
25000us 159805 / 161778 153886 / 155859 130211 / 132184 110482 / 112455 45377 / 43404 1973 / 3946
50000us 161778 / 163751 155859 / 157832 134157 / 136130 118374 / 120347 55241 / 57214 1973 / 3946
75000us 161778 / 163751 155859 / 157832 138103 / 140076 124293 / 126266 69051 / 71024 1973 / 3946
100000us 163751 / 165724 157832 / 159805 140076 / 142049 128238 / 130211 84835 / 86808 1973 / 3946
200000us 165724 / 167696 159805 / 161778 151913 / 153886 147967 / 149940 134157 / 136130 102591 / 7892
500000us 169669 / 171642 165724 / 167696 159805 / 161778 159805 / 161778 157832 / 159805 149940 / 140076
1000000us 171642 / - 169669 / 171642 167696 / 169669 165724 / 167696 163751 / 165724 159805 / 161778
Probes jOPS / Total jOPS

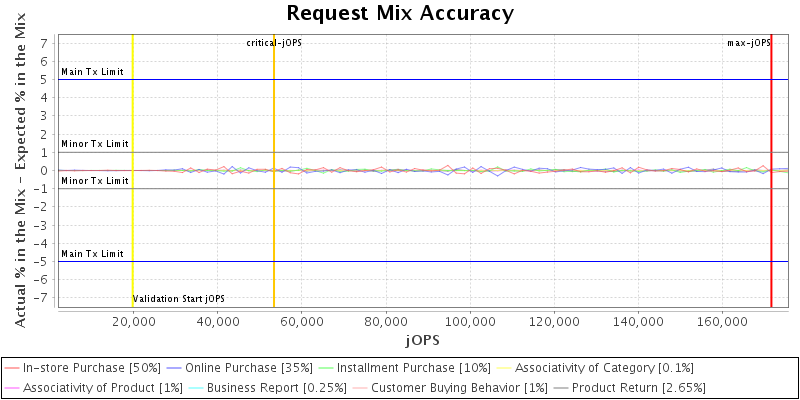

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings

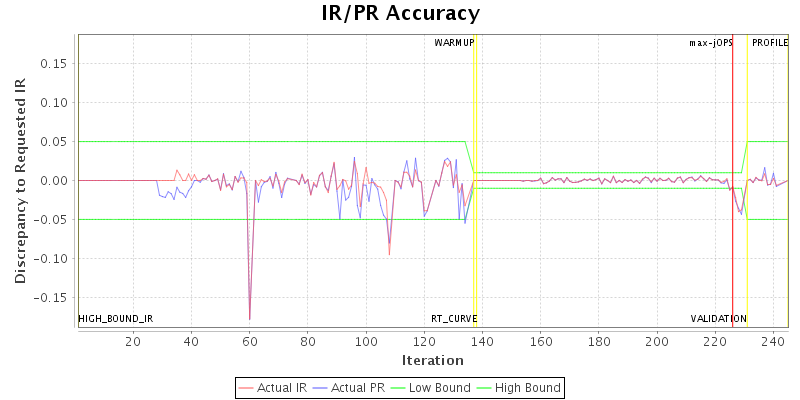

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 4
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 64
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.forkjoin.workers 144 {Tier1=125, Tier2=62, Tier3=22}
specjbb.group.count 1 4
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 197290 IR
High-bound (settled) is 179810 IR
