SPECjbb2015 Report for jbb2015-20150904-00007 : 76773 max-jOPS ; 26458 critical-jOPS

Hardware hw_1
Name	Oracle Server X5-2L
Vendor	Oracle Corporation
Vendor URL	http://www.oracle.com/
Available	Dec-2014
Model	Oracle Server X5-2L
Form Factor	2RU rackmount server
CPU Name	Intel Xeon E5-2699 v3
CPU Characteristics	Intel Turbo Boost Technology up to 3.60 GHz
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	36
Cores Per Chip	18
Threads Per System	72
Threads Per Core	2
Version	None
CPU Frequency (MHz)	2300
Primary Cache	32 KB I + 32 KB D on chip per core
Secondary Cache	256 KB I+D on chip per core
Tertiary Cache	45 MB I+D on chip per chip
Other Cache	None
Disk	2 x 300 GB 10000 RPM SAS disk drive
File System	ZFS
Memory Amount (GB)	512
# and size of DIMM(s)	16 x 32 GB
Memory Details	32GB 4DRx4-2133P-LD0-10-MB1; the first two of each three slots populated
# and type of Network Interface Cards (NICs)	Onboard 10/100/1000 NIC
Power Supply Quantity and Rating (W)	Two hot-swappable and redundant power supplies.
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	None
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	Oracle Solaris 11.2
Vendor	Oracle Corporation
Vendor URL	http://www.oracle.com/
Version	Oracle Solaris 11.2.6.2.0
Available	Oct-2014
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 8u60
Vendor	Oracle Corporation
Vendor URL	http://www.oracle.com
Version	Java HotSpot 64-bit Server VM, version 1.8.0_60
Available	Aug-2015
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description	os_1
Tuning	Chip 1's virtual CPUs were left in the default processor set, and groups 1 and 2 were run there. A processor set was created, and chip 2's virtual CPUs were assigned to it, and groups 3 and 4, and the Controller, were run there.
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	psrset -e 1 priocntl -e -c FX -m 60 -p 60 java -Xmx2048m -Xms2048m -Xmn1536m
Tuning	The controller JVM was run with critical thread priority in processor set 1.
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	[ psrset -e 1 ] priocntl -e -c FX -m 60 -p 60 java -Xmx109g -Xms109g -Xmn101g -XX:+UseParallelOldGC -XX:ParallelGCThreads=16 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+AlwaysPreTouch -XX:-UseBiasedLocking
Tuning	Each backend was run with critical threads priority, two backends with associated transaction injectors in each processor set.
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	[ psrset -e 1 ] priocntl -e -c FX -m 60 -p 60 java -Xmx2048m -Xms2048m -Xmn1536m
Tuning	Each transaction injector was run with critical threads priority, in the same processor set as its associated backend.
Notes	None

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	75956	76773	77589	78406	79223

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	20010	20826	22687	29909	45850	26458

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

There were no non-critical failures in Response Time curve building

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.client.pool.size	256	192
specjbb.comm.connect.worker.pool.max	256	320
specjbb.customerDriver.threads	64	{=64, probe=80, saturate=80}
specjbb.forkjoin.workers	36	{Tier1=160, Tier2=64, Tier3=28}
specjbb.group.count	1	4
specjbb.heartbeat.threshold	100000	100000
specjbb.txi.pergroup.count	1	1


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED

High-bound (max attempted) is 81673 IR

High-bound (settled) is 80550 IR

SPECjbb2015 Version: [SPECjbb2015 1.00, June 24, 2015]

Oracle Corporation Oracle Server X5-2L	76773 SPECjbb2015-MultiJVM max-jOPS 26458 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Oracle Corporation	Test Sponsor: Oracle Corporation	Test location: Burlington, MA	Test date: Aug 29, 2015
SPEC license #: 6	Hardware Availability: Dec-2014	Software Availability: Aug-2015	Publication: Sep 23, 2015

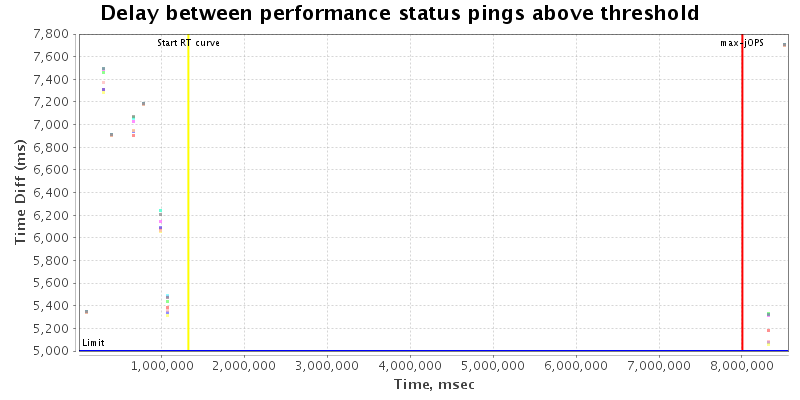

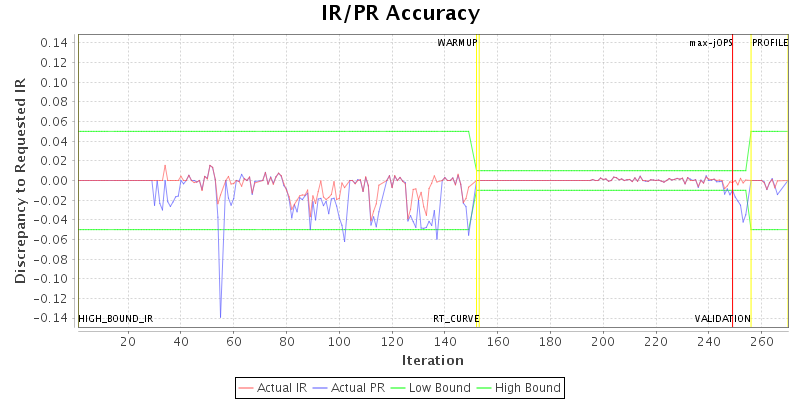

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host (# of groups: 4) Overall SUT Description SUT Description max-jOPS and critical-jOPS Details Number of probes Request Mix Accuracy Rate Of Non-Critical Failures Delay between performance status pings IR/PR Accuracy Topology SUT Configuration Properties Validation Details Link to Full Disclosure	Overall Throughput RT curve
