SPECjbb2013
Copyright © 2012-2014 Standard Performance Evaluation Corporation
Huawei Company Huawei RH2288 V3 CODE DEFECT (CD) RESULT
Tested by: Huawei Company Test Sponsor: Huawei Company Test location: Shen Zhen,China Test date: Aug 20, 2014
SPEC license #: 50 Hardware Availability: Sep-2014 Software Availability: Jul-2014 Publication: Sep 18, 2014
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

SPECjbb2013-MultiJVM: Multiple JVMs/Single Host
(# of groups: 2)

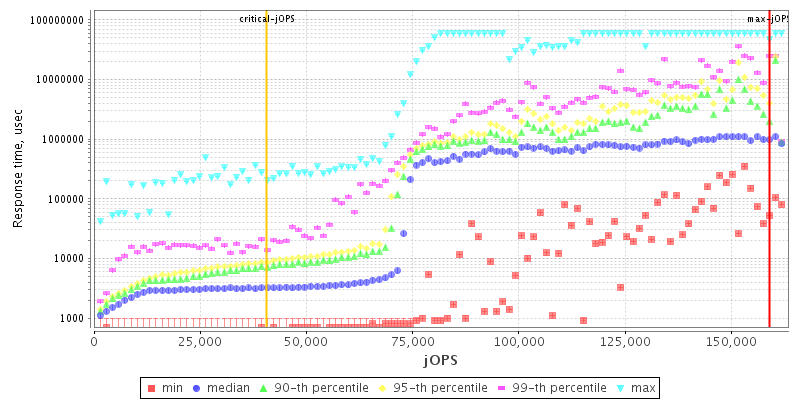

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHuawei Company
Vendor URLhttp://www.huawei.com/cn/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores36
Total Threads72
Total Memory Amount (GB)512GB
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameHuawei RH2288 V3
VendorHuawei Company
Vendor URLhttp://www.huawei.com/cn/
AvailableSep-2014
ModelHuawei RH2288 V3
Form Factor2U
CPU NameIntel Xeon E5-2699 v3
CPU CharacteristicsEighteen-Core, 2.30GHz, 46080KB L3 Cache (Turbo Boost Technology up to 3.60 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System36
Cores Per Chip18
Threads Per System72
Threads Per Core2
Version(U47)8.09
CPU Frequency (MHz)2300
Primary Cache32KB(I)+32KB(D) per core
Secondary Cache256 KB (I+D) per core
Tertiary Cache46080KB (I+D) on chip per chip
Other CacheNone
Disk1x 500GB 7200K RPM
File Systemext4
Memory Amount (GB)512
# and size of DIMM(s)16 x 32GB
Memory Details4Rx4 PC4-2133P ECC
# and type of Network Interface Cards (NICs)None
Power Supply Quantity and Rating (W)1 x 750W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux Server Release 6.5 (Santiago)
VendorRed Hat
Vendor URLhttp://www.redhat.com/
VersionRed Hat Enterprise Linux Server Release 6.5 (Santiago)-2.6.32-431.el6.x86_64
AvailableNov-2013
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u11
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot Server VM Version 1.8.0_11
AvailableJul-2014
Bitness64
Notesnone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning None
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(2), jvm_TxInjector_1(2)
OS Image Description os_1
Tuning
  • bufcache=None
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn1768m -Xms2g -Xmx2g -XX:ParallelGCThreads=9
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -XX:LargePageSizeInBytes=2m -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -Xms240g -Xmx240g -Xmn200g -XX:SurvivorRatio=14 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=36
Tuning numactl used to affinitize each Backend JVM to a single memory node
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmn1768m -Xms2g -Xmx2g -XX:ParallelGCThreads=9
Tuning numactl used to affinitize each Backend JVM to a single memory node
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 157473 158931 160389 161847 163305
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 6561 56136 60510 67801 73633 40670
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1458 - / 1458 - / 1458 - / 1458 - / 1458 - / 1458
1000us 2916 / 4374 - / 1458 - / 1458 - / 1458 - / 1458 - / 1458
5000us 72904 / 74362 68530 / 69988 24787 / 26245 14581 / 16039 2916 / 4374 - / 1458
10000us 74362 / 75820 71446 / 72904 56865 / 58323 46659 / 48117 5832 / 7290 - / 1458
20000us 74362 / 75820 71446 / 72904 68530 / 69988 67072 / 68530 45200 / 29162 - / 1458
50000us 74362 / 75820 72904 / 74362 69988 / 71446 68530 / 69988 55407 / 56865 1458 / 2916
100000us 74362 / 75820 72904 / 74362 69988 / 71446 68530 / 69988 61239 / 59781 17497 / 2916
200000us 86027 / 78736 72904 / 74362 71446 / 72904 69988 / 71446 67072 / 68530 32078 / 18955
500000us 139976 / 135601 86027 / 84569 74362 / 75820 72904 / 74362 72904 / 74362 67072 / 68530
1000000us 158931 / - 158931 / 147266 110814 / 93317 86027 / 84569 75820 / 77278 68530 / 69988

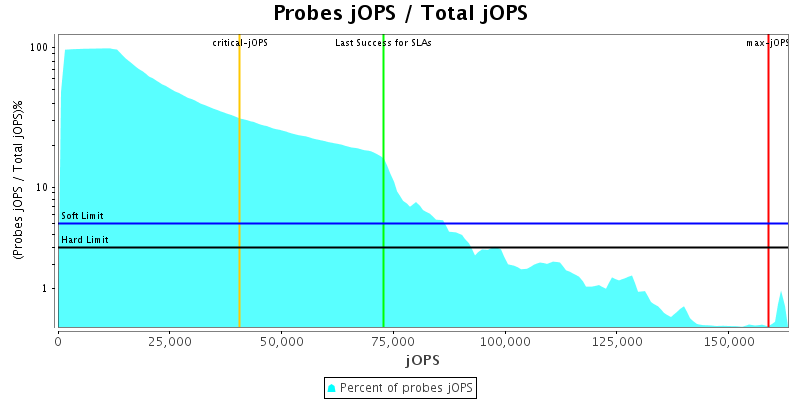

Number of probes
Probes jOPS / Total jOPS

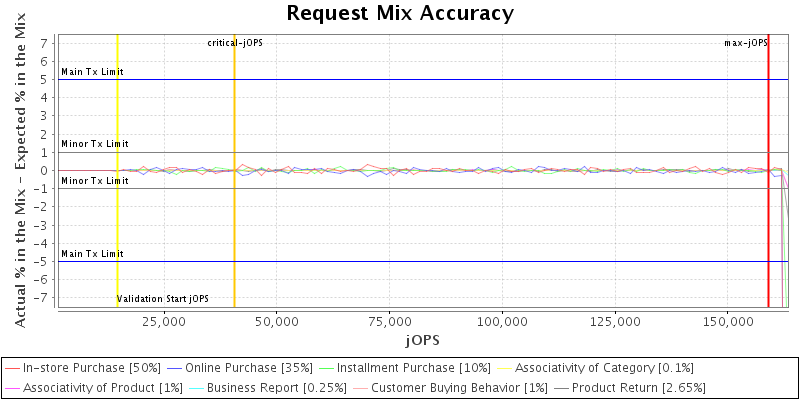

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

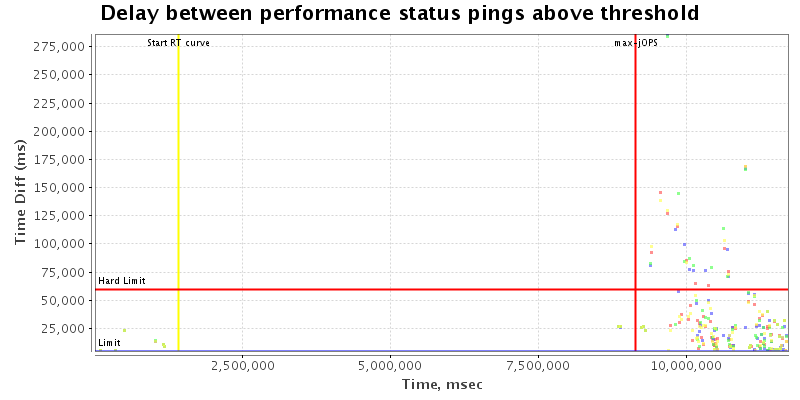

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings
IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.timeouts.connect 60000 300000
specjbb.comm.connect.timeouts.read 60000 300000
specjbb.comm.connect.timeouts.write 60000 300000
specjbb.forkjoin.workers 72 144
specjbb.group.count 1 2
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 145808 IR
High-bound (settled) is 141229 IR
