SPECjbb2013
Copyright © 2012-2014 Standard Performance Evaluation Corporation
Hewlett-Packard Company HP ProLiant ML310e Gen8 CODE DEFECT (CD) RESULT
Tested by: Hewlett-Packard Company Test Sponsor: Hewlett-Packard Company Test location: Houston, TX Test date: Mar 5, 2013
SPEC license #: 3 Hardware Availability: Dec-2012 Software Availability: Dec-2012 Publication: Mar 21, 2013
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

SPECjbb2013-MultiJVM: Multiple JVMs/Single Host
(# of groups: 1)

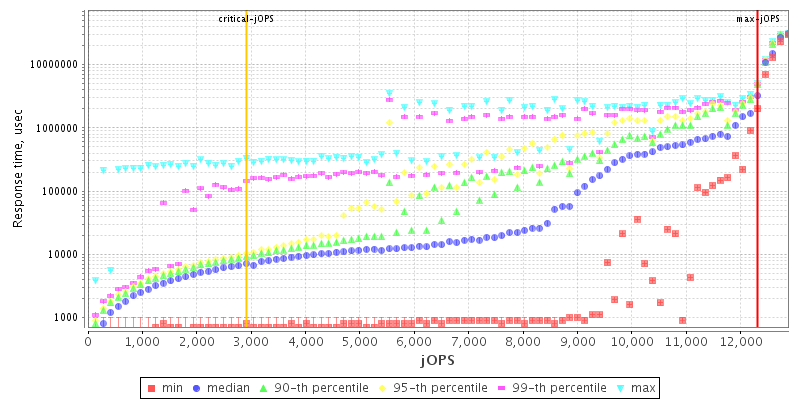

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett-Packard Company
Vendor URLhttp://www.hp.com/
System SourceSingle Supplier
System DesignationServer Tower
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips1
Total Cores4
Total Threads8
Total Memory Amount (GB)32
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameHP ProLiant ML310e Gen8
VendorHewlett-Packard Company
Vendor URLhttp://hp.com/
AvailableDec-2012
ModelHP ProLiant ML310e Gen8
Form FactorRack
CPU NameIntel Xeon E3-1280v2
CPU CharacteristicsTurbo Boost Technology up to 4.00 GHz
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System4
Cores Per Chip4
Threads Per System8
Threads Per Core2
VersionNone
CPU Frequency (MHz)3600
Primary Cache32 KB I + 32 KB D per core
Secondary Cache256 KB I+D per core
Tertiary Cache8 MB I+D on chip per chip
Other CacheNone
Disk1 x 146 GB 15 K SAS (652605-B21)
File SystemNTFS
Memory Amount (GB)32
# and size of DIMM(s)4 x 8192 MB
Memory Details2Rx4 PC3-12800R-11, ECC
# and type of Network Interface Cards (NICs)2 x 1 Gbit NICs
Power Supply Quantity and Rating (W)1 x 460
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameWindows Server 2008 R2 Enterprise
VendorMicrosoft
Vendor URLhttp://www.windows.com/
VersionSP1
AvailableFeb-2011
Bitness64
Notes
  • Lock Pages in Memory: Enabled
  • Performance Options is set to Adjust for best performance
  • Total paging file size for all drives is set to 0 MB
  • Power Options is set to High performance
  • Processor scheduling is set to Programs
Java Virtual Machine jvm_1
NameJava SE 7u15
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot(TM) 64-Bit Server VM, version 1.7.0_15
AvailableMar-2013
Bitness64
Notesnone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning
  • BIOS Configuration
    • SATA AHCI Support set to Enabled
    • HP Power Profile set to Maximum Performance
    • Thermal Configuration set to Maximum Cooling
    • Collaborative Power Control set to Disabled
Notes none
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(1), jvm_TxInjector_1(1)
OS Image Description os_1
Tuning
  • Lock Pages in Memory: Enabled
  • Performance Options is set to Adjust for best performance
  • Total paging file size for all drives is set to 0 MB
  • Power Options is set to High performance
  • Processor scheduling is set to Programs
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line start /b -Xmn1g-Xms2g -Xmx2g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line start /b -XX:+UseLargePages -XX:-UseBiasedLocking -XX:+UseParallelOldGC -Xms12G -Xmx12G -Xmn8G -XX:+PrintGCDetails
Tuning None
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line start /b -Xmn1g -Xms2g -Xmx2g
Tuning None
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 12177 12315 12453 12592 12730
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 1568 1568 2006 6022 7004 2908
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 138 / 277 - / 138 - / 138 - / 138 - / 138 - / 138
1000us 415 / 553 277 / 415 138 / 277 138 / 277 - / 138 - / 138
5000us 6503 / 6365 1937 / 2076 1522 / 1660 1384 / 1522 969 / 1107 138 / 277
10000us 8025 / 8164 4151 / 4289 3044 / 3183 2767 / 2906 1660 / 1384 415 / 277
20000us 8994 / 9132 7610 / 7749 5396 / 5535 4566 / 4705 1660 / 1384 415 / 277
50000us 9132 / 9271 8441 / 8579 6780 / 5535 4705 / 4843 1660 / 1384 415 / 277
100000us 9409 / 9548 8994 / 9132 7472 / 5535 6227 / 5535 2214 / 1799 415 / 277
200000us 9824 / 9963 9409 / 9548 8856 / 7749 8302 / 5535 7195 / 4981 415 / 277
500000us 11761 / 11900 10516 / 10654 9548 / 9686 9409 / 5535 9409 / 5535 8856 / 5535
1000000us 12038 / 12177 11761 / 11900 10654 / 10793 10378 / 5535 10378 / 5535 10378 / 5535
Number of probes
Probes jOPS / Total jOPS
Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building
Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings
IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller Group1.Backend.beJVM Group1.TxInjector.txiJVM1
specjbb.group.count 1 1
specjbb.logLevel INFO INFO
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 13837 IR
High-bound (settled) is 11692 IR
