SPECjbb2005 SPECjbb2005 bops = 2043358, SPECjbb2005 bops/JVM = 170280
IBM Corporation IBM NeXtScale nx360 M4
IBM Corporation IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120204_101769 (JIT enabled, AOT enabled)

JVM run JVM Scores
1168852
2167041
3166546
4169508
5169372
6169411
7174180
8169179
9172582
10173975
11173311
12169401
SPECjbb2005 bops = 2043358, SPECjbb2005 bops/JVM = 170280

Hardware
Hardware Vendor IBM Corporation
Vendor URL http://www.ibm.com
Model IBM NeXtScale nx360 M4
Processor Intel Xeon E5-2697 v2 (Intel Turbo Boost Technology up to 3.5 GHz)
MHz 2700
# of Chips 2
# of Cores 24
# of Cores/Chip 12
HW Threading Enabled? Yes
Procs Avail to Java 48
Memory (MB) 65536
Memory Details 8 x 8192MB, 2Rx4 PC3-14900R; slots 1, 2, 3, 4, 5, 6, 7 and 8 populated
Primary cache 32KBI+32KBD
Secondary cache 256 KB (I+D) on chip per core
Other cache 30 MB per processor
Filesystem NTFS
Disks 1 x 128GB 2.5" SATA SSD
Other hardware
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120204_101769 (JIT enabled, AOT enabled)
JVM Command Line set JAVAOPTIONS=-Xaggressive -Xcompressedrefs -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Initial Heap Memory (MB) 1400
JVM Maximum Heap Memory (MB) 1875
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\IBM\ibm_sdk70\jre\lib\aggressive.jar;
C:\IBM\ibm_sdk70\jre\bin\compressedrefs\jclSC170\vm.jar;
C:\IBM\ibm_sdk70\jre\lib\se-service.jar;
C:\IBM\ibm_sdk70\jre\lib\math.jar;
C:\IBM\ibm_sdk70\jre\lib\jlm.jar;
C:\IBM\ibm_sdk70\jre\lib\ibmorb.jar;
C:\IBM\ibm_sdk70\jre\lib\ibmorbapi.jar;
C:\IBM\ibm_sdk70\jre\lib\ibmcfw.jar;
C:\IBM\ibm_sdk70\jre\lib\ibmpkcs.jar;
C:\IBM\ibm_sdk70\jre\lib\ibmcertpathfw.jar;
C:\IBM\ibm_sdk70\jre\lib\ibmjgssfw.jar;
C:\IBM\ibm_sdk70\jre\lib\ibmjssefw.jar;
C:\IBM\ibm_sdk70\jre\lib\ibmsaslfw.jar;
C:\IBM\ibm_sdk70\jre\lib\ibmjcefw.jar;
C:\IBM\ibm_sdk70\jre\lib\ibmjgssprovider.jar;
C:\IBM\ibm_sdk70\jre\lib\ibmjsseprovider2.jar;
C:\IBM\ibm_sdk70\jre\lib\ibmcertpathprovider.jar;
C:\IBM\ibm_sdk70\jre\lib\xmldsigfw.jar;
C:\IBM\ibm_sdk70\jre\lib\xml.jar;
C:\IBM\ibm_sdk70\jre\lib\charsets.jar;
C:\IBM\ibm_sdk70\jre\lib\resources.jar;
C:\IBM\ibm_sdk70\jre\lib\rt.jar
OS Version Microsoft Windows Server 2008 R2 Enterprise x64 SP1
Other software
Test Information
Tested by IBM Corporation
SPEC license # 11
Test location Taipei, Taiwan
Test date Aug 28, 2013
H/w available Dec 2013
JVM available Mar 2012
OS available July 2008
Other s/w available
AOT Compilation

Tuning
  • Affinity masks set to 0xF, 0xF0, 0xF00, 0xF000, 0xF0000, 0xF00000, 0xF000000, 0xF0000000, 0xF00000000, 0xF000000000, 0xF0000000000, 0xF00000000000
  • Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
  • BIOS Settings
    • Turbo Mode: Enable
    • All Prefetcher: Disable
    • QPI Link Frequency: Max Performance
    • Memory Power Management: Disable
    • Patrol Scrub: Disable
    • Memory Data Scrambling: Disable
    • Active Energy Management: Capping Disabled
    • Power/Performance Bias: Platform Controlled
    • Platform Controlled Type: Max Performance
Notes



JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 54320
2 135817
3 152301
4 169324 *
5 170312 *
6 169532 *
7 167829 *
8 167264 *
SPECjbb2005 (from 4 to 8) 168852 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 28, 2013


JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 55096
2 136726
3 154313
4 168304 *
5 168511 *
6 166961 *
7 166262 *
8 165165 *
SPECjbb2005 (from 4 to 8) 167041 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 28, 2013


JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 55722
2 135641
3 158460
4 169148 *
5 167258 *
6 165885 *
7 165555 *
8 164885 *
SPECjbb2005 (from 4 to 8) 166546 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 28, 2013


JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 52342
2 136167
3 152570
4 170689 *
5 170487 *
6 170090 *
7 168639 *
8 167635 *
SPECjbb2005 (from 4 to 8) 169508 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 28, 2013


JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 55343
2 128703
3 156296
4 171178 *
5 170285 *
6 169685 *
7 168517 *
8 167196 *
SPECjbb2005 (from 4 to 8) 169372 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 28, 2013


JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 56974
2 139774
3 160421
4 172445 *
5 170798 *
6 168617 *
7 166991 *
8 168203 *
SPECjbb2005 (from 4 to 8) 169411 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 28, 2013


JVM 7 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 60639
2 141323
3 163348
4 176974 *
5 175722 *
6 173123 *
7 172996 *
8 172087 *
SPECjbb2005 (from 4 to 8) 174180 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 28, 2013


JVM 8 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 52056
2 138724
3 158448
4 172034 *
5 169237 *
6 168842 *
7 168504 *
8 167278 *
SPECjbb2005 (from 4 to 8) 169179 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 28, 2013


JVM 9 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 54434
2 143531
3 162757
4 174925 *
5 173776 *
6 172504 *
7 171707 *
8 170000 *
SPECjbb2005 (from 4 to 8) 172582 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 28, 2013


JVM 10 Scores:
Warehouses SPECjbb2005 bops Incl. in metric

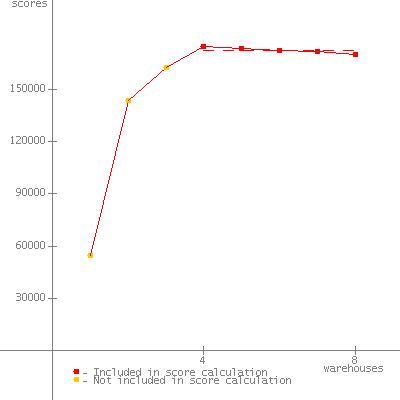

1 55977
2 138248
3 162394
4 176480 *
5 174524 *
6 173747 *
7 172649 *
8 172473 *
SPECjbb2005 (from 4 to 8) 173975 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 28, 2013


JVM 11 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 55571
2 139521
3 160930
4 175547 *
5 173690 *
6 173312 *
7 172455 *
8 171550 *
SPECjbb2005 (from 4 to 8) 173311 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 28, 2013


JVM 12 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 53791
2 136640
3 158538
4 171919 *
5 171010 *
6 168715 *
7 167744 *
8 167618 *
SPECjbb2005 (from 4 to 8) 169401 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 28, 2013

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 02-Oct-2013
