SPECjbb2005 SPECjbb2005 bops = 2441660, SPECjbb2005 bops/JVM = 101736
IBM Corporation IBM Flex System p270 (3.4 GHz, 24 core, RHEL)
IBM Corporation JRE 1.7.0 (32-bit) IBM J9 2.6 Linux (build pxp3270sr3-20121025_01(SR3))

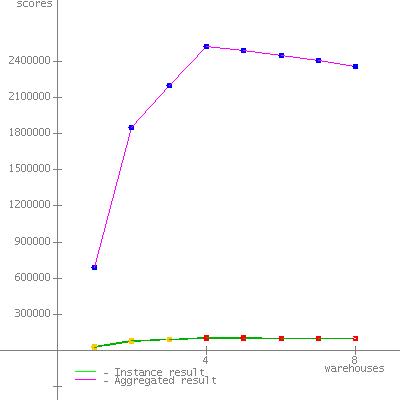

JVM run JVM Scores
199868
2102706
3101082
4103020
5102605
6101502
7102158
8101205
9100877
10102417
11102594
12101772
13102711
14101051
15102789
16101356
17101172
18101794
19101578
20101507
21100800
22101609
23101995
24101492
SPECjbb2005 bops = 2441660, SPECjbb2005 bops/JVM = 101736

Hardware
Hardware Vendor IBM Corporation
Vendor URL http://www.ibm.com
Model IBM Flex System p270 (3.4 GHz, 24 core, RHEL)
Processor POWER7+ (Intelligent Energy Optimization enabled, up to 3787 MHz)
MHz 3416
# of Chips 4
# of Cores 24
# of Cores/Chip 6
HW Threading Enabled? yes
Procs Avail to Java 96
Memory (MB) 262144
Memory Details 16 x 16 GB DDR3 1066 MHz
Primary cache 32 KB I + 32 KB D on chip per core
Secondary cache 256 KB I+D on chip per core
Other cache 10 MB I+D on chip per core
Filesystem ext4
Disks 2 x 177 GB Raid0 SATA SSD 1.8"
Other hardware None
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version JRE 1.7.0 (32-bit) IBM J9 2.6 Linux (build pxp3270sr3-20121025_01(SR3))
JVM Command Line taskset -c [0-3,4-7,...,92-95] -- -Xlp -Xaggressive -Xgcpolicy:gencon -Xgcthreads4 -XlockReservation -Xnoloa -Xms2560m -Xmx2560m -Xmn2048m -XtlhPrefetch spec.jbb.JBBmain -propfile SPECjbb.props
JVM Initial Heap Memory (MB) 2560
JVM Maximum Heap Memory (MB) 2560
JVM Address bits 32
JVM CLASSPATH ./jbb.jar:
./check.jar:
JVM BOOTCLASSPATH /autobench/sources/ibm-java-ppc-70/jre/lib/aggressive.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/ppc/default/jclSC170/vm.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/se-service.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/math.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/jlm.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/ibmorb.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/ibmorbapi.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/ibmcfw.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/ibmpkcs.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/ibmcertpathfw.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/ibmjgssfw.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/ibmjssefw.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/ibmsaslfw.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/ibmjcefw.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/ibmjgssprovider.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/ibmjsseprovider2.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/ibmcertpathprovider.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/xmldsigfw.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/xml.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/charsets.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/resources.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/rt.jar
OS Version Red Hat Enterprise Linux Server release 6.4 (2.6.32-358.6.2.el6.ppc64)
Other software
Test Information
Tested by IBM Corporation
SPEC license # 11
Test location Austin, TX
Test date Jun 29, 2013
H/w available Sep-2013
JVM available Nov-2012
OS available Feb-2013
Other s/w available
AOT Compilation

Tuning
Operating system tunings
  • echo 4500 > /proc/sys/vm/nr_hugepages
  • echo 75497472000 > /proc/sys/kernel/shmmax
  • echo 1152000 > /proc/sys/kernel/shmall
  • ppc64_cpu --dscr=1
Platform tunings
  • The "Dynamic Power Saver - Favor Performance" mode was enabled on "IBM Advanced System Management"
Notes
  • 24 JVMs were run in processor sets each containing 1 core
  • This Compute Node is housed in an "IBM Flex System Enterprise Chassis".


JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 28348
2 74928
3 88391
4 103424 *
5 101555 *
6 99896 *
7 98211 *
8 96253 *
SPECjbb2005 (from 4 to 8) 99868 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 29, 2013


JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 28536
2 84184
3 88852
4 106083 *
5 104485 *
6 102763 *
7 101163 *
8 99038 *
SPECjbb2005 (from 4 to 8) 102706 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 29, 2013


JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 28641
2 75269
3 91682
4 104694 *
5 102724 *
6 100985 *
7 99432 *
8 97574 *
SPECjbb2005 (from 4 to 8) 101082 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 29, 2013


JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 28899
2 74967
3 93263
4 106475 *
5 104858 *
6 102888 *
7 101328 *
8 99553 *
SPECjbb2005 (from 4 to 8) 103020 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 29, 2013


JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 28542
2 75677
3 92180
4 105986 *
5 104317 *
6 102535 *
7 101020 *
8 99168 *
SPECjbb2005 (from 4 to 8) 102605 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 29, 2013


JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 28089
2 73780
3 91233
4 104588 *
5 103282 *
6 101731 *
7 99811 *
8 98097 *
SPECjbb2005 (from 4 to 8) 101502 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 29, 2013


JVM 7 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 26741
2 76604
3 91961
4 105769 *
5 103967 *
6 102362 *
7 100255 *
8 98435 *
SPECjbb2005 (from 4 to 8) 102158 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 29, 2013


JVM 8 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 28769
2 79121
3 90297
4 104763 *
5 102831 *
6 101331 *
7 99613 *
8 97489 *
SPECjbb2005 (from 4 to 8) 101205 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 29, 2013


JVM 9 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 26029
2 78611
3 91114
4 104267 *
5 102806 *
6 100740 *
7 99293 *
8 97280 *
SPECjbb2005 (from 4 to 8) 100877 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 29, 2013


JVM 10 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 31397
2 81746
3 89676
4 105464 *
5 104335 *
6 102207 *
7 101043 *
8 99033 *
SPECjbb2005 (from 4 to 8) 102417 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 29, 2013


JVM 11 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 33339
2 79648
3 92345
4 105559 *
5 104557 *
6 102624 *
7 101071 *
8 99160 *
SPECjbb2005 (from 4 to 8) 102594 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 29, 2013


JVM 12 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 27817
2 75311
3 91085
4 104928 *
5 103703 *
6 101831 *
7 100034 *
8 98363 *
SPECjbb2005 (from 4 to 8) 101772 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 29, 2013


JVM 13 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 32155
2 78926
3 93106
4 105825 *
5 104291 *
6 102480 *
7 101404 *
8 99555 *
SPECjbb2005 (from 4 to 8) 102711 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 29, 2013


JVM 14 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 26634
2 76999
3 90971
4 104523 *
5 102762 *
6 101297 *
7 99207 *
8 97464 *
SPECjbb2005 (from 4 to 8) 101051 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 29, 2013


JVM 15 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 31350
2 79447
3 92781
4 106221 *
5 104628 *
6 102548 *
7 101236 *
8 99314 *
SPECjbb2005 (from 4 to 8) 102789 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 29, 2013


JVM 16 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 31195
2 75296
3 92475
4 104922 *
5 102902 *
6 101276 *
7 99820 *
8 97862 *
SPECjbb2005 (from 4 to 8) 101356 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 29, 2013


JVM 17 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 29327
2 78663
3 91417
4 104951 *
5 102754 *
6 101233 *
7 99374 *
8 97550 *
SPECjbb2005 (from 4 to 8) 101172 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 29, 2013


JVM 18 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 26664
2 75086
3 91643
4 105331 *
5 103578 *
6 101915 *
7 99841 *
8 98304 *
SPECjbb2005 (from 4 to 8) 101794 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 29, 2013


JVM 19 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 26445
2 75588
3 91804
4 104947 *
5 103616 *
6 101767 *
7 99939 *
8 97620 *
SPECjbb2005 (from 4 to 8) 101578 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 29, 2013


JVM 20 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 28063
2 77556
3 93030
4 104582 *
5 103097 *
6 101684 *
7 100019 *
8 98155 *
SPECjbb2005 (from 4 to 8) 101507 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 29, 2013


JVM 21 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 28661
2 73982
3 92412
4 104357 *
5 102749 *
6 100849 *
7 98960 *
8 97084 *
SPECjbb2005 (from 4 to 8) 100800 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 29, 2013


JVM 22 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 27330
2 72916
3 92355
4 104884 *
5 103206 *
6 101534 *
7 99998 *
8 98425 *
SPECjbb2005 (from 4 to 8) 101609 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 29, 2013


JVM 23 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 30402
2 78035
3 92195
4 105555 *
5 103667 *
6 102184 *
7 100427 *
8 98144 *
SPECjbb2005 (from 4 to 8) 101995 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 29, 2013


JVM 24 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 27712
2 80370
3 91326
4 104957 *
5 103236 *
6 101529 *
7 99876 *
8 97864 *
SPECjbb2005 (from 4 to 8) 101492 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 29, 2013

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 21-Aug-2013
